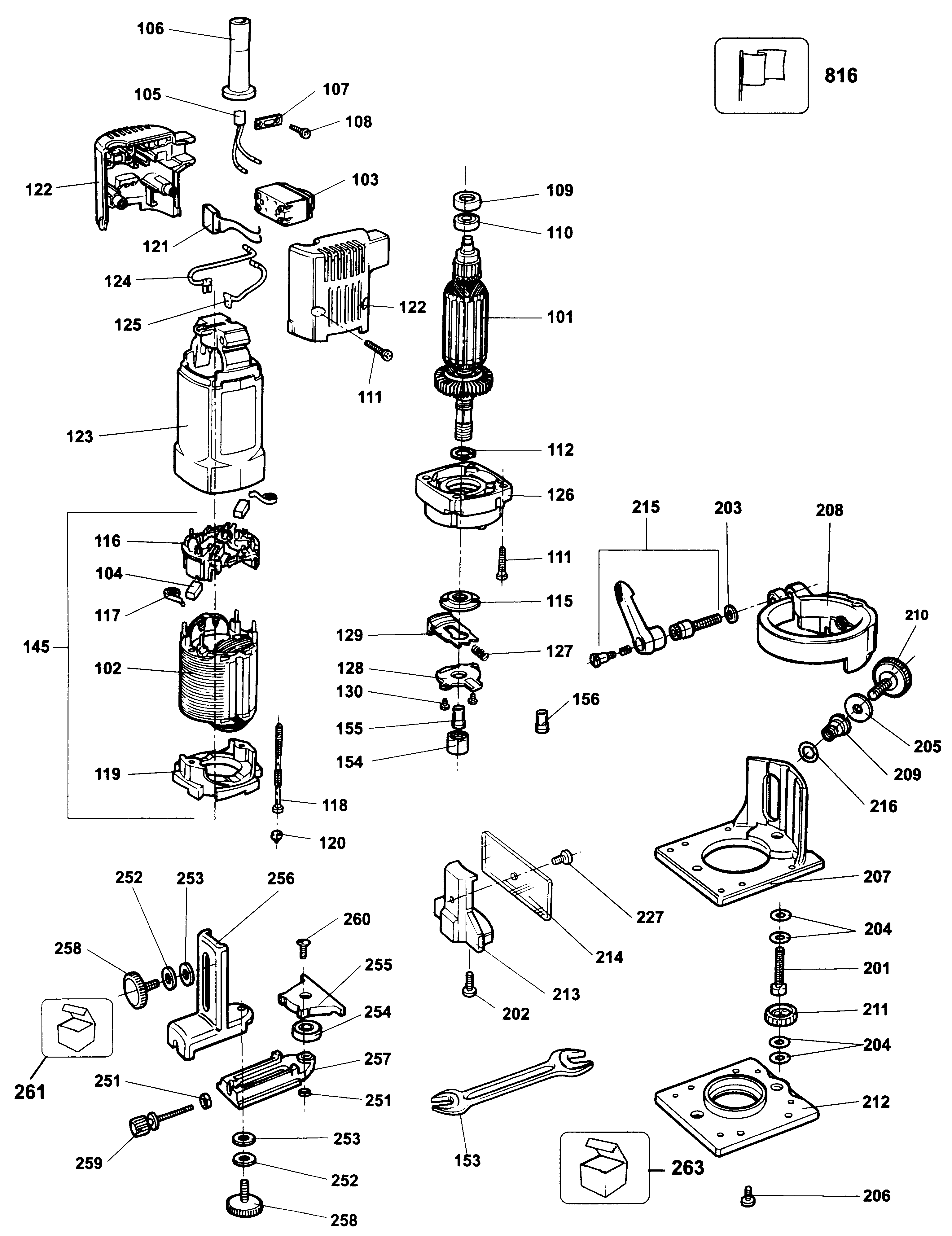

DW670 LAMINATE TRIMMER Type 1 - AS | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 868630-01 | 1 | ARMATURE 120V | TW | |||
| 102 | 868629-03 | 1 | FIELD | TW | |||
| 103 | N566709 | 1 | SWITCH | TW | |||
| 104 | 930802-00 | 2 | BRUSH | TW | |||
| 106 | 949835-01 | 1 | PROTECTOR | TW | |||
| 107 | 930103-00 | 1 | CORD CLAMP | TW | |||
| 108 | 930276 | 2 | SCREW | TW | |||
| 109 | 930029-00 | 1 | HOLDER BEARING | TW | |||
| 110 | 330003-34 | 1 | BEARING | TW | |||
| 111 | 930079-01 | 6 | SCREW | TW | |||
| 112 | 930098-00 | 1 | RETAINER | TW | |||
| 115 | 944484-00 | 1 | LOCKING RING | TW | |||
| 116 | 930749-00 | 1 | BRUSH HOLDER PLATE | TW | |||
| 117 | 930090-00 | 2 | BRUSH SPRING | TW | |||
| 118 | 930077-00 | 2 | SCREW | TW | |||
| 119 | 943173-00 | 1 | BAFFLE | TW | |||
| 120 | 933657-00 | 2 | CAP | TW | |||
| 122 | 943172-02 | 1 | HANDLE SA | TW | |||
| 123 | 943169-02 | 1 | FIELDCASE | TW | |||
| 124 | 949801-11 | 1 | LEAD | TW | |||
| 125 | 949801-10 | 1 | LEAD | TW | |||
| 126 | 944856-00 | 1 | HOUSING LOWER | TW | |||
| 127 | N406641 | 1 | SPRING COMPRESSION | TW | |||
| 128 | 944386-00 | 1 | COVER | TW | |||
| 129 | 947048-00 | 1 | BUTTON SA | TW | |||
| 130 | 930251-01 | 1 | SCREW.TEMP | TW | |||
| 145 | 868629-01 | 1 | FIELD SA | TW | |||
| 153 | 945393-00 | 1 | WRENCH | TW | |||
| 154 | 943270-00 | 1 | COLLET NUT | TW | |||
| 155 | 943269-01 | 1 | COLLET 6.35MM | TW | |||
| 156 | 943269-00 | 1 | COLLET 6MM | TW | |||
| 201 | 860085-26 | 1 | SCREW.TEMP | TW | |||
| 202 | 930770-00 | 1 | SCREW | TW | |||
| 203 | 930925 | 1 | WASHER | TW | |||
| 204 | 932892-00 | 3 | SPACER | TW | |||
| 205 | 942555-00 | 1 | WASHER | TW | |||
| 206 | 949894-12 | 5 | SCREW | TW | |||
| 207 | 947922-00 | 1 | BASE | TW | |||
| 208 | 947923-00 | 1 | SUPPORT | TW | |||
| 209 | 947924-00 | 1 | BUSH | TW | |||
| 210 | 947925-00 | 1 | SCREW | TW | |||
| 211 | 947926-00 | 1 | THUMBSCREW | TW | |||
| 212 | 947927-00 | 1 | BASEPLATE | TW | |||
| 213 | 868996-00 | 1 | BRACKET | FROM 37-2004 | TW | ||
| 214 | 947938-02 | 1 | GUARD | FROM 37-2004 | TW | ||
| 214 | 868950-01 | 1 | GUARD SA | BEFORE 37-2004 | INC 213 - 227 | TW | ||
| 215 | 949723-02 | 1 | LOCK HANDLE | TW | |||
| 216 | 949876-18 | 1 | WASHER SHIM | TW | |||
| 227 | 868995-00 | 1 | RIVET | FROM 37-2004 | TW | ||
| 251 | 860083-10 | 2 | NUT | TW | |||
| 252 | 931407-00 | 2 | WASHER | TW | |||
| 253 | 937545-00 | 2 | WASHER SPRING | TW | |||
| 254 | 330003-34 | 1 | BEARING | TW | |||
| 255 | 946292-00 | 1 | GUIDE FENCE | TW | |||
| 256 | 947936-00 | 1 | BRACKET | TW | |||
| 257 | 947937-00 | 1 | SUPPORT | TW | |||
| 258 | 947939-00 | 2 | SCREW | TW | |||
| 259 | 947940-00 | 1 | SCREW | TW | |||
| 260 | 949889-01 | 1 | SCREW | TW | |||
| 261 | 947934-00 | 1 | COPY FOLLOWER | TW | |||
| 263 | 947889-01 | 1 | FIXED BASE - TRIMMER | TW |
