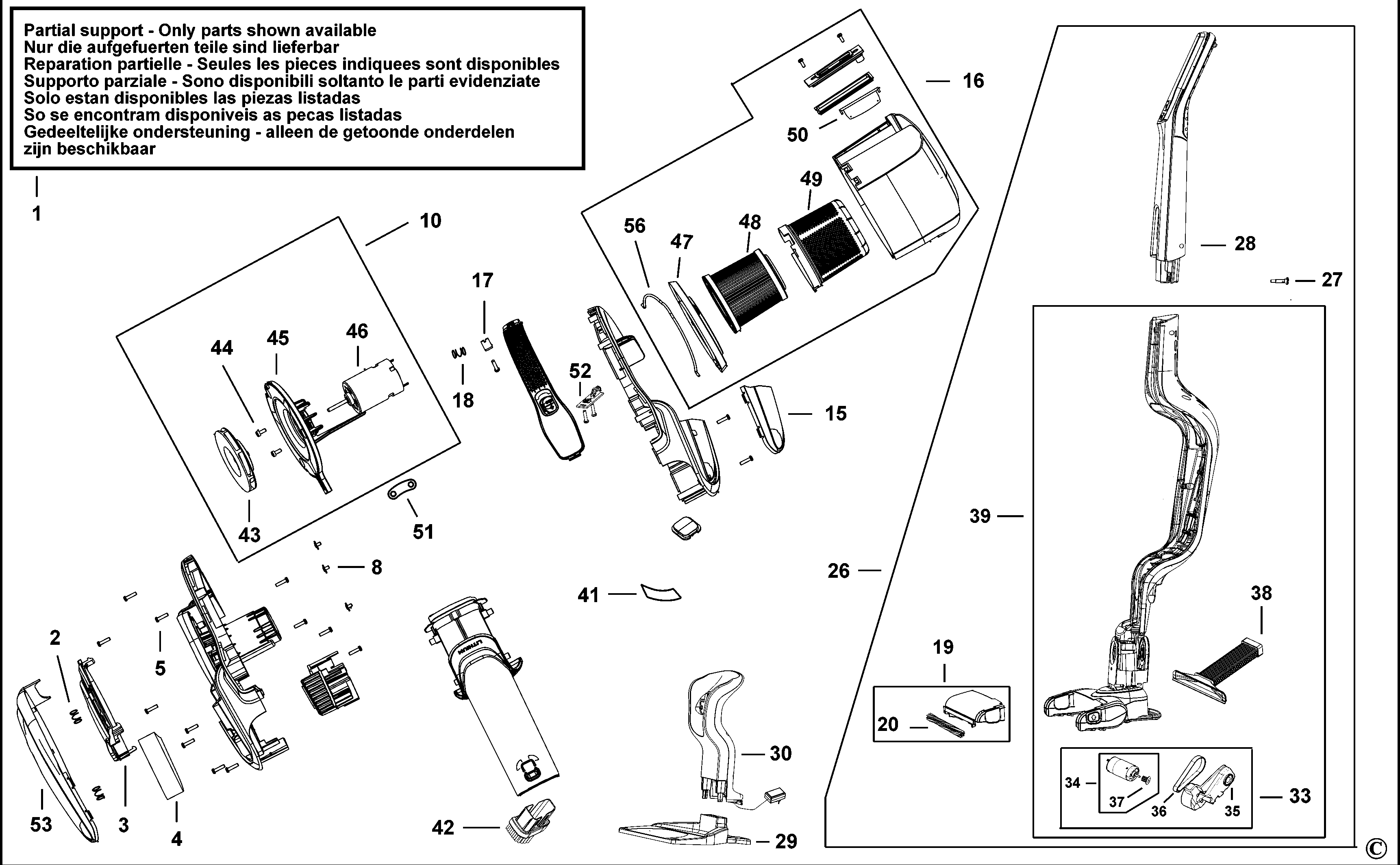

SVJ520BFS DUSTBUSTER Type H1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 000000-05 | 1 | PARTIAL SUPPORT - ONLY PARTS LISTED AVAI | B5 | |||
| 2 | 90627528 | 2 | SPRING | B5 |  |
||
| 3 | 90606955-03 | 1 | LEVER RELEASE | B5 | |
||
| 4 | 90605950 | 1 | EXHAUST | B5 | |
||
| 5 | 90571477-01 | 17 | SCREW | B5 | |
||
| 8 | 90627524 | 3 | SCREW | B5 | |
||
| 10 | 90621178-07 | 1 | MOTOR SA | B5 | |
||
| 15 | 90620997 | 1 | COVER | B5 | |
||
| 16 | 90621435-01 | 1 | BOWL | B5 | |
||
| 17 | 90624626 | 1 | RELEASE | B5 | |
||
| 18 | 90627527 | 1 | SPRING | B5 | |
||
| 19 | 90605475-04 | 1 | HEAD SA | B5 | |
||
| 20 | 90600921 | 1 | ROLLER SA | B5 | |||
| 26 | 90621194 | 1 | FOOT SA | B5 | |
||
| 27 | 90601722 | 1 | SCREW | B5 |  |
||
| 28 | 90603258-12 | 1 | HANDLE SA | B5 | |
||
| 29 | 90602829-01 | 1 | BASE PLATE | B5 | |
||
| 30 | 90634068-01 | 1 | CHARGER | UPPER | B5 | |
|
| 33 | 90608509 | 1 | MOTOR SA & MOUNT | B5 | |||
| 34 | 90626421-01 | 1 | MOTOR SA 12V | B5 | |||
| 35 | N824494 | 1 | MOUNT | B5 | |
||
| 36 | 90592224 | 1 | BELT DRIVE | B5 | |
||
| 37 | N548025 | 1 | GEAR | B5 | |
||
| 38 | 90608567 | 1 | DUCT | B5 | |
||
| 39 | N532399 | 1 | LOWER HANDLE | B5 | |
||
| 42 | 90627690 | 1 | BRUSH | B5 | |
||
| 43 | 90562789-04 | 1 | FAN | B5 | |
||
| 43 | 90562789-04 | 1 | FAN | B5 | |
||
| 44 | 311940-01 | 2 | SCREW | B5 | |
||
| 45 | 90626637 | 1 | SUPPORT | B5 | |
||
| 46 | 90553498-03 | 1 | MOTOR | B5 | |
||
| 47 | N519708 | 1 | FRAME | B5 | |
||
| 48 | 90606058-01 | 1 | FILTER | B5 | |
||
| 49 | 90606057-01 | 1 | PRE-FILTER | B5 | |
||
| 50 | 90615870 | 1 | FLAP | B5 | |
||
| 51 | 90626425 | 1 | RETAINER | B5 | |
||
| 52 | 90620562-01 | 1 | PCB | B5 | |
||
| 53 | 90614011 | 1 | COVER | B5 | |
||
| 56 | 90621658 | 1 | HANDLE | B5 | |
