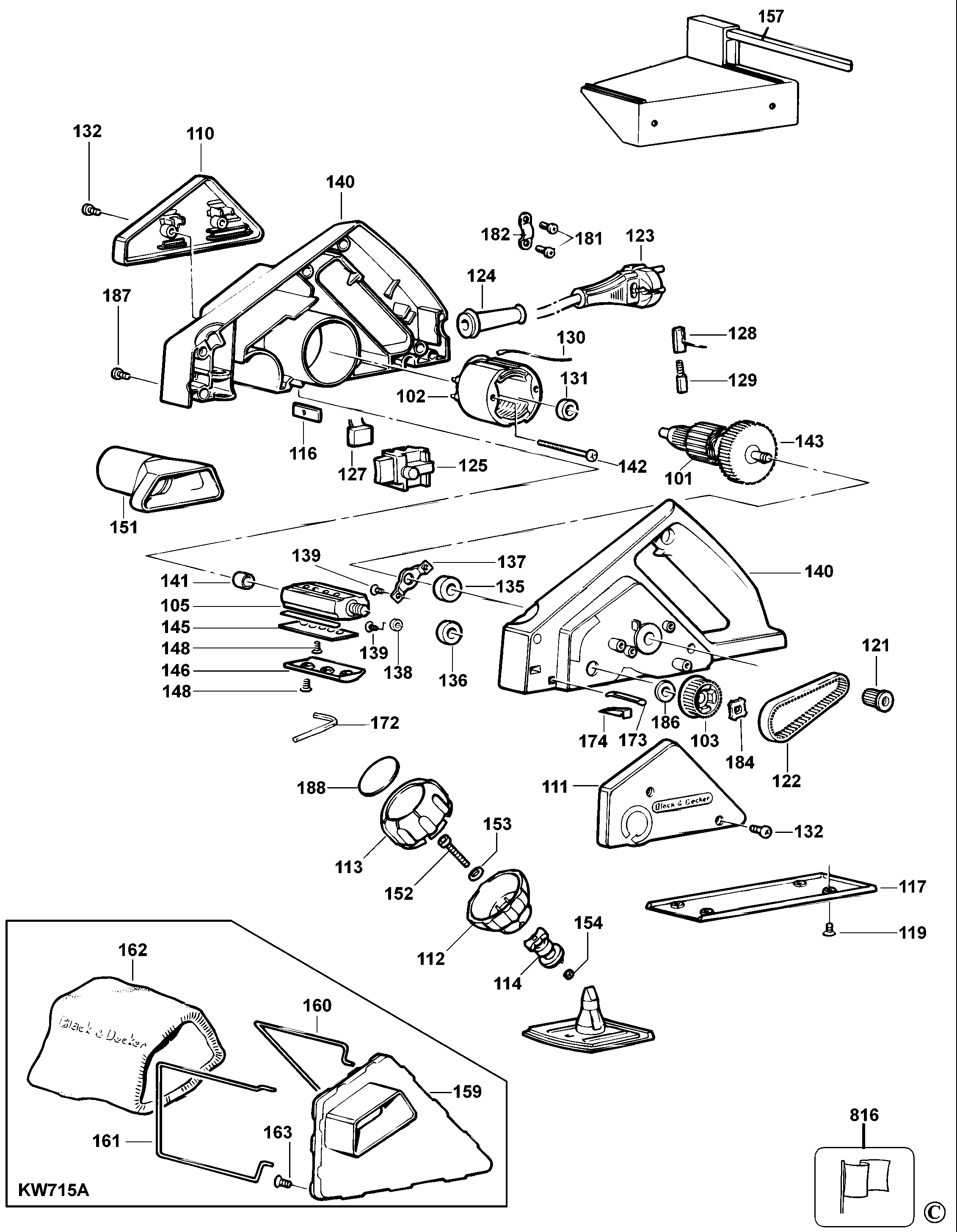

KW715 PLANER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 580704-00 | 1 | SERVICE KIT | AR | |||
| 102 | 580704-00 | 1 | SERVICE KIT | AR | |||
| 103 | 324950-00 | 1 | PULLEY | AR | |||
| 105 | 325830-49 | 1 | BLADEDRUM SA | AR | |||
| 110 | 918595-01 | 1 | END CAP | AR | |||
| 111 | 325479-00 | 1 | COVER BELT | AR | |||
| 112 | 377436-00 | 1 | KNOB,LOWER | AR | |||
| 113 | 377435-01 | 1 | KNOB UPPER | AR | |||
| 114 | 377432-00 | 1 | NUT | AR | |||
| 116 | 918405 | 1 | PLATE | AR | |||
| 117 | 917294-00 | 1 | STATIONARY SHOE | AR | |||
| 119 | 911216-00 | 4 | SCREW | AR | |||
| 121 | 324767-00 | 1 | PULLEY | AR | |||
| 122 | 324830-02 | 1 | BELT | AR | |||
| 123 | 573379-06 | 1 | CORDSET | AR | |||
| 124 | 770235 | 1 | PROTECTOR | AR | |||
| 125 | 322001 | 1 | SWITCH | Lock-Off | AR | ||
| 127 | 321384 | 1 | CAPACITOR | AR | |||
| 128 | 877898 | 2 | BRUSH HOLDER | AR | |||
| 129 | 915068 | 2 | BRUSH | AR | |||
| 130 | 878846 | 2 | LEAD 360MM | AR | |||
| 131 | 878817-00 | 1 | HEAT SINK & BRG | AR | |||
| 132 | 809961-00 | 4 | SCREW | AR | |||
| 135 | 330003-31 | 1 | BEARING | AR | |||
| 136 | 330003-39 | 1 | BEARING | AR | |||
| 137 | 916980-00 | 1 | RETAINER,BRG | AR | |||
| 138 | 917307-00 | 2 | BEARING HOLDER | AR | |||
| 139 | 911388-00 | 4 | SCREW | AR | |||
| 140 | 372937-05 | 1 | CLAMSHELL SET | AR | |||
| 141 | 330004-02 | 1 | BEARING NEEDLE | AR | |||
| 142 | 917424-00 | 2 | SCREW | AR | |||
| 143 | 917752-00 | 1 | FAN | AR | |||
| 145 | 878428-00 | 2 | HOLDER,BLADE | AR | |||
| 146 | 918610-00 | 2 | PLATE | AR | |||
| 148 | 325377-00 | 10 | SCREW.TEMP | AR | |||
| 151 | 917451-00 | 1 | ADAPTOR | AR | |||
| 152 | 571286-00 | 1 | BOLT | AR | |||
| 153 | 571287-00 | 1 | WASHER SPRING | AR | |||
| 154 | 892153-00 | 1 | NUT | AR | |||
| 157 | 878192 | 1 | GUIDE | AR | |||
| 159 | 917549-00 | 1 | MOUTING PLATE | AR | |||
| 160 | 917552-00 | 1 | BAG SUPPORT LG. | AR | |||
| 161 | 917551-00 | 1 | BAG SUPPORT | AR | |||
| 162 | 369640-01 | 1 | BAG COLLECTION | AR | |||
| 163 | 795941-00 | 4 | SCREW | AR | |||
| 172 | 807043-00 | 1 | WRENCH | 4MM | AR | ||
| 173 | 870490-00 | 1 | SPRING | AR | |||
| 174 | 321327-00 | 1 | INSERT,SPRING | AR | |||
| 184 | 325558-00 | 1 | SPACER | AR | |||
| 187 | 809961-00 | 6 | SCREW | AR | |||
| 188 | 570801-00 | 1 | LABEL | AR | |||
| 816 | 326858-04 | 1 | BRAND LABEL | AR |
