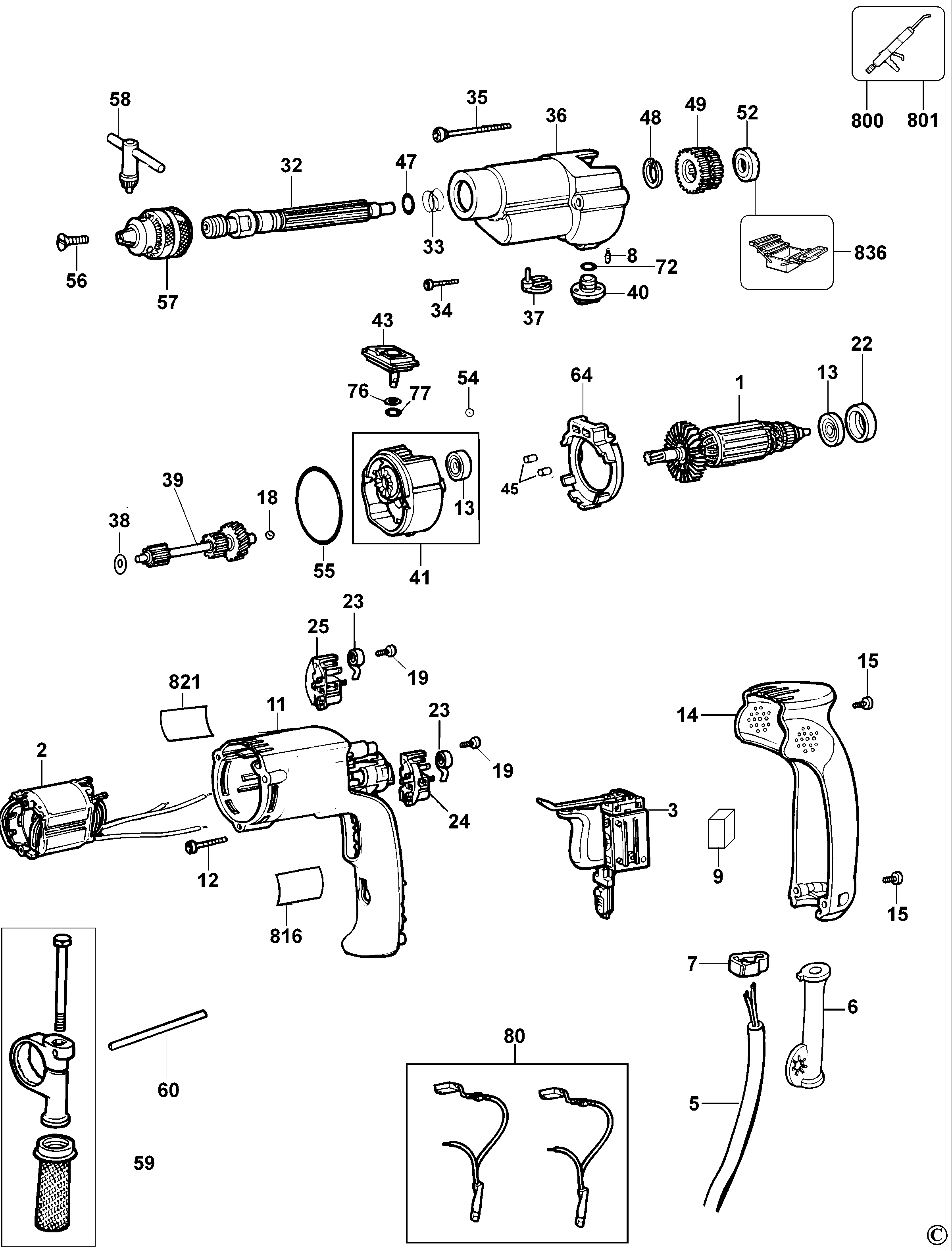

D21720 HAMMER DRILL Type 6 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 495835-01 | 1 | ARMATURE SA | 115 V | B3 | ||
| 2 | N063876 | 1 | FIELD | B3 | |||
| 3 | 1006250-01 | 1 | SWITCH 115V | Marquardt | B3 | ||
| 5 | 330072-73 | 1 | CORDSET | B3 | |||
| 6 | 401751-00 | 1 | CORD PROTECTOR | B3 | |||
| 7 | 603255-00 | 1 | CORD CLAMP | B3 | |||
| 8 | 326467-00 | 2 | DETENT | B3 | |||
| 9 | 930026-01 | 1 | BUMPER | B3 | |||
| 11 | 1007793-01 | 1 | FIELDCASE | B3 | |||
| 12 | 496932-00 | 2 | SCREW | B3 | |||
| 13 | 605040-55 | 2 | BEARING 608 | B3 | |||
| 14 | 610140-01 | 1 | HANDLE COVER | B3 | |||
| 15 | 330019-13 | 3 | SCREW | M4X19 T20 | B3 | ||
| 18 | 936840-00 | 1 | BALL STEEL | B3 | |||
| 19 | 330065-06 | 2 | SCREW | B3 | |||
| 22 | 389824-00 | 1 | BOOT | B3 | |||
| 23 | 402759-00 | 2 | BRUSH SPRING | B3 | |||
| 24 | 401877-01 | 1 | BRUSH HOLDER SA | B3 | |||
| 25 | 401878-01 | 1 | BRUSH HOLDER SA | B3 | |||
| 32 | 628831-00 | 1 | SPINDLE | B3 | |||
| 33 | 931890-00 | 1 | SPRING | B3 | |||
| 34 | 330019-45 | 1 | SCREW | B3 | |||
| 35 | 396614-00 | 2 | SCREW | B3 | |||
| 36 | N407393 | 1 | GEARCASE | B3 | |||
| 37 | 628891-00 | 1 | SELECTOR FORK | SPEED | B3 | ||
| 38 | 176659-00 | 1 | WASHER | B3 | |||
| 39 | 1005918-00 | 1 | PINION SA | B3 | |||
| 40 | 628891-00 | 1 | SELECTOR FORK | SPEED | B3 | ||
| 41 | 578961-05 | 1 | GEARCASE COVER SA | B3 | |||
| 43 | 401734-00 | 1 | SELECTOR,HAMMER | B3 | |||
| 45 | 949638-02 | 2 | DAMPER | B3 | |||
| 47 | 930028-00 | 1 | O RING | B3 | |||
| 48 | 144803-00 | 1 | CIRCLIP | B3 | |||
| 49 | 397239-01 | 1 | GEAR | B3 | |||
| 52 | 945706-00 | 1 | RATCHET | B3 | |||
| 54 | 000903-00 | 1 | BALL | B3 | |||
| 55 | 401847-00 | 1 | SEAL | B3 | |||
| 56 | 605256-01 | 1 | SCREW | B3 | |||
| 57 | 584925-02 | 1 | CHUCK 13MM | B3 | |||
| 58 | N022653 | 1 | CHUCK KEY | B3 | |||
| 59 | 939794-02 | 1 | HANDLE SIDE SA | B3 | |||
| 60 | 940357-00 | 1 | DEPTH STOP | B3 | |||
| 64 | 176811-00 | 1 | BAFFLE | B3 | |||
| 72 | 61145-00 | 1 | SEAL | B3 | |||
| 76 | 050050-00 | 1 | RING | B3 | |||
| 77 | 176659-00 | 1 | WASHER | B3 | |||
| 80 | N063387 | 2 | BRUSH W/LEAD | B3 | |||
| 800 | 286436-00 | 1 | GREASE | NYE RHEOLUBE 380, 500 GRAM JAR | B3 | ||
| 801 | 870889-03 | 1 | GREASE | RENOLIT PARAGON EP ½ - 20 GRAMS | B3 | ||
| 816 | 395047-00 | 1 | BRAND LABEL | B3 | |||
| 821 | N075990 | 1 | RATING PLATE | B3 | |||
| 836 | 559596-99 | 1 | S.T.PULLER | B3 |
