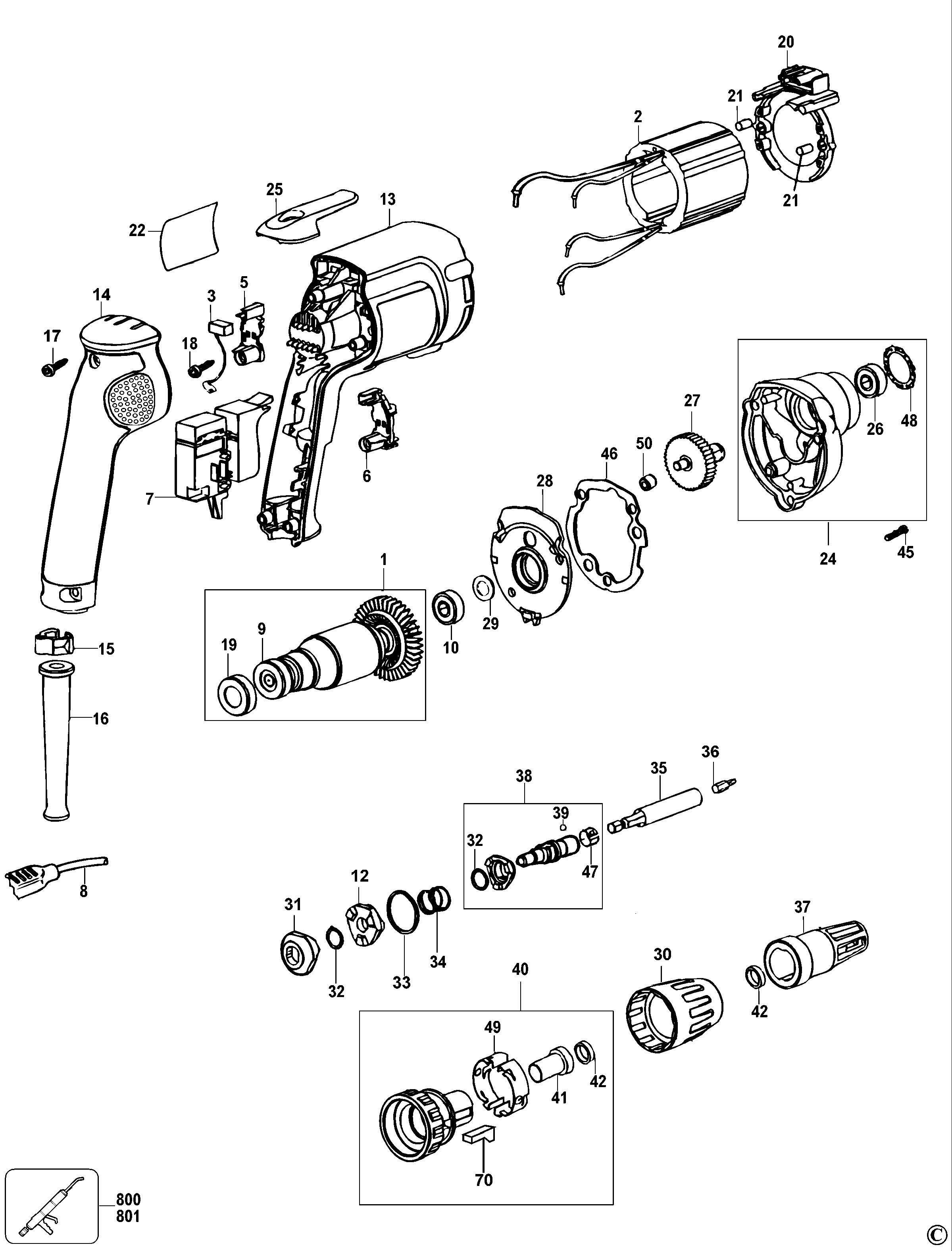

DW255 SCREWDRIVER Type 3 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 579598-04 | 1 | ARMATURE SA | AR | |||
| 2 | 579636-00 | 1 | FIELD 230V | AR | |||
| 3 | 578393-02 | 1 | BRUSH KIT 230V | AR | |||
| 5 | 401877-01 | 1 | BRUSH HOLDER SA | AR | |||
| 6 | 401878-01 | 1 | BRUSH HOLDER SA | AR | |||
| 7 | 176830-15 | 1 | SWITCH | Tyco | AR | ||
| 8 | 573379-02 | 1 | CABLE | AR | |||
| 9 | 330003-04 | 1 | BEARING | AR | |||
| 10 | 330003-04 | 2 | BEARING | AR | |||
| 12 | 386303-00 | 1 | CLUTCH | AR | |||
| 13 | N014399 | 1 | FIELD CASE | AR | |||
| 14 | 176817-04 | 1 | HANDLE COVER | AR | |||
| 15 | 402648-00 | 1 | CORD CLAMP | AR | |||
| 16 | 330005-01 | 1 | CORD PROTECTOR | AR | |||
| 17 | 330019-13 | 3 | SCREW | M4X19 T20 | AR | ||
| 18 | 330065-06 | 2 | SCREW | AR | |||
| 19 | 389824-00 | 1 | BOOT | AR | |||
| 20 | 176811-00 | 1 | BAFFLE | AR | |||
| 21 | 949638-02 | 3 | DAMPER | AR | |||
| 22 | 395047-00 | 1 | BRAND LABEL | AR | |||
| 24 | 388562-00SV | 1 | GEARCASE | AR | |||
| 25 | N045425 | 1 | CLIP | AR | |||
| 26 | 605040-20 | 1 | BEARING | 12 x 28 x 8mm | AR | ||
| 27 | 176695-00SV | 1 | SPINDLE & GEAR | AR | |||
| 28 | 386622-00 | 1 | GEARCASE COVER | AR | |||
| 29 | 176727-00 | 1 | WASHER FIBRE | AR | |||
| 30 | 152492-01 | 1 | COLLAR | AR | |||
| 31 | 392829-00 | 1 | CLUTCH | AR | |||
| 32 | 089210-00 | 2 | RETAINER | AR | |||
| 33 | 386304-00 | 1 | WASHER | AR | |||
| 34 | 176842-00 | 1 | SPRING | AR | |||
| 35 | N449701 | 1 | HOLDER BIT | AR | |||
| 36 | 607904-22 | 1 | BIT SCREWDRIVER | AR | |||
| 37 | 450770-02SV | 1 | LOCATOR | AR | |||
| 38 | 381497-03 | 1 | SPINDLE SA | AR | |||
| 39 | 696631-00 | 1 | BALL | AR | |||
| 40 | N740053 | 1 | CLUTCH SA | PKGD 176632-00 | AR | ||
| 41 | 450907-00 | 1 | SLEEVE | AR | |||
| 42 | 696534-00 | 2 | SEAL | AR | |||
| 45 | 330019-14 | 3 | SCREW | AR | |||
| 46 | 176655-00 | 1 | GASKET | AR | |||
| 47 | 094518-00 | 1 | RETAINER | AR | |||
| 48 | 176689-00 | 1 | RETAINER | AR | |||
| 49 | 391436-00 | 2 | SPRING | AR | |||
| 50 | 910560 | 1 | BEARING | AR | |||
| 70 | 390437-01 | 2 | PLUG | AR | |||
| 800 | 761995-01 | 1 | GREASE | 180 Grams | AR | ||
| 801 | 283484-01 | 1 | GREASE | 32oz, EXXON CVJ | AR |
