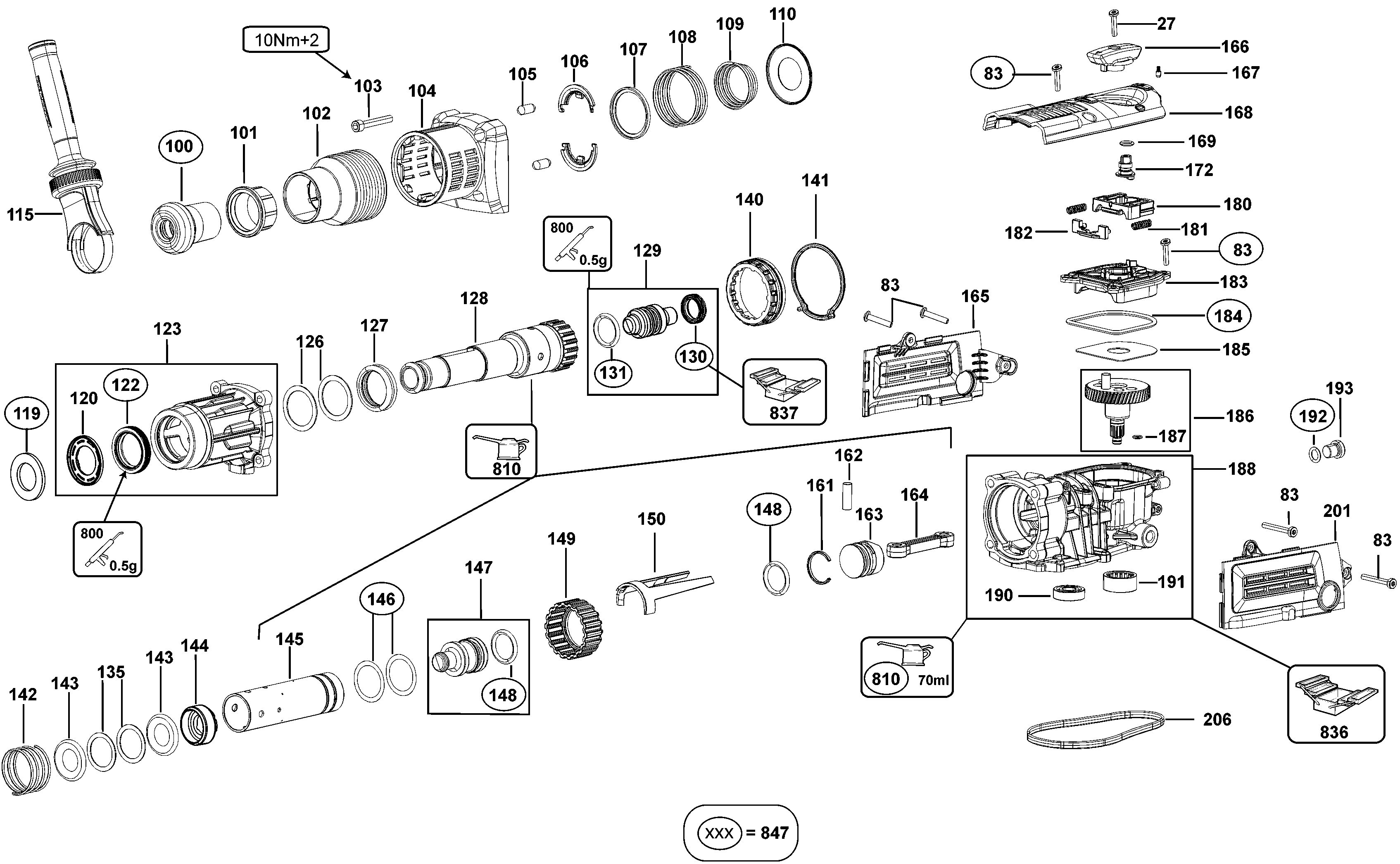

D25820K CHIPPING HAMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N046419 | 1 | ARMATURE 120V | BR | |||
| 2 | N041826 | 1 | FIELD 120V | BR | |||
| 3 | N082756 | 1 | HOUSING MOTOR | 5kg | BR | ||
| 4 | 330003-39 | 1 | BEARING | BR | |||
| 5 | 327141-03 | 1 | SEAL | BR | |||
| 6 | 577746-00 | 1 | RING | BR | |||
| 9 | 330065-21 | 2 | SCREW | BR | |||
| 11 | 1007970-00 | 2 | CONNECTOR | BR | |||
| 20 | N110359 | 1 | BEARING | BR | |||
| 21 | 1007732-00 | 1 | SLEEVE | BR | |||
| 22 | 1007798-00 | 1 | BRIDGE | BR | |||
| 24 | N047425 | 1 | BRUSH PAIR 120V | BR | |||
| 25 | N047445 | 1 | BRUSH & HOLDER 115V | BR | |||
| 26 | N016920 | 1 | BAFFLE FAN | BR | |||
| 27 | 330065-08 | 27 | SCREW | M4x18 T20 | BR | ||
| 28 | 1006592-00 | 1 | FAN | BR | |||
| 29 | 324119-02 | 1 | SCREW | BR | |||
| 40 | N021935 | 1 | END CAP | BR | |||
| 41 | 1006576-02 | 1 | MOTOR COVER | BR | |||
| 45 | 1008798-00 | 1 | HOUSING HANDLE | BR | |||
| 46 | 587114-01 | 1 | TRIGGER | BR | |||
| 47 | 587274-00 | 1 | SWITCH | BR | |||
| 48 | 1008682-00 | 1 | HANDLE COVER | BR | |||
| 69 | N047305 | 1 | SET OF LEAD WIRES | BR | |||
| 72 | 582573-10 | 1 | CORDSET | BR | |||
| 83 | 324007-11 | 19 | SCREW | M5 X 18 | BR | ||
| 85 | 821070 | 1 | CORD CLAMP | BR | |||
| 86 | 323091-01 | 1 | CORD PROTECTOR | BR | |||
| 100 | 329816-00 | 1 | LIP SEAL | BR | |||
| 101 | 326575-01 | 1 | COLLAR | BR | |||
| 102 | 479247-00 | 1 | SLEEVE SA | BR | |||
| 103 | 918825-02 | 4 | SCREW | BR | |||
| 104 | 1006572-00 | 1 | COVER | BR | |||
| 105 | 325878-00 | 2 | ROLLER | BR | |||
| 106 | 325929-00 | 2 | HALF WASHER | BR | |||
| 107 | 327208-00 | 1 | GUIDE | BR | |||
| 108 | 323395-06 | 1 | SPRING | BR | |||
| 109 | 487118-00 | 1 | SPRING | BR | |||
| 110 | 325930-00 | 1 | SPRING GUIDE | BR | |||
| 115 | N073109 | 1 | HANDLE SIDE SA | BR | |||
| 119 | N038151 | 1 | FELT | BR | |||
| 120 | N045793 | 1 | BUSH | BR | |||
| 122 | 1007828-00 | 1 | SEAL | 32x42x7/9 | BR | ||
| 123 | N041835 | 1 | HOUSING | Inc 120, 122 | BR | ||
| 126 | 1005982-00 | 1 | WASHER | BR | |||
| 127 | 496191-00 | 1 | DAMPER | BR | |||
| 128 | N041834 | 1 | SPINDLE | BR | |||
| 129 | N041847 | 1 | BEAT PIECE | BR | |||
| 130 | N244259 | 1 | SEAL | BR | |||
| 131 | 323711-10 | 1 | O RING | BR | |||
| 135 | N064329 | 2 | WASHER | BR | |||
| 140 | 494857-00 | 1 | BUSH | BR | |||
| 141 | 1006283-00 | 1 | GASKET | BR | |||
| 142 | 1005748-00 | 1 | SPRING | 2X40.2 | BR | ||
| 143 | N210233 | 2 | O RING | BR | |||
| 144 | 1006778-00 | 1 | BUSH | BR | |||
| 145 | N041846 | 1 | CYLINDER | BR | |||
| 146 | 577744-00 | 2 | O RING | 25.5 X 2 | BR | ||
| 147 | N041845 | 1 | RAM | 5KG | BR | ||
| 148 | 576232-01 | 2 | O RING | 23 X 4 | BR | ||
| 149 | N041844 | 1 | SLEEVE | BR | |||
| 150 | 1005749-00 | 1 | SELECTOR FORK | BR | |||
| 161 | 325905-00 | 1 | RETAINER | BR | |||
| 162 | 330041-22 | 1 | PIN | BR | |||
| 163 | N041843 | 1 | PISTON | BR | |||
| 164 | 494724-00 | 1 | CON ROD | BR | |||
| 165 | 1008393-00 | 1 | COVER RH | R/H | BR | ||
| 166 | 1006786-00 | 1 | SELECTOR | BR | |||
| 167 | 326467-00 | 1 | DETENT | BR | |||
| 168 | 1006575-01 | 1 | COVER-TOP | BR | |||
| 169 | 323711-57 | 1 | O RING | 8 X 2.2 | BR | ||
| 172 | 496856-00 | 1 | ECCENTRIC | BR | |||
| 180 | 1006784-00 | 1 | SLIDER | 5 KG | BR | ||
| 181 | 323395-32 | 2 | SPRING | BR | |||
| 182 | 1006783-00 | 1 | CONNECTOR | 5 KG | BR | ||
| 183 | 496857-00 | 1 | COVER | BR | |||
| 184 | 323711-59 | 1 | O RING | 65 X 4 | BR | ||
| 185 | 1006785-00 | 1 | PLATE | BR | |||
| 186 | N041841 | 1 | CRANKSHAFT | 5 KG | BR | ||
| 187 | 323711-26 | 1 | O RING | BR | |||
| 188 | N082641 | 1 | HOUSING GEARBOX | BR | |||
| 190 | 577745-01 | 1 | BEARING,BALL | BR | |||
| 191 | 586301-00 | 1 | BEARING,NEEDLE | BR | |||
| 192 | 323711-57 | 1 | O RING | 8 X 2.2 | BR | ||
| 193 | 1008427-00 | 1 | SCREW.SPECIAL | BR | |||
| 201 | 1008392-00 | 1 | COVER LH | R/H | BR | ||
| 206 | 1006282-00 | 1 | GASKET | BR | |||
| 800 | 870889-03 | 1 | GREASE | RENOLIT PARAGON EP ½ - 20 GRAMS | BR | ||
| 810 | N040237 | 1 | TUBE OIL | Renolin PG150 - 90ml | BR | ||
| 816 | N064908 | 1 | BRAND LABEL | BR | |||
| 821 | N286307 | 1 | RATING PLATE | BR | |||
| 836 | 1003938-99 | 1 | SERVICE TOOL | BR | |||
| 837 | 559645-99 | 1 | S.T.SEAL FITTING TOOL | BR | |||
| 847 | N095944 | 1 | SERVICE KIT 120V | BR | |||
| 861 | 574931-23 | 1 | KITBOX | BR |
