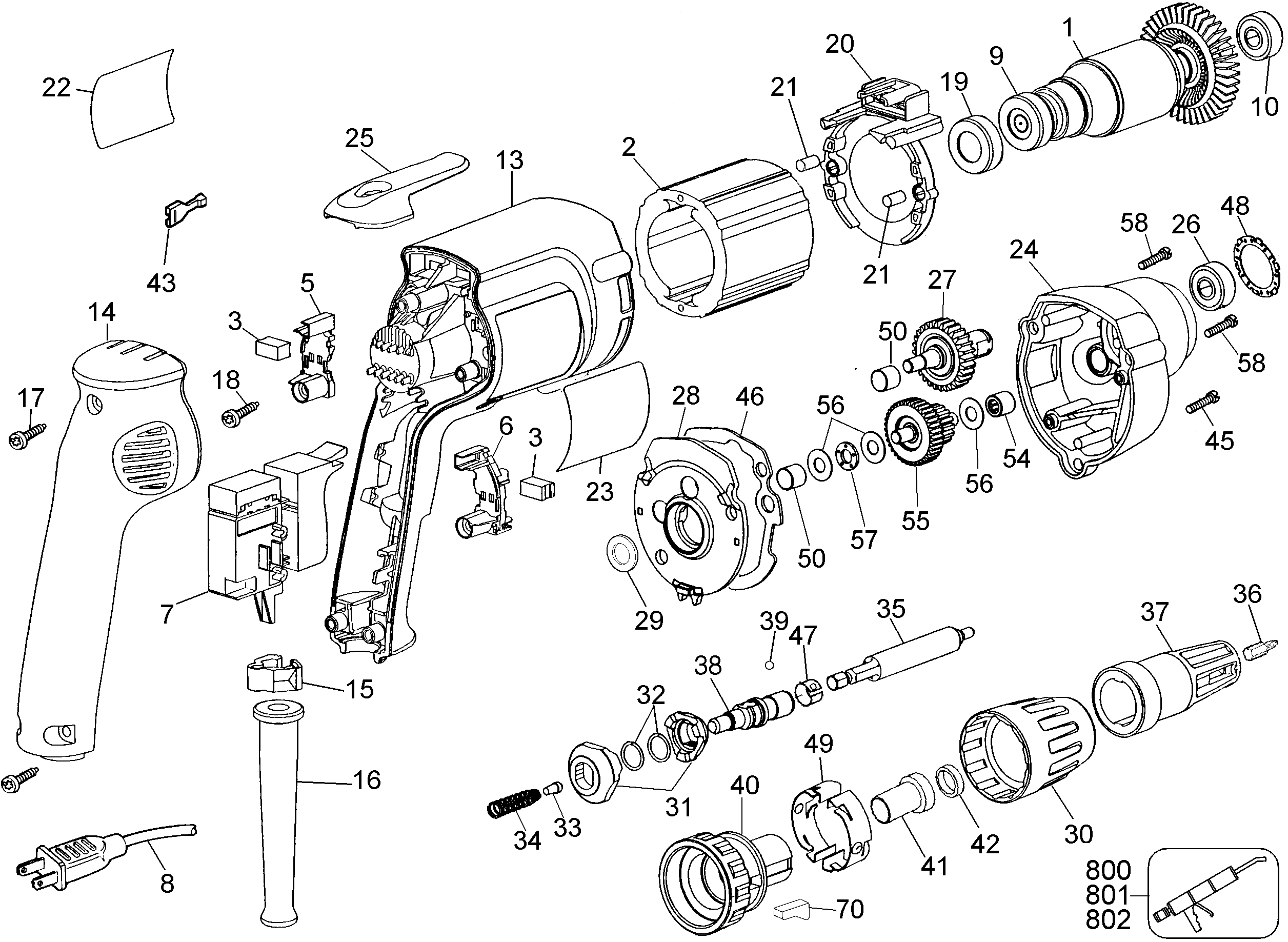

DW257 SCREWDRIVER Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 176853-00SV | 1 | ARMATURE & FAN | 6 TEETH | B3 | ||
| 2 | 620360-00 | 1 | FIELD & LEADS | B3 | |||
| 3 | 176846-04 | 2 | BRUSH 120V | B3 | |||
| 5 | N440279 | 1 | BRUSH HOLDER,L | B3 | |||
| 6 | N440278 | 1 | BRUSH HOLDER,R | B3 | |||
| 7 | 5140109-65 | 1 | SWITCH KIT | INCL. FIELD | B3 | ||
| 8 | 330077-98 | 1 | CORDSET POLARISED | NPP | SEE ITEM 16 NOTE | B3 | |
| 9 | 330003-04 | 1 | BEARING | B3 | |||
| 10 | 330003-04 | 1 | BEARING | B3 | |||
| 13 | 429969-03 | 1 | FIELDCASE | B3 | |||
| 14 | 610140-01 | 1 | HANDLE COVER | B3 | |||
| 15 | 176829-00 | 1 | CORD CLAMP | B3 | |||
| 16 | 330005-01 | 1 | CORD PROTECTOR | FOR 'SJ' CORDS | B3 | ||
| 16 | 148809-00 | 1 | CORD PROTECTOR | NPP | FOR 'S' CORDS | B3 | |
| 17 | 330019-13 | 3 | SCREW | M4X19 T20 | B3 | ||
| 18 | 176951-00 | 2 | SCREW | B3 | |||
| 19 | 949721-03 | 1 | SLEEVE | B3 | |||
| 20 | 176811-00 | 1 | BAFFLE | B3 | |||
| 21 | 949638-02 | 2 | DAMPER | B3 | |||
| 22 | 395047-00 | 1 | BRAND LABEL | B3 | |||
| 23 | 389959-00 | 1 | NP:DW257-B3 T2 | B3 | |||
| 24 | 176706-00SV | 1 | GEARCASE | INC 26, 48, 54 | B3 | ||
| 25 | N045425 | 1 | CLIP | B3 | |||
| 26 | 605040-20 | 1 | BEARING | 12 x 28 x 8mm | B3 | ||
| 27 | 176708-00SV | 1 | SPINDLE & GEAR | 28 TEETH | B3 | ||
| 28 | 388761-00 | 1 | GEARCASE COVER | B3 | |||
| 29 | 023813-00 | 1 | WASHER FIBRE | B3 | |||
| 30 | 152492-01 | 1 | COLLAR | B3 | |||
| 31 | 96558-00 | 1 | CLUTCH | INC 32 | B3 | ||
| 32 | 089210-00 | 2 | RETAINER | B3 | |||
| 33 | 021287-00 | 1 | GUIDE | B3 | |||
| 34 | 86211-00 | 1 | SPRING | B3 | |||
| 35 | N449701 | 1 | HOLDER BIT | B3 | |||
| 36 | 607904-22 | 1 | BIT SCREWDRIVER | DRYWALL PR2 | B3 | ||
| 37 | 612001-01 | 1 | LOCATOR | INC 42 | B3 | ||
| 38 | 176697-00 | 1 | SPINDLE | B3 | |||
| 39 | 696631-00 | 1 | BALL | B3 | |||
| 40 | N740053 | 1 | CLUTCH SA | PKGD 176632-00 | INC 41, 42, 49, 70 | B3 | |
| 41 | 450907-00 | 1 | SLEEVE | B3 | |||
| 42 | 696534-00 | 2 | SEAL | B3 | |||
| 43 | 136086-02 | 4 | TERMINAL | B3 | |||
| 45 | 330019-14 | 1 | SCREW | B3 | |||
| 46 | 176655-00 | 1 | GASKET | B3 | |||
| 47 | 094518-00 | 1 | RETAINER | B3 | |||
| 48 | 176689-00 | 1 | RETAINER | B3 | |||
| 49 | 391436-00 | 2 | SPRING | B3 | |||
| 50 | 093128-00 | 2 | BEARING NEEDLE | B3 | |||
| 54 | 330004-00 | 1 | BEARING | B3 | |||
| 55 | 176731-00SV | 1 | SPINDLE & GEAR | 15/37 TEETH | B3 | ||
| 56 | 176732-00 | 3 | WASHER | B3 | |||
| 57 | 143079-00 | 1 | BEARING THRUST | B3 | |||
| 58 | 330019-16 | 2 | SCREW | B3 | |||
| 70 | 390437-01 | 2 | PLUG | B3 | |||
| 800 | 761995-01 | 1 | GREASE | 180 Grams | 6 OZ | CVJ GREASE | B3 | |
| 801 | 283484-01 | 1 | GREASE | 32oz, EXXON CVJ | B3 | ||
| 802 | 284778-00 | 1 | GREASE | MOLYKOTE G68 | 1-LB | B3 |
