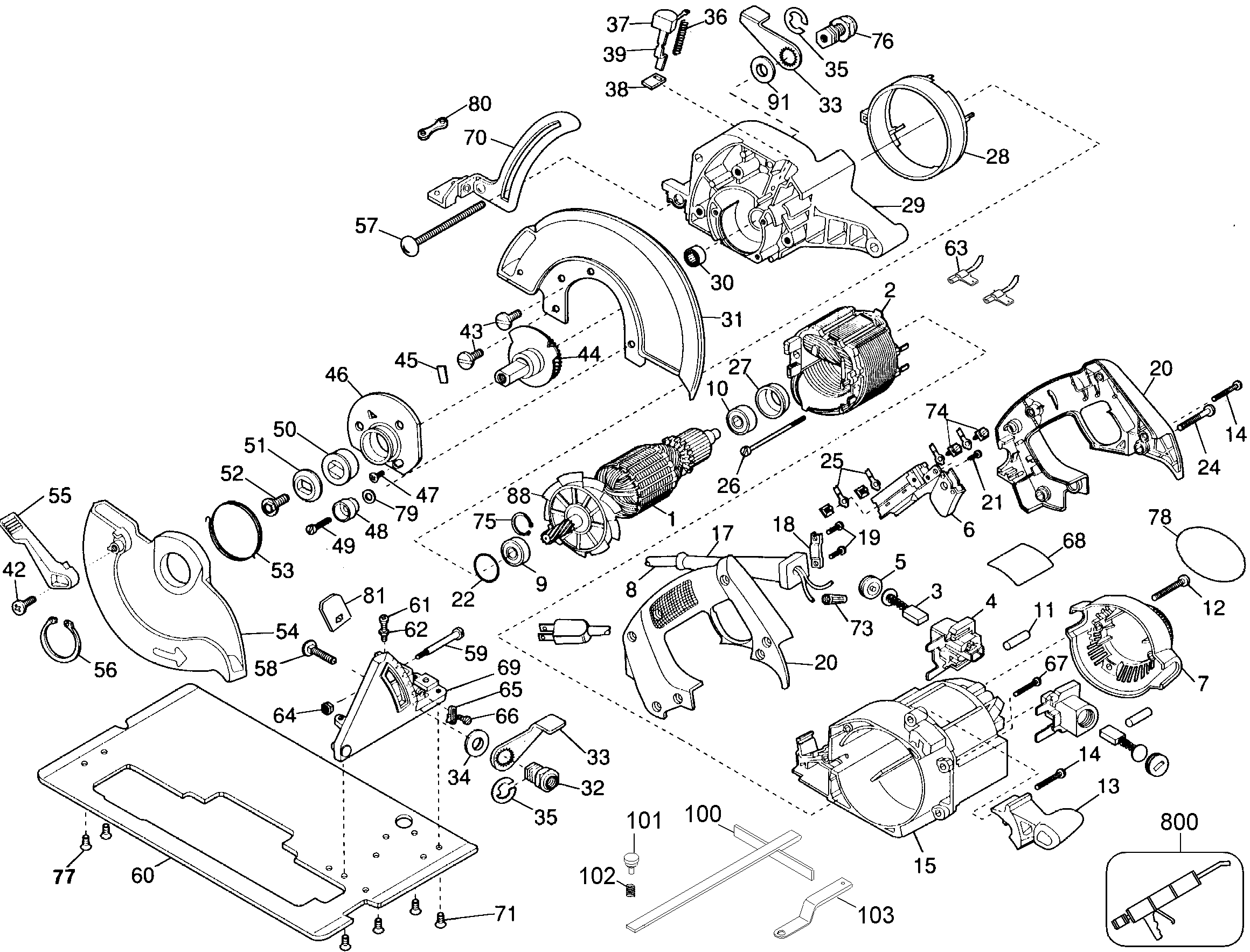

DW389 CIRCULAR SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 392291-02SV | 1 | ARMATURE & FAN | B3 | |||
| 2 | N078043 | 1 | FIELD | 115V | B3 | ||
| 3 | 145323-06 | 2 | BRUSH SA | B3 | |||
| 4 | 147097-09 | 2 | BRUSH HOLDER SA | INC 3, 5 | B3 | ||
| 5 | 448084-01 | 2 | BRUSH CAP | B3 | |||
| 6 | 429981-00 | 1 | SWITCH KIT | B3 | |||
| 7 | 382251-00 | 1 | END CAP SA | INC 11 | B3 | ||
| 8 | 330078-98 | 1 | CORD/10 FT/16-2 | NPP, S JACKET | B3 | ||
| 9 | N110363 | 1 | BEARING | B3 | |||
| 10 | 605040-20 | 1 | BEARING | 12 x 28 x 8mm | B3 | ||
| 11 | 87205-00 | 2 | PLUG | B3 | |||
| 12 | 330019-20 | 2 | SCREW | B3 | |||
| 13 | 144942-02 | 1 | HANDLE | B3 | |||
| 14 | 330019-14 | 6 | SCREW | B3 | |||
| 15 | 144945-02 | 1 | FIELDCASE | B3 | |||
| 17 | 445338-00 | 1 | CORD PROTECTOR | B3 | |||
| 18 | 381065-00 | 1 | CORD CLAMP | B3 | |||
| 19 | 330019-11 | 2 | SCREW | M4.55x13 T20 | B3 | ||
| 20 | 394149-00 | 1 | HANDLE | B3 | |||
| 21 | 330019-10 | 1 | SCREW | B3 | |||
| 22 | 701297-00 | 1 | SEAL | B3 | |||
| 24 | 330019-21 | 3 | SCREW.TEMP | B3 | |||
| 25 | 053650-00 | 4 | TERMINAL | B3 | |||
| 26 | 330019-19 | 2 | SCREW | B3 | |||
| 27 | 137382-01 | 1 | SLEEVE | B3 | |||
| 28 | 145301-00 | 1 | BAFFLE FAN | B3 | |||
| 29 | 5140001-83 | 1 | GEARCASE | INC 30 | B3 | ||
| 30 | 330004-06 | 1 | BEARING NEEDLE | B3 | |||
| 31 | 149519-06 | 1 | GUARD UPPER | B3 | |||
| 32 | 152015-02 | 1 | NUT | B3 | |||
| 33 | 145347-00 | 2 | LEVER | B3 | |||
| 34 | 610744-00 | 1 | NUT | B3 | |||
| 35 | 152211-00 | 2 | RING | B3 | |||
| 36 | 150466-00 | 1 | SPRING | B3 | |||
| 37 | 145350-00 | 1 | BUTTON | B3 | |||
| 38 | 145351-00 | 1 | WIPER | B3 | |||
| 39 | 145349-00 | 1 | LEVER | B3 | |||
| 42 | 330045-13 | 1 | SCREW | M5x0.8x10 MTL THDFMG | B3 | ||
| 43 | 330045-23 | 2 | SCREW | B3 | |||
| 44 | 145353-14SV | 1 | GEAR&SPNDL.ASSY | 47 TEETH | B3 | ||
| 45 | 147194-00 | 1 | SEAL | B3 | |||
| 46 | 610906-00 | 1 | GEARCASE COVER | B3 | |||
| 47 | 098102-13 | 3 | SCREW | B3 | |||
| 48 | 145375-02 | 1 | BUMPER | B3 | |||
| 49 | 330045-27 | 1 | SCREW | B3 | |||
| 49 | 098096-20 | 1 | SCREW | B3 | |||
| 50 | 145442-02 | 1 | INNER FLANGE | B3 | |||
| 51 | 145446-00 | 1 | WASHER OUTER CLAMP | B3 | |||
| 52 | 145344-00 | 1 | SCREW.SPECIAL | B3 | |||
| 53 | N401777 | 1 | TORSION SPRING | B3 | |||
| 54 | 145311-04 | 1 | GUARD LOWER | B3 | |||
| 55 | 392970-00 | 1 | LEVER | B3 | |||
| 56 | 388496-00 | 1 | RETAINER | B3 | |||
| 57 | 148457-00 | 1 | CARRIAGE BOLT | B3 | |||
| 58 | 098128-25 | 1 | BOLT, CARRIAGE | M6x1.0x25 | B3 | ||
| 59 | 396631-00 | 1 | SCREW | B3 | |||
| 60 | 145319-04SV | 1 | SHOE ASSY | INC 69-71, 77 | B3 | ||
| 61 | 098004-36 | 1 | SCREW | B3 | |||
| 62 | 330015-04 | 1 | NUT | B3 | |||
| 63 | 145332-00 | 2 | TERMINAL | B3 | |||
| 64 | 148641-00 | 1 | LOCK-NUT | B3 | |||
| 65 | 145341-00 | 1 | POINTER | B3 | |||
| 66 | 330045-44 | 1 | SCREW | B3 | |||
| 67 | 330045-19 | 4 | SCREW | B3 | |||
| 68 | 153199-01 | 1 | NAMEPLATE | B3 | |||
| 69 | 148193-04SV | 1 | QUADRANT ASSY | B3 | |||
| 70 | 148195-02SV | 1 | PIVOT BRKT.ASSY | B3 | |||
| 71 | 098102-10 | 4 | SCREW.TEMP | M4x10 FLATHD TAPTITE | B3 | ||
| 73 | 32114-01 | 1 | CONNECTOR | B3 | |||
| 74 | 384127-01 | 4 | SCREW | B3 | |||
| 75 | 144803-00 | 1 | CIRCLIP | B3 | |||
| 76 | 152015-03 | 1 | NUT | B3 | |||
| 77 | 98102-08 | 2 | SCREW.TEMP | M4 * 12mm | B3 | ||
| 78 | 149521-01 | 1 | NAMEPLATE | B3 | |||
| 79 | 150246-00 | 1 | SPACER | B3 | |||
| 80 | 145449-00 | 1 | PLATE | B3 | |||
| 81 | 380554-00 | 1 | PLATE | B3 | |||
| 88 | 144793-00 | 1 | FAN | B3 | |||
| 91 | 152014-00 | 1 | WASHER | B3 | |||
| 100 | 037779-01 | 1 | FENCE,RIP | B3 | |||
| 101 | 055005-00 | 1 | KNOB | B3 | |||
| 102 | 058287-00 | 1 | SPRING | B3 | |||
| 103 | 145378-01 | 1 | WRENCH | B3 | |||
| 800 | 5140061-28 | 1 | GREASE | B3 |
