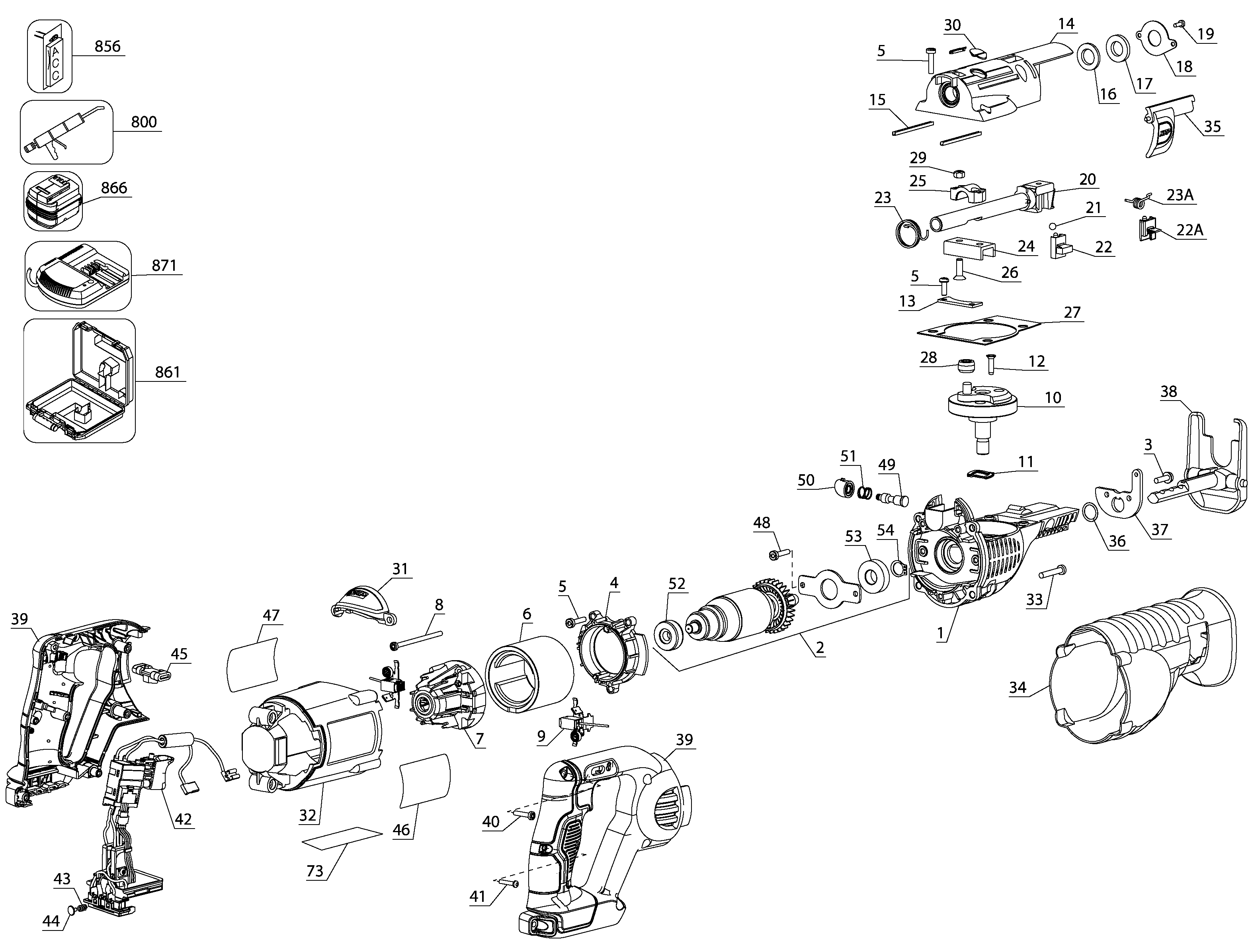

DCS380B CORDLESS RECIPROCATING SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 613138-00SV | 1 | GEARCASE SA | INCL. 49,50,51 | B3 | ||
| 2 | 617376-00SV | 1 | ARMATURE SA | incl. 52,53,54 | B3 | ||
| 3 | 142940-00 | 2 | SCREW | B3 | |||
| 4 | 613137-00 | 1 | BAFFLE FAN | B3 | |||
| 5 | 613619-00 | 9 | SCREW | B3 | |||
| 6 | 611202-00SV | 1 | MAGNET | B3 | |||
| 7 | N171820 | 1 | SUPPORT BEARING | B3 | |||
| 8 | 330019-25 | 2 | SCREW | B3 | |||
| 9 | 610126-00 | 2 | BRUSHBOX SA | B3 | |||
| 10 | 615940-00SV | 1 | GEAR & SPINDLE | B3 | |||
| 11 | 619618-00 | 1 | WASHER SPECIAL | B3 | |||
| 12 | 622484-00 | 3 | SCREW | M4x16 THD FMG | B3 | ||
| 13 | 621173-00 | 1 | SUPPORT PLATE | B3 | |||
| 14 | N027851SV | 1 | GEARCASE COVER | B3 | |||
| 15 | 621979-00 | 2 | STRIP | B3 | |||
| 16 | 618733-00 | 1 | SEAL | B3 | |||
| 17 | 618477-00 | 1 | FELT SEAL | B3 | |||
| 18 | N020720 | 1 | COVERPLATE | B3 | |||
| 19 | 330045-43 | 1 | SCREW | B3 | |||
| 20 | N026647 | 1 | SHAFT SA | B3 | |||
| 21 | 000903-00 | 1 | BALL | B3 | |||
| 22 | N252639 | 1 | SLIDER | After 201609 | B3 | ||
| 22 | 622647-00 | 1 | SLIDER | B3 | |||
| 23 | 622659-00 | 1 | SPRING TORSION | B3 | |||
| 23 | N426742 | 1 | SPRING | After 201609 | B3 | ||
| 24 | 658115-00 | 1 | YOKE | B3 | |||
| 25 | 617000-00 | 1 | SADDLE | B3 | |||
| 26 | 622486-00 | 2 | SCREW | M5x 17 mm T20 HD | B3 | ||
| 27 | N063272 | 1 | GASKET | B3 | |||
| 28 | N021857 | 1 | BEARING | B3 | |||
| 29 | 622485-00 | 2 | LOCK NUT | B3 | |||
| 30 | 621927-00 | 2 | COVER | B3 | |||
| 31 | N030977 | 1 | INSERT | B3 | |||
| 32 | N914377 | 1 | MOTOR HOUSING | pckgd N264499 | B3 | ||
| 33 | 330019-45 | 4 | SCREW | B3 | |||
| 34 | N084697 | 1 | BOOT | B3 | |||
| 35 | N088811 | 1 | LEVER,BLADELOCK | Incl. Label | B3 | ||
| 37 | 617008-00 | 1 | BRACKET | B3 | |||
| 38 | 623511-00SV | 1 | SHOE SA | B3 | |||
| 39 | N347382 | 1 | HANDLE SA | B3 | |||
| 40 | 330019-04 | 6 | SCREW | B3 | |||
| 41 | 682211-00 | 1 | SCREW | B3 | |||
| 42 | N102053 | 1 | SWITCH SA | ALSO REPLACE ITEM 43! | B3 | ||
| 43 | N102647 | 1 | SPRING | Terminal Block Tension spring | B3 | ||
| 44 | N091479 | 1 | MOUNT | Terminal block spring mount | B3 | ||
| 45 | N060864 | 1 | BUTTON LOCK-OFF | B3 | |||
| 46 | N093226 | 1 | LABEL, IDENT | B3 | |||
| 47 | N126100 | 1 | NAME PLATE | DCS380-B3 TY1 | B3 | ||
| 48 | 330045-45 | 2 | SCREW | B3 | |||
| 49 | 615983-00 | 1 | LOCK PIN | B3 | |||
| 50 | 617733-00 | 1 | CAP | B3 | |||
| 51 | 618427-00 | 1 | SPRING | B3 | |||
| 52 | 391032-00 | 1 | BEARING & SEAL | B3 | |||
| 53 | 330003-64 | 1 | BEARING | B3 | |||
| 54 | 696060-00 | 1 | RETAINER | B3 | |||
| 73 | 656673-00 | 1 | WARNING LABEL | multi-language | B3 | ||
| 800 | 286436-00 | 1 | GREASE | NYE RHEOLUBE 380, 500 GRAM JAR | B3 | ||
| 856 | 384428-03 | 1 | BLADE PACK | DW4876 | Not Included with Unit | B3 | |
| 861 | N152704 | 1 | KITBOX | Not Included with Unit | B3 | ||
| 866 | DCB200 | 1 | BATTERY PACK | 20V MAX 3.0Ah SOC | Not Included with Unit | B3 | |
| 871 | DCB115 | 1 | CHARGER | 12-20V 4 Amp | Not Included with Unit | B3 |
