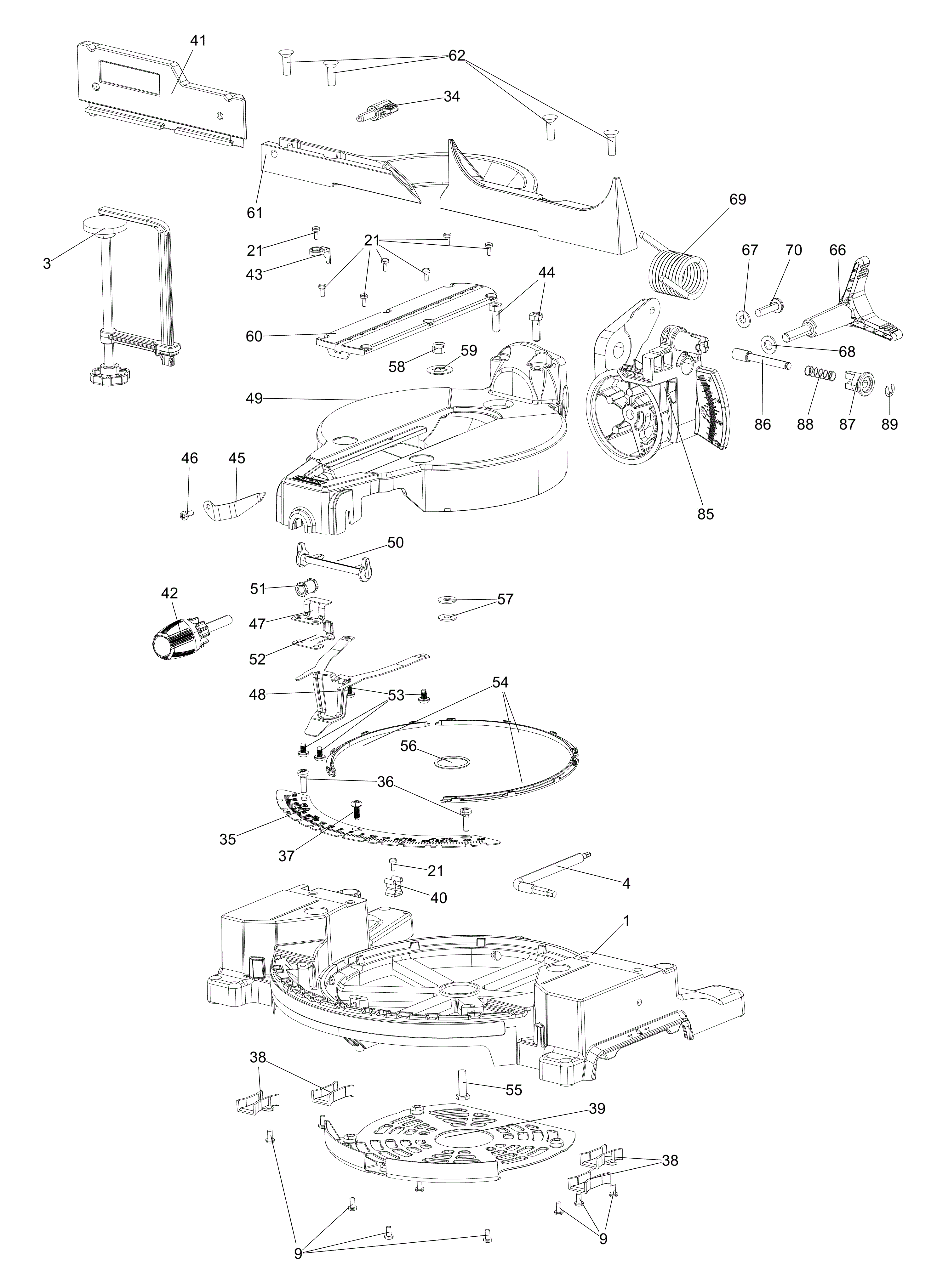

DWS713 MITRE SAW Type 20 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N540816 | 1 | BASE | BR | |||
| 2 | 393868-00 | 1 | ADAPTOR | BR | |||
| 3 | N543041 | 1 | CLAMP SA | BR | |||
| 4 | N600007 | 1 | SPANNER | BR | |||
| 5 | 701297-00 | 1 | SEAL | BR | |||
| 7 | 392628-00 | 1 | SPINDLE & GEAR | BR | |||
| 8 | 330003-29 | 1 | BEARING,BALL | BR | |||
| 9 | 330045-13 | 14 | SCREW | M5x0.8x10 MTL THDFMG | BR | ||
| 10 | 391573-00 | 1 | GEARCASE COVER | BR | |||
| 11 | 391632-00 | 1 | GASKET | BR | |||
| 12 | 330045-14 | 5 | SCREW | BR | |||
| 13 | 146714-00 | 1 | LOCK | BR | |||
| 14 | 398736-00 | 1 | SPRING | BR | |||
| 15 | 146710-00 | 1 | WIPER | BR | |||
| 16 | 145350-00 | 1 | BUTTON | BR | |||
| 17 | N543000 | 1 | GUARD REAR | BR | |||
| 18 | N126158 | 1 | CHUTE | BR | |||
| 19 | N126140 | 1 | HANDLE SA | BR | |||
| 20 | 330019-22 | 2 | SCREW | M5.74x32 | BR | ||
| 21 | 330045-05 | 9 | SCREW | BR | |||
| 22 | 330019-32 | 4 | SCREW | BR | |||
| 23 | 396375-00 | 1 | HANDLE | BR | |||
| 24 | N548978 | 1 | SWITCH | BR | |||
| 25 | 330019-12 | 1 | SCREW | BR | |||
| 26 | N458834 | 4 | SCREW | 6-32 x 5.55mm | BR | ||
| 27 | 330045-08 | 4 | SCREW | BR | |||
| 28 | N377514 | 2 | BUSHING | BR | |||
| 29 | N126153 | 1 | PIVOT SHAFT | BR | |||
| 30 | 146732-00 | 2 | SPACER | BR | |||
| 31 | 150075-00 | 2 | SCREW | BR | |||
| 32 | 394589-01 | 2 | SCREW | BR | |||
| 33 | 153669-00 | 1 | CORD CLAMP | BR | |||
| 34 | N480602 | 2 | KNOB SA | BR | |||
| 35 | N542798 | 1 | BEVEL SCALE | BR | |||
| 36 | 604410-00 | 2 | SCREW | BR | |||
| 37 | 330045-23 | 3 | SCREW | BR | |||
| 38 | N542847 | 1 | HOLDER | BR | |||
| 39 | N542842 | 1 | GUARD | BR | |||
| 40 | 391358-01 | 1 | HOLDER | BR | |||
| 41 | N542866 | 1 | FENCE | w/ label | BR | ||
| 41 | N646420 | 1 | FENCE | w / label | BR | ||
| 42 | N542431 | 1 | KNOB SA | BR | |||
| 43 | N542738 | 1 | POINTER | BR | |||
| 44 | N606924 | 2 | SCREW | M8 X 1.25 X 25 | BR | ||
| 45 | 391631-00 | 1 | POINTER | BR | |||
| 46 | 330045-49 | 1 | SCREW | BR | |||
| 47 | N582377 | 1 | PLATE | BR | |||
| 48 | N542736 | 1 | DETENT | BR | |||
| 49 | N571401 | 1 | TABLE | w / label | BR | ||
| 50 | N542735 | 1 | CAM | BR | |||
| 51 | N366384 | 1 | BUSHING | BR | |||
| 52 | N543960 | 1 | PLATE | BR | |||
| 53 | 330045-22 | 4 | SCREW | M6X10, T30 | BR | ||
| 54 | N571400 | 3 | PLATE | BR | |||
| 55 | N058318 | 1 | SCREW | BR | |||
| 56 | 049787-00 | 1 | O RING | BR | |||
| 57 | 153792-00 | 2 | WASHER | BR | |||
| 58 | 330021-02 | 1 | NUT | BR | |||
| 59 | N556926 | 1 | CAP | BR | |||
| 60 | N542862 | 1 | COVERPLATE | BR | |||
| 61 | N542430 | 1 | FENCE | BR | |||
| 62 | 098105-03 | 4 | SCREW | BR | |||
| 63 | 330019-11 | 2 | SCREW | M4.55x13 T20 | BR | ||
| 64 | N448947 | 2 | WASHER | BR | |||
| 65 | 614375-00 | 4 | SCREW | BR | |||
| 66 | N542863 | 1 | KNOB SA | BR | |||
| 67 | 330016-13 | 1 | WASHER | BR | |||
| 68 | 330016-04 | 1 | WASHER | BR | |||
| 69 | N639012 | 1 | SPRING | BR | |||
| 70 | 612008-00 | 1 | SCREW | BR | |||
| 71 | N542996 | 1 | WASHER INNER CLAMP | BR | |||
| 72 | N542995 | 1 | CLAMP OUTER | BR | |||
| 73 | N600011 | 1 | BLADE BOLT | BR | |||
| 74 | 399139-00 | 1 | PIVOT | BR | |||
| 75 | N126157 | 1 | GUARD PLATE | BR | |||
| 76 | N298367 | 4 | SCREW | BR | |||
| 77 | 146768-00 | 1 | BUMPER | BR | |||
| 78 | 146750-03 | 1 | RETAINING PLATE | BR | |||
| 79 | 148295-00 | 1 | SLEEVE | BR | |||
| 80 | N034013 | 1 | SPRING | BR | |||
| 81 | 391630-00 | 1 | LINK | BR | |||
| 82 | 399042-00 | 1 | BUSHING | BR | |||
| 83 | 330045-32 | 1 | SCREW | M8x1.25x20 MTLTHDFMG | BR | ||
| 84 | 146740-01 | 1 | BUSH | BR | |||
| 85 | N542888 | 1 | TRUNNION | BR | |||
| 86 | N562266 | 1 | PIN | BR | |||
| 87 | N562268 | 1 | KNOB | BR | |||
| 88 | N562267 | 1 | SPRING | BR | |||
| 90 | N737982 | 1 | LOWER GUARD ASSY | BR | |||
| 91 | 614367-00 | 1 | BRUSH & LEAD | BR | |||
| 92 | N171521 | 1 | END CAP | BR | |||
| 93 | 614368-00 | 1 | BRUSH CAP | BR | |||
| 94 | 651764-00 | 1 | FIELD & FLD.CSE | BR | |||
| 95 | N127530 | 1 | BEARING BALL | BR | |||
| 96 | N110359 | 1 | BEARING | BR | |||
| 97 | N147370 | 1 | ARM.,FAN, & BRG | 120V | BR | ||
| 98 | N161370 | 1 | PWR SUPPLY CORD | -BR region | BR | ||
| 99 | N648202 | 1 | ARM | BR | |||
| 110 | 393520-00 | 1 | TERMINAL BLOCK | BR | |||
| 111 | N713482 | 1 | LEADWIRE | BR | |||
| 112 | N189009 | 1 | LEADWIRE | BR | |||
| 821 | N625162 | 1 | RATING LABEL | DW713-BR TY20 | BR |
