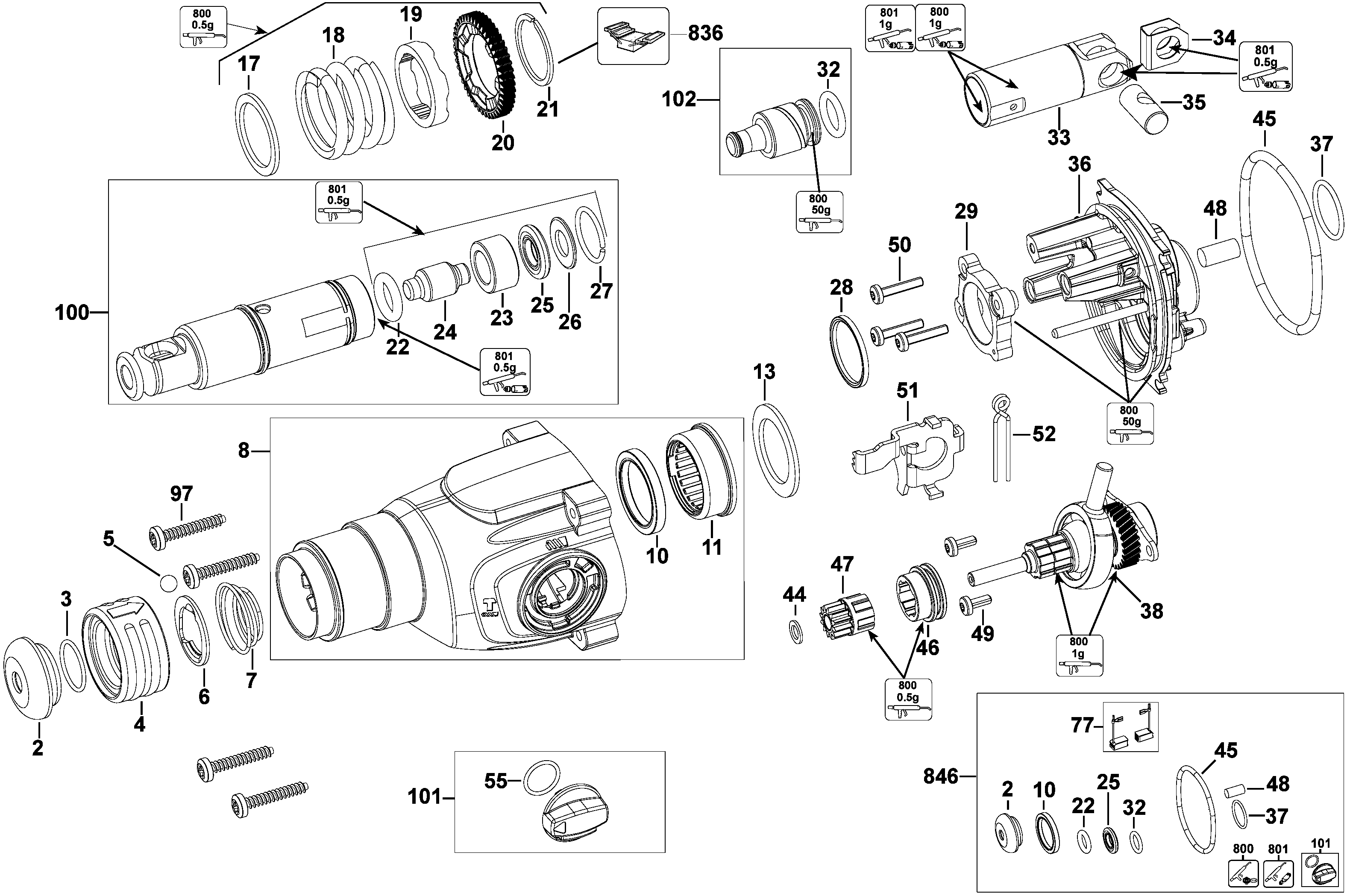

D25133K ROTARY HAMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N325879 | 1 | SCREW | B3 | |||
| 2 | 323489-00 | 1 | CAP | B3 | |||
| 3 | 579212-00 | 1 | RING | B3 | |||
| 4 | N720573 | 1 | TUBE | B3 | |||
| 5 | 583890-00 | 1 | BALL | B3 | |||
| 6 | 578387-00 | 1 | WASHER | B3 | |||
| 7 | 871690 | 1 | SPRING | B3 | |||
| 8 | N417731 | 1 | HOUSING SA | B3 | |||
| 9 | 330065-16 | 1 | SCREW | B3 | |||
| 10 | N496180 | 1 | SEAL | B3 | |||
| 11 | N020023 | 1 | BEARING SPINDLE | B3 | |||
| 13 | 1005788-00 | 1 | WASHER | B3 | |||
| 17 | 589350-00 | 1 | WASHER | B3 | |||
| 18 | N264677 | 1 | SPRING | B3 | |||
| 19 | N417735 | 1 | LOCKING RING | B3 | |||
| 20 | N417737 | 1 | GEAR | B3 | |||
| 21 | N504141 | 1 | LOCKING RING | B3 | |||
| 22 | N394276 | 1 | O RING | B3 | |||
| 23 | N470388 | 1 | TUBE GUIDE | B3 | |||
| 24 | N417744 | 1 | BEAT PIECE | B3 | |||
| 25 | 1005808-00 | 1 | RING | B3 | |||
| 26 | N531681 | 1 | WASHER | FROM D/C 2017-32 | B3 | ||
| 26 | 327087-00 | 1 | WASHER | TO D/C 2017-32 | B3 | ||
| 27 | N294259 | 1 | RING | B3 | |||
| 28 | N267565 | 1 | RING | B3 | |||
| 29 | N417745 | 1 | BEARING | B3 | |||
| 32 | N264642 | 1 | O RING | B3 | |||
| 33 | N425231 | 1 | PISTON | B3 | |||
| 34 | 1005842-00 | 1 | WASHER | B3 | |||
| 35 | N325041 | 1 | BEARING SPINDLE | B3 | |||
| 36 | N495931 | 1 | HOUSING BEARING | B3 | |||
| 37 | N264673 | 1 | O RING | B3 | |||
| 38 | N418018 | 1 | INTERSHAFT SA | B3 | |||
| 44 | 1005844-00 | 1 | WASHER | B3 | |||
| 45 | N264672 | 1 | O RING | B3 | |||
| 46 | N417853 | 1 | COLLAR | B3 | |||
| 47 | N417859 | 1 | GEAR | B3 | |||
| 48 | 1005812-00 | 1 | FELT | B3 | |||
| 49 | 324006-14 | 2 | SCREW | B3 | |||
| 50 | 324006-15 | 3 | SCREW | B3 | |||
| 51 | N493869 | 1 | PLATE | B3 | |||
| 52 | 1005795-00 | 1 | SPRING | B3 | |||
| 55 | N091381-00 | 1 | O RING | B3 | |||
| 61 | N481043 | 1 | HOUSING MOTOR | D/C 2016-32 AND LATER | B3 | ||
| 61 | N271819 | 1 | HOUSING MOTOR | B3 | |||
| 64 | N489765 | 1 | SERVICE KIT 120V | 40MM 120V | D/C 2016-31 AND EARLIER | B3 | |
| 64 | N484764 | 1 | FIELD 120V | 40MM HV | D/C 2016-32 AND LATER | B3 | |
| 65 | N554533 | 1 | WASHER | B3 | |||
| 66 | 1005895-00 | 1 | BEARING | B3 | |||
| 67 | N110359 | 1 | BEARING | B3 | |||
| 68 | N344965 | 1 | BAFFLE | B3 | |||
| 69 | N012971 | 2 | RUBBER PAD | B3 | |||
| 69 | N476768 | 2 | RUBBER PAD | D/C 2016-32 AND LATER | B3 | ||
| 70 | N442577 | 1 | RING | B3 | |||
| 71 | N442578 | 1 | COVER BEARING | B3 | |||
| 72 | 1005894-00 | 1 | CLIP | B3 | |||
| 73 | N418034 | 1 | BRUSH HOLDER SA | INCLUDES BRUSHES | B3 | ||
| 77 | N418050 | 1 | BRUSH PAIR 120V | B3 | |||
| 78 | 1005896-00 | 1 | SIDE HANDLE | B3 | |||
| 79 | 798846-02 | 1 | DEPTH STOP | B3 | |||
| 84 | N475466 | 2 | SCREW | D/C 2016-32 AND LATER | B3 | ||
| 84 | N086775 | 2 | SCREW | B3 | |||
| 85 | N418012 | 1 | HANDLE SA | B3 | |||
| 88 | N166239 | 1 | SWITCH LOCK-ON | B3 | |||
| 90 | 821070 | 1 | CORD CLAMP | B3 | |||
| 91 | 1005759-00 | 1 | CORDSET | B3 | |||
| 92 | 330005-01 | 1 | CORD PROTECTOR | B3 | |||
| 93 | 330065-08 | 5 | SCREW | M4x18 T20 | B3 | ||
| 94 | N425379 | 1 | LEAD BLUE | B3 | |||
| 95 | 1005879-01 | 1 | LEAD RED | B3 | |||
| 97 | N476832 | 1 | SCREW | B3 | |||
| 100 | N424934 | 1 | SPINDLE SA | B3 | |||
| 101 | N417861 | 1 | SELECTOR SA | B3 | |||
| 102 | N418035 | 1 | RAM SA | B3 | |||
| 103 | N566903 | 1 | ARMATURE 115/120V | B3 | |||
| 105 | N409717 | 1 | NAME PLATE | D25133-B3 TY1 | B3 | ||
| 800 | 870889-02 | 1 | GREASE | B3 | |||
| 801 | 487130-04 | 1 | GREASE | GLK FLUID 249 NLGI 000 (10G SERVICE) | B3 | ||
| 836 | 1003959-99 | 1 | S.T.CIRCLIP REMOVER | B3 | |||
| 836 | 596005-99 | 1 | S.T.CIRCLIP REMOVER | B3 | |||
| 836 | 1003960-99 | 1 | S.T.CIRCLIP REMOVER | B3 | |||
| 846 | N418466 | 1 | SERVICE KIT 120V | B3 | |||
| 861 | N390353 | 1 | KITBOX | B3 |
