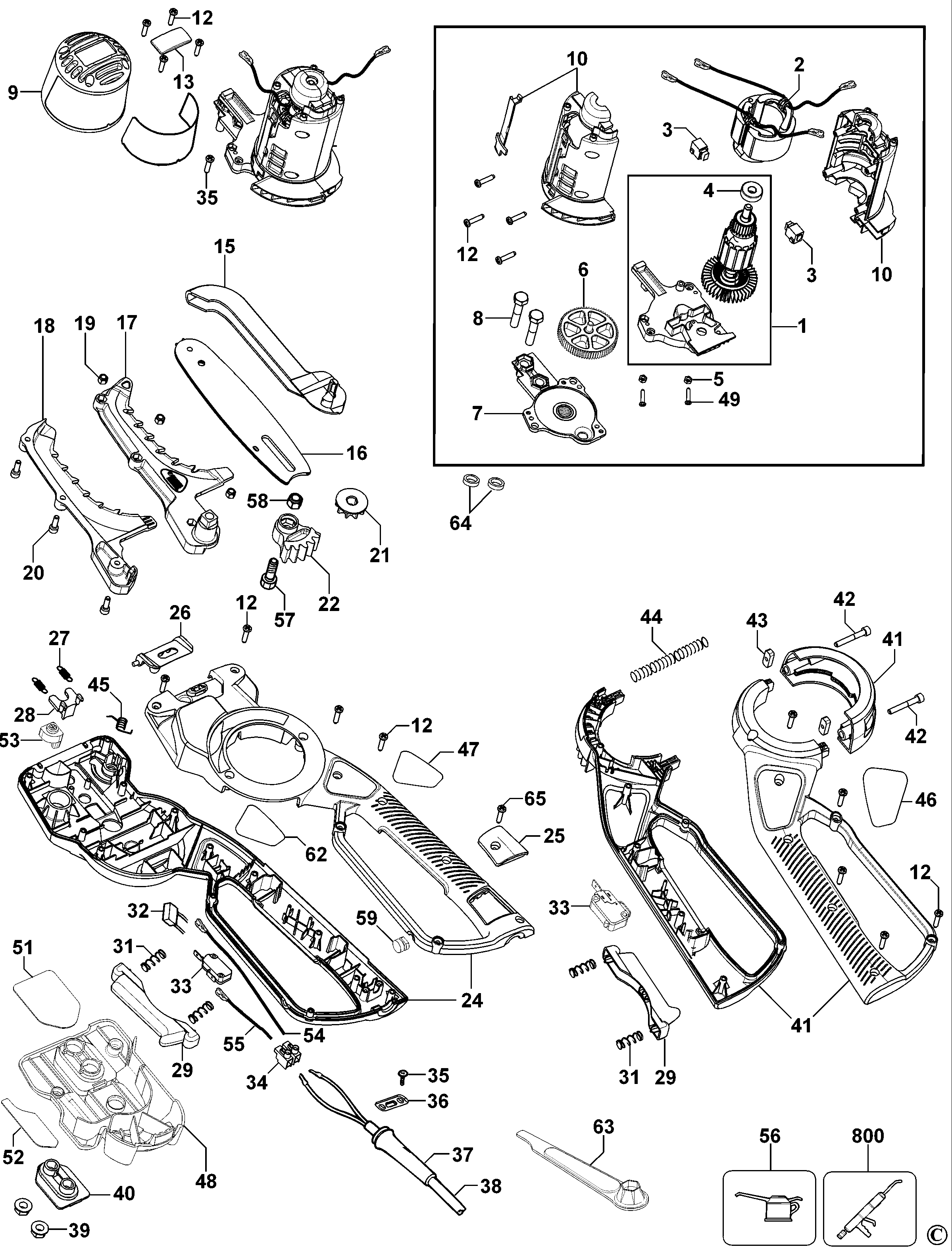

LP1000 POWERED LOPPER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 477791-00 | 1 | ARMATURE ASSEMBLY | BR | |||
| 2 | 588660-00 | 1 | FIELD ASSEMBLY | BR | |||
| 3 | 496839-00 | 2 | BRUSH ASSEMBLY | MOTOR BRUSHES | BR | ||
| 4 | 330003-04 | 1 | BEARING | BR | |||
| 5 | 330015-01 | 3 | NUT | BR | |||
| 6 | 477790-00 | 1 | GEAR SA | BR | |||
| 7 | 477789-00 | 1 | COVER GEARCASE | BR | |||
| 8 | 588853-00 | 2 | BOLT | M8 x 40mm | BR | ||
| 9 | 589043-00 | 1 | END CAP | BR | |||
| 10 | 478846-00 | 1 | MOTOR HOUSING SA | BR | |||
| 12 | 809961-00 | 25 | SCREW | BR | |||
| 13 | 492209-00 | 1 | BRAND LABEL | BR | |||
| 15 | 587577-00 | 1 | COVER-TOP | BR | |||
| 16 | N594965 | 1 | BAR CHAIN | 8 INCH | BR | ||
| 17 | 587587-00 | 1 | JAW | BR | |||
| 18 | 590089-00 | 1 | JAW | BR | |||
| 19 | 477344-00 | 3 | NUT M5 | BR | |||
| 20 | 098120-16 | 3 | SCREW | BR | |||
| 21 | 587580-00 | 1 | SPROCKET | BR | |||
| 22 | 588088-00 | 1 | PINION | BR | |||
| 24 | 590443-00 | 1 | CLAMSHELL SET | BR | |||
| 25 | 590340-00 | 1 | COVER | BR | |||
| 26 | 477134-00 | 1 | FILLER CAP | BR | |||
| 27 | 588830-00 | 2 | SPRING | BR | |||
| 28 | 588405-00 | 1 | CLAMP | BR | |||
| 29 | 588034-00 | 2 | ACTUATOR | BR | |||
| 31 | 806128 | 4 | SPRING | BR | |||
| 33 | 90551215 | 1 | SWITCH | BR | |||
| 34 | 373883 | 1 | TERMINAL BLOCK | BR | |||
| 35 | 821057 | 4 | SCREW | No 6 x 12.7mm | BR | ||
| 36 | 329301-00 | 1 | CORD CLAMP | BR | |||
| 37 | 770235 | 1 | PROTECTOR | BR | |||
| 38 | 90520524 | 1 | CORD SET | BR | |||
| 39 | 389118-01 | 2 | NUT | M8 | BR | ||
| 40 | 588213-00 | 1 | CLAMP | BR | |||
| 41 | 590444-00 | 1 | CLAMSHELL SET | BR | |||
| 42 | 98120-35 | 2 | SCREW | BR | |||
| 43 | 588711-00 | 2 | PLATE | M5 | BR | ||
| 44 | 589042-00 | 1 | SPRING | BR | |||
| 45 | 588367-00 | 1 | SPRING | BR | |||
| 46 | 90520525 | 1 | LABEL | BR | |||
| 47 | 479787-05 | 1 | BRAND LABEL | BR | |||
| 48 | 588087-00 | 1 | COVER | BR | |||
| 49 | 98119-16 | 3 | SCREW | M4 x 16mm | BR | ||
| 51 | 479788-00 | 1 | IDENTITY LABEL | BR | |||
| 52 | 478363-04 | 1 | LABEL | BR | |||
| 53 | 588739-00 | 1 | SEAL | BR | |||
| 54 | 588740-00 | 1 | LEADWIRE | BR | |||
| 55 | 588740-01 | 1 | LEADWIRE | BR | |||
| 56 | 90524942 | 1 | CONTAINER | BR | |||
| 57 | 098123-25 | 1 | SCREW | BR | |||
| 58 | 370023 | 1 | NUT | M8 | BR | ||
| 59 | 477925-00 | 1 | BUMPER | BR | |||
| 62 | 489327-00 | 1 | BRAND LABEL | BR | |||
| 63 | 590439-00 | 1 | WRENCH SPECIAL | BR | |||
| 64 | 490779-00 | 2 | SPACER | BR | |||
| 65 | 490871-00 | 1 | SCREW.SPECIAL | BR | |||
| 800 | 870889-03 | 1 | GREASE | RENOLIT PARAGON EP ½ - 20 GRAMS | BR |
