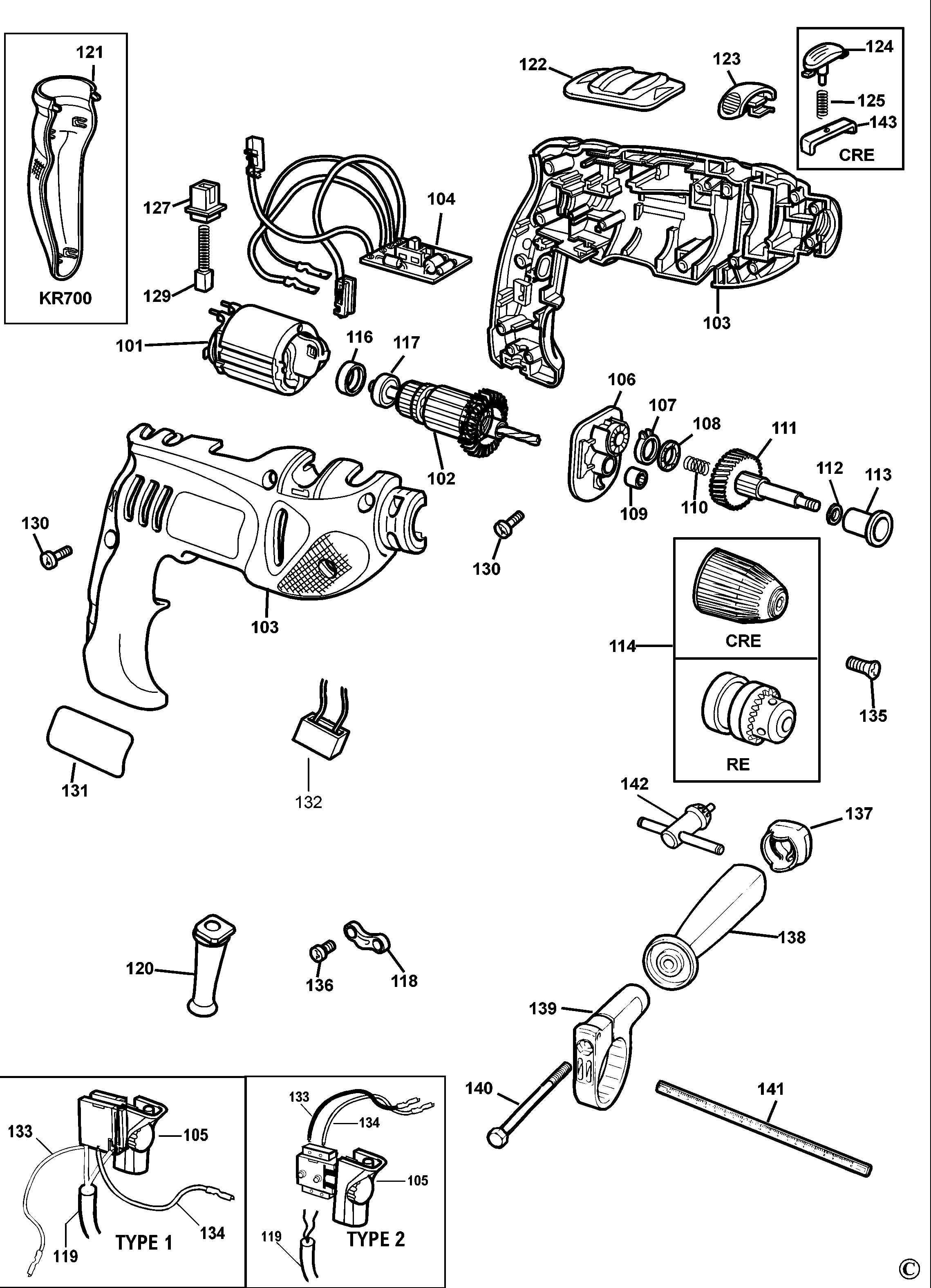

KR700CRE DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 376912-40 | 1 | FIELD SA | AR | |||
| 102 | 580813-02 | 1 | ARMATURE SA | AR | |||
| 103 | 374275-06 | 1 | CLAMSHELL SET | AR | |||
| 104 | 374217-01 | 1 | PCB SA | AR | |||
| 105 | 375412-02 | 1 | SWITCH | AR | |||
| 106 | 374216-00 | 1 | GEARCASE SA | AR | |||
| 107 | 374189-00 | 1 | SELECTOR | AR | |||
| 108 | 892261-00 | 1 | WASHER,THRUST | AR | |||
| 109 | 330004-18 | 1 | BEARING | AR | |||
| 110 | 821986-00 | 1 | SPRING | AR | |||
| 111 | 377646-02 | 1 | SPINDLE & GEAR SA | AR | |||
| 112 | 374194-00 | 1 | WASHER THRUST | AR | |||
| 113 | 374193-00 | 1 | BEARING | AR | |||
| 114 | 583096-00 | 1 | CHUCK SA | AR | |||
| 116 | 812970-00 | 1 | MOUNT | AR | |||
| 117 | 886095-00 | 1 | BEARING | AR | |||
| 118 | 329301-00 | 1 | CORD CLAMP | AR | |||
| 119 | 573379-06 | 1 | CORDSET | AR | |||
| 120 | 770236 | 1 | PROTECTOR | AR | |||
| 121 | 374278-00 | 1 | GRIP | AR | |||
| 122 | 374218-02 | 1 | ACTUATOR | AR | |||
| 123 | 374226-00 | 1 | ACTUATOR | AR | |||
| 124 | 374270-00 | 1 | BUTTON SA | AR | |||
| 125 | 748158-00 | 1 | SPRING | AR | |||
| 127 | 875735 | 2 | INSERT | AR | |||
| 129 | 570544-00 | 2 | BRUSH & SPRING | AR | |||
| 130 | 809961-00 | 2 | SCREW | AR | |||
| 131 | 374186-09 | 1 | BRAND LABEL | AR | |||
| 132 | 807745 | 1 | CAPACITOR | AR | |||
| 133 | 374213-00 | 1 | LEAD RED | AR | |||
| 134 | 374214-00 | 1 | LEAD BLACK | AR | |||
| 135 | 373793 | 1 | SCREW LEFT 5X21 | AR | |||
| 136 | 821057-00 | 1 | SCREW | AR | |||
| 137 | 376555-05 | 1 | HANDLE & CAP SA | AR | |||
| 138 | 376555-05 | 1 | HANDLE & CAP SA | AR | |||
| 139 | 376552-03 | 1 | CLAMP | AR | |||
| 140 | 813918 | 1 | SCREW | AR | |||
| 141 | 372814-00 | 1 | DEPTH STOP | AR | |||
| 143 | 570593-00 | 1 | SUPPORT | AR |
