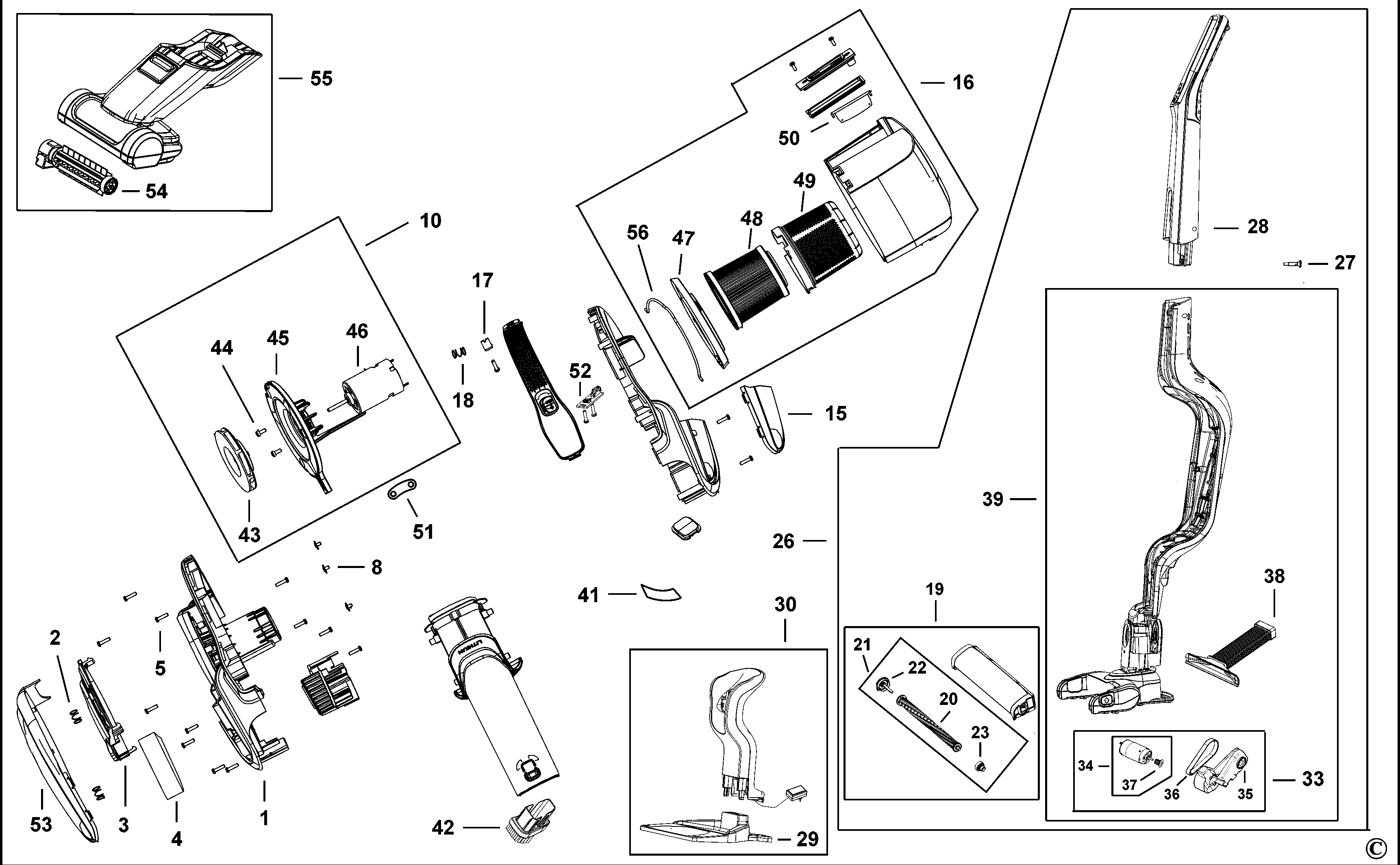

SVJ520BFSP DUSTBUSTER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 000000-05 | 1 | PARTIAL SUPPORT - ONLY PARTS LISTED AVAI | SVJ520BFSPN | XE | ||
| 2 | 90627528 | 2 | SPRING | XE | |||
| 3 | 90606955-08 | 1 | LEVER RELEASE | XE | |||
| 4 | 90605950 | 1 | EXHAUST | XE | |||
| 5 | 90571477-01 | 16 | SCREW | XE | |||
| 8 | 90627524 | 1 | SCREW | XE | |||
| 10 | 90621178-07 | 1 | MOTOR SA | XE | |||
| 15 | 90620997 | 1 | COVER | XE | |||
| 16 | N503912 | 1 | BOWL | XE | |||
| 17 | 90624626 | 1 | RELEASE | XE | |||
| 18 | 90627527 | 1 | SPRING | XE | |||
| 19 | N498771 | 1 | HEAD SA | XE | |||
| 20 | N496699 | 1 | ROLLER | SVJ520BFSP | XE | ||
| 21 | N499010 | 1 | ROLLER SA | XE | |||
| 22 | 90628362 | 1 | DRIVE SHAFT | XE | |||
| 23 | N545745 | 1 | END CAP SA | XE | |||
| 26 | 90621194-06 | 1 | FOOT SA | XE | |||
| 27 | 90601722 | 1 | SCREW | XE | |||
| 28 | 90603258-16 | 1 | HANDLE SA | XE | |||
| 29 | 90602829-01 | 1 | BASE PLATE | XE | |||
| 33 | 90608509 | 1 | MOTOR SA & MOUNT | XE | |||
| 34 | 90613453-07 | 1 | MOTOR SA 12V | XE | |||
| 35 | N824494 | 1 | MOUNT | XE | |||
| 36 | 90592224 | 1 | BELT DRIVE | XE | |||
| 37 | N548025 | 1 | GEAR | XE | |||
| 38 | 90608567 | 1 | DUCT | XE | |||
| 39 | N532403 | 1 | LOWER HANDLE | XE | |||
| 42 | 90627690 | 1 | BRUSH | XE | |||
| 43 | 90562789-04 | 1 | FAN | XE | |||
| 44 | 311940-01 | 2 | SCREW | XE | |||
| 45 | 90626637 | 1 | SUPPORT | XE | |||
| 46 | 90553498-03 | 1 | MOTOR | XE | |||
| 47 | N519708 | 1 | FRAME | XE | |||
| 48 | 90606058-01 | 1 | FILTER | XE | |||
| 49 | 90606057-01 | 1 | PRE-FILTER | XE | |||
| 50 | 90615870 | 1 | FLAP | XE | |||
| 51 | 90626425 | 1 | RETAINER | XE | |||
| 52 | 90620562-01 | 1 | PCB | XE | |||
| 53 | 90614011 | 1 | COVER | XE | |||
| 56 | 90621658 | 1 | HANDLE | XE |
