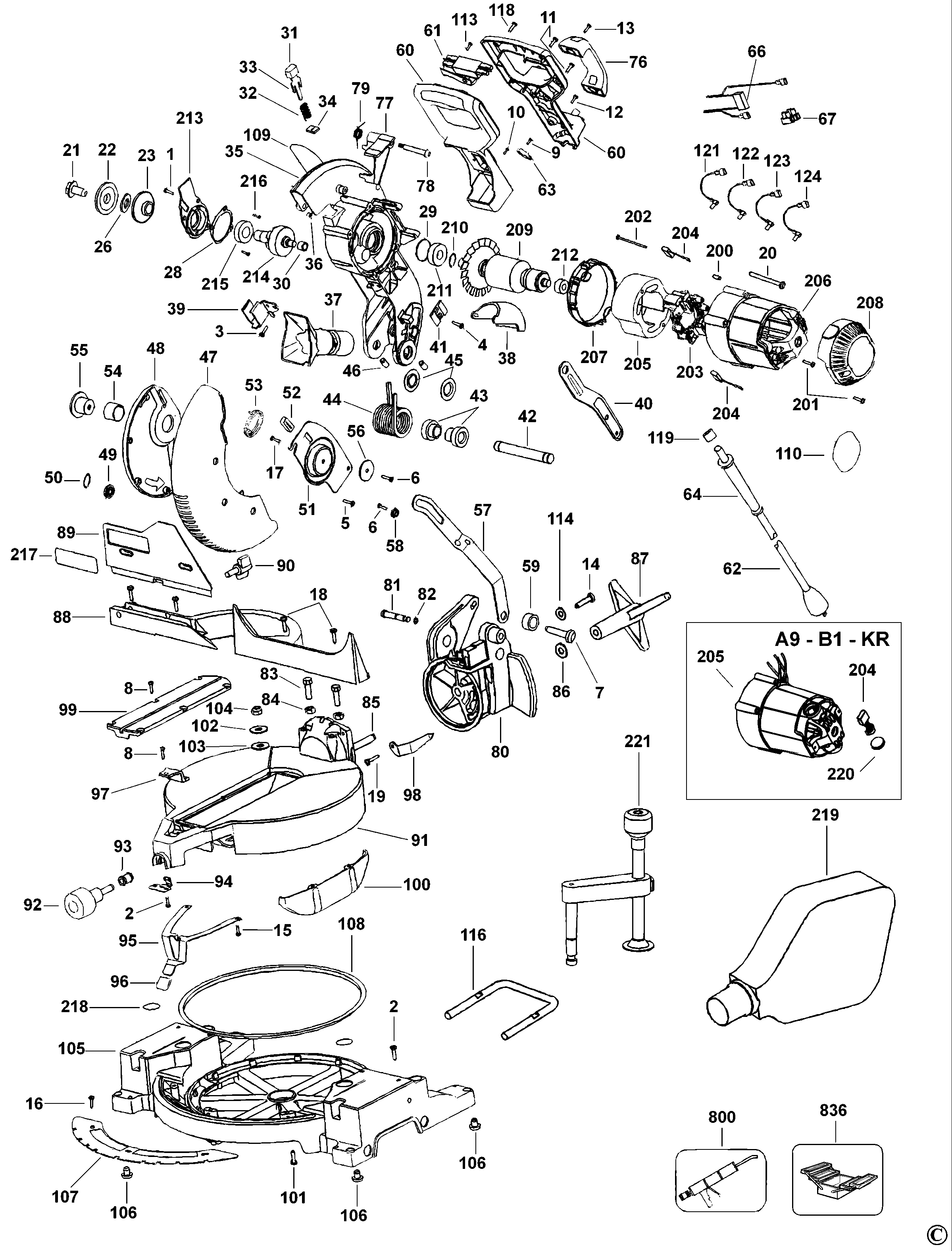

DW703 MITRE SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 330045-14 | 3 | SCREW | XE | |||
| 2 | 330045-23 | 4 | SCREW | XE | |||
| 3 | 330045-13 | 2 | SCREW | XE | |||
| 4 | 98102-08 | 2 | SCREW.TEMP | M4 * 12mm | XE | ||
| 5 | 394211-00 | 3 | SCREW | XE | |||
| 6 | 151891-00 | 2 | SCREW | XE | |||
| 7 | 330045-32 | 1 | SCREW | XE | |||
| 8 | 330045-05 | 8 | SCREW | XE | |||
| 9 | 330019-02 | 2 | SCREW | XE | |||
| 10 | 330045-44 | 1 | SCREW | XE | |||
| 11 | 330019-32 | 3 | SCREW | XE | |||
| 12 | 330045-08 | 4 | SCREW | XE | |||
| 13 | 330019-22 | 2 | SCREW | M5.74x32 | XE | ||
| 14 | 330045-33 | 1 | SCREW | XE | |||
| 15 | 330045-22 | 2 | SCREW | XE | |||
| 16 | 604410-00 | 3 | SCREW | XE | |||
| 17 | 394589-01 | 2 | SCREW | XE | |||
| 18 | 330045-26 | 4 | SCREW | XE | |||
| 19 | 153460-00 | 1 | SCREW | XE | |||
| 20 | 98094-55 | 4 | SCREW | M5 X 55mm T25 | XE | ||
| 21 | 145344-01 | 1 | BLADE BOLT | M8 X 20 LH | XE | ||
| 22 | 399114-00 | 1 | CLAMP OUTER | XE | |||
| 23 | 141987-06 | 1 | WASHER INNER CLAMP | XE | |||
| 26 | 393868-00 | 1 | ADAPTOR | XE | |||
| 28 | 391632-00 | 1 | GASKET | XE | |||
| 29 | 701297-00 | 1 | SEAL | XE | |||
| 30 | 330004-06 | 1 | BEARING NEEDLE | XE | |||
| 31 | 145350-03 | 1 | BUTTON | XE | |||
| 32 | 398736-00 | 1 | SPRING | XE | |||
| 33 | 146714-00 | 1 | LOCK | XE | |||
| 34 | 146710-00 | 1 | WIPER | XE | |||
| 35 | 394848-01 | 1 | ARM | XE | |||
| 36 | 148608-00 | 2 | INSERT | XE | |||
| 37 | 394496-00 | 1 | CHUTE | XE | |||
| 38 | 148520-00 | 1 | DEFLECTOR | XE | |||
| 39 | 393731-00 | 1 | GUARD | XE | |||
| 40 | 145378-01 | 1 | WRENCH | XE | |||
| 41 | 147190-00 | 1 | CLIP | XE | |||
| 42 | 146751-00 | 1 | SHAFT | XE | |||
| 43 | 398251-00 | 2 | SPACER | XE | |||
| 44 | 391606-00 | 1 | SPRING | XE | |||
| 45 | 148296-00 | 2 | WASHER | XE | |||
| 46 | 150075-00 | 2 | SCREW | XE | |||
| 47 | 391612-00 | 1 | GUARD | XE | |||
| 48 | 391609-00 | 1 | GUARD PLATE | XE | |||
| 49 | 146774-00 | 1 | ROLLER | XE | |||
| 50 | 603232-00 | 1 | CIRCLIP | EXTERNAL | XE | ||
| 51 | 399139-00 | 1 | PIVOT | XE | |||
| 52 | 146768-00 | 1 | BUMPER | XE | |||
| 53 | 398735-00 | 1 | SPRING | XE | |||
| 54 | 148295-00 | 1 | SLEEVE | XE | |||
| 55 | 146750-01 | 1 | RETAINING PLATE | XE | |||
| 56 | 148612-00 | 1 | WASHER | XE | |||
| 57 | 391630-00 | 1 | LINK | XE | |||
| 58 | 146740-01 | 1 | BUSH | XE | |||
| 59 | 399042-00 | 1 | BUSHING | XE | |||
| 60 | 393960-00 | 1 | HANDLE SA | XE | |||
| 61 | 391926-01 | 1 | SWITCH | XE | |||
| 62 | 330080-83 | 1 | CORDSET | XE | |||
| 63 | 003618-00 | 1 | CORD CLAMP | XE | |||
| 64 | 445338-00 | 1 | CORD PROTECTOR | XE | |||
| 66 | 393521-05 | 1 | CAPACITOR SA | XE | |||
| 67 | 393520-00 | 1 | TERMINAL BLOCK | XE | |||
| 76 | 396375-00 | 1 | Handle | XE | |||
| 80 | 391578-00 | 1 | TRUNNION | XE | |||
| 81 | 387130-00 | 1 | LOCKING PIN | XE | |||
| 82 | 034158-00 | 1 | O RING | XE | |||
| 83 | 149368-00 | 2 | SCREW | XE | |||
| 84 | 99368-04 | 2 | NUT | XE | |||
| 85 | 146760-02 | 1 | STUD | XE | |||
| 86 | 330016-04 | 1 | WASHER | XE | |||
| 87 | N126150 | 1 | Handle | XE | |||
| 88 | 391626-00 | 1 | FENCE | XE | |||
| 89 | 394845-00 | 1 | FENCE | XE | |||
| 90 | 147107-02 | 1 | KNOB LOWER | XE | |||
| 91 | 391563-00 | 1 | ROTARY TABLE | XE | |||
| 92 | 145439-10 | 1 | KNOB | XE | |||
| 93 | 398256-00 | 1 | BUSHING | XE | |||
| 94 | 391357-00 | 1 | CLAMP | XE | |||
| 95 | 146745-01 | 1 | DETENT | SPRING | XE | ||
| 96 | 148611-00 | 1 | COVER | XE | |||
| 97 | 391634-00 | 1 | POINTER | XE | |||
| 98 | 391631-00 | 1 | POINTER | XE | |||
| 99 | 146726-02 | 1 | PLATE | XE | |||
| 100 | 391994-00 | 1 | GUARD | XE | |||
| 101 | 98025-25 | 1 | SCREW | XE | |||
| 102 | 153792-00 | 1 | WASHER | XE | |||
| 103 | 153781-00 | 1 | WASHER | XE | |||
| 104 | 330021-02 | 1 | NUT | XE | |||
| 105 | 394995-00 | 1 | BASE | XE | |||
| 106 | 153612-00 | 4 | FOOT | XE | |||
| 107 | 391633-01 | 1 | DETENT | XE | |||
| 108 | 391635-00 | 1 | RING | XE | |||
| 109 | 395021-00 | 1 | LABEL | XE | |||
| 110 | 391325-00 | 1 | IDENTITY LABEL | XE | |||
| 111 | 151976-01 | 1 | WARNING LABEL | XE | |||
| 112 | 393073-10 | 1 | NAMEPLATE | XE | |||
| 113 | 330019-03 | 1 | SCREW | XE | |||
| 114 | 330016-13 | 1 | WASHER | XE | |||
| 116 | 399110-00 | 1 | STABILISER LEG | XE | |||
| 118 | 330019-04 | 1 | SCREW | XE | |||
| 119 | 388414-01 | 1 | BUSH | XE | |||
| 121 | 398562-00 | 1 | LEAD YELLOW | YELLOW | XE | ||
| 122 | 398563-00 | 1 | LEAD BLACK | BLACK | XE | ||
| 123 | 398564-00 | 1 | LEAD WHITE | XE | |||
| 124 | 398566-00 | 1 | LEAD RED | RED | XE | ||
| 200 | 145312-00 | 1 | PLUG | XE | |||
| 201 | 330019-13 | 4 | SCREW | M4X19 T20 | XE | ||
| 202 | 330019-19 | 2 | SCREW | XE | |||
| 203 | 389512-01 | 1 | BRUSH PLATE | XE | |||
| 204 | 381028-08 | 2 | BRUSH & LEAD | XE | |||
| 205 | 391318-01SV | 1 | FIELD | 230V | XE | ||
| 206 | 391317-04 | 1 | FIELD CASE | XE | |||
| 207 | 391375-00 | 1 | BAFFLE FAN | XE | |||
| 208 | 391933-01 | 1 | END CAP | XE | |||
| 209 | 604290-00SV | 1 | ARMATURE | XE | |||
| 210 | 144803-00 | 1 | CIRCLIP | XE | |||
| 211 | 605040-27 | 1 | BEARING | XE | |||
| 212 | N110359 | 1 | BEARING | XE | |||
| 213 | 391573-00 | 1 | GEARCASE COVER | XE | |||
| 214 | 392628-01 | 1 | SPINDLE & GEAR | XE | |||
| 215 | 330003-29 | 1 | BEARING,BALL | XE | |||
| 216 | 330045-13 | 2 | SCREW | XE | |||
| 217 | 395257-00 | 1 | LABEL | XE | |||
| 218 | 394976-00 | 2 | LABEL | WARNING | XE | ||
| 800 | 93488-00 | 1 | GREASE | XE | |||
| 800 | 5140061-28 | 1 | GREASE | XE |
