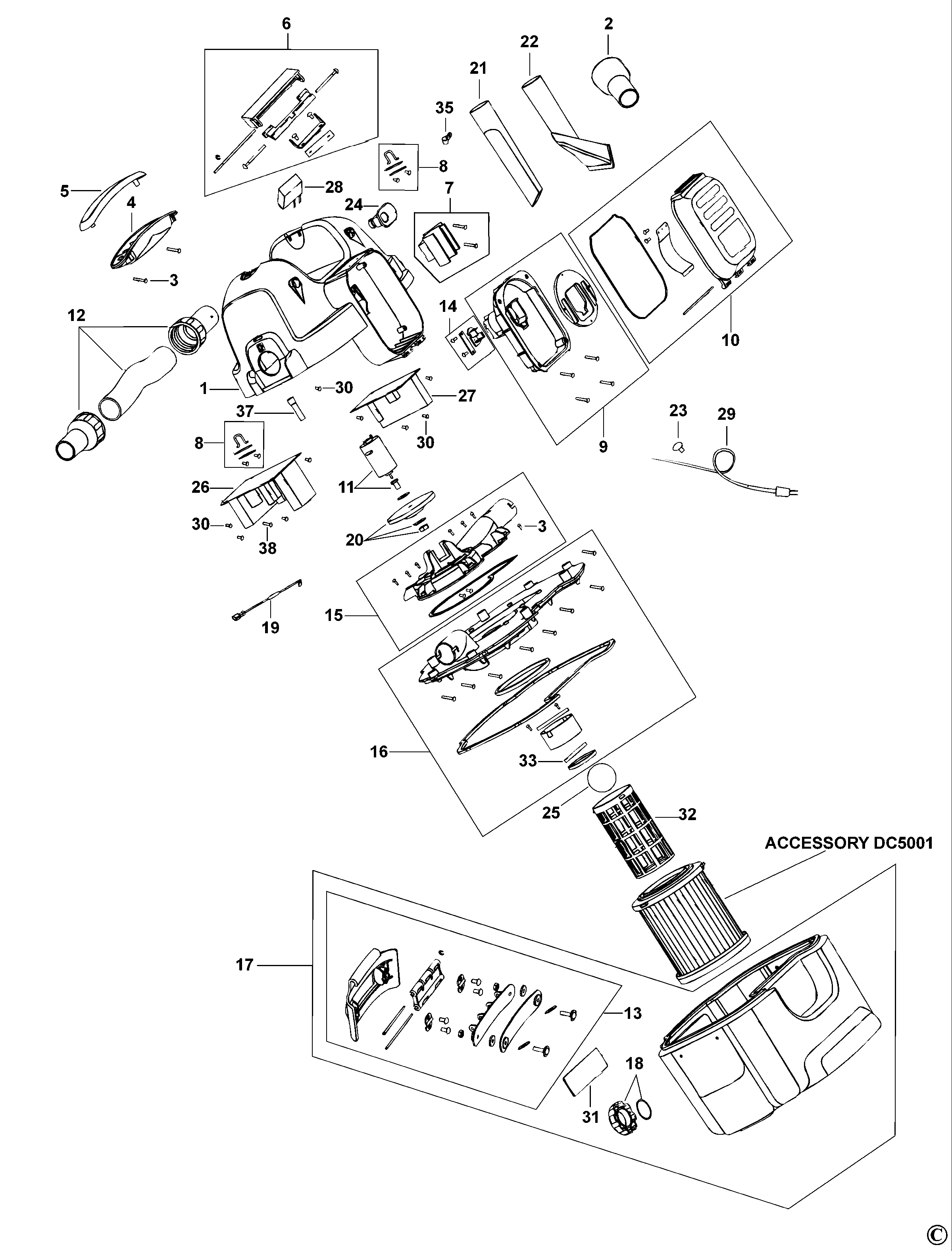

DC500N VACUUM EXTRACTOR Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 5140017-01 | 1 | COVER-TOP | XE | |||
| 2 | 596452-08 | 1 | ADAPTOR | XE | |||
| 3 | 5140017-03 | 2 | SCREW | XE | |||
| 4 | 5140017-04 | 1 | LOWER HANDLE | XE | |||
| 5 | 5140017-05 | 1 | HANDLE UPPER | XE | |||
| 6 | 5140017-06 | 1 | LATCH | XE | |||
| 7 | 5140017-07 | 1 | HOLDER TOOL | XE | |||
| 8 | 5140017-08 | 1 | HOOK | XE | |||
| 9 | 5140057-00 | 1 | SERVICE KIT | Inc. Door & term bd. | XE | ||
| 10 | 5140057-00 | 1 | SERVICE KIT | Inc. Door & term bd. | XE | ||
| 11 | 596452-00 | 1 | MOTOR SA | MOTOR & SLEEVE | XE | ||
| 12 | 5140017-12 | 1 | HOSE SA | XE | |||
| 13 | 5140017-13 | 1 | LATCH | XE | |||
| 14 | 5140017-14 | 1 | TERMINAL SA | XE | |||
| 15 | 596452-01 | 1 | HOUSING MOTOR | XE | |||
| 16 | 596452-02 | 1 | BASE SA | XE | |||
| 17 | 5140017-17 | 1 | TANK | INCL. 13, 76, 77, 78 | XE | ||
| 18 | 5140017-18 | 1 | PLUG | XE | |||
| 19 | 5140017-19 | 1 | FUSE | XE | |||
| 20 | 5140017-20 | 1 | FAN SA | XE | |||
| 21 | 5140017-21 | 1 | TOOL CREVICE | XE | |||
| 22 | 5140017-22 | 1 | NOZZLE | XE | |||
| 23 | 5140017-23 | 1 | BUSH | CLIP, POWER CORD | XE | ||
| 24 | 5140017-24 | 2 | BRACKET | CORD RELEASE HOOK | XE | ||
| 25 | 5140017-25 | 1 | BALL | XE | |||
| 26 | 596452-03 | 1 | PCB | AC-DC CONVERTOR 230v | XE | ||
| 27 | 5140017-27 | 1 | PCB | XE | |||
| 28 | 5140058-09 | 1 | SWITCH | XE | |||
| 30 | 5140017-30 | 8 | SCREW | XE | |||
| 31 | 569037-00 | 1 | RATING PLATE | XE | |||
| 32 | 5140017-32 | 1 | CAGE | XE | |||
| 33 | 5140017-33 | 1 | FILTER | XE | |||
| 35 | 5140017-35 | 1 | CLIP CABLE | XE | |||
| 37 | 5140017-37 | 1 | SLEEVE | XE | |||
| 38 | 5140017-38 | 1 | SCREW | XE | |||
| 856 | DC5001H | 1 | FILTER | HEPA | XE | ||
| 856 | DC5001H | 1 | FILTER | XE | |||
| 866 | DE9096 | 1 | BATTERY 18V - 2.4AH | Ni-Cad | XE | ||
| 867 | 645221-00 | 1 | CAP | not included w/unit | XE | ||
| 871 | DE9116-XE | 1 | CHARGER | 9.6V-18V 1HR CHARGER | not included | XE |
