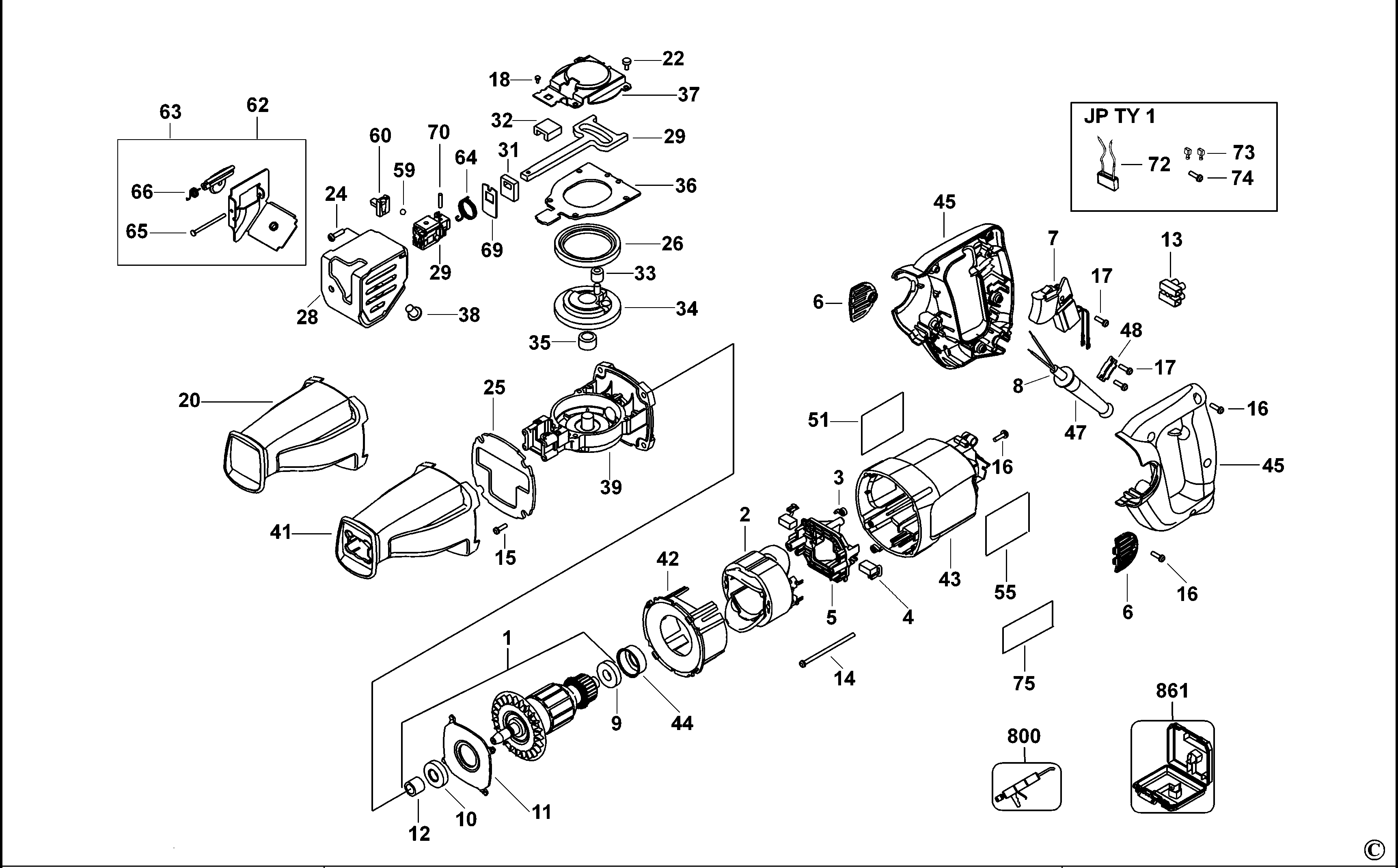

DW304PK CUTSAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 383475-01SV | 1 | ARMATURE & FAN | XE | |||
| 2 | 448719-78SV | 1 | FIELD | XE | |||
| 3 | 383387-00 | 2 | BRUSH SPRING | XE | |||
| 4 | N501035 | 2 | BRUSH 230V | XE | |||
| 5 | N402490 | 1 | BRUSH SA | XE | |||
| 6 | 382751-00 | 2 | COVER BRUSH | XE | |||
| 7 | 398894-00 | 1 | SWITCH | XE | |||
| 8 | 444469-26 | 1 | CORDSET | AUSTRALIA | XE | ||
| 9 | 605040-20 | 1 | BEARING | 12 x 28 x 8mm | XE | ||
| 10 | 605040-20 | 1 | BEARING | 12 x 28 x 8mm | XE | ||
| 11 | 383476-00 | 1 | PLATE | XE | |||
| 12 | 696060-00 | 1 | RETAINER | XE | |||
| 14 | 330019-18 | 2 | SCREW | M4.55 x 50 PLASTIC THD FMG | XE | ||
| 15 | 330019-15 | 4 | SCREW | XE | |||
| 16 | 330019-13 | 9 | SCREW | M4X19 T20 | XE | ||
| 17 | 330019-02 | 2 | SCREW | XE | |||
| 18 | 158472-00 | 2 | SCREW | XE | |||
| 20 | N028019 | 1 | COVER | XE | |||
| 22 | 144457-02 | 4 | SCREW | XE | |||
| 24 | 142940-00 | 4 | SCREW | XE | |||
| 25 | 146576-00 | 1 | GASKET | XE | |||
| 26 | N401394 | 1 | RING | XE | |||
| 28 | N302139 | 1 | SHAFT SA | SA Shaft w/SA Shoe | XE | ||
| 29 | N302139 | 1 | SHAFT SA | SA Shaft w/SA Shoe | XE | ||
| 31 | 609488-00 | 1 | FELT SEAL | XE | |||
| 32 | N400905 | 1 | BEARING | XE | |||
| 33 | 385238-00 | 1 | BEARING NEEDLE | XE | |||
| 34 | 448503-14SV | 1 | GEAR | XE | |||
| 35 | 135531-00 | 1 | BEARING | XE | |||
| 36 | N083910 | 1 | PLATE | XE | |||
| 37 | 448489-03 | 1 | PLATE | XE | |||
| 38 | 099279-08 | 1 | SCREW | XE | |||
| 39 | 616333-00SV | 1 | GEARCASE | XE | |||
| 41 | 613722-00SV | 1 | GEARCASE COVER SA | XE | |||
| 42 | 382750-01 | 1 | BAFFLE FAN | XE | |||
| 43 | 382747-12 | 1 | FIELDCASE | XE | |||
| 44 | 137382-02 | 1 | SLEEVE | XE | |||
| 45 | 383598-02 | 1 | HANDLE & COVER | XE | |||
| 47 | 330005-01 | 1 | CORD PROTECTOR | XE | |||
| 48 | 86634-00 | 1 | CORD CLAMP | XE | |||
| 51 | 633119-00 | 1 | RATING PLATE | XE | |||
| 55 | 627212-00 | 1 | BRAND LABEL | DEWALT | XE | ||
| 59 | 000903-00 | 1 | BALL | XE | |||
| 60 | N302139 | 1 | SHAFT SA | SA Shaft w/SA Shoe | XE | ||
| 62 | N302139 | 1 | SHAFT SA | SA Shaft w/SA Shoe | XE | ||
| 64 | N302139 | 1 | SHAFT SA | SA Shaft w/SA Shoe | XE | ||
| 65 | N302139 | 1 | SHAFT SA | SA Shaft w/SA Shoe | XE | ||
| 65 | N302139 | 1 | SHAFT SA | SA Shaft w/SA Shoe | XE | ||
| 66 | N302139 | 1 | SHAFT SA | SA Shaft w/SA Shoe | XE | ||
| 66 | 396017-00 | 1 | SPRING | XE | |||
| 69 | 608202-00 | 1 | RETAINER | PLATE | XE | ||
| 70 | 330041-27 | 1 | ROLLPIN | XE | |||
| 74 | 330019-01 | 1 | SCREW | XE | |||
| 800 | 429698-00 | 1 | GREASE | BD-L 2 | XE | ||
| 856 | DW4811 | 1 | BLADE | XE | |||
| 861 | 380865-02 | 1 | HANDLE FRAME KIT | XE | |||
| 861 | 637475-00 | 2 | LATCH ASSEMBLY | XE | |||
| 861 | 381189-00 | 1 | KITBOX | XE |
