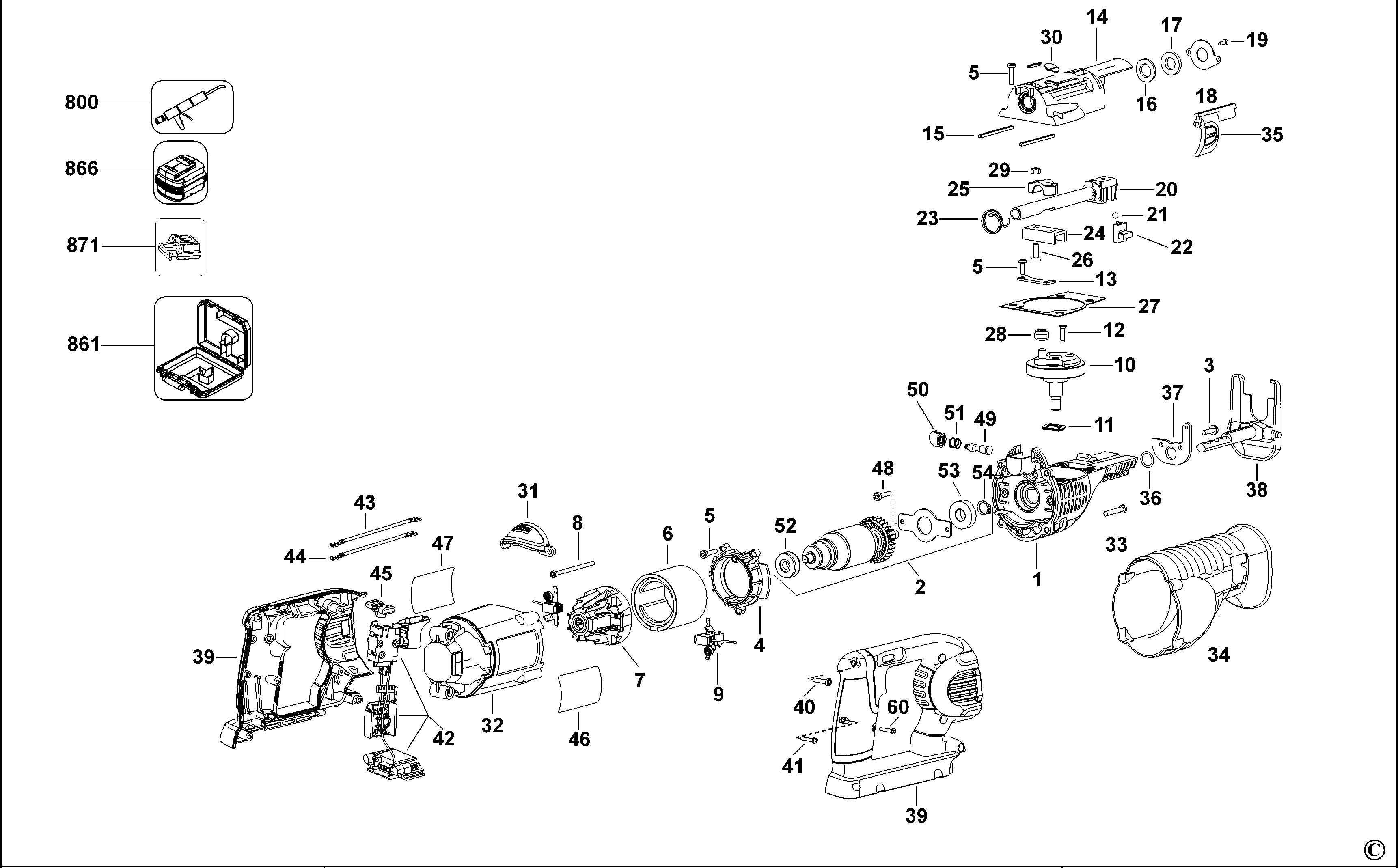

DC315KL CORDLESS RECIPROCATING SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 613138-00SV | 1 | GEARCASE SA | INCL.49,50,51 | XE | ||
| 2 | 629923-28 | 1 | ARMATURE SA | XE | |||
| 3 | 142940-00 | 2 | SCREW | XE | |||
| 4 | 613137-00 | 1 | BAFFLE FAN | XE | |||
| 5 | 613619-00 | 9 | SCREW | XE | |||
| 6 | 611202-00SV | 1 | MAGNET | XE | |||
| 7 | N171820 | 1 | SUPPORT BEARING | XE | |||
| 8 | 330019-25 | 2 | SCREW | XE | |||
| 9 | 610126-00 | 2 | BRUSHBOX SA | XE | |||
| 10 | 615940-00SV | 1 | GEAR & SPINDLE | XE | |||
| 10 | 615940-00SV | 1 | GEAR & SPINDLE | XE | |||
| 10 | 615940-00SV | 1 | GEAR & SPINDLE | XE | |||
| 11 | 619618-00 | 1 | WASHER SPECIAL | XE | |||
| 12 | 622484-00 | 3 | SCREW | M4x16 THD FMG | XE | ||
| 13 | 621173-00 | 1 | SUPPORT PLATE | XE | |||
| 14 | N027851SV | 1 | GEARCASE COVER | XE | |||
| 15 | 621979-00 | 2 | STRIP | XE | |||
| 16 | 618733-00 | 1 | SEAL | XE | |||
| 17 | 618477-00 | 1 | FELT SEAL | XE | |||
| 18 | N020720 | 1 | COVERPLATE | XE | |||
| 19 | 330045-43 | 1 | SCREW | XE | |||
| 20 | N026647 | 1 | SHAFT SA | XE | |||
| 21 | 000903-00 | 1 | BALL | XE | |||
| 22 | 622647-00 | 1 | SLIDER | XE | |||
| 23 | 622659-00 | 1 | SPRING TORSION | XE | |||
| 24 | N026647 | 1 | SHAFT SA | XE | |||
| 25 | 617000-00 | 1 | SADDLE | XE | |||
| 26 | 622486-00 | 2 | SCREW | M5x 17 mm T20 HD | XE | ||
| 27 | N063272 | 1 | GASKET | XE | |||
| 28 | N021857 | 1 | BEARING | XE | |||
| 29 | 622485-00 | 2 | LOCK NUT | XE | |||
| 30 | 621927-00 | 2 | COVER | XE | |||
| 31 | 630958-00 | 1 | INSERT | XE | |||
| 32 | 629919-00 | 1 | HOUSING MOTOR | XE | |||
| 33 | 330019-45 | 4 | SCREW | XE | |||
| 34 | N084697 | 1 | BOOT | XE | |||
| 35 | 631014-28 | 1 | LEVER SA | Lever & Label | XE | ||
| 36 | 050049-00 | 1 | RING | XE | |||
| 37 | 617008-00 | 1 | BRACKET | XE | |||
| 38 | 623511-01 | 1 | SHOE SA | XE | |||
| 39 | 648208-28 | 1 | CLAMSHELL SET | Handle Set 28 V | XE | ||
| 40 | 330019-03 | 6 | SCREW | XE | |||
| 41 | 682211-00 | 1 | SCREW | XE | |||
| 42 | 645229-01 | 1 | SWITCH SA | & HARNESS | XE | ||
| 43 | 634813-00 | 1 | LEAD BROWN | BROWN | XE | ||
| 45 | 630830-00 | 1 | BUTTON LOCK-OFF | XE | |||
| 46 | 632248-00 | 1 | IDENTITY LABEL | XE | |||
| 48 | 330045-45 | 2 | SCREW | XE | |||
| 49 | 615983-00 | 1 | LOCK PIN | XE | |||
| 50 | 617733-00 | 1 | CAP | XE | |||
| 51 | 618427-00 | 1 | SPRING | XE | |||
| 52 | 391032-00 | 1 | BEARING & SEAL | XE | |||
| 53 | 330003-64 | 1 | BEARING | XE | |||
| 54 | 696060-00 | 1 | RETAINER | XE | |||
| 55 | 646547-00 | 1 | WARNING LABEL | XE | |||
| 60 | 330019-03 | 1 | SCREW | XE | |||
| 800 | 286436-00 | 1 | GREASE | NYE RHEOLUBE 380, 500 GRAM JAR | XE | ||
| 861 | 648633-00 | 1 | KITBOX | XE | |||
| 866 | DC9280 | 1 | BATTERY 28V - 2.2AH | Li-Ion | XE | ||
| 871 | DC9000 | 1 | CHARGER 28V - 36V | Li-Ion | XE |
