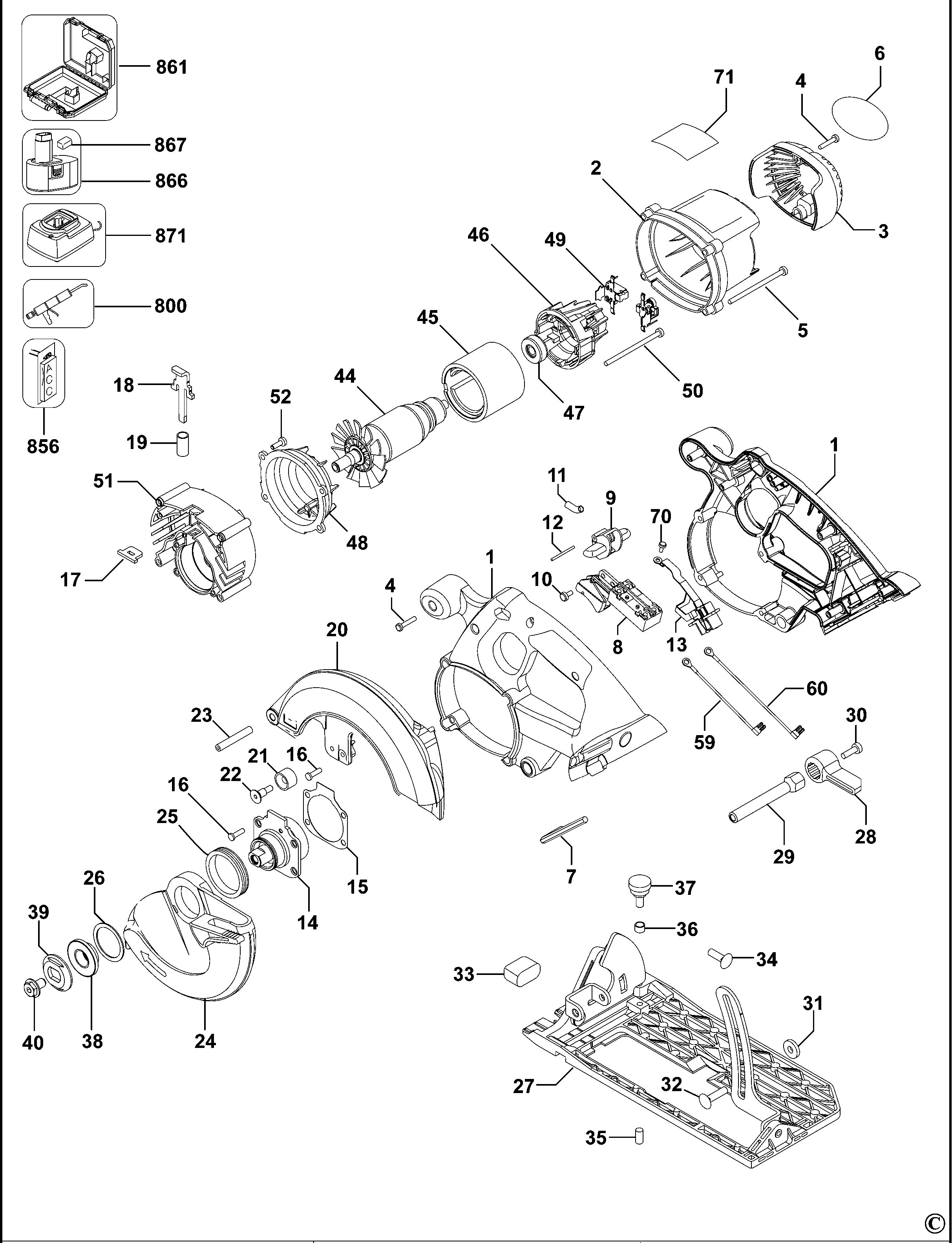

DC390K CORDLESS CIRCULAR SAW Type 1 - XE | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 605059-00 | 1 | CLAMSHELL SET | HOUSING ASSY. | XE | ||
| 2 | 605062-00 | 1 | MOTOR COVER | XE | |||
| 3 | 605063-00 | 1 | END CAP | XE | |||
| 4 | 90611830 | 8 | SCREW | XE | |||
| 5 | 398987-00 | 4 | SCREW | XE | |||
| 6 | 619339-00 | 1 | IDENTITY LABEL | XE | |||
| 7 | 098000-11 | 1 | HEX KEY | XE | |||
| 8 | 613275-00 | 1 | SWITCH | XE | |||
| 9 | 605107-00 | 1 | BUTTON LOCK-OFF | XE | |||
| 10 | 330019-40 | 1 | SCREW | XE | |||
| 11 | 389120-00 | 1 | SPRING | XE | |||
| 12 | 388531-00 | 1 | PIN | XE | |||
| 13 | 620354-00 | 1 | PCB SA | WITH LEADS | XE | ||
| 14 | 659417-00SV | 1 | SPINDLE SA | XE | |||
| 15 | 605081-01 | 1 | GASKET | XE | |||
| 16 | 613783-00 | 8 | SCREW | XE | |||
| 17 | 605094-00 | 1 | WIPER | XE | |||
| 18 | 629444-00 | 1 | SPINDLE LOCK | XE | |||
| 19 | 58698-00 | 1 | SPRING | XE | |||
| 20 | 605070-02 | 1 | GUARD UPPER | XE | |||
| 21 | 389132-00 | 1 | BUMPER | XE | |||
| 22 | 610134-00 | 1 | SCREW | XE | |||
| 23 | 614048-00 | 1 | SPIROL PIN | XE | |||
| 24 | 611925-00 | 1 | GUARD LOWER | XE | |||
| 25 | N035365 | 1 | SPRING | XE | |||
| 26 | 150383-00 | 1 | RETAINER | XE | |||
| 27 | 605076-00SV | 1 | SHOE SA | XE | |||
| 28 | 605105-00 | 1 | LEVER | XE | |||
| 29 | 618901-00 | 1 | SHAFT | XE | |||
| 30 | 330045-14 | 1 | SCREW | XE | |||
| 31 | 142013-00 | 1 | WASHER | XE | |||
| 32 | 098128-85 | 1 | CARRIAGE BOLT | XE | |||
| 33 | 395889-00 | 1 | KNOB | XE | |||
| 34 | N022876 | 1 | CARRIAGE BOLT | M6x1.0x25 NYLOCK | XE | ||
| 35 | 381069-00 | 1 | SCREW | XE | |||
| 36 | 058287-00 | 1 | SPRING | XE | |||
| 37 | 396992-02 | 1 | KNOB | MALE, 1/4-20 THD | XE | ||
| 38 | 650109-00 | 1 | WASHER INNER CLAMP | XE | |||
| 39 | N621119 | 1 | WASHER OUTER CLAMP | XE | |||
| 40 | 648697-00 | 1 | BLADE BOLT | XE | |||
| 44 | 605065-00SV | 1 | ARMATURE SA | XE | |||
| 45 | 611202-00SV | 1 | MAGNET | XE | |||
| 46 | N171820 | 1 | SUPPORT BEARING | XE | |||
| 47 | 391032-00 | 1 | BEARING & SEAL | XE | |||
| 48 | 610124-00 | 1 | BAFFLE | XE | |||
| 49 | 610126-00 | 2 | BRUSHBOX SA | XE | |||
| 50 | 330019-25 | 2 | SCREW | XE | |||
| 51 | 605082-00 | 1 | GEARCASE SA | XE | |||
| 52 | 330045-45 | 9 | SCREW | XE | |||
| 59 | N178281 | 1 | LEAD BROWN | BROWN with EMI bead | XE | ||
| 59 | N179181 | 1 | LEAD PURPLE | PURPLE with EMI bead | XE | ||
| 60 | 605109-00 | 1 | LEAD PURPLE | PURPLE | XE | ||
| 60 | N178281 | 1 | LEAD BROWN | BROWN with EMI bead | XE | ||
| 70 | 384127-01 | 3 | SCREW | XE | |||
| 71 | 605064-00 | 1 | RATING PLATE | DC390 TYPE 1 | XE | ||
| 800 | 870889-02 | 1 | GREASE | XE | |||
| 800 | 870889-02 | 1 | GREASE | XE | |||
| 856 | 381091-01 | 1 | GUIDE FENCE | metric | XE | ||
| 861 | N153976 | 1 | KITBOX | XE | |||
| 866 | 389795-23 | 1 | BATTERY 18V - 2.4AH | DC9096 18 V NICD | DC390KA | XE | |
| 867 | 608522-00 | 1 | SAFETY CAP | XE | |||
| 871 | DE9116 | 1 | CHARGER 7.2V - 18V | Ni-Cad - NiMH - 1 hr | DC390KA | XE |
