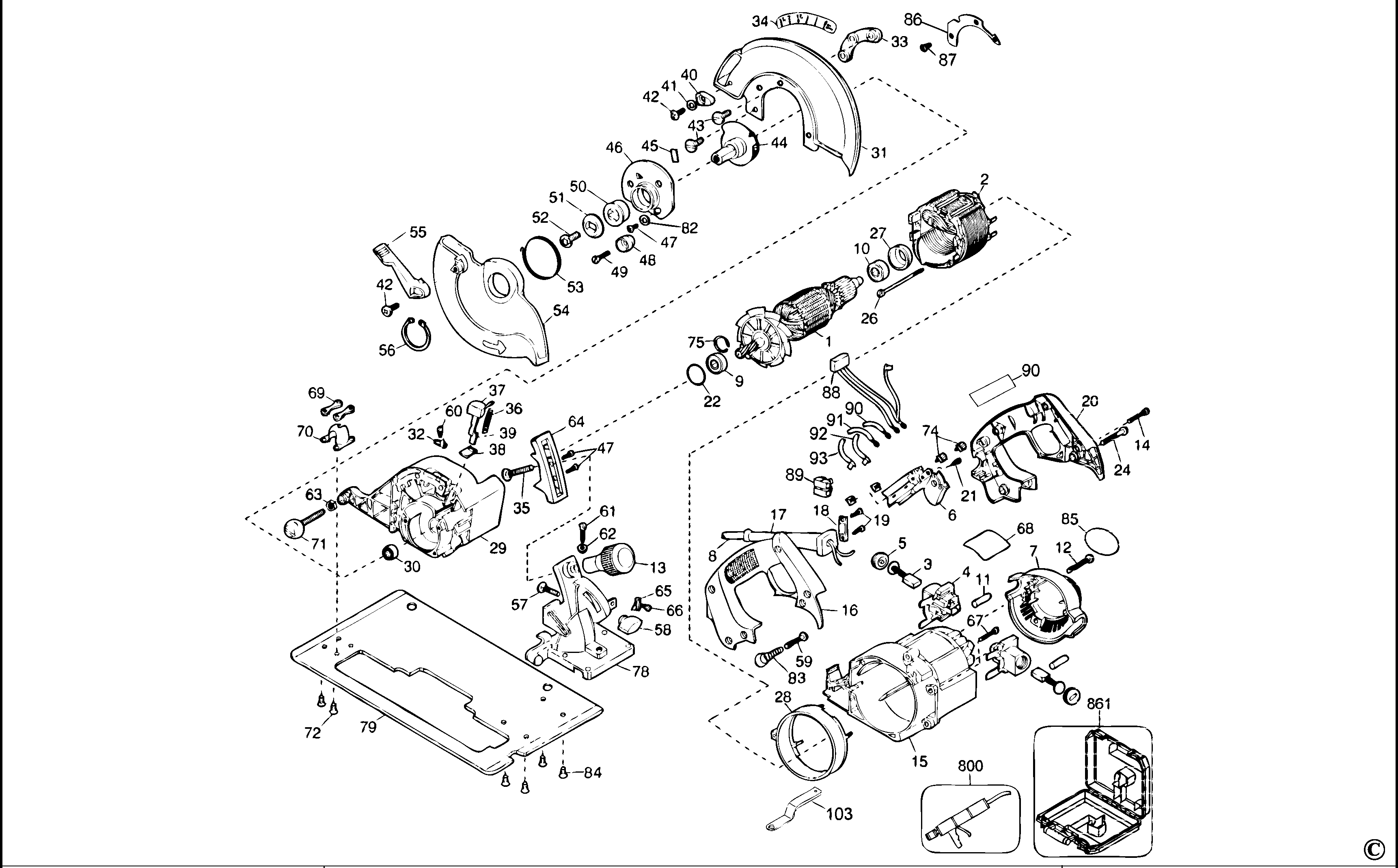

DW384-46 CIRCULAR SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 144785-10SV | 1 | ARMATURE & FAN | XE | |||
| 1 | 144785-10SV | 1 | ARMATURE & FAN | XE | |||
| 2 | N113577 | 1 | FIELD 230V | XE | |||
| 3 | 145323-01 | 2 | BRUSH SA 230V | XE | |||
| 4 | 147097-09 | 2 | BRUSH HOLDER SA | XE | |||
| 5 | 448084-01 | 2 | BRUSH CAP | XE | |||
| 6 | 450777-06 | 1 | SWITCH | Tyco | XE | ||
| 7 | 382251-00 | 1 | END CAP SA | XE | |||
| 8 | 330048-38 | 1 | CABLE SA | XE | |||
| 9 | N570313 | 1 | BEARING | XE | |||
| 10 | 605040-20 | 1 | BEARING | 12 x 28 x 8mm | XE | ||
| 11 | 87205-00 | 2 | PLUG | XE | |||
| 12 | 330019-20 | 2 | SCREW | XE | |||
| 13 | 145439-04 | 1 | KNOB | XE | |||
| 14 | 330019-14 | 4 | SCREW | XE | |||
| 15 | 144945-05 | 1 | FIELDCASE | XE | |||
| 16 | 000000-00 | 1 | NO LONGER AVAILABLE | XE | |||
| 17 | 445338-00 | 1 | CORD PROTECTOR | XE | |||
| 19 | 148461-00 | 2 | SCREW.TEMP | XE | |||
| 20 | 394149-01 | 1 | Handle | XE | |||
| 21 | 330019-10 | 1 | SCREW | XE | |||
| 22 | 701297-00 | 1 | SEAL | XE | |||
| 24 | 330019-21 | 3 | SCREW.TEMP | XE | |||
| 26 | 330019-19 | 2 | SCREW | XE | |||
| 27 | 137382-00 | 1 | SLEEVE | XE | |||
| 28 | 145301-00 | 1 | BAFFLE FAN | XE | |||
| 29 | 145384-05 | 1 | GEARCASE | XE | |||
| 30 | 330004-06 | 1 | BEARING NEEDLE | XE | |||
| 31 | 149519-02 | 1 | GUARD UPPER | XE | |||
| 32 | 145340-00 | 1 | POINTER | XE | |||
| 33 | 5140030-87 | 1 | SLIDE | INCL THD FMG SCREWS | XE | ||
| 34 | 147193-02 | 1 | LABEL | XE | |||
| 35 | 148624-00 | 1 | SCREW.TEMP | XE | |||
| 36 | 150466-00 | 1 | SPRING | XE | |||
| 37 | 145350-00 | 1 | BUTTON | XE | |||
| 38 | 145351-00 | 1 | WIPER | XE | |||
| 39 | 145349-00 | 1 | LEVER | XE | |||
| 40 | 145318-00 | 1 | BUMPER | XE | |||
| 41 | 330016-07 | 1 | WASHER | XE | |||
| 42 | 098094-13 | 2 | SCREW | XE | |||
| 43 | 616001-00 | 3 | SCREW | XE | |||
| 43 | 330045-55 | 3 | SCREW | XE | |||
| 44 | 145353-10 | 1 | SPINDLE & GEAR | XE | |||
| 45 | 147194-00 | 1 | SEAL | XE | |||
| 46 | 610906-00 | 1 | GEARCASE COVER | XE | |||
| 47 | 98102-13 | 5 | SCREW.TEMP | XE | |||
| 48 | 145375-02 | 1 | BUMPER | XE | |||
| 49 | 98096-19 | 1 | SCREW.TEMP | XE | |||
| 50 | 145342-00 | 1 | WASHER INNER CLAMP | XE | |||
| 51 | 145343-01 | 1 | WASHER OUTER CLAMP | XE | |||
| 52 | 145344-00 | 1 | SCREW | XE | |||
| 53 | 605015-00 | 1 | SPRING | XE | |||
| 54 | 655180-00 | 1 | GUARD LOWER | XE | |||
| 55 | 389572-00 | 1 | LEVER | XE | |||
| 56 | 388496-00 | 1 | RETAINER | XE | |||
| 57 | 98128-35 | 1 | SCREW.TEMP | XE | |||
| 58 | 147107-00 | 1 | KNOB | XE | |||
| 59 | 144949-00 | 1 | SCREW.SPECIAL | XE | |||
| 60 | 330045-05 | 1 | SCREW | XE | |||
| 61 | 98004-36 | 1 | SCREW.TEMP | XE | |||
| 62 | 330015-04 | 1 | NUT | XE | |||
| 63 | 330015-03 | 1 | NUT | M8x1.25 | XE | ||
| 64 | 147058-00 | 1 | BRACKET | XE | |||
| 65 | 145341-00 | 1 | POINTER | XE | |||
| 66 | 330045-04 | 1 | SCREW.TEMP | M4x0.7x6 MTL THD FMG | XE | ||
| 67 | 330045-19 | 4 | SCREW | XE | |||
| 68 | 156084-02 | 1 | RATING PLATE | XE | |||
| 69 | 145449-00 | 2 | PLATE | XE | |||
| 70 | 145423-01 | 1 | CLAMP | XE | |||
| 71 | 147099-00 | 1 | BALL | XE | |||
| 72 | 098102-10 | 8 | SCREW.TEMP | XE | |||
| 74 | 384127-01 | 4 | SCREW | XE | |||
| 75 | 144803-00 | 1 | CIRCLIP | XE | |||
| 78 | 000000-00 | 1 | NO LONGER AVAILABLE | XE | |||
| 79 | N407569 | 1 | SHOE | XE | |||
| 82 | 150246-00 | 1 | SPACER | XE | |||
| 83 | 150941-00 | 1 | SPRING | XE | |||
| 84 | 098102-08 | 7 | SCREW | XE | |||
| 85 | 149521-01 | 1 | NAMEPLATE | XE | |||
| 86 | 000000-00 | 1 | NO LONGER AVAILABLE | XE | |||
| 87 | 098102-08 | 1 | SCREW | XE | |||
| 88 | 148679-02 | 1 | CAPACITOR | XE | |||
| 89 | 320078-00 | 1 | TERMINAL BLOCK | XE | |||
| 90 | 000000-00 | 1 | NO LONGER AVAILABLE | XE | |||
| 91 | 145370-00 | 1 | LEAD SA | XE | |||
| 92 | 149005-00 | 1 | LEAD SA | XE | |||
| 93 | 145374-00 | 1 | LEAD SA | XE | |||
| 103 | 145378-01 | 1 | WRENCH | XE | |||
| 800 | 5140061-28 | 1 | GREASE | XE | |||
| 861 | 621123-00 | 1 | KITBOX | XE |
