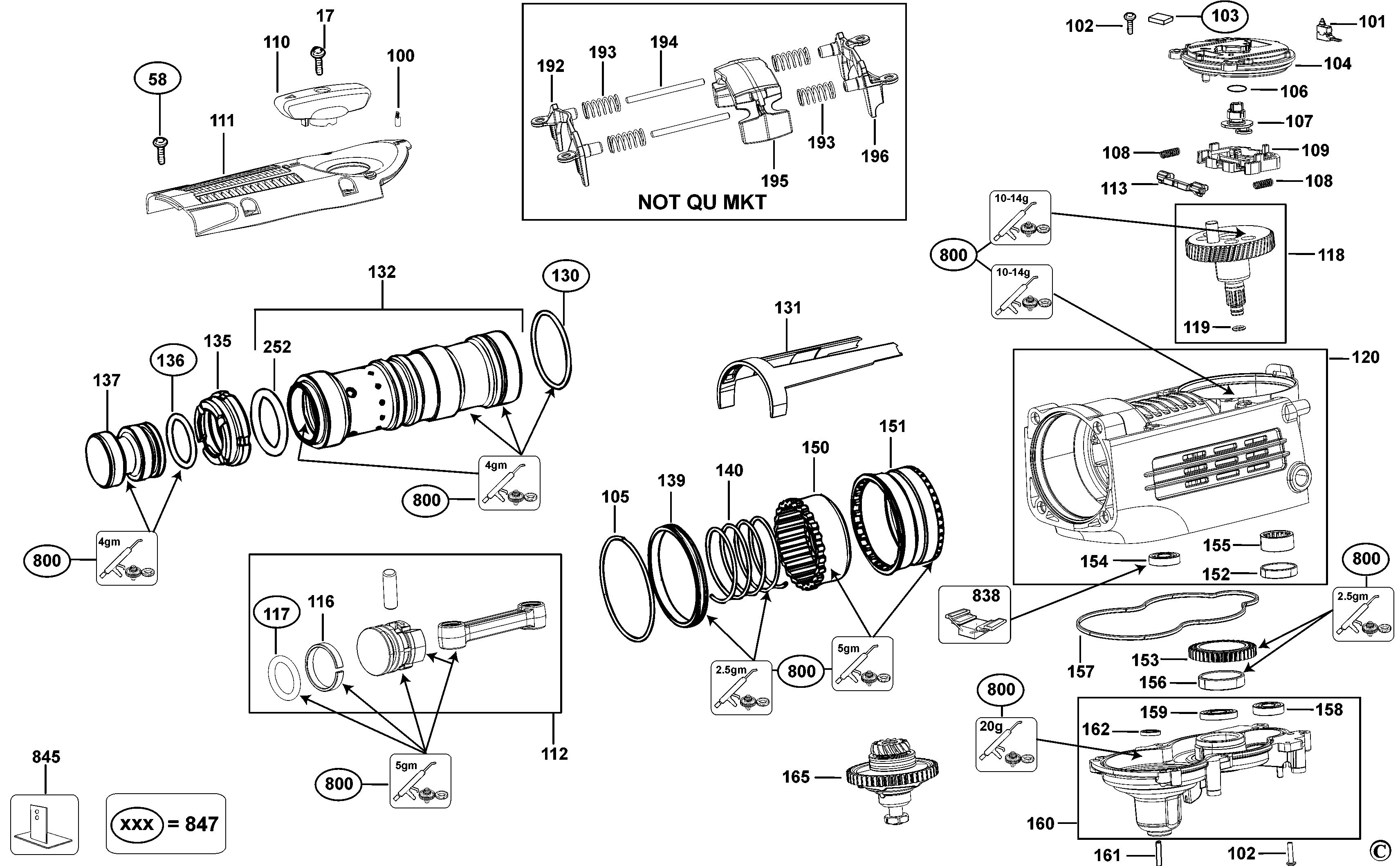

D25712K ROTARY HAMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 3 | 587274-00 | 1 | SWITCH | XE | |||
| 5 | 330019-30 | 2 | SCREW | XE | |||
| 6 | 577746-00 | 1 | RING | XE | |||
| 7 | 577745-00 | 1 | BEARING | XE | |||
| 8 | 590191-00 | 1 | SLEEVE INSULATING | XE | |||
| 10 | N542569 | 1 | FAN SA | XE | |||
| 15 | 324119-02 | 1 | SCREW | XE | |||
| 16 | N029959 | 1 | BAFFLE FAN | XE | |||
| 17 | 330065-08 | 19 | SCREW | M4x18 T20 | XE | ||
| 19 | N022762-00 | 1 | MOTOR COVER | XE | |||
| 20 | N027971 | 1 | END CAP | XE | |||
| 25 | N081352 | 1 | LEVER SA | XE | |||
| 27 | 1005672-00 | 1 | SCREW | XE | |||
| 28 | N026163-00 | 1 | SUPPORT PLATE | XE | |||
| 29 | 1007569-00 | 1 | SPRING | XE | |||
| 30 | 1007567-00 | 1 | BUSH | XE | |||
| 35 | 1007566-00 | 1 | STOP | XE | |||
| 36 | 1007565-00 | 1 | BELLOWS | XE | |||
| 37 | 1006579-00 | 1 | SWITCH HANDLE | XE | |||
| 38 | 587114-01 | 1 | TRIGGER | XE | |||
| 39 | 1006580-00 | 1 | HANDLE COVER | XE | |||
| 40 | N019514 | 1 | TRIGGER LOCK-ON | XE | |||
| 46 | 1008678-00 | 1 | BELLOWS | XE | |||
| 47 | N038214 | 2 | BUSH | XE | |||
| 48 | N062047 | 1 | PIN | XE | |||
| 49 | N030728 | 1 | LENS | XE | |||
| 50 | 1008391-00 | 1 | COVER | XE | |||
| 55 | 821070 | 1 | CORD CLAMP | XE | |||
| 56 | 323091-01 | 1 | CORD PROTECTOR | XE | |||
| 58 | 324007-11 | 4 | SCREW | M5 X 18 | XE | ||
| 100 | 326467-00 | 1 | DETENT | XE | |||
| 101 | N019533 | 1 | MICRO SWITCH | XE | |||
| 102 | 324007-11 | 22 | SCREW | M5 X 18 | XE | ||
| 103 | 488067-00 | 1 | FILTER | XE | |||
| 104 | N027968 | 1 | COVER GEARCASE | XE | |||
| 105 | 323711-56 | 1 | O RING | XE | |||
| 106 | 323711-48 | 1 | O RING | XE | |||
| 107 | 586032-00 | 1 | ECCENTRIC | XE | |||
| 108 | 323395-32 | 2 | SPRING | XE | |||
| 109 | N027969 | 1 | SLIDER | XE | |||
| 110 | 586038-00 | 1 | SELECTOR | XE | |||
| 112 | 488689-00 | 1 | PISTON KIT | <352010 | XE | ||
| 112 | N079389 | 1 | PISTON KIT | >352010 | XE | ||
| 113 | N027970 | 1 | RETAINER | XE | |||
| 116 | N029957 | 1 | CLIP | XE | |||
| 117 | 584703-00 | 1 | O RING | XE | |||
| 118 | N513280 | 1 | CRANKSHAFT | <352010 | XE | ||
| 118 | N090947 | 1 | CRANKSHAFT | >352010 | XE | ||
| 119 | 323711-26 | 1 | O RING | XE | |||
| 120 | N079379 | 1 | HOUSING SA | XE | |||
| 130 | 577744-07 | 1 | O RING | XE | |||
| 131 | 586034-00 | 1 | SLIDER | XE | |||
| 132 | N079394 | 1 | CYLINDER SA | XE | |||
| 135 | 584715-00 | 1 | BUSH | XE | |||
| 136 | 584706-00 | 1 | O RING | XE | |||
| 137 | 489180-00 | 1 | RAM | XE | |||
| 139 | 478650-00 | 1 | BUSH | XE | |||
| 140 | 584726-00 | 1 | SPRING | XE | |||
| 150 | 489181-01 | 1 | SLEEVE | XE | |||
| 151 | N079396 | 1 | BEVEL GEAR | XE | |||
| 152 | 479974-00 | 1 | SPACER | XE | |||
| 153 | 488688-00 | 1 | GEAR | XE | |||
| 154 | 577745-02 | 1 | BEARING,BALL | XE | |||
| 155 | 586301-00 | 1 | BEARING,NEEDLE | XE | |||
| 156 | 489239-00 | 1 | BEARING BRASS BUSH | XE | |||
| 157 | 586022-00 | 1 | SEAL | XE | |||
| 158 | 330003-39 | 1 | BEARING | XE | |||
| 159 | 327141-08 | 1 | SEAL | XE | |||
| 160 | N079386 | 1 | COVER GEARCASE | XE | |||
| 161 | 586392-00 | 1 | PIN | XE | |||
| 162 | 586403-00 | 1 | SEAL | XE | |||
| 165 | N079392 | 1 | CLUTCH SA | XE | |||
| 200 | 487238-01 | 1 | SEAL | XE | |||
| 201 | 487205-00 | 1 | RING | XE | |||
| 202 | 487241-00 | 1 | WASHER | XE | |||
| 203 | 487244-00 | 1 | RUBBER | XE | |||
| 204 | 487236-00 | 1 | SLEEVE | XE | |||
| 205 | 579784-00 | 1 | LOCKING RING | XE | |||
| 206 | 487218-00 | 1 | SPRING | XE | |||
| 207 | 489672-00 | 2 | KEY | XE | |||
| 208 | 487249-00 | 1 | BUSH | XE | |||
| 209 | 590377-00 | 1 | GUIDE BUSH | XE | |||
| 210 | 487216-00 | 1 | SPRING | XE | |||
| 220 | 584696-00 | 1 | GUIDE | XE | |||
| 221 | 585167-01 | 1 | COVER | XE | |||
| 223 | 949886-32 | 4 | SCREW | XE | |||
| 224 | 327141-07 | 1 | LIP SEAL | XE | |||
| 225 | 488679-00 | 1 | BEARING SET | XE | |||
| 226 | 488787-00 | 1 | RING | XE | |||
| 227 | 488678-00 | 1 | HOUSING FRONT | XE | |||
| 228 | 589096-00 | 1 | BUSH | XE | |||
| 229 | 589223-00 | 1 | DAMPER | XE | |||
| 230 | 584727-00 | 1 | BUSH | XE | |||
| 240 | 488546-00 | 1 | O RING | XE | |||
| 250 | 488676-00 | 1 | SPINDLE SA | XE | |||
| 251 | N014007 | 1 | SEAL | XE | |||
| 252 | 1005597-00 | 1 | O RING | XE | |||
| 253 | 488685-00 | 1 | BEARING | XE | |||
| 254 | 488681-00 | 1 | BEAT PIECE | XE | |||
| 255 | 488680-00 | 1 | WASHER | XE | |||
| 256 | 577744-06 | 1 | O RING | XE | |||
| 257 | 488686-00 | 1 | BUSH | XE | |||
| 260 | N083965 | 1 | HANDLE SA | XE | |||
| 261 | N021312 | 1 | CLAMPING INSERT | XE | |||
| 262 | N114828 | 1 | Handle | XE | |||
| 263 | 326553-00 | 1 | LOCKING RING | XE | |||
| 264 | 479333-00 | 1 | CLAMP | XE | |||
| 265 | 326552-00 | 1 | BUSH | XE | |||
| 266 | N079374 | 1 | PIN | XE | |||
| 800 | 578970-06 | 1 | GREASE 150 GMS | XE | |||
| 816 | N061824 | 1 | BRAND LABEL | XE | |||
| 817 | 487395-01 | 1 | LABEL | XE | |||
| 836 | 559652-99 | 1 | S.T.CIRCLIP REMOVER | XE | |||
| 836 | 559651-99 | 1 | S.T.CIRCLIP REMOVER | XE | |||
| 837 | 559653-99 | 1 | S.T.BEARING EXTRACTOR | O Ring/Bush extracto | XE | ||
| 838 | 559657-99 | 1 | S.T.BEARING EXTRACTOR | Bearing puller, assm | XE | ||
| 840 | 559659-99 | 1 | S.T.SEAL FITTING TOOL | XE | |||
| 845 | 559656-99 | 1 | S.T.SUPPORT JIG | XE | |||
| 861 | N072214 | 1 | KITBOX | XE |
