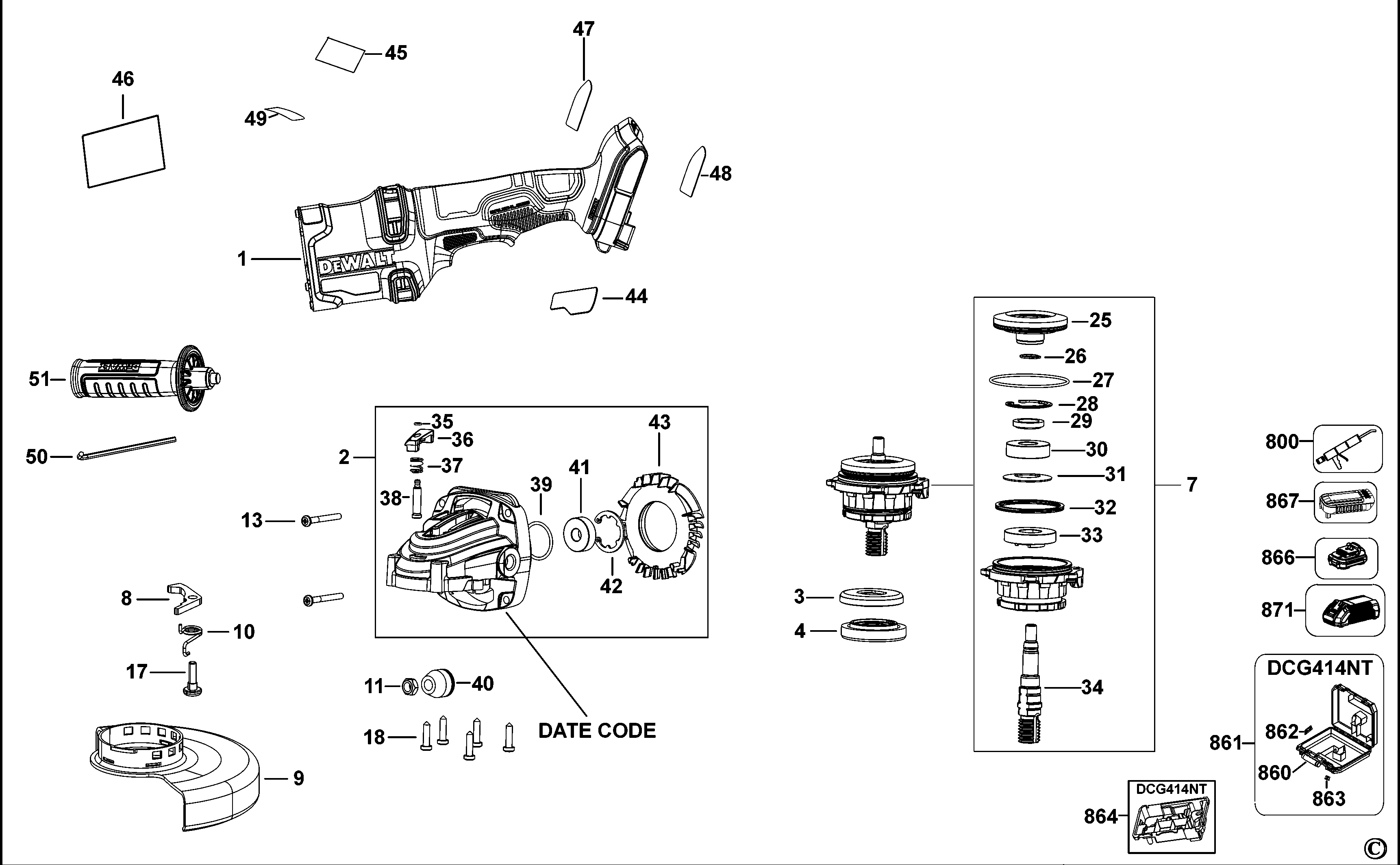

DCG414 SMALL ANGLE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 000000-05 | 1 | PARTIAL SUPPORT - ONLY PARTS LISTED AVAI | XE | |||
| 2 | N480241 | 1 | GEARCASE SA | XE | |||
| 3 | 391969-00 | 1 | INNER FLANGE | XE | |||
| 4 | N484250 | 1 | OUTER FLANGE | XE | |||
| 7 | N455879 | 1 | GEARCASE COVER SA | M14 | XE | ||
| 8 | N637725 | 1 | LEVER | XE | |||
| 9 | N487790 | 1 | GUARD | XE | |||
| 10 | N465886 | 1 | SPRING | XE | |||
| 11 | N372039 | 1 | NUT | XE | |||
| 13 | N412210 | 4 | SCREW | M3.63 x 31.75 mm T15 | XE | ||
| 17 | N297219 | 1 | SCREW | XE | |||
| 18 | 330045-06 | 5 | SCREW | XE | |||
| 25 | N449470 | 1 | GEAR | XE | |||
| 26 | 444793-00 | 1 | CIRCLIP | XE | |||
| 27 | N307625 | 1 | O RING | XE | |||
| 28 | N389985 | 1 | RING | XE | |||
| 29 | N390307 | 1 | SPACER | XE | |||
| 30 | 605040-24 | 1 | BEARING | XE | |||
| 31 | N390308 | 1 | WASHER SPRING | XE | |||
| 32 | N542715 | 1 | WASHER SPRING | XE | |||
| 33 | N448927 | 1 | WASHER | M14 | XE | ||
| 34 | N449565 | 1 | SPINDLE | M14 | XE | ||
| 35 | N263699 | 1 | O RING | XE | |||
| 36 | N278899 | 1 | BUTTON | XE | |||
| 37 | N263579 | 1 | SPRING | XE | |||
| 38 | N481683 | 1 | LOCK PIN | XE | |||
| 39 | N119639 | 1 | O RING | XE | |||
| 40 | N461411 | 1 | PINION | 10T | XE | ||
| 41 | N175104 | 1 | BEARING | XE | |||
| 42 | N398877 | 1 | CIRCLIP | INTERNAL | XE | ||
| 43 | N401958 | 1 | DEFLECTOR | XE | |||
| 44 | N456830 | 1 | BRAND LABEL | 54 VOLT | XE | ||
| 45 | N456232 | 1 | LABEL | BRAKE | XE | ||
| 47 | N456831 | 1 | BRAND LABEL | LH | XE | ||
| 48 | N456832 | 1 | BRAND LABEL | RH | XE | ||
| 49 | N456231 | 1 | LABEL | XE | |||
| 50 | N107295 | 1 | HEX KEY | 6 mm | XE | ||
| 51 | N382311 | 1 | SIDE HANDLE | XE | |||
| 800 | 583534-00 | 1 | GREASE | 50 GRAMS - NYE RHEOLUB 380G1 | XE | ||
| 860 | H1400196008 | 1 | Handle | XE | |||
| 861 | N279261 | 1 | KITBOX | DCG414NT | XE | ||
| 862 | H1500082520 | 2 | LATCH | XE | |||
| 863 | P910190 | 2 | LATCH | XE | |||
| 864 | N450869 | 1 | INSERT | KITBOX | XE | ||
| 867 | N462141 | 1 | SAFETY CAP | XE |
