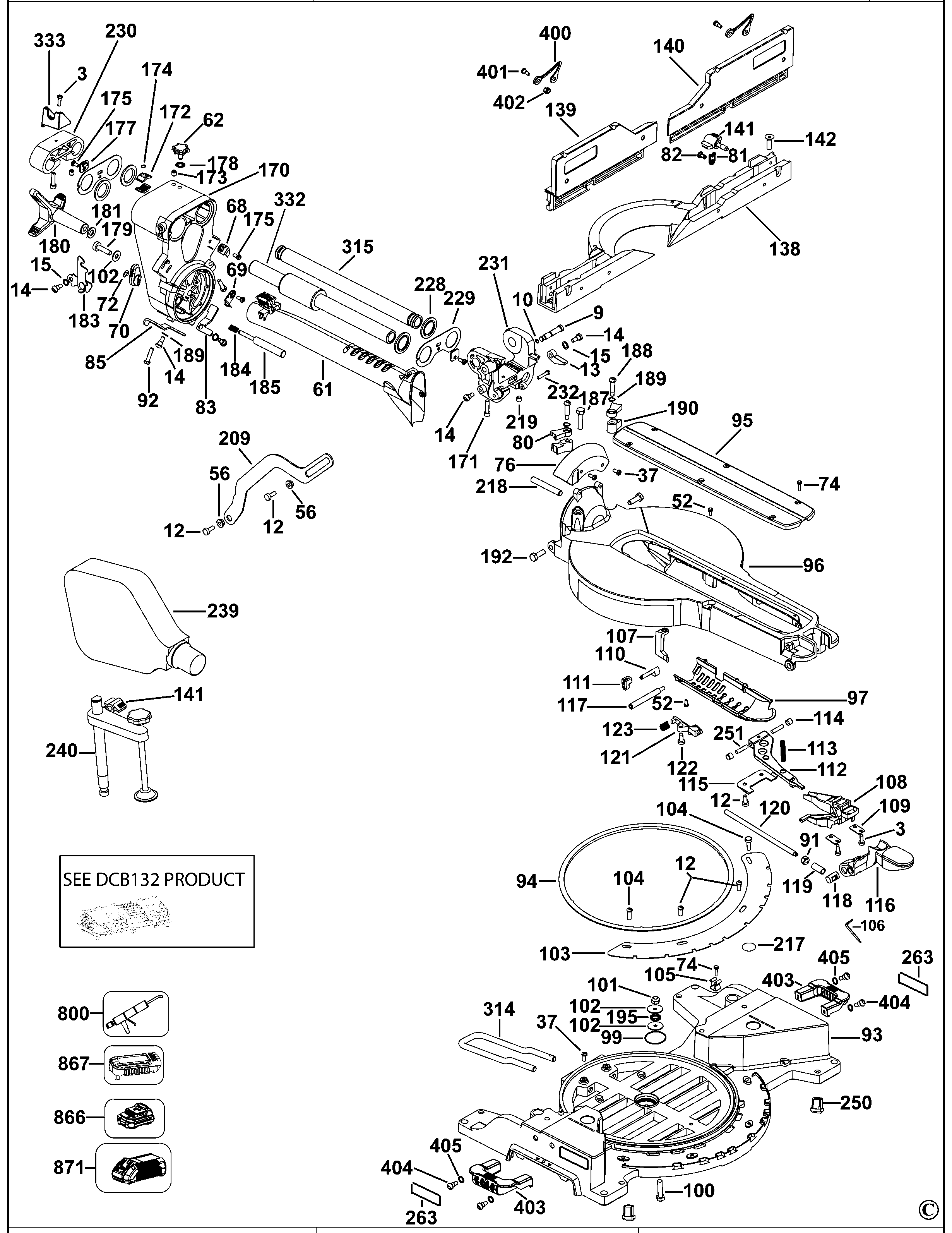

DHS780 MITRE SAW Type 21 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 2 | N459235 | 1 | COVER | XE | |||
| 3 | 330045-14 | 7 | SCREW | XE | |||
| 4 | N126153 | 1 | PIVOT SHAFT | XE | |||
| 5 | 146732-00 | 2 | SPACER | XE | |||
| 6 | N639013 | 1 | SPRING | XE | |||
| 7 | 150075-00 | 2 | SCREW | XE | |||
| 8 | N377514 | 2 | BUSHING | XE | |||
| 9 | 387130-00 | 1 | LOCKING PIN | XE | |||
| 10 | 34158-00 | 1 | SEAL | XE | |||
| 11 | N600556 | 1 | GUARD REAR | XE | |||
| 12 | 330045-23 | 8 | SCREW | XE | |||
| 13 | 153603-01 | 1 | PAWL | XE | |||
| 14 | 153639-00 | 5 | SCREW | XE | |||
| 15 | 153655-00 | 2 | WASHER | XE | |||
| 16 | N185664 | 1 | SCREW | XE | |||
| 17 | 150718-00 | 1 | NUT WING | XE | |||
| 18 | N439376 | 1 | LED LIGHT | XE | |||
| 20 | N460123 | 1 | SCREW | XE | |||
| 23 | N600011 | 1 | BLADE BOLT | XE | |||
| 24 | N538823 | 1 | CLAMP OUTER | XE | |||
| 25 | 152636-00 | 1 | BLADE HOLDER | XE | |||
| 26 | N538855 | 1 | WASHER INNER CLAMP | XE | |||
| 28 | N141275 | 1 | SPINDLE & GEAR SA | XE | |||
| 29 | 605040-40 | 1 | BEARING BALL | XE | |||
| 30 | 391616-00 | 1 | BEARING NEEDLE | XE | |||
| 31 | N139533 | 1 | GEAR SA | XE | |||
| 32 | 605040-21 | 1 | BEARING | XE | |||
| 33 | 605040-33 | 1 | BEARING | XE | |||
| 34 | N203541 | 1 | SHAFT SA | XE | |||
| 35 | 153752-00 | 2 | RETAINER | XE | |||
| 36 | 618244-00 | 1 | RETAINING PLATE | XE | |||
| 37 | 330045-49 | 11 | SCREW | XE | |||
| 38 | 385915-04 | 4 | SCREW | XE | |||
| 40 | N004511 | 1 | DRIVE PULLEY | XE | |||
| 45 | N510450 | 1 | GASKET | XE | |||
| 47 | N464473 | 1 | BELT | XE | |||
| 49 | 153561-00 | 1 | LOCKING PIN | XE | |||
| 50 | 448176-00 | 1 | SPRING | XE | |||
| 51 | 393071-00 | 1 | PLATE | XE | |||
| 52 | 330045-45 | 10 | SCREW | XE | |||
| 53 | 153559-00 | 1 | WASHER | XE | |||
| 56 | 146740-00 | 2 | SLEEVE | XE | |||
| 57 | 394589-01 | 2 | SCREW | XE | |||
| 60 | 330045-15 | 11 | SCREW | XE | |||
| 61 | N142121 | 1 | DUST PORT | XE | |||
| 62 | N080677 | 1 | KNOB | M8x1.0 THD | XE | ||
| 68 | N058308 | 1 | POINTER | XE | |||
| 69 | N058309 | 1 | POINTER | XE | |||
| 70 | N080199 | 1 | KNOB | XE | |||
| 72 | 60325-01 | 1 | RING | XE | |||
| 74 | 330045-06 | 6 | SCREW | XE | |||
| 76 | N585429 | 1 | BEVEL SCALE | XE | |||
| 80 | N043045 | 2 | PAWL | XE | |||
| 83 | N049689 | 1 | STOP RH | XE | |||
| 85 | N051519 | 1 | STOP LH | XE | |||
| 91 | 330015-03 | 1 | NUT | M8x1.25 | XE | ||
| 92 | N058312 | 2 | SCREW | XE | |||
| 93 | N597356 | 1 | BASE SA | XE | |||
| 94 | N528183 | 1 | PLATE | XE | |||
| 95 | N544383 | 1 | PLATE | XE | |||
| 96 | N600623 | 1 | TABLE SA | XE | |||
| 99 | 49787-00 | 1 | O RING | XE | |||
| 100 | N058318 | 1 | SCREW | XE | |||
| 101 | N044739 | 1 | LOCK NUT | XE | |||
| 102 | 153792-00 | 4 | WASHER | XE | |||
| 103 | N583416 | 1 | PLATE | XE | |||
| 104 | 604410-00 | 2 | SCREW | XE | |||
| 105 | 391358-01 | 1 | HOLDER | XE | |||
| 106 | N600007 | 1 | SPANNER | XE | |||
| 107 | N057963 | 1 | POINTER | XE | |||
| 108 | N050755 | 1 | ACTUATOR | XE | |||
| 109 | N477762 | 2 | PLATE | XE | |||
| 110 | 622396-00 | 1 | SHAFT | XE | |||
| 111 | 622395-00 | 1 | LEVER LOCK-OFF | XE | |||
| 113 | N477761 | 1 | SPRING COMPRESSION | XE | |||
| 114 | 093128-00 | 2 | BEARING NEEDLE | XE | |||
| 115 | 618254-00 | 1 | RETAINER | XE | |||
| 116 | N082785 | 1 | LEVER | XE | |||
| 117 | N057386 | 1 | PIN | XE | |||
| 118 | 624460-00 | 1 | PIN | XE | |||
| 119 | 624461-00 | 1 | SLEEVE | XE | |||
| 120 | 618186-00 | 1 | ROD | XE | |||
| 121 | 618185-00 | 1 | BLOCK | XE | |||
| 122 | 385915-03 | 1 | SCREW | XE | |||
| 123 | 618253-00 | 1 | SPRING COMPRESSION | XE | |||
| 124 | N633984 | 1 | HANDLE SA | XE | |||
| 125 | 330045-18 | 4 | SCREW | XE | |||
| 126 | 330019-32 | 3 | SCREW | XE | |||
| 127 | N494159 | 1 | PCB SA | XE | |||
| 128 | N447769 | 1 | SWITCH | XE | |||
| 129 | N458834 | 4 | SCREW | 6-32 x 5.55mm | XE | ||
| 131 | 330019-12 | 1 | SCREW | XE | |||
| 133 | N083060 | 1 | Handle | XE | |||
| 134 | 330019-22 | 1 | SCREW | M5.74x32 | XE | ||
| 135 | 398443-00 | 1 | CABLE CLAMP | XE | |||
| 137 | N030322 | 1 | COVER | XE | |||
| 139 | N450336 | 1 | FENCE LH | XE | |||
| 140 | N450343 | 1 | FENCE RH | XE | |||
| 141 | N480602 | 2 | KNOB SA | XE | |||
| 142 | 098105-03 | 4 | SCREW | XE | |||
| 143 | N631879 | 1 | MOTOR SA | EMI | XE | ||
| 144 | N448791 | 1 | COVER | XE | |||
| 145 | N427493 | 1 | SCREW | M3x12.5 | XE | ||
| 146 | N493970 | 1 | LEAD | SIGNAL | XE | ||
| 147 | N443879 | 1 | LEAD | Power | XE | ||
| 148 | N449481 | 1 | BUSHING | SR-5L-1 | XE | ||
| 149 | 48822-00 | 1 | CABLE CLAMP | XE | |||
| 150 | N004510 | 1 | DRIVE PULLEY | XE | |||
| 151 | N426940 | 1 | HOUSING | XE | |||
| 152 | 323924-08 | 4 | SCREW | XE | |||
| 153 | N426941 | 1 | HOUSING | Center | XE | ||
| 154 | N449474 | 1 | SCREW | M5x20 T25 | XE | ||
| 155 | N461735 | 2 | SPRING | XE | |||
| 157 | N426942 | 1 | HOUSING | XE | |||
| 158 | 330019-16 | 10 | SCREW | XE | |||
| 161 | N599680 | 1 | SPACER | XE | |||
| 162 | N592867 | 1 | LEAD SA | XE | |||
| 163 | N594146 | 1 | LIFTER | XE | |||
| 164 | 330019-02 | 1 | SCREW | XE | |||
| 165 | 330045-15 | 1 | SCREW | XE | |||
| 165 | 330045-18 | 1 | SCREW | XE | |||
| 170 | N688652 | 1 | HOUSING SA | XE | |||
| 171 | 603390-00 | 8 | SCREW | XE | |||
| 172 | 397118-00 | 2 | GUIDE | XE | |||
| 173 | 153576-04 | 1 | SCREW | XE | |||
| 174 | 613497-00 | 1 | THRUST PLATE | XE | |||
| 175 | N058314 | 4 | SCREW | XE | |||
| 177 | N051244 | 2 | BUMPER | XE | |||
| 178 | 659919-00 | 1 | SPRING | XE | |||
| 179 | 612008-00 | 1 | SCREW | XE | |||
| 180 | N655935 | 1 | LOCK HANDLE | XE | |||
| 181 | 330016-04 | 1 | WASHER | XE | |||
| 183 | N095579 | 1 | LEVER SA | XE | |||
| 184 | 167785-00 | 2 | SPRING | XE | |||
| 185 | N834068 | 1 | PIN | XE | |||
| 187 | N600059 | 1 | BOLT | XE | |||
| 188 | N058315 | 2 | SCREW.SPECIAL | XE | |||
| 189 | 385946-00 | 4 | WASHER SPRING | XE | |||
| 190 | N043046 | 2 | PAWL | XE | |||
| 192 | N600034 | 2 | SCREW | XE | |||
| 194 | N630004 | 1 | DUST DEFLECTOR | XE | |||
| 195 | 153451-00 | 1 | BEARING THRUST | XE | |||
| 200 | N457634 | 1 | BRAND LABEL | XE | |||
| 202 | 148608-00 | 2 | INSERT | XE | |||
| 203 | 386780-00 | 2 | BEARING | XE | |||
| 204 | N681838 | 1 | GUARD LOWER | XE | |||
| 205 | N020822 | 1 | PLATE | XE | |||
| 206 | 385915-01 | 4 | SCREW | XE | |||
| 207 | 621037-00 | 1 | PLATE | XE | |||
| 208 | 146768-00 | 1 | BUMPER | XE | |||
| 209 | N142523 | 1 | LINK | XE | |||
| 212 | 146750-01 | 1 | RETAINING PLATE | XE | |||
| 213 | N034013 | 1 | SPRING | XE | |||
| 214 | 148295-00 | 1 | SLEEVE | XE | |||
| 215 | 625825-00 | 2 | ROLLER | XE | |||
| 216 | 603232-00 | 2 | CIRCLIP | EXTERNAL | XE | ||
| 217 | 394976-00 | 2 | LABEL | WARNING | XE | ||
| 218 | 146760-02 | 1 | STUD | XE | |||
| 219 | 153666-00 | 2 | SCREW | set screw M8 x 8mm long | XE | ||
| 228 | 397117-00 | 4 | SEAL | XE | |||
| 229 | N049684 | 2 | COVERPLATE | XE | |||
| 230 | N455343 | 1 | HOUSING | XE | |||
| 231 | N443949 | 1 | TRUNNION | XE | |||
| 232 | 330019-14 | 1 | SCREW | XE | |||
| 239 | N126162 | 1 | DUST BAG SA | XE | |||
| 240 | N142123 | 1 | CLAMP SA | XE | |||
| 250 | 868777-00 | 4 | FOOT | XE | |||
| 251 | 618170-00 | 2 | PIN | XE | |||
| 260 | N457632 | 1 | LABEL | FLEXVOLT | XE | ||
| 261 | N460811 | 1 | LABEL | BRUSHLESS | XE | ||
| 263 | N458771 | 2 | LABEL | FLEXVOLT | XE | ||
| 290 | 394034-00 | 1 | SCREW | belt tensioner | XE | ||
| 314 | N441566 | 1 | BAR FENCE | XE | |||
| 315 | N058319 | 1 | RAIL | XE | |||
| 332 | N104494 | 1 | RAIL | XE | |||
| 333 | N450867 | 1 | BRACKET | CORDSET | XE | ||
| 400 | N735605 | 2 | CONNECTING WIRE | XE | |||
| 401 | 098013-16 | 2 | SCREW | XE | |||
| 402 | 330021-06 | 2 | NUT | XE | |||
| 403 | N600658 | 2 | Handle | XE | |||
| 404 | 394589-01 | 4 | SCREW | XE | |||
| 405 | N611941 | 4 | WASHER | XE | |||
| 533 | N595757 | 1 | SWITCH | FROM WK23-2018 | XE | ||
| 533 | N443880 | 1 | SWITCH | WORKLIGHT | TO WK23-2018 | XE | |
| 534 | N300152 | 1 | CAP | XE | |||
| 535 | N631525 | 1 | HEATSHIELD | 4.75 DIA X 35MM LONG | XE | ||
| 800 | 93488-00 | 1 | GREASE | XE | |||
| 800 | 5140061-28 | 1 | GREASE | XE | |||
| 867 | N462141 | 1 | SAFETY CAP | XE |
