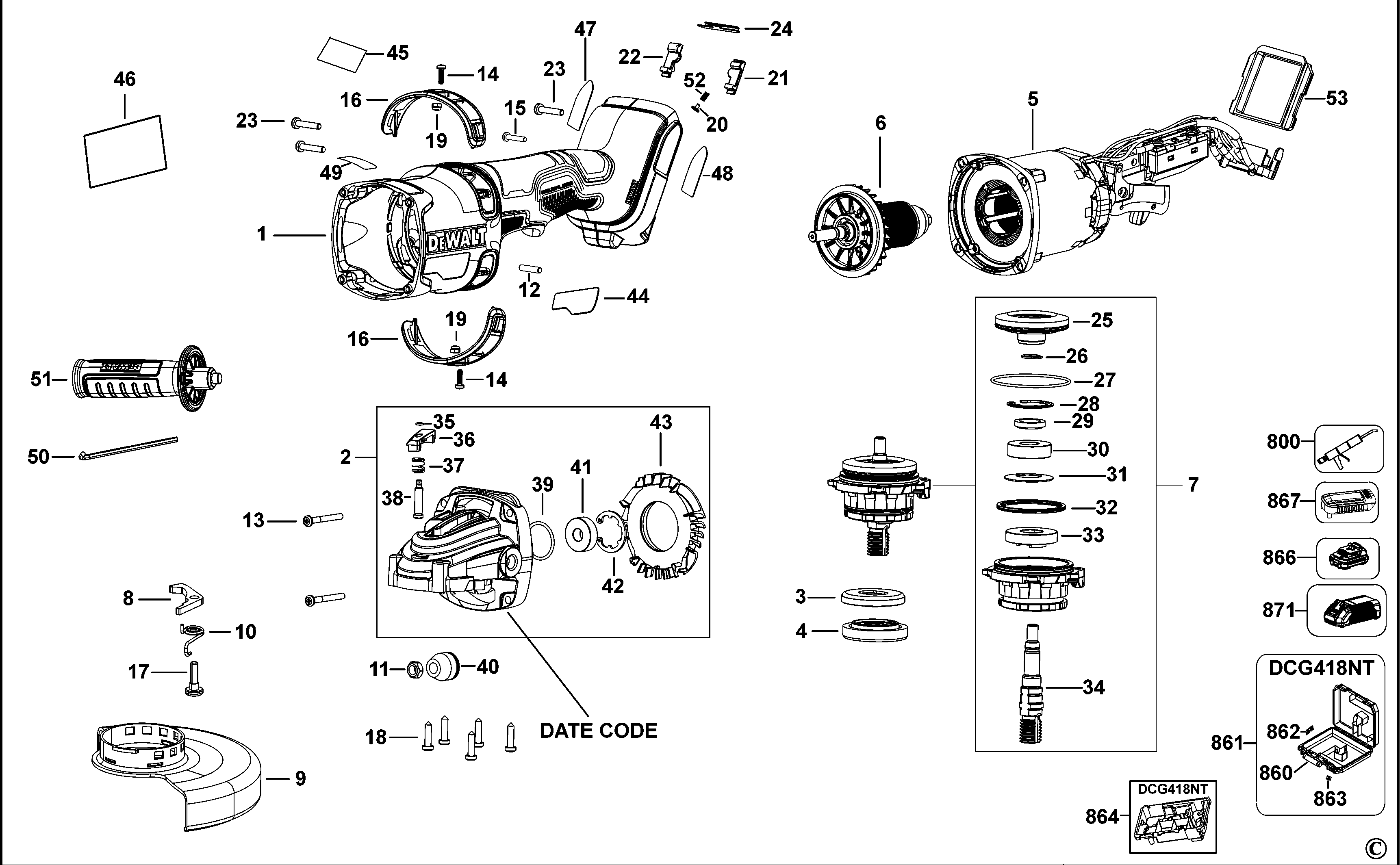

DCG418 ANGLE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N575277 | 1 | CLAMSHELL SET | XE | |||
| 2 | N508013 | 1 | GEARCASE SA | M14 | XE | ||
| 3 | 391969-00 | 1 | INNER FLANGE | XE | |||
| 4 | N484250 | 1 | OUTER FLANGE | XE | |||
| 5 | N825069 | 1 | MOTOR & SWITCH SA | XE | |||
| 6 | N825073 | 1 | ARMATURE | XE | |||
| 7 | N508009 | 1 | GEARCASE COVER SA | XE | |||
| 8 | N637725 | 1 | LEVER | XE | |||
| 9 | N487790 | 1 | GUARD | XE | |||
| 10 | N465886 | 1 | SPRING | XE | |||
| 11 | N372039 | 1 | NUT | XE | |||
| 12 | N071836 | 1 | ROLL PIN | XE | |||
| 13 | N412210 | 4 | SCREW | M3.63 x 31.75 mm T15 | XE | ||
| 14 | N575500 | 1 | SCREW | XE | |||
| 15 | 330019-03 | 1 | SCREW | XE | |||
| 16 | N436965 | 2 | VENT | XE | |||
| 17 | N297219 | 1 | SCREW | XE | |||
| 18 | 330045-06 | 5 | SCREW | XE | |||
| 19 | 330015-00 | 2 | NUT | XE | |||
| 20 | N122099 | 1 | BLOCK | XE | |||
| 21 | N728013 | 1 | INSERT | XE | |||
| 22 | N728012 | 1 | INSERT | XE | |||
| 23 | 90611830 | 7 | SCREW | XE | |||
| 24 | N467560 | 1 | PLATE | XE | |||
| 25 | N449470 | 1 | GEAR | XE | |||
| 26 | 444793-00 | 1 | CIRCLIP | XE | |||
| 27 | N307625 | 1 | O RING | XE | |||
| 28 | N481950 | 1 | RETAINER | XE | |||
| 29 | N390307 | 1 | SPACER | XE | |||
| 30 | 605040-24 | 1 | BEARING | XE | |||
| 31 | N390308 | 1 | WASHER SPRING | XE | |||
| 32 | N542715 | 1 | WASHER SPRING | XE | |||
| 33 | N448927 | 1 | WASHER | M14 | XE | ||
| 34 | N449565 | 1 | SPINDLE | M14 | XE | ||
| 35 | N263699 | 1 | O RING | XE | |||
| 36 | N278899 | 1 | BUTTON | XE | |||
| 37 | N263579 | 1 | SPRING | XE | |||
| 38 | N481683 | 1 | LOCK PIN | XE | |||
| 39 | N119639 | 1 | O RING | XE | |||
| 40 | N461411 | 1 | PINION | 10T | XE | ||
| 41 | N175104 | 1 | BEARING | XE | |||
| 42 | N453031 | 1 | RETAINER | XE | |||
| 43 | N401958 | 1 | DEFLECTOR | XE | |||
| 44 | N870782 | 1 | BRAND LABEL | XE | |||
| 45 | N456232 | 1 | LABEL | BRAKE | XE | ||
| 46 | N843117 | 1 | RATING PLATE | XE | |||
| 47 | N870781 | 1 | LABEL | LEFT FOOT; LH | XE | ||
| 48 | N870783 | 1 | LABEL | RH; RIGHT FOOT | XE | ||
| 49 | N456231 | 1 | LABEL | XE | |||
| 50 | N107295 | 1 | HEX KEY | 6 mm | XE | ||
| 51 | N382311 | 1 | SIDE HANDLE | XE | |||
| 52 | N461735 | 1 | SPRING | XE | |||
| 53 | N532926 | 1 | BOX | XE | |||
| 800 | 583534-00 | 1 | GREASE | 50 GRAMS - NYE RHEOLUB 380G1 | XE | ||
| 860 | H1400196008 | 1 | Handle | XE | |||
| 861 | N279261 | 1 | KITBOX | XE | |||
| 862 | H1500082520 | 2 | LATCH | XE | |||
| 863 | P910190 | 2 | LATCH | XE | |||
| 864 | N846780 | 1 | INSERT | DCG418T2 | XE | ||
| 866 | N491555 | 1 | BATTERY 3 X18V-9.0AH-162WH | DCB547-XE | DCG418X1/2 | XE | |
| 867 | N462141 | 1 | SAFETY CAP | XE |
