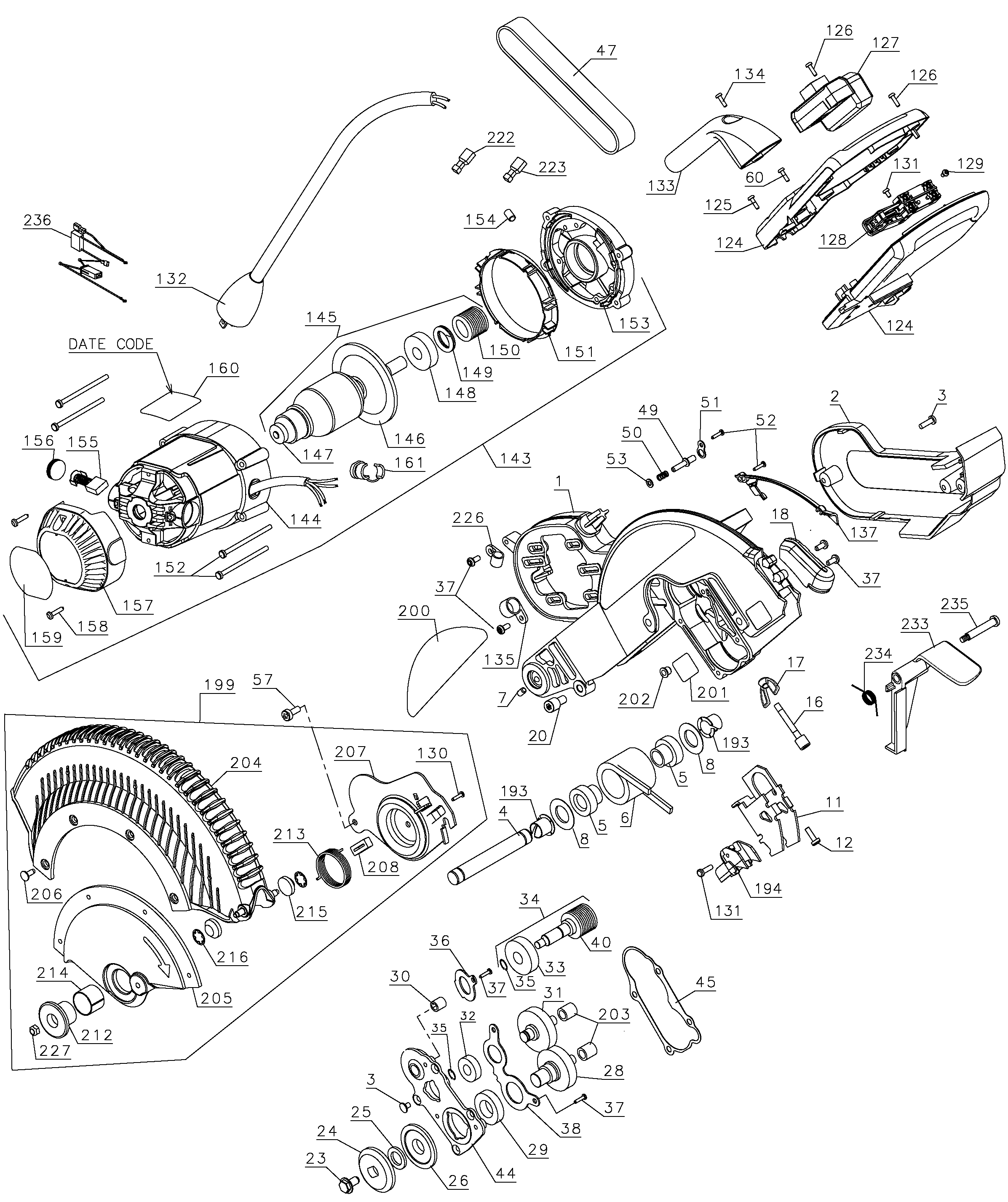

DWS780 MITRE SAW Type 20 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N030331SV | 1 | ARM | XE | |||
| 2 | 618193-00 | 1 | BELT COVER | XE | |||
| 3 | 330045-14 | 9 | SCREW | XE | |||
| 4 | 146751-00 | 1 | SHAFT | XE | |||
| 5 | 146732-00 | 2 | SPACER | XE | |||
| 6 | N039404 | 1 | SPRING | XE | |||
| 7 | 150075-00 | 2 | SCREW | XE | |||
| 8 | 148296-00 | 2 | WASHER | XE | |||
| 9 | 387130-00 | 1 | LOCKING PIN | XE | |||
| 10 | 034158-00 | 1 | O RING | XE | |||
| 11 | N058304 | 1 | GUARD REAR | XE | |||
| 12 | 330045-23 | 8 | SCREW | XE | |||
| 13 | 153603-01 | 1 | PAWL | XE | |||
| 14 | 153639-00 | 5 | SCREW | XE | |||
| 15 | 153655-00 | 2 | WASHER | XE | |||
| 16 | N185664 | 1 | SCREW | XE | |||
| 17 | 150718-00 | 1 | NUT WING | XE | |||
| 18 | N030317 | 1 | LED LIGHT | XE | |||
| 20 | 618198-00 | 1 | SCREW | XE | |||
| 23 | N436564 | 1 | BLADE BOLT | M8x1.25x20mm LH THD | XE | ||
| 24 | N199395 | 1 | CLAMP OUTER | XE | |||
| 25 | 152636-00 | 1 | BLADE HOLDER | XE | |||
| 26 | 645000-00 | 1 | WASHER INNER CLAMP | XE | |||
| 28 | N141275 | 1 | SPINDLE & GEAR SA | XE | |||
| 29 | 330003-66 | 1 | BEARING,BALL | XE | |||
| 30 | 391616-00 | 1 | BEARING NEEDLE | XE | |||
| 31 | N139533 | 1 | GEAR SA | XE | |||
| 32 | 605040-20 | 1 | BEARING | 12 x 28 x 8mm | XE | ||
| 33 | 605040-33 | 1 | BEARING | XE | |||
| 34 | N203541 | 1 | SHAFT SA | XE | |||
| 35 | 153752-00 | 2 | RETAINER | XE | |||
| 36 | 618244-00 | 1 | RETAINING PLATE | XE | |||
| 37 | 330045-49 | 11 | SCREW | XE | |||
| 38 | 391310-00 | 1 | BEARING PLATE | XE | |||
| 40 | N004511 | 1 | DRIVE PULLEY | XE | |||
| 44 | N272402 | 1 | GEARCASE COVER SA | XE | |||
| 45 | 391315-00 | 1 | GASKET | XE | |||
| 47 | 153555-00 | 1 | BELT | XE | |||
| 49 | 153561-00 | 1 | LOCKING PIN | XE | |||
| 50 | 448176-00 | 1 | SPRING | XE | |||
| 51 | 393071-00 | 1 | PLATE | XE | |||
| 52 | 330045-45 | 8 | SCREW | XE | |||
| 53 | 153559-00 | 1 | WASHER | XE | |||
| 56 | 146740-00 | 2 | SLEEVE | XE | |||
| 57 | 394589-01 | 2 | SCREW | XE | |||
| 60 | 330045-15 | 7 | SCREW | XE | |||
| 61 | N142121 | 1 | DUST PORT | XE | |||
| 62 | N080677 | 1 | KNOB | M8x1.0 THD | XE | ||
| 68 | N058308 | 1 | POINTER | XE | |||
| 69 | N058309 | 1 | POINTER | XE | |||
| 70 | N080199 | 1 | KNOB | XE | |||
| 72 | 060325-01 | 1 | RING | XE | |||
| 74 | 330045-06 | 7 | SCREW | XE | |||
| 76 | N090294 | 1 | BEVEL SCALE | XE | |||
| 80 | N043045 | 2 | PAWL | XE | |||
| 83 | N049689 | 1 | STOP RH | XE | |||
| 85 | N051519 | 1 | STOP LH | XE | |||
| 91 | 330015-03 | 1 | NUT | M8x1.25 | XE | ||
| 92 | N058312 | 2 | SCREW | XE | |||
| 93 | N772471 | 1 | BASE SA | XE | |||
| 94 | 618192-00 | 1 | PLATE | XE | |||
| 95 | N057391 | 2 | PLATE | XE | |||
| 96 | N773133 | 1 | TABLE SA | XE | |||
| 97 | N401778 | 1 | COVER | XE | |||
| 99 | 049787-00 | 1 | O RING | XE | |||
| 100 | N058318 | 1 | SCREW | XE | |||
| 101 | N044739 | 1 | LOCK NUT | XE | |||
| 102 | 153792-00 | 4 | WASHER | XE | |||
| 103 | N059784 | 1 | PLATE | XE | |||
| 104 | 604410-00 | 2 | SCREW | XE | |||
| 105 | 391358-01 | 1 | HOLDER | XE | |||
| 106 | 608563-01 | 1 | WRENCH SPECIAL | M13 - T30 | XE | ||
| 107 | N057963 | 1 | POINTER | XE | |||
| 108 | N050755 | 1 | ACTUATOR | XE | |||
| 109 | N066280 | 2 | PLATE | XE | |||
| 110 | 622396-00 | 1 | SHAFT | XE | |||
| 111 | 622395-00 | 1 | LEVER LOCK-OFF | XE | |||
| 112 | N488468 | 1 | DETENT | XE | |||
| 114 | 093128-00 | 2 | BEARING NEEDLE | XE | |||
| 115 | 618254-00 | 1 | RETAINER | XE | |||
| 116 | N082785 | 1 | LEVER | XE | |||
| 117 | N057386 | 1 | PIN | XE | |||
| 118 | 624460-00 | 1 | PIN | XE | |||
| 119 | 624461-00 | 1 | SLEEVE | XE | |||
| 120 | 618186-00 | 1 | ROD | XE | |||
| 121 | 618185-00 | 1 | BLOCK | XE | |||
| 122 | 385915-03 | 1 | SCREW | XE | |||
| 123 | 618253-00 | 1 | SPRING COMPRESSION | XE | |||
| 124 | 624730-00 | 1 | HANDLE SA | XE | |||
| 125 | 330045-18 | 4 | SCREW | XE | |||
| 126 | 330019-32 | 5 | SCREW | XE | |||
| 127 | N078832 | 1 | SA POWER SUPPLY | YELLOW | XE | ||
| 128 | 606056-00 | 1 | SWITCH | XE | |||
| 129 | 384127-01 | 4 | SCREW | XE | |||
| 130 | 330045-25 | 1 | SCREW.TEMP | M6x25 MTL THD FMG | XE | ||
| 131 | 330019-12 | 2 | SCREW | XE | |||
| 132 | N141272 | 1 | CORD,PWR,SUPPLY | XE | |||
| 133 | N083060 | 1 | Handle | XE | |||
| 134 | 330019-22 | 1 | SCREW | M5.74x32 | XE | ||
| 135 | 398443-00 | 1 | CABLE CLAMP | XE | |||
| 137 | N030322 | 1 | COVER | XE | |||
| 138 | N597938 | 1 | FENCE | XE | |||
| 139 | N088868 | 1 | FENCE LH | XE | |||
| 140 | N088869 | 1 | FENCE RH | XE | |||
| 141 | N142125 | 2 | KNOB | XE | |||
| 142 | 098105-03 | 4 | SCREW | XE | |||
| 143 | N463814 | 1 | MOTOR SA | XE | |||
| 143 | N185665 | 1 | MOTOR ASSEMBLY | Inc.145-160,242 | XE | ||
| 144 | N204417 | 1 | FIELDCASE SA | XE | |||
| 145 | N147755 | 1 | ARMATURE SA | Inc.147-150 | XE | ||
| 146 | N147754 | 1 | ARMATURE SA | XE | |||
| 147 | N110359 | 1 | BEARING | XE | |||
| 148 | N127530 | 1 | BEARING BALL | XE | |||
| 149 | 144803-00 | 1 | CIRCLIP | XE | |||
| 150 | N004510 | 1 | DRIVE PULLEY | XE | |||
| 151 | 614366-00 | 1 | BAFFLE FAN | XE | |||
| 152 | 614375-00 | 1 | SCREW | XE | |||
| 153 | N137554 | 1 | MOUNTING BRACKET | XE | |||
| 154 | 394034-00 | 1 | SCREW | XE | |||
| 155 | 623919-00 | 2 | BRUSH & LEAD | SINGLE | XE | ||
| 156 | 614368-00 | 2 | BRUSH CAP | XE | |||
| 157 | 391933-01 | 1 | END CAP | XE | |||
| 158 | 330019-11 | 4 | SCREW | M4.55x13 T20 | XE | ||
| 159 | 391325-00 | 1 | IDENTITY LABEL | XE | |||
| 160 | N227739 | 1 | NAME PLATE | XE | |||
| 160 | N464077 | 1 | RATING PLATE | XE | |||
| 161 | 605155-00 | 1 | BUSHING | XE | |||
| 170 | N157708 | 1 | HOUSING SA | XE | |||
| 171 | 603390-00 | 8 | SCREW | XE | |||
| 172 | 397118-00 | 2 | GUIDE | XE | |||
| 173 | 153576-04 | 1 | SCREW | XE | |||
| 174 | 613497-00 | 1 | THRUST PLATE | XE | |||
| 175 | N058314 | 4 | SCREW | XE | |||
| 176 | 682149-00 | 1 | BUSH | XE | |||
| 177 | N051244 | 2 | BUMPER | XE | |||
| 178 | 659919-00 | 1 | SPRING | XE | |||
| 179 | 612008-00 | 1 | SCREW | XE | |||
| 180 | N056883 | 1 | LOCK HANDLE | XE | |||
| 181 | 330016-04 | 1 | WASHER | XE | |||
| 183 | N095579 | 1 | LEVER SA | XE | |||
| 184 | 167785-00 | 1 | SPRING | XE | |||
| 185 | N041865 | 1 | PIN | XE | |||
| 186 | 660786-00 | 1 | BUSHING | XE | |||
| 187 | 153797-00 | 1 | BOLT | 5/16-18 x 35mm | XE | ||
| 188 | N058315 | 2 | SCREW.SPECIAL | XE | |||
| 189 | 385946-00 | 4 | WASHER SPRING | XE | |||
| 190 | N043046 | 2 | PAWL | XE | |||
| 192 | 153797-04 | 2 | SCREW | HEX HEAD | XE | ||
| 193 | N377514 | 2 | BUSHING | XE | |||
| 194 | N058306 | 1 | DUST DEFLECTOR | XE | |||
| 195 | N204414 | 1 | THRUST BEARING | XE | |||
| 199 | N402880 | 1 | GUARD LOWER | XE | |||
| 199 | N390812 | 1 | LOWER GUARD ASSY | Incl. 130, 204-208, 212-216, 227 | XE | ||
| 200 | 393706-00 | 1 | LABEL | XE | |||
| 201 | 623788-00 | 1 | WARNING LABEL | XE | |||
| 202 | 148608-00 | 2 | INSERT | XE | |||
| 203 | 386780-00 | 2 | BEARING | XE | |||
| 204 | N028803 | 1 | GUARD LOWER | XE | |||
| 205 | N020822 | 1 | PLATE | XE | |||
| 206 | 385915-01 | 4 | SCREW | XE | |||
| 207 | 621037-00 | 1 | PLATE | XE | |||
| 208 | 146768-00 | 1 | BUMPER | XE | |||
| 209 | N142523 | 1 | LINK | XE | |||
| 212 | N391680 | 1 | RETAINER | XE | |||
| 213 | N034013 | 1 | SPRING | XE | |||
| 214 | 148295-00 | 1 | SLEEVE | XE | |||
| 215 | 625825-00 | 2 | ROLLER | XE | |||
| 216 | 142273-00 | 2 | RING | XE | |||
| 217 | 394976-00 | 2 | LABEL | WARNING | XE | ||
| 218 | 146760-02 | 1 | STUD | XE | |||
| 219 | 153666-00 | 2 | SCREW | set screw M8 x 8mm long | XE | ||
| 220 | N640285 | 2 | WARNING LABEL | XE | |||
| 221 | 610710-00 | 2 | WARNING LABEL | XE | |||
| 222 | 450212-00 | 1 | TERMINAL | XE | |||
| 223 | 450213-00 | 1 | TERMINAL | XE | |||
| 226 | 153669-00 | 2 | CORD CLAMP | XE | |||
| 227 | N391680 | 1 | RETAINER | XE | |||
| 228 | 397117-00 | 4 | SEAL | XE | |||
| 229 | N049684 | 2 | COVERPLATE | XE | |||
| 230 | 618142-00 | 1 | END CAP | XE | |||
| 231 | N069475 | 1 | TRUNNION | XE | |||
| 232 | 330019-14 | 1 | SCREW | XE | |||
| 233 | N066282 | 1 | LEVER LOCK | XE | |||
| 234 | 386196-00 | 1 | SPRING | XE | |||
| 235 | 152852-00 | 1 | BOLT | XE | |||
| 236 | N190811 | 1 | JUMPER WIRE | XE | |||
| 239 | N126162 | 1 | DUST BAG SA | XE | |||
| 240 | N142123 | 1 | CLAMP SA | XE | |||
| 241 | N072222 | 1 | PLATE | XE | |||
| 315 | N058319 | 1 | RAIL | XE | |||
| 332 | N104494 | 1 | RAIL | XE | |||
| 800 | 5140061-28 | 1 | GREASE | XE | |||
| 800 | 93488-00 | 1 | GREASE | XE | |||
| 856 | 5140050-83 | 1 | LENGTH STOP | WAS ACCY DW7051 | XE | ||
| 856 | N114019 | 1 | SCREW KIT | CROWN STOP FIXING | FOR BASES WITHOUT THREAD HOLES TO MOUNT ACCYS. | XE | |
| 856 | DW7053 | 1 | DUST BAG SA | XE | |||
| 856 | DW7080 | 1 | EXTENSION SYSTEM | ACCESSORY | XE | ||
| 856 | DW3126 | 1 | BLADE | XE | |||
| 856 | DW7084 | 1 | STOP PLATE | XE |
