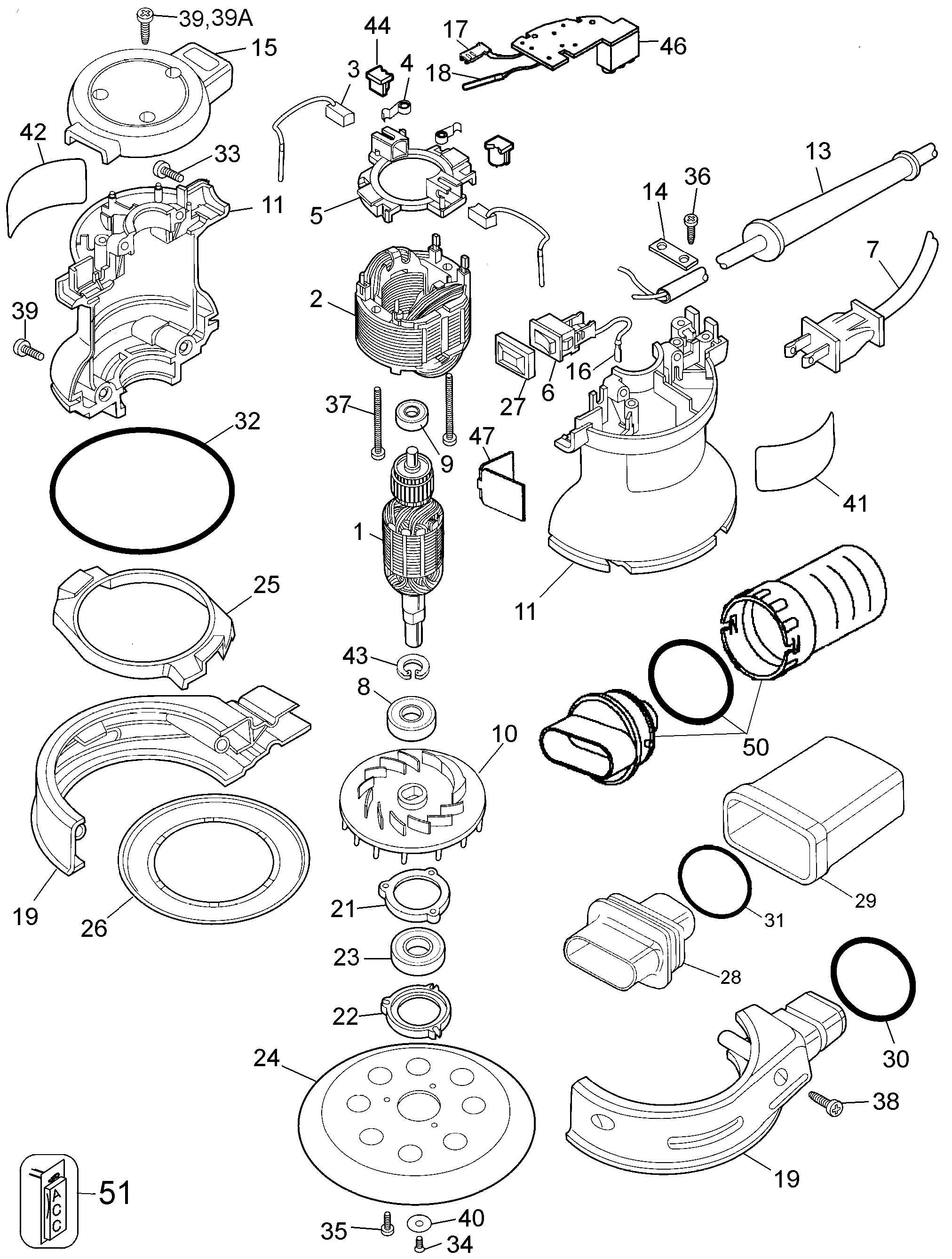

2771 RANDOM ORBITAL SANDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 578863-04 | 1 | ARMATURE 230V | XE | |||
| 2 | 807254-10 | 1 | FIELD 230V | XE | |||
| 3 | 445861-19 | 2 | BRUSH | XE | |||
| 4 | 445860-00 | 2 | BRUSH SPRING | XE | |||
| 5 | 449899-05 | 1 | RING | XE | |||
| 6 | 144960-00 | 1 | SWITCH | XE | |||
| 7 | 330048-83 | 1 | CORDSET | XE | |||
| 8 | 330003-17 | 1 | BEARING | XE | |||
| 9 | 605040-05 | 1 | BEARING | XE | |||
| 10 | 616020-00 | 1 | FAN | XE | |||
| 11 | 380382-01 | 1 | CLAMSHELL SET | XE | |||
| 13 | 330005-01 | 1 | CORD PROTECTOR | XE | |||
| 14 | 380414-00 | 1 | CORD CLAMP | XE | |||
| 15 | 151670-00 | 1 | CAP | NLS | XE | ||
| 16 | 144989-00 | 1 | TERMINAL & LEAD | BLACK, 20GA | XE | ||
| 17 | 445964-00 | 2 | TERMINAL | XE | |||
| 18 | 825209-00 | 2 | CONNECTOR | XE | |||
| 19 | 610078-00 | 1 | SHROUD SA | XE | |||
| 21 | 286181-00 | 1 | REPAIR KIT | XE | |||
| 22 | 603637-00 | 1 | RETAINER | XE | |||
| 23 | 605040-27 | 1 | BEARING | XE | |||
| 24 | 151281-08 | 1 | PAD | H&L, 5IN, MEDIUM | XE | ||
| 25 | 151549-00 | 1 | BAFFLE | XE | |||
| 26 | 151553-00 | 1 | BRAKE | XE | |||
| 27 | 144983-07 | 1 | COVER | XE | |||
| 28 | 386856-00 | 1 | DUST BAG SA | XE | |||
| 29 | 386856-00 | 1 | DUST BAG SA | XE | |||
| 30 | 56194-00 | 1 | O RING | XE | |||
| 31 | 608354-00SV | 1 | DUST BAG | XE | |||
| 31 | 608354-00SV | 1 | DUST BAG | XE | |||
| 32 | 700871-00 | 1 | O RING | XE | |||
| 33 | 330019-11 | 1 | SCREW | M4.55x13 T20 | XE | ||
| 34 | 098012-11 | 1 | SCREW | XE | |||
| 35 | 146929-01 | 3 | SCREW | 8-32x5/8 THD FMG | XE | ||
| 36 | 330019-02 | 2 | SCREW | XE | |||
| 37 | 330019-08 | 2 | SCREW | XE | |||
| 38 | 330019-03 | 2 | SCREW | XE | |||
| 39 | 330019-13 | 6 | SCREW | M4X19 T20 | XE | ||
| 39 | 330019-11 | 1 | SCREW | M4.55x13 T20 | XE | ||
| 40 | 151652-00 | 1 | WASHER | XE | |||
| 41 | 151650-00 | 1 | LABEL,IDENT | XE | |||
| 42 | 153189-00 | 1 | NAMEPLATE | XE | |||
| 43 | 151669-00 | 1 | CIRCLIP | XE | |||
| 44 | 144956-00 | 2 | NUT | XE | |||
| 46 | 145283-03 | 1 | PCB | Tyco | XE | ||
| 47 | 148817-00 | 2 | INSULATOR | XE | |||
| 50 | 386856-00 | 1 | DUST BAG SA | XE | |||
| 51 | 151556-00 | 1 | ADAPTOR | XE |
