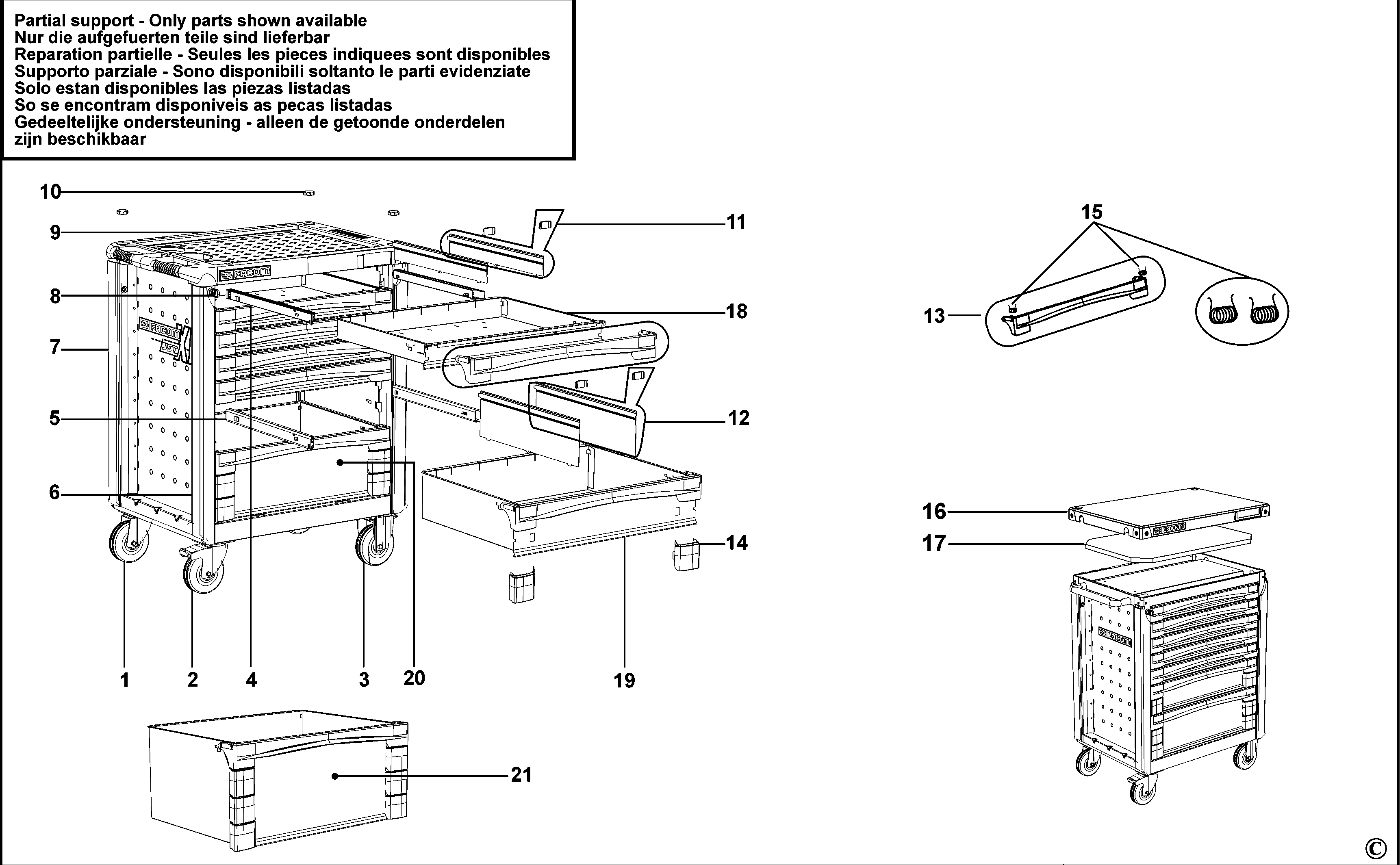

JET.6GXL ROLLER CABINET Type 1 | Drawings

Documents

Item No.	Product Number	Qty Per	Product Description	General Description	Other Info	Markets	Product Status
1	2092.09	1	WHEEL PIVOT			XJ
2	2092.10	1	WHEEL PIVOT - BRAKE			XJ
3	2092.11	2	WHEEL FIXED			XJ
4	JET2.13	2	SLIDER			XJ
5	JET2.14	3	SLIDER			XJ
6	2840.06	2	SIDE			XJ
7	2840.05	2	SIDE			XJ
8	2840.17	1	LOCK			XJ
9	JET2.01	1	COVER-TOP			XJ
10	JET2.17	1	PLATE			XJ
11	JET2.15	2	SEPARATOR			XJ
12	JET2.16	2	SEPARATOR			XJ
13	JET2.03	5	HANDLE			XJ
14	JET2.04	5	BUMPER			XJ
15	JET2.18	5	SPRING			XJ
18	JET2.09G5	2	DRAWER		60mm	XJ
19	JET2.10G5	2	DRAWER		130mm	XJ
21	JET2.12G5	1	DRAWER		270mm	XJ
