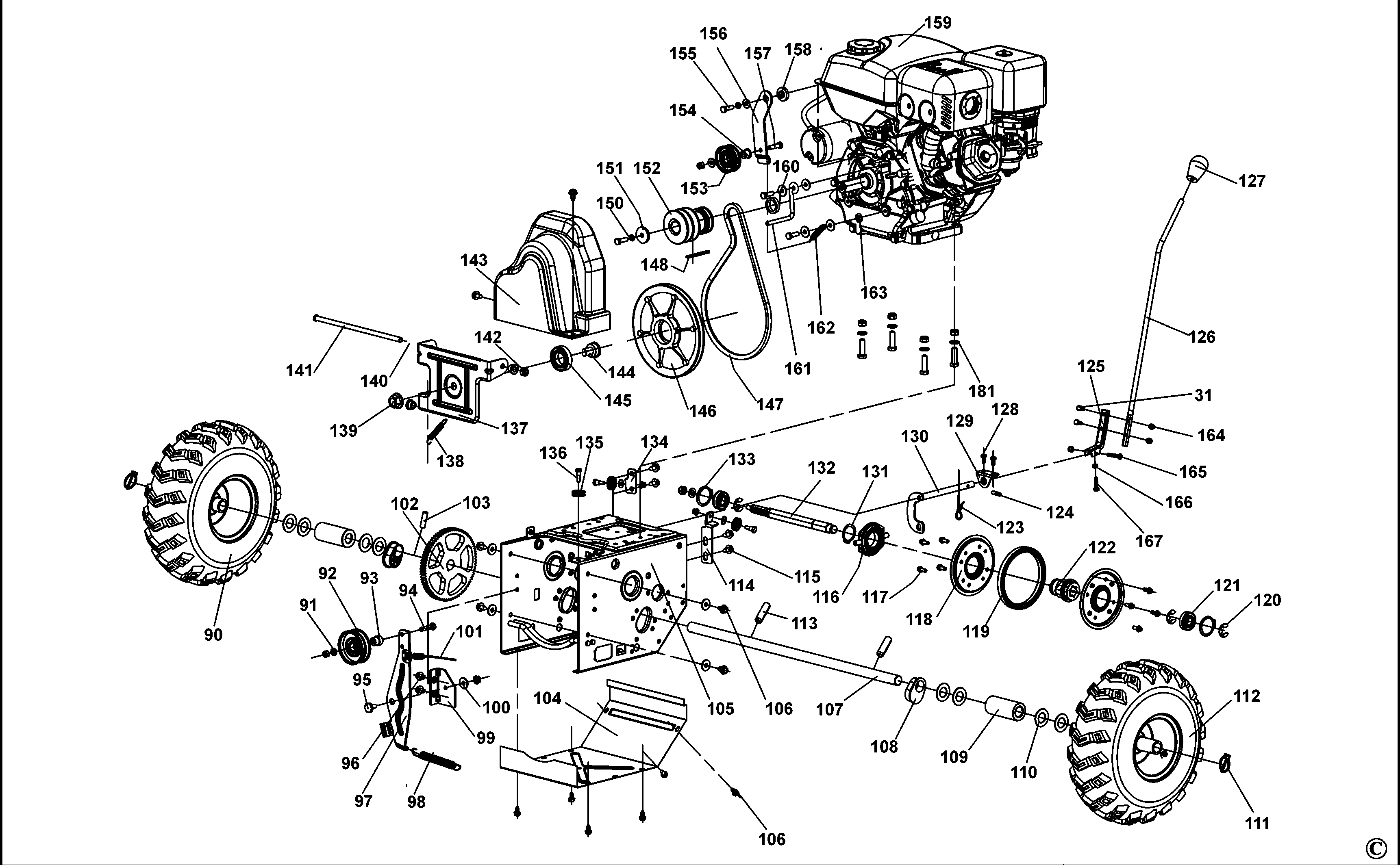

SPT-196-570 SNOW THROWER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 29 | E604500050-29 | 1 | SEAL | XJ | |||
| 30 | E604500050-30 | 1 | BLADE SA | RH | XJ | ||
| 31 | E604500050-31 | 10 | BOLT | M6x20 | XJ | ||
| 32 | E604500050-32 | 15 | WASHER SPRING | XJ | |||
| 34 | E604500050-34 | 3 | SEAL | B20x35x7 | XJ | ||
| 35 | E604500050-35 | 1 | SCREW | M5x12 | XJ | ||
| 36 | E604500050-36 | 1 | GEARCASE COVER RH | XJ | |||
| 37 | E604500050-37 | 1 | SHAFT | XJ | |||
| 38 | E604500050-38 | 5 | PIN | XJ | |||
| 39 | E604500050-39 | 1 | WHEEL | XJ | |||
| 40 | E604500050-40 | 2 | SLEEVE | XJ | |||
| 41 | E604500050-41 | 1 | GEARCASE COVER LH | XJ | |||
| 42 | E604500050-42 | 2 | WASHER | XJ | |||
| 43 | E604500050-43 | 1 | BLADE SA | LH | XJ | ||
| 44 | E604500050-44 | 2 | BEARING BLOCK | XJ | |||
| 45 | E604500050-45 | 6 | SCREW | ST8x16 | XJ | ||
| 46 | E604500050-46 | 2 | WASHER | XJ | |||
| 47 | E604500050-47 | 4 | PIN | XJ | |||
| 48 | E604500050-48 | 1 | KEY | XJ | |||
| 49 | E604500050-49 | 1 | BEARING | 6001-2RS | XJ | ||
| 50 | E604500050-50 | 4 | ROLLPIN | 6x37 | XJ | ||
| 51 | E604500050-51 | 1 | SHAFT | XJ | |||
| 52 | E604500050-52 | 1 | WASHER | XJ | |||
| 53 | E604500050-53 | 1 | SEAL | B20x35x7 | XJ | ||
| 54 | E604500050-54 | 1 | FAN SA | XJ | |||
| 55 | E604500050-55 | 1 | BEARING THRUST | 51104 | XJ | ||
| 56 | E604500050-56 | 1 | BEARING | 61904-2RS | XJ | ||
| 57 | E604500050-57 | 6 | BOLT | M8x16 | XJ | ||
| 58 | E604500050-58 | 1 | PLATE | Shave | XJ | ||
| 59 | E604500050-59 | 9 | LOCK NUT | M8 | XJ | ||
| 60 | E604500050-60 | 5 | BOLT | M8x20 | XJ | ||
| 61 | E604500050-61 | 2 | PLATE | XJ | |||
| 62 | E604500050-62 | 6 | PLUG | XJ | |||
| 63 | E604500050-63 | 1 | HOUSING SA | Auger | XJ | ||
| 64 | E604500050-64 | 2 | SCREW | ST5.5x13 | XJ | ||
| 65 | E604500050-65 | 1 | TOOL | Spade | XJ | ||
| 66 | E604500050-66 | 1 | BRACKET | XJ | |||
| 67 | E604500050-67 | 2 | BOLT | M8x25 | XJ | ||
| 71 | E604500050-71 | 1 | RING,GASKET | XJ | |||
| 72 | E604500050-72 | 1 | PIN | Block | XJ | ||
| 73 | E604500050-73 | 1 | SPRING TORSION | XJ | |||
| 74 | E604500050-74 | 1 | CHUTE | XJ | |||
| 75 | E604500050-75 | 6 | BOLT | M6x30 | XJ | ||
| 76 | E604500050-76 | 3 | BRACKET | XJ | |||
| 77 | E604500050-77 | 13 | LOCK NUT | M6 | XJ | ||
| 79 | E604500050-79 | 2 | SCREW | M5x6 | XJ | ||
| 80 | E604500050-80 | 1 | WASHER | XJ | |||
| 81 | E604500050-81 | 2 | BEARING | 6203-2RS | XJ | ||
| 82 | E604500050-82 | 1 | BEARING HOLDER | XJ | |||
| 83 | E604500050-83 | 2 | WASHER LOCK | XJ | |||
| 84 | E604500050-84 | 13 | NUT M8 | Hex | XJ | ||
| 85 | E604500050-85 | 1 | PULLEY | XJ | |||
| 86 | E604500050-86 | 1 | WASHER | XJ | |||
| 87 | E604500050-87 | 1 | BELT | 4LXP885 | XJ | ||
| 88 | E604500050-88 | 1 | WASHER SPRING | XJ | |||
| 89 | E604500050-89 | 1 | BOLT | M8x25 | XJ | ||
| 90 | E604500050-90 | 1 | WHEEL | XJ | |||
| 91 | E604500050-91 | 13 | WASHER | XJ | |||
| 92 | E604500050-92 | 1 | PULLEY | XJ | |||
| 93 | E604500050-93 | 1 | SPACER | XJ | |||
| 94 | E604500050-94 | 4 | BOLT | M8x35 | XJ | ||
| 95 | E604500050-95 | 1 | PIVOT | XJ | |||
| 96 | E604500050-96 | 2 | BOLT | M8x20 | XJ | ||
| 97 | E604500050-97 | 1 | BRACKET | XJ | |||
| 98 | E604500050-98 | 1 | SPRING | XJ | |||
| 99 | E604500050-99 | 1 | BRACKET | XJ | |||
| 100 | E604500050-100 | 6 | WASHER | XJ | |||
| 101 | E604500050-101 | 1 | CABLE | Chute Adjustable | XJ | ||
| 102 | E604500050-102 | 1 | GEAR | XJ | |||
| 103 | E604500050-103 | 1 | PIN | XJ | |||
| 104 | E604500050-104 | 1 | COVER | XJ | |||
| 105 | E604500050-105 | 1 | FRAME | XJ | |||
| 106 | E604500050-106 | 12 | SCREW | M8x16 | XJ | ||
| 107 | E604500050-107 | 1 | SHAFT | XJ | |||
| 108 | E604500050-108 | 2 | BUSHING | XJ | |||
| 109 | E604500050-109 | 2 | SPACER | XJ | |||
| 110 | E604500050-110 | 7 | WASHER | XJ | |||
| 111 | E604500050-111 | 2 | LOCK PIN | XJ | |||
| 112 | E604500050-112 | 1 | WHEEL | XJ | |||
| 113 | E604500050-113 | 2 | PIN | XJ | |||
| 114 | E604500050-114 | 1 | LEAD & HOLDER | XJ | |||
| 115 | E604500050-115 | 4 | SCREW | M8x16 | XJ | ||
| 116 | E604500050-116 | 2 | ACTUATION ARM | XJ | |||
| 117 | E604500050-117 | 8 | BOLT | M6x10 | XJ | ||
| 118 | E604500050-118 | 2 | WHEEL FRICTION | XJ | |||
| 119 | E604500050-119 | 1 | RING | Rubber | XJ | ||
| 120 | E604500050-120 | 2 | LOCKING RING | XJ | |||
| 121 | E604500050-121 | 2 | BEARING | 6203-2RSN | XJ | ||
| 122 | E604500050-122 | 1 | HUB | Front | XJ | ||
| 123 | E604500050-123 | 1 | PIN | XJ | |||
| 124 | E604500050-124 | 1 | PIN | XJ | |||
| 125 | E604500050-125 | 1 | CLIP | XJ | |||
| 126 | E604500050-126 | 1 | HANDLE | Shift | XJ | ||
| 127 | E604500050-127 | 1 | KNOB | XJ | |||
| 128 | E604500050-128 | 10 | SCREW | M6x16 | XJ | ||
| 129 | E604500050-129 | 1 | BRACKET | XJ | |||
| 130 | E604500050-130 | 1 | FORK | XJ | |||
| 131 | E604500050-131 | 1 | CLIP | XJ | |||
| 132 | E604500050-132 | 1 | SHAFT | Hex | XJ | ||
| 133 | E604500050-133 | 2 | CIRCLIP | XJ | |||
| 134 | E604500050-134 | 1 | HOLDER | XJ | |||
| 135 | E604500050-135 | 4 | ROLLER | XJ | |||
| 136 | E604500050-136 | 3 | BOLT | XJ | |||
| 137 | E604500050-137 | 1 | BRACKET | XJ | |||
| 138 | E604500050-138 | 1 | SPRING | XJ | |||
| 139 | E604500050-139 | 1 | LOCK NUT | M16 | XJ | ||
| 140 | E604500050-140 | 2 | NUT | Knot | XJ | ||
| 141 | E604500050-141 | 1 | SHAFT | XJ | |||
| 142 | E604500050-142 | 1 | LOCK NUT | M10 | XJ | ||
| 143 | E604500050-143 | 1 | COVER BELT | XJ | |||
| 144 | E604500050-144 | 1 | HUB | XJ | |||
| 145 | E604500050-145 | 1 | BEARING | 6006-2RS | XJ | ||
| 146 | E604500050-146 | 1 | PULLEY | XJ | |||
| 147 | E604500050-147 | 1 | V-BELT | V10x835 | XJ | ||
| 148 | E604500050-148 | 1 | KEY | 6X6X45 | XJ | ||
| 150 | E604500050-150 | 1 | WASHER SPRING | XJ | |||
| 151 | E604500050-151 | 1 | WASHER | XJ | |||
| 152 | E604500050-152 | 1 | PULLEY | XJ | |||
| 153 | E604500050-153 | 1 | IDLER GEAR | XJ | |||
| 154 | E604500050-154 | 1 | BUSHING | XJ | |||
| 155 | E604500050-155 | 2 | BOLT | M8x25 | XJ | ||
| 156 | E604500050-156 | 1 | BRACKET | XJ | |||
| 157 | E604500050-157 | 2 | BOLT | M8x40 | XJ | ||
| 158 | E604500050-158 | 1 | SPACER | XJ | |||
| 159 | E604500050-159 | 1 | MOTOR SA | Petrol 6.5hp | Refer to Manual | XJ | |
| 160 | E604500050-160 | 1 | WASHER | XJ | |||
| 161 | E604500050-161 | 1 | GUARD | XJ | |||
| 162 | E604500050-162 | 1 | SPRING | XJ | |||
| 163 | E604500050-163 | 1 | NUT | XJ | |||
| 164 | E604500050-164 | 4 | LOCK NUT | M6 | XJ | ||
| 165 | E604500050-165 | 1 | BOLT | M6x30 | XJ | ||
| 166 | E604500050-166 | 3 | NUT | M6 | XJ | ||
| 167 | E604500050-167 | 1 | BOLT | M6x25 | XJ | ||
| 168 | E604500050-168 | 2 | HANDLE | XJ | |||
| 169 | E604500050-169 | 2 | SCREW | M10x55 | XJ | ||
| 170 | E604500050-170 | 1 | TUBE | XJ | |||
| 171 | E604500050-171 | 1 | CABLE | Friction Wheel | XJ | ||
| 172 | E604500050-172 | 1 | FRAME | XJ | |||
| 173 | E604500050-173 | 2 | BRACKET | XJ | |||
| 174 | E604500050-174 | 4 | LOCK NUT | M6 | XJ | ||
| 175 | E604500050-175 | 2 | SPACER | XJ | |||
| 176 | E604500050-176 | 2 | SCREW | M6x60 | XJ | ||
| 177 | E604500050-177 | 6 | WASHER | XJ | |||
| 178 | E604500050-178 | 4 | SCREW | M6x40 | XJ | ||
| 179 | E604500050-179 | 1 | BEZEL | XJ | |||
| 180 | E604500050-180 | 2 | WASHER | XJ | |||
| 181 | E604500050-181 | 4 | WASHER | XJ | |||
| 187 | E604500050-187 | 1 | CIRCLIP | XJ | |||
| 188 | E604500050-188 | 1 | KNOB | XJ | |||
| 189 | E604500050-189 | 1 | HANDLE | XJ | |||
| 190 | E604500050-190 | 1 | BRACKET | XJ | |||
| 191 | E604500050-191 | 1 | SPACER | Rubber | XJ | ||
| 192 | E604500050-192 | 6 | WASHER | XJ | |||
| 215 | E604500050-215 | 2 | BOLT | M10x20 | XJ | ||
| 216 | E604500050-216 | 2 | BOLT | M10x40 | XJ | ||
| 228 | E604500050-228 | 6 | WASHER | XJ | |||
| 229 | 1004738-11 | 1 | SPARK PLUG | XJ | |||
| 230 | 1004738-12 | 1 | CARBURETTOR SA | XJ | |||
| 231 | 1004738-13 | 1 | GASKET | XJ | |||
| 232 | 1004738-14 | 1 | GASKET | XJ | |||
| 233 | 1004738-15 | 1 | PAD | XJ | |||
| 234 | 1004738-16 | 1 | GASKET | XJ | |||
| 235 | 1004738-17 | 1 | STARTER SA | Kick | XJ | ||
| 236 | 1004738-18 | 4 | BOLT | XJ | |||
| 237 | 1004738-19 | 1 | SWITCH SA | Engine Stop | XJ | ||
| 238 | 1004738-20 | 1 | Muffler | XJ | |||
| 239 | 1004738-21 | 2 | NUT | XJ | |||
| 240 | 1004738-22 | 1 | GASKET | XJ | |||
| 241 | 1004738-23 | 1 | COVER | XJ | |||
| 242 | 1004738-24 | 1 | COIL SA | XJ | |||
| 243 | 1004738-25 | 2 | BOLT | XJ | |||
| 244 | 1004738-26 | 1 | FILTER | Air | XJ | ||
| 245 | 1004738-27 | 2 | NUT | XJ | |||
| 301 | E604500050-301 | 1 | BOLT | M8x35 | XJ | ||
| 302 | E604500050-302 | 1 | KNOB | XJ | |||
| 303 | E604500050-303 | 2 | NUT | XJ | |||
| 304 | E604500050-304 | 1 | PLATE | XJ | |||
| 305 | E604500050-305 | 1 | BOLT | XJ | |||
| 306 | E604500050-306 | 1 | BUSHING | XJ | |||
| 307 | E604500050-307 | 1 | BRACKET | XJ | |||
| 601 | E604500050-601 | 1 | NAMEPLATE | XJ | |||
| 602 | E604500050-602 | 2 | SCREW | M6x35 | XJ |
