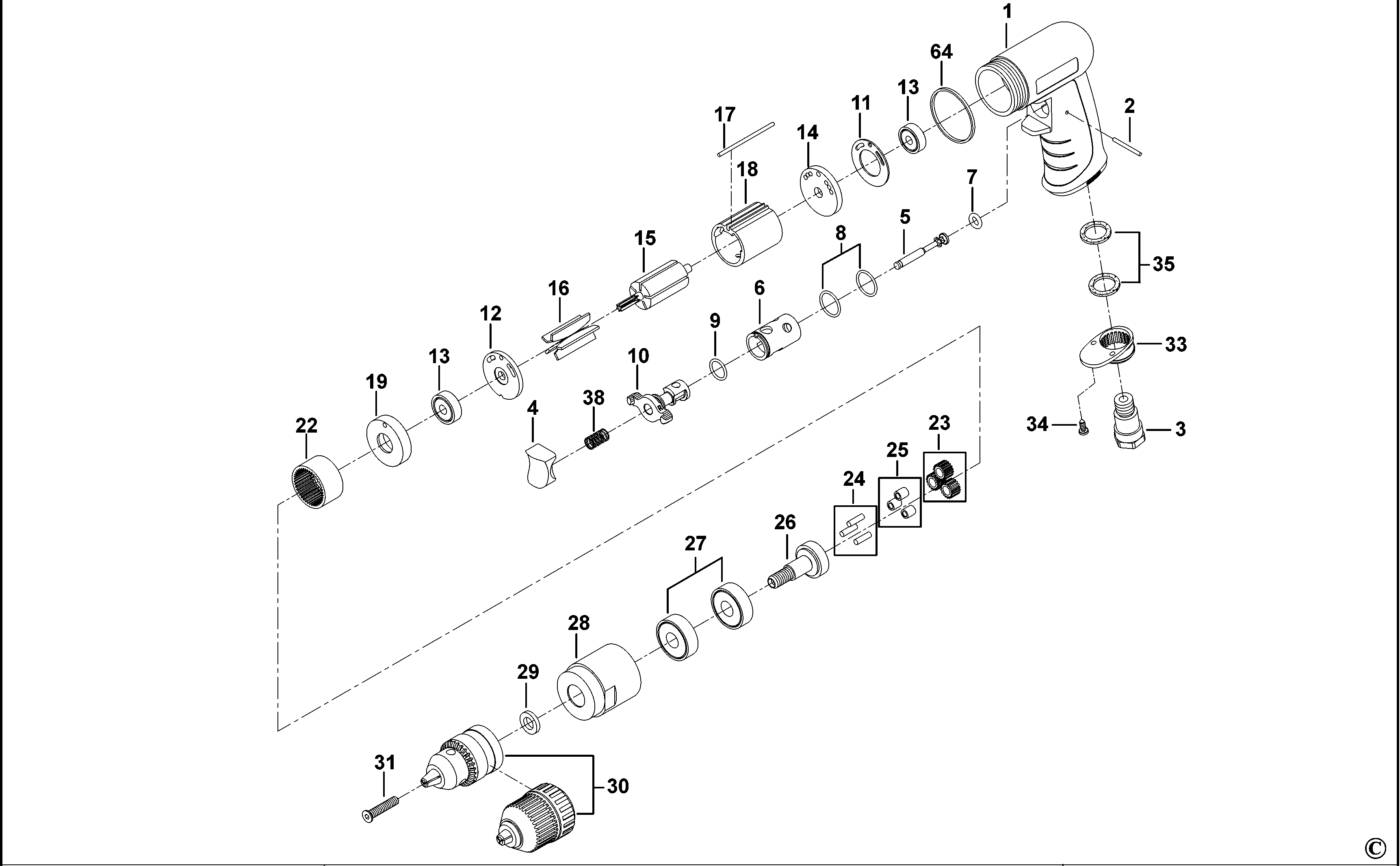

916 B3 AIR DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 1004725-76 | 1 | HOUSING MOTOR | XJ | |||
| 2 | 1004725-77 | 1 | PIN | XJ | |||
| 3 | 1004725-78 | 1 | INLET | XJ | |||
| 4 | 1004725-79 | 1 | TRIGGER | XJ | |||
| 5 | 1004725-80 | 1 | VALVE NEEDLE | XJ | |||
| 6 | 1004725-81 | 1 | BUSHING | XJ | |||
| 7 | 1004725-82 | 1 | O RING | XJ | |||
| 8 | 1004725-83 | 2 | O RING | XJ | |||
| 9 | 1004725-84 | 1 | O RING | XJ | |||
| 10 | 1004725-85 | 1 | LEVER | XJ | |||
| 11 | 1004725-86 | 1 | GASKET | XJ | |||
| 12 | 1004725-87 | 1 | PLATE | XJ | |||
| 13 | 1004725-88 | 2 | BEARING,BALL | XJ | |||
| 14 | 1004725-89 | 1 | PLATE | XJ | |||
| 15 | 1004725-90 | 1 | ROTOR | XJ | |||
| 16 | 1004725-91 | 5 | ROTOR BLADE | XJ | |||
| 17 | 1004725-92 | 1 | PIN | XJ | |||
| 18 | 1004725-93 | 1 | CYLINDER | XJ | |||
| 19 | 1004725-94 | 1 | PLATE | XJ | |||
| 22 | 1004725-95 | 1 | GEAR | XJ | |||
| 23 | 1004725-96 | 3 | GEAR | XJ | |||
| 24 | 1004725-97 | 3 | PIN | XJ | |||
| 25 | 1004725-98 | 3 | BUSHING | XJ | |||
| 26 | 1004726-01 | 1 | SPINDLE | XJ | |||
| 27 | 1004726-02 | 2 | BEARING,BALL | XJ | |||
| 28 | 1004726-03 | 1 | NUT | XJ | |||
| 29 | 1004726-04 | 1 | WASHER | XJ | |||
| 30 | 1004726-06 | 1 | CHUCK KEYLESS | XJ | |||
| 30 | 1004726-05 | 1 | CHUCK & KEY | XJ | |||
| 31 | 1004726-07 | 1 | SCREW | XJ | |||
| 33 | 1004726-08 | 1 | DIFFUSER | XJ | |||
| 34 | 1004726-09 | 2 | SCREW | XJ | |||
| 35 | 1004726-10 | 2 | DAMPER | XJ | |||
| 38 | 1004726-11 | 1 | VALVE SPRING | XJ | |||
| 64 | 1004726-12 | 1 | RING | XJ |
