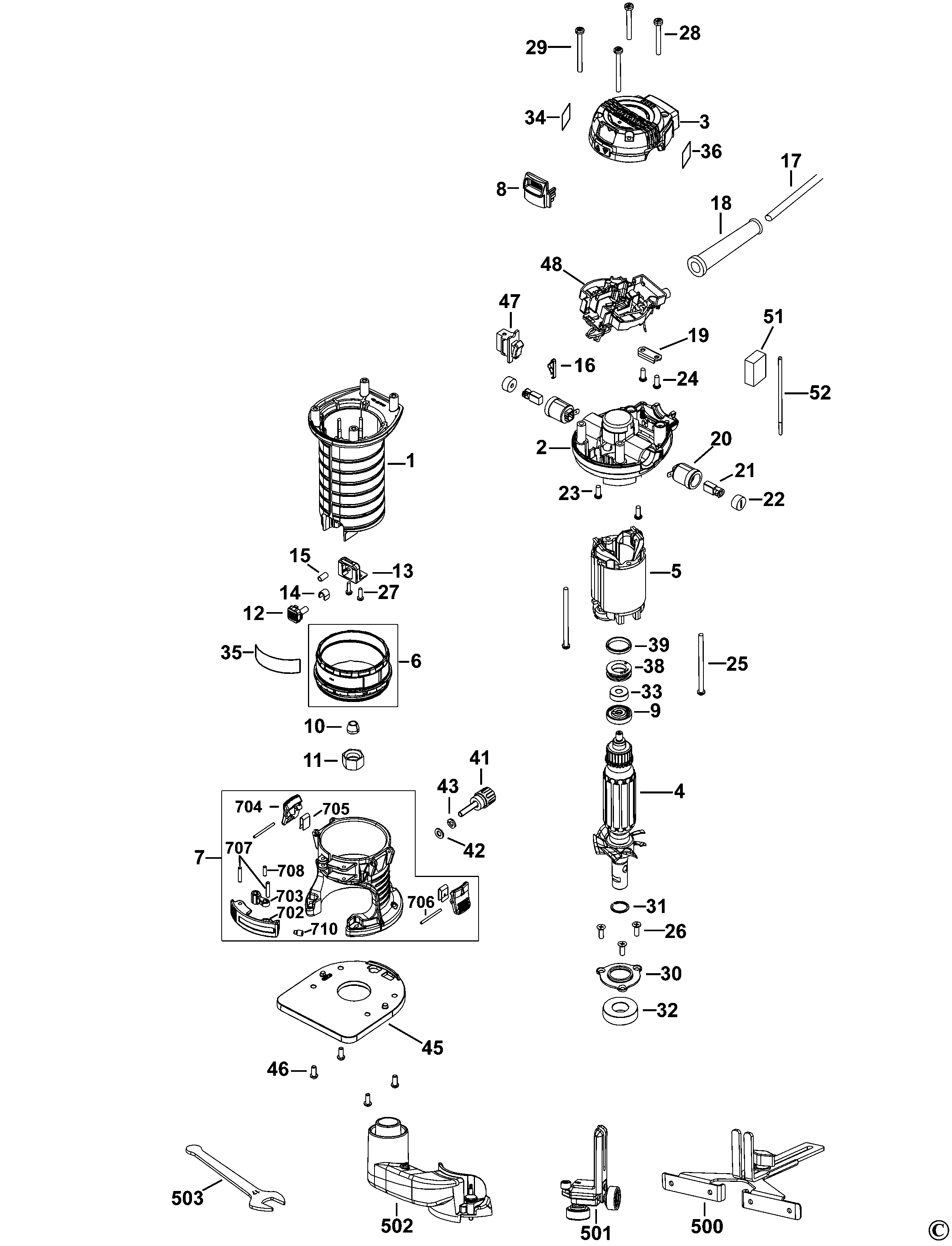

DWE6000 LAMINATE TRIMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N381511 | 1 | HOUSING MOTOR | B1 |  |
||
| 2 | N381512 | 1 | HOUSING UPPER | B1 | |
||
| 3 | N381699 | 1 | COVER-TOP | B1 | |||
| 4 | N381852 | 1 | ARMATURE SA | B1 | |||
| 5 | N381853 | 1 | FIELD 220/240V | B1 | |||
| 6 | N381737 | 1 | ADJUSTER DEPTH | B1 | |
||
| 7 | N381528 | 1 | BASE SA | B1 | |
||
| 8 | N381702 | 1 | BUTTON | B1 | |
||
| 9 | N381703 | 1 | HOLDER | B1 | |||
| 10 | N381502 | 1 | COLLET 6.35MM | B1 | |
||
| 10 | N381740 | 1 | COLLETT 6MM | B1 | |
||
| 11 | N381503 | 1 | COLLET NUT | B1 | |
||
| 12 | N381504 | 1 | SPINDLE LOCK | B1 | |
||
| 13 | N381505 | 1 | INSERT | B1 |  |
||
| 14 | N381506 | 1 | PLATE | B1 | |
||
| 15 | N381513 | 1 | SPRING | B1 | |
||
| 16 | N381514 | 1 | SPRING | B1 | |
||
| 17 | N381854 | 1 | CORDSET (EURO) | QS | B1 | |
|
| 18 | N381742 | 1 | CORD PROTECTOR | B1 | |
||
| 19 | N381706 | 1 | CORD CLAMP | B1 | |
||
| 20 | N381707 | 2 | BRUSH HOLDER | B1 | |
||
| 21 | N381855 | 1 | BRUSH PAIR 230V | B1 | |
||
| 22 | N381709 | 2 | BRUSH CAP | B1 | |
||
| 23 | 860094-03 | 2 | SCREW | B1 | |
||
| 24 | 860094-05 | 2 | SCREW | B1 | |
||
| 25 | N381713 | 2 | SCREW | B1 | |
||
| 26 | N381714 | 3 | SCREW | B1 | |
||
| 27 | 330019-41 | 2 | SCREW | B1 | |
||
| 28 | N381716 | 2 | SCREW | B1 | |
||
| 29 | 330019-17 | 2 | SCREW | B1 | |
||
| 30 | N381718 | 1 | BEARING PLATE | B1 | |
||
| 31 | N381719 | 1 | RETAINER | B1 | |
||
| 32 | 605040-25 | 1 | BEARING,BALL | B1 | |
||
| 33 | 605040-65 | 1 | BEARING | B1 | |
||
| 34 | N343021 | 1 | WARNING LABEL | B1 | |||
| 35 | N278600 | 2 | BRAND LABEL | B1 | |
||
| 36 | N335100 | 1 | RATING LABEL | B1 | |||
| 38 | N381723 | 1 | BEARING HOLDER | B1 | |
||
| 39 | N381724 | 1 | WASHER | B1 | |
||
| 41 | N381725 | 1 | KNOB | B1 | |
||
| 42 | N381726 | 1 | WASHER M5 | B1 | |
||
| 43 | N381727 | 1 | WASHER SPRING | B1 | |
||
| 45 | N381728 | 1 | BASE PLATE | B1 | |
||
| 46 | 949894-06 | 4 | SCREW | B1 | |
||
| 47 | N381730 | 1 | SWITCH | B1 | |
||
| 48 | N381744 | 1 | ELECTRONIC | B1 | |||
| 51 | N381767 | 1 | CONDENSOR | B1 | |
||
| 52 | N381768 | 1 | LEAD EARTH | B1 | |
||
| 500 | N361320 | 1 | GUIDE SA | B1 | |
||
| 501 | N361319 | 1 | WHEEL GUIDE | B1 | |
||
| 502 | N361322 | 1 | DUST PORT | B1 | |
||
| 503 | N361321 | 1 | SPANNER | B1 | |
||
| 702 | N381520 | 1 | LEVER LOCK | B1 | |
||
| 703 | N381521 | 1 | LINK | B1 | |
||
| 704 | N381522 | 2 | BUTTON RELEASE | B1 | |
||
| 705 | N381523 | 2 | SPRING | B1 | |
||
| 706 | N381524 | 2 | PIN | B1 | |
||
| 707 | N381525 | 2 | PIN | B1 | |
||
| 708 | N381526 | 1 | PIN | B1 | |
||
| 710 | N381527 | 1 | SCREW | B1 | |
