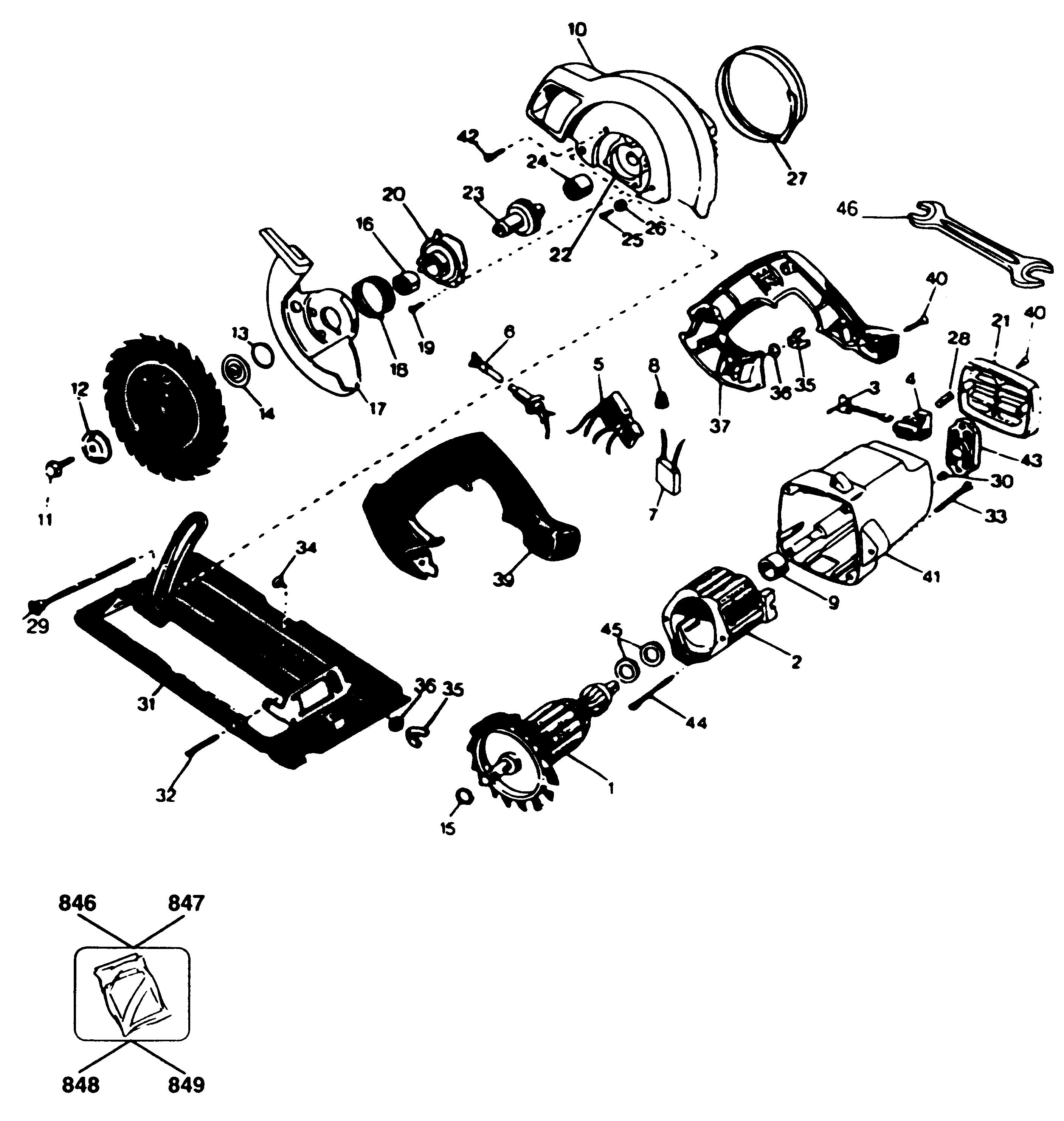

3026 CIRC. SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 141603-35 | 1 | ARMATURE & FAN | AE |  |
||
| 2 | 132735-75 | 1 | FIELD | AE | |
||
| 3 | 137865-09 | 2 | BRUSH & SPRING | AE | |
||
| 4 | 132254-07 | 2 | BRUSH HOLDER | AE | |
||
| 5 | 380772-00 | 1 | SWITCH | AE | |
||
| 6 | 93591-21 | 1 | CORDSET | AE | |
||
| 7 | 237762 | 1 | CAPACITOR | AE | |
||
| 8 | 32114-06 | 2 | CONNECTOR | AE | |
||
| 9 | 237707 | 1 | BEARING | AE | |
||
| 10 | 140633-03 | 1 | GUARD | AE | |||
| 11 | 70907-00 | 1 | SCREW | AE | |
||
| 14 | 142949-00 | 1 | BLADE CLAMP | AE | |
||
| 15 | 400677-00 | 1 | CIRCLIP | AE | |
||
| 18 | 151918-00 | 1 | SPRING | AE | |
||
| 19 | 158472-00 | 4 | SCREW | AE | |
||
| 20 | 141636-03 | 1 | BEARING | AE | |
||
| 21 | 87108-00 | 1 | END CAP | AE | |
||
| 22 | 140835-04 | 1 | GEARCASE | AE | |
||
| 23 | 131401-07 | 1 | SPINDLE & GEAR | AE | |
||
| 27 | 87106-00 | 1 | BAFFLE | AE | |
||
| 28 | 87205-00 | 2 | PLUG | AE | |
||
| 29 | 679139-00 | 1 | SCREW | AE | |
||
| 30 | 32699-00 | 1 | NUT | AE | |
||
| 31 | 95100-09 | 1 | SHOE | AE | |
||
| 33 | 142881-00 | 4 | SCREW | AE | |
||
| 34 | 38910-00 | 1 | SCREW | AE | |
||
| 35 | 90914-00 | 2 | NUT WING | AE | |
||
| 37 | 385668-00 | 1 | HANDLE & COVER LEFT | AE | |
||
| 38 | 147016-01 | 1 | NAMEPLATE | AE | |||
| 38 | 147016-02 | 1 | NAMEPLATE | AE | |||
| 39 | 385668-00 | 1 | HANDLE & COVER LEFT | AE | |
||
| 40 | 330019-14 | 6 | SCREW | AE |  |
||
| 41 | 135149-18 | 1 | FIELDCASE | AE | |
||
| 42 | 131891-00 | 2 | SCREW | AE | |||
| 43 | 133570-03 | 1 | BEARING SA | AE | |
||
| 44 | 99446-42 | 2 | SCREW | AE | |
||
| 45 | 87212-00 | 2 | WASHER FIBRE | AE | |
||
| 846 | 73199-00 | 1 | SCREW | AE | |
||
| 847 | 132144-00 | 1 | FENCE | AE | |
||
| 849 | 147858-00 | 1 | ADAPTOR | AE | |
