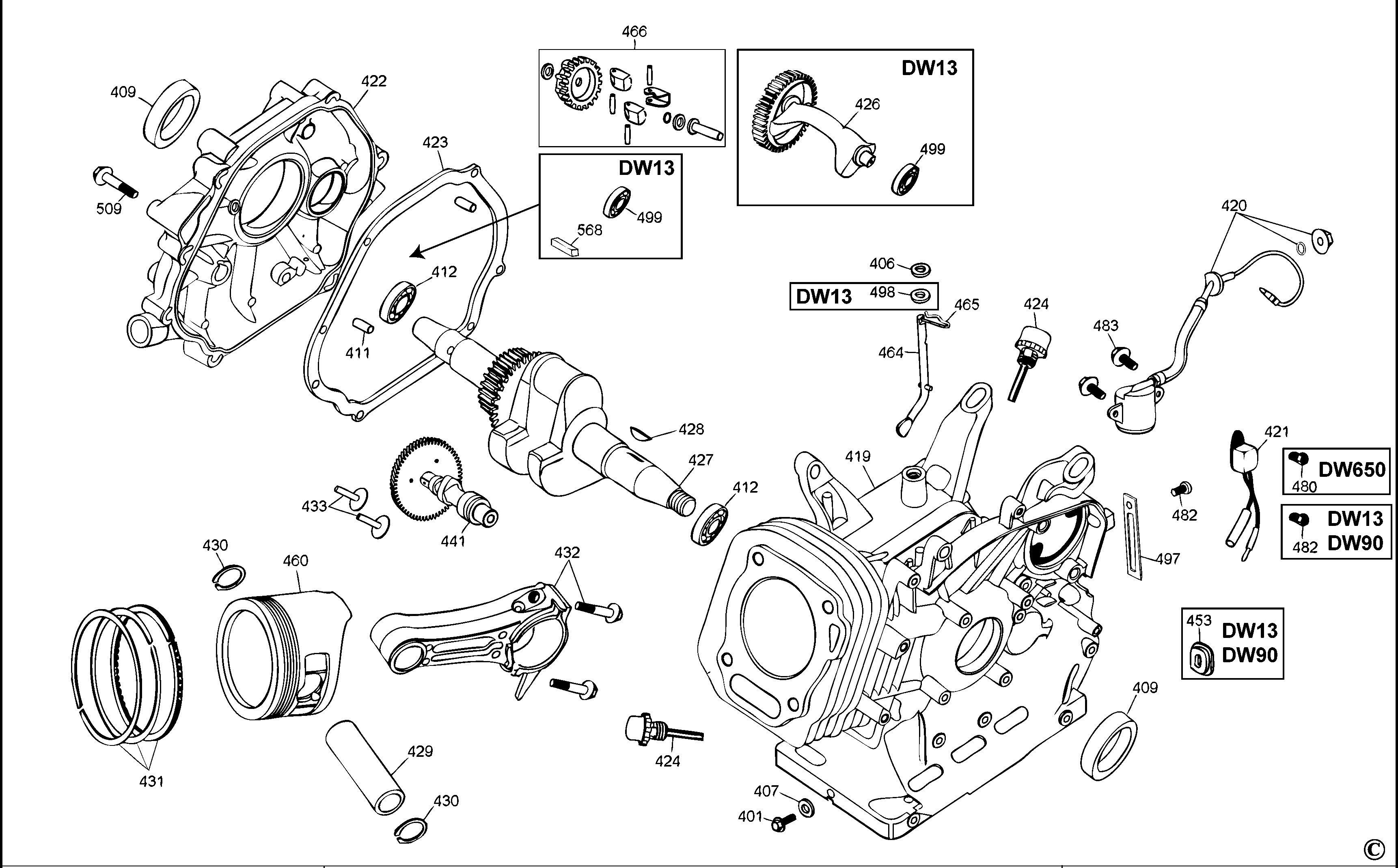

DW13LAG MARINE ENGINES Type 1 | Drawings
Documents
| Item No. |
Product Number |
Qty Per |
Product Description |
General Description |
Other Info |
Markets |
Product Status |
| 400 |
285814-01
|
4 |
BOLT |
FLANGE, M10x80 |
|
B1 |
![]() |
| 401 |
285815-94
|
2 |
PLUG |
M12x1.5x15 |
|
B1 |
![]() |
| 402 |
285814-03
|
1 |
BOLT |
6X21 |
|
B1 |
![]() |
| 404 |
285817-94
|
2 |
STUD |
EXHAUSTM 8x58 |
|
B1 |
![]() |
| 406 |
285814-08
|
1 |
WASHER |
M8x16x1.2 |
|
B1 |
![]() |
| 407 |
285814-10
|
2 |
WASHER |
M12x20x2 |
|
B1 |
![]() |
| 408 |
285814-12
|
1 |
NUT |
M16x1.5 |
|
B1 |
![]() |
| 409 |
285814-14
|
2 |
SEAL |
35x52X7 |
|
B1 |
![]() |
| 410 |
285814-16
|
2 |
PIN |
12x20 |
|
B1 |
![]() |
| 411 |
285814-18
|
2 |
PIN |
8x12 |
|
B1 |
![]() |
| 412 |
285814-22
|
1 |
BEARING,BALL |
6207 |
|
B1 |
![]() |
| 413 |
285814-23
|
1 |
SPARK PLUG |
NGK |
|
B1 |
![]() |
| 414 |
285814-25
|
1 |
GASKET |
HEAD COVER |
|
B1 |
![]() |
| 415 |
285815-99
|
1 |
GASKET |
CYLINDER |
|
B1 |
![]() |
| 416 |
285814-31
|
1 |
CYLINDER HEAD |
|
|
B1 |
![]() |
| 417 |
285814-33
|
1 |
COVER |
VALVE |
|
B1 |
![]() |
| 418 |
285814-34
|
1 |
BOLT |
M6x60 |
|
B1 |
![]() |
| 419 |
285818-85
|
1 |
CRANKCASE |
|
|
B1 |
![]() |
| 420 |
285816-15
|
1 |
SWITCH |
OIL LEVEL |
|
B1 |
![]() |
| 421 |
285814-40
|
1 |
OIL ALERT UNIT |
MODULE, LOS |
|
B1 |
![]() |
| 422 |
285814-43
|
1 |
COVER |
|
|
B1 |
![]() |
| 423 |
285814-46
|
1 |
GASKET |
CASE COVER |
|
B1 |
![]() |
| 424 |
285814-48
|
1 |
CAP SA |
DIPSTICK |
|
B1 |
![]() |
| 426 |
285814-51
|
1 |
COUNTER BALANCE |
WEIGHT |
|
B1 |
![]() |
| 427 |
285818-63
|
1 |
CRANKSHAFT |
|
|
B1 |
![]() |
| 428 |
285817-20
|
1 |
WOODRUFF KEY |
|
|
B1 |
![]() |
| 429 |
285814-59
|
1 |
PIN |
|
|
B1 |
![]() |
| 430 |
285814-61
|
2 |
CLIP |
PISTON PIN |
|
B1 |
![]() |
| 431 |
285814-64
|
1 |
RING |
|
|
B1 |
![]() |
| 432 |
285814-67
|
1 |
CONNECTING ROD |
INCL CAP & BOLTS |
|
B1 |
![]() |
| 433 |
285814-69
|
2 |
LIFTER |
VALVE |
|
B1 |
![]() |
| 434 |
285814-72
|
2 |
PUSHROD |
|
|
B1 |
![]() |
| 435 |
285814-75
|
1 |
INTAKE VALVE |
|
|
B1 |
![]() |
| 436 |
285814-78
|
1 |
VALVE |
EXHAUST |
|
B1 |
![]() |
| 437 |
285814-80
|
2 |
VALVE SPRING |
|
|
B1 |
![]() |
| 438 |
285814-83
|
4 |
RETAINER |
VALVE SPRING |
|
B1 |
![]() |
| 439 |
285814-85
|
1 |
SEAL |
GUIDE |
|
B1 |
![]() |
| 440 |
285814-87
|
1 |
ROTATOR VALVE |
|
|
B1 |
![]() |
| 441 |
285814-91
|
1 |
SHAFT |
|
|
B1 |
![]() |
| 442 |
285814-93
|
1 |
PLATE SA |
|
|
B1 |
![]() |
| 443 |
285814-95
|
2 |
ARM PAIR |
|
|
B1 |
![]() |
| 444 |
285815-01
|
1 |
SHROUD SA |
|
|
B1 |
![]() |
| 445 |
285815-04
|
1 |
GASKET |
INSULATOR |
|
B1 |
![]() |
| 446 |
285815-08
|
1 |
GASKET |
CARBURETOR |
|
B1 |
![]() |
| 447 |
285815-09
|
4 |
CLIP |
TUBE |
|
B1 |
![]() |
| 448 |
285818-12
|
1 |
CLIP |
SWALLOW TAILED |
|
B1 |
![]() |
| 450 |
285815-16
|
1 |
FAN |
COOLING |
|
B1 |
![]() |
| 451 |
285815-19
|
1 |
PULLEY |
|
|
B1 |
![]() |
| 452 |
285818-92
|
1 |
FLYWHEEL |
|
|
B1 |
![]() |
| 453 |
285815-23
|
1 |
GROMMET |
|
|
B1 |
![]() |
| 455 |
285815-27
|
1 |
COIL SA |
|
|
B1 |
![]() |
| 457 |
285815-30
|
1 |
GASKET |
AIR CLEANER |
|
B1 |
![]() |
| 458 |
285818-01
|
1 |
GASKET |
MUFFLER |
|
B1 |
![]() |
| 459 |
285818-58
|
1 |
MANIFOLD ASSEMBLY |
EXHAUST |
|
B1 |
![]() |
| 460 |
285815-37
|
1 |
PISTON |
|
|
B1 |
![]() |
| 461 |
285815-39
|
1 |
SPRING |
THROTTLE RETURN |
|
B1 |
![]() |
| 462 |
285815-42
|
1 |
SPRING |
|
|
B1 |
![]() |
| 463 |
285818-59
|
1 |
ARM |
GOVERNOR |
|
B1 |
![]() |
| 464 |
285815-48
|
1 |
SHAFT |
GOVERNOR ARM |
|
B1 |
![]() |
| 465 |
285815-49
|
1 |
LOCK PIN |
|
|
B1 |
![]() |
| 466 |
285815-53
|
1 |
GOVERNOR SA |
|
|
B1 |
![]() |
| 470 |
285818-54
|
1 |
STARTER SA |
RECOIL |
|
B1 |
![]() |
| 471 |
285815-63
|
1 |
INSULATOR |
CARBURETOR |
|
B1 |
![]() |
| 472 |
285818-55
|
1 |
CARBURETTOR SA |
ASSEMBLY |
|
B1 |
![]() |
| 473 |
285818-90
|
1 |
FILTER SA |
COMPLETE ASSY. |
|
B1 |
![]() |
| 474 |
285818-60
|
1 |
THROTTLE CONTROL |
|
|
B1 |
![]() |
| 475 |
285818-62
|
1 |
HOSE SA |
FUEL, 4x8x240 |
|
B1 |
![]() |
| 476 |
285815-73
|
5 |
NUT |
M8 |
|
B1 |
![]() |
| 477 |
285815-74
|
9 |
NUT |
FLANGE, M6 |
|
B1 |
![]() |
| 479 |
285815-84
|
3 |
BOLT |
FLANGE, M6x8 |
|
B1 |
![]() |
| 482 |
285815-86
|
5 |
BOLT |
FLANGE, M6x12 |
|
B1 |
![]() |
| 483 |
285815-88
|
9 |
BOLT |
FLANGE, M6x14 |
|
B1 |
![]() |
| 484 |
285815-90
|
2 |
BOLT |
FLANGE, M6x25 |
|
B1 |
![]() |
| 488 |
285818-50
|
1 |
COVER |
BLOWER |
|
B1 |
![]() |
| 489 |
285818-53
|
2 |
STUD |
6-8x134, INTAKE |
|
B1 |
![]() |
| 491 |
285816-05
|
1 |
BLOWER HOUSING |
|
|
B1 |
![]() |
| 494 |
285818-91
|
1 |
Muffler |
ASSEMBLY |
|
B1 |
![]() |
| 495 |
285816-14
|
1 |
ROD |
GOVERNOR |
|
B1 |
![]() |
| 496 |
285816-24
|
3 |
STUD |
M6x29 |
|
B1 |
![]() |
| 497 |
285816-25
|
1 |
CABLE TIE |
|
|
B1 |
![]() |
| 498 |
285816-26
|
1 |
S.T.OIL SEAL INSERTER |
8x14x5 |
|
B1 |
![]() |
| 499 |
285816-27
|
2 |
BEARING,BALL |
6202 |
|
B1 |
![]() |
| 503 |
285816-36
|
2 |
BOLT |
FLANGE, M6x16 |
|
B1 |
![]() |
| 505 |
285814-88
|
2 |
Seat |
VALVE SPRING |
|
B1 |
![]() |
| 506 |
285816-45
|
2 |
RETAINER |
KEEPER, VALVE SPRING |
|
B1 |
![]() |
| 507 |
285816-46
|
1 |
GASKET |
MANIFOLD |
|
B1 |
![]() |
| 509 |
285816-51
|
7 |
BOLT |
FLANGE, M8x40 |
|
B1 |
![]() |
| 510 |
285816-52
|
1 |
LABEL |
EMISSIONS |
|
B1 |
![]() |
| 511 |
285816-44
|
1 |
LABEL |
13HP |
|
B1 |
![]() |
| 512 |
285816-53
|
1 |
IDENTITY LABEL |
DEWALT |
|
B1 |
![]() |
| 515 |
285817-85
|
1 |
LABEL |
CHOKE |
|
B1 |
![]() |
| 520 |
285816-55
|
2 |
BOLT |
FLANGE, M8X25 |
|
B1 |
![]() |
| 524 |
285816-76
|
2 |
RATCHET |
|
|
B1 |
![]() |
| 525 |
285816-77
|
1 |
SPRING |
REWIND |
|
B1 |
![]() |
| 526 |
285816-78
|
1 |
BOLT |
|
|
B1 |
![]() |
| 527 |
285816-79
|
2 |
SPRING |
|
|
B1 |
![]() |
| 528 |
285816-80
|
1 |
PULLEY |
|
|
B1 |
![]() |
| 529 |
285816-81
|
1 |
SPRING |
|
|
B1 |
![]() |
| 530 |
285816-82
|
1 |
STARTER ROPE |
|
|
B1 |
![]() |
| 531 |
285816-83
|
1 |
CAP SA |
|
|
B1 |
![]() |
| 535 |
285816-87
|
1 |
FLOAT |
|
|
B1 |
![]() |
| 536 |
285816-88
|
1 |
VALVE |
NEEDLE |
|
B1 |
![]() |
| 537 |
285816-89
|
1 |
BOWL |
FLOAT |
|
B1 |
![]() |
| 538 |
285816-90
|
1 |
PIN |
FLOAT |
|
B1 |
![]() |
| 539 |
285816-91
|
1 |
O RING |
FLOAT BOWL |
|
B1 |
![]() |
| 540 |
285818-65
|
1 |
NOZZLE |
MAIN |
|
B1 |
![]() |
| 541 |
285818-67
|
1 |
BOLT |
FLOAT BOWL |
|
B1 |
![]() |
| 542 |
285818-68
|
1 |
GASKET |
FLOAT BOWL BOLT |
|
B1 |
![]() |
| 543 |
285816-95
|
1 |
MAIN JET |
STD. |
|
B1 |
![]() |
| 543 |
285818-75
|
1 |
MAIN JET |
ABOVE 5000FT |
|
B1 |
![]() |
| 545 |
285818-66
|
1 |
LEVER |
CHOKE |
|
B1 |
![]() |
| 546 |
285817-07
|
1 |
BOLT |
FUEL DRAIN |
|
B1 |
![]() |
| 547 |
285816-97
|
1 |
SCREW |
IDLE SPEED ADJ. |
|
B1 |
![]() |
| 548 |
285817-08
|
1 |
GASKET |
FUEL DRAIN |
|
B1 |
![]() |
| 552 |
1349856
|
1 |
SCREW |
M5 x 40 |
|
B1 |
![]() |
| 553 |
285818-70
|
1 |
SPRING |
|
|
B1 |
![]() |
| 554 |
285817-99
|
1 |
TUBE |
BREATHER |
|
B1 |
![]() |
| 556 |
285818-84
|
1 |
SWITCH |
ON/OFF |
|
B1 |
![]() |
| 559 |
285818-39
|
1 |
HANDLE |
|
|
B1 |
![]() |
| 560 |
285817-74
|
1 |
CONNECTING WIRE |
|
|
B1 |
![]() |
| 562 |
285817-80
|
1 |
FILTER |
|
|
B1 |
![]() |
| 564 |
N068067
|
1 |
WARNING LABEL |
|
|
B1 |
![]() |
| 566 |
285818-71
|
1 |
FILTER |
|
|
B1 |
![]() |
| 567 |
285818-31
|
2 |
WING NUT |
|
|
B1 |
![]() |
| 568 |
285818-14
|
1 |
KEY |
SHAFT |
|
B1 |
![]() |
| 569 |
285818-69
|
1 |
SPRING |
RETURN |
|
B1 |
![]() |
| 589 |
285818-79
|
1 |
SPARK ARRESTOR |
|
|
B1 |
![]() |
| 590 |
285817-76
|
1 |
JOINT |
FUEL TANK |
|
B1 |
![]() |
| 591 |
285818-95
|
1 |
Fuel tank |
|
|
B1 |
![]() |
| 593 |
285818-51
|
1 |
RUBBER STRIP |
|
|
B1 |
![]() |
| 594 |
285817-86
|
1 |
LABEL |
ON/OFF |
|
B1 |
![]() |
| 596 |
285817-84
|
1 |
LABEL |
SPEED |
|
B1 |
![]() |
| 598 |
285818-72
|
1 |
SEAL |
AIR CLEANER |
|
B1 |
![]() |
| 599 |
285818-13
|
1 |
BOLT |
FLANGE, M6x22 |
|
B1 |
![]() |
| 600 |
285820-67
|
1 |
FUEL CAP |
|
|
B1 |
![]() |
Parts List
