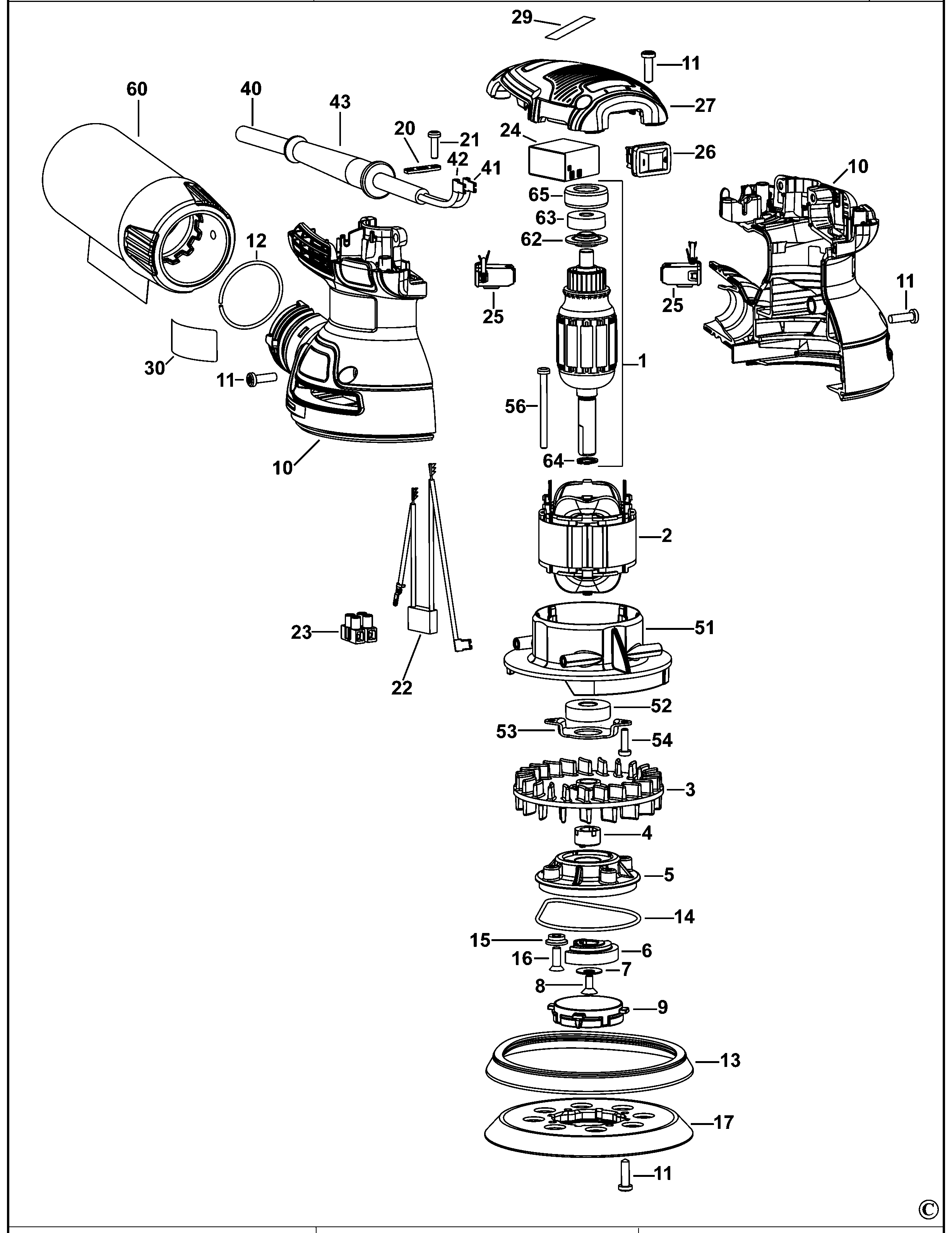

DWE6423 RANDOM ORBITAL SANDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N431207 | 1 | ARMATURE 230V | 230V | ZA |  |
|
| 2 | N431209 | 1 | FIELD 230V | 230V | ZA | |
|
| 3 | N396699 | 1 | FAN | ZA | |
||
| 4 | N395442 | 1 | ECCENTRIC | ZA | |
||
| 5 | N329082 | 1 | BEARING HOUSING | ZA |  |
||
| 6 | N399756 | 1 | COUNTERWEIGHT | ZA | |
||
| 7 | N345099 | 1 | WASHER | ZA | |
||
| 8 | 098012-11 | 1 | SCREW | ZA | |
||
| 9 | N329083 | 1 | END CAP | ZA | |
||
| 10 | N832383 | 1 | HOUSING SA | ZA | |
||
| 11 | 330019-12 | 14 | SCREW | ZA | |
||
| 12 | N377182 | 1 | LOCKING RING | ZA | |
||
| 13 | N371139 | 1 | SKIRT | ZA | |
||
| 14 | N430442 | 1 | BELT | ZA | |
||
| 15 | N544253 | 1 | PULLEY | ZA | |
||
| 16 | N403401 | 1 | SCREW | ZA | |
||
| 17 | N329079 | 1 | PAD SA | ZA | |
||
| 20 | 329301-00 | 1 | CORD CLAMP | ZA | |
||
| 21 | 330019-02 | 2 | SCREW | ZA | |
||
| 22 | N372304 | 1 | CAPACITOR SA | ZA | |
||
| 23 | N416499 | 1 | TERMINAL BLOCK | ZA | |
||
| 24 | N360900 | 1 | CONTROL MODULE SA | VS, 230V | ZA | |
|
| 25 | N372301 | 2 | BRUSH & HOLDER 230V | 230V | ZA | |
|
| 26 | 656494-00 | 1 | SWITCH | ZA | |
||
| 27 | N345859 | 1 | HOUSING TOP | VS RO | ZA | |
|
| 29 | N397366 | 1 | LABEL | PERFORM/PROTECT | ZA | |
|
| 30 | N409460 | 1 | RATING PLATE | DWE6423-ZA | ZA | ||
| 40 | N409399 | 1 | CORDSET (EURO) | -QS | ZA | ||
| 43 | 330005-01 | 1 | CORD PROTECTOR | ZA | |
||
| 51 | N396634 | 1 | MOUNT | ZA | |
||
| 52 | 605040-25 | 1 | BEARING,BALL | ZA | |
||
| 53 | N388153 | 1 | BEARING HOLDER | ZA | |
||
| 54 | 330019-02 | 2 | SCREW | ZA | |
||
| 56 | 330019-08 | 2 | SCREW | ZA | |
||
| 60 | N273733 | 1 | DUST BAG SA | ZA | |
||
| 62 | N336059 | 1 | WASHER | COMM END | ZA | |
|
| 63 | 605040-05 | 1 | BEARING | ZA | |
||
| 64 | 444793-00 | 1 | CIRCLIP | ZA | |
||
| 65 | N136311 | 1 | RUBBER BOOT | ZA | |
