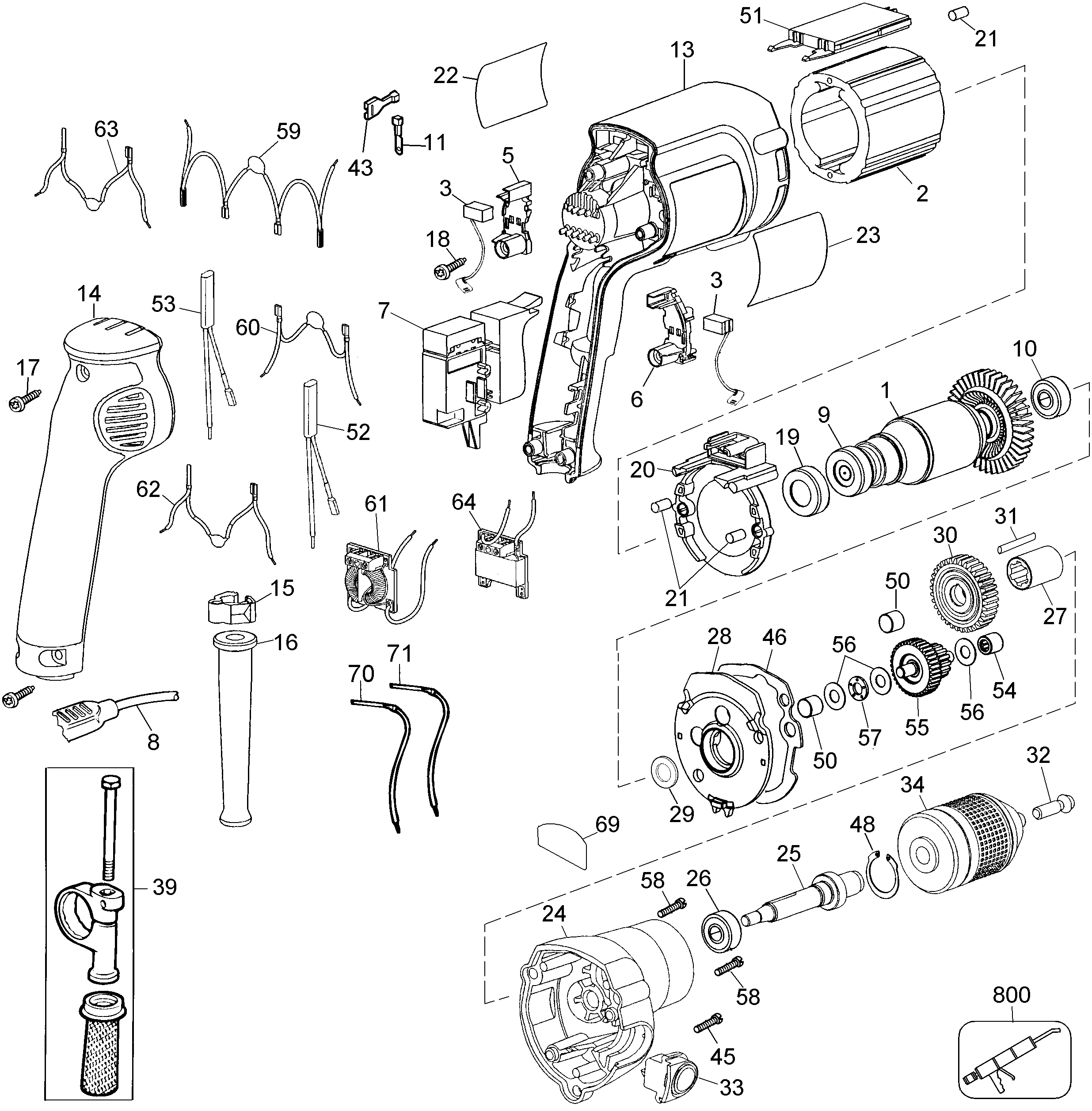

DW236 DRILL Type A1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 579598-15 | 1 | ARMATURE 230V | GB |  |
||
| 2 | 579605-01 | 1 | FIELD 230V | GB | |
||
| 3 | 176949-00 | 2 | BRUSH 230V | GB | |
||
| 5 | 176801-03 | 1 | BRUSH HOLDER | GB |  |
||
| 6 | 176800-03 | 1 | BRUSH HOLDER | GB | |
||
| 7 | 176830-15 | 1 | SWITCH | Tyco | GB | |
|
| 8 | 330060-07 | 1 | CORDSET | GB | |||
| 9 | 330003-04 | 1 | BEARING | GB | |||
| 10 | 330003-04 | 1 | BEARING | GB | |||
| 11 | 449192-00 | 2 | TERMINAL | GB | |
||
| 13 | 429974-04 | 1 | FIELDCASE SA | GB | |
||
| 14 | 176818-02 | 1 | HANDLE COVER | GB | |||
| 15 | 176832-00 | 1 | CORD CLAMP | GB | |||
| 16 | 330005-01 | 1 | CORD PROTECTOR | GB | |
||
| 17 | 330019-13 | 3 | SCREW | M4X19 T20 | GB | |
|
| 18 | 176951-00 | 2 | SCREW | GB | |
||
| 19 | 949721-03 | 1 | SLEEVE | BLACK | GB | |
|
| 19 | 389824-00 | 1 | BOOT | GREY | GB | |
|
| 20 | 176811-00 | 1 | BAFFLE | GB | |
||
| 21 | 949638-02 | 3 | DAMPER | GB | |
||
| 22 | 395047-00 | 1 | BRAND LABEL | GB | |
||
| 23 | 385147-01 | 1 | NAMEPLATE | GB | |||
| 24 | 176634-03SV | 1 | GEAR CASE | GB | |||
| 25 | 176638-00 | 1 | SPINDLE | GB | |
||
| 26 | 605040-20 | 1 | BEARING | 12 x 28 x 8mm | GB | |
|
| 27 | 176691-00 | 1 | SPACER | GB | |
||
| 28 | 388761-00 | 1 | GEARCASE COVER | GB | |
||
| 29 | 023813-00 | 1 | WASHER FIBRE | GB | |||
| 30 | 176639-00 | 1 | GEAR | GB | |
||
| 31 | 099227-05 | 1 | PIN | GB | |
||
| 32 | 605256-01 | 1 | SCREW | GB | |
||
| 33 | 176641-00 | 1 | SPINDLE LOCK | GB | |
||
| 34 | 330075-45 | 1 | CHUCK KEYLESS | GB | |
||
| 39 | N429860 | 1 | SIDE HANDLE | 939794-00 | GB | ||
| 45 | 330019-14 | 1 | SCREW | GB | |
||
| 46 | 176655-00 | 1 | GASKET | GB | |
||
| 48 | 087692-00 | 1 | RETAINER | GB | |
||
| 50 | 093128-00 | 2 | BEARING NEEDLE | GB | |
||
| 51 | 176917-00 | 1 | MODULE | GB | |
||
| 54 | 330004-00 | 1 | BEARING | GB | |
||
| 55 | 176647-00SV | 1 | GEAR & PINION SA | 7/37 TEETH | GB | |
|
| 56 | 091817-00 | 3 | WASHER | GB | |
||
| 57 | 091644-00 | 1 | BEARING THRUST | GB | |
||
| 58 | 330019-16 | 2 | SCREW | GB | |
||
| 59 | 384022-00 | 1 | CAPACITOR SA | GB | |
||
| 60 | 384021-00 | 1 | CAPACITOR SA | GB | |
||
| 61 | 383714-00 | 1 | ELECTRONIC | GB | |
||
| 69 | 387233-00 | 1 | LABEL | GB | |
||
| 70 | 176893-00 | 1 | LEAD BLACK | GB | |
||
| 71 | 176834-00 | 1 | LEAD BLUE | GB | |
||
| 800 | 286436-00 | 1 | GREASE | NYE RHEOLUBE 380, 500 GRAM JAR | GB | |
