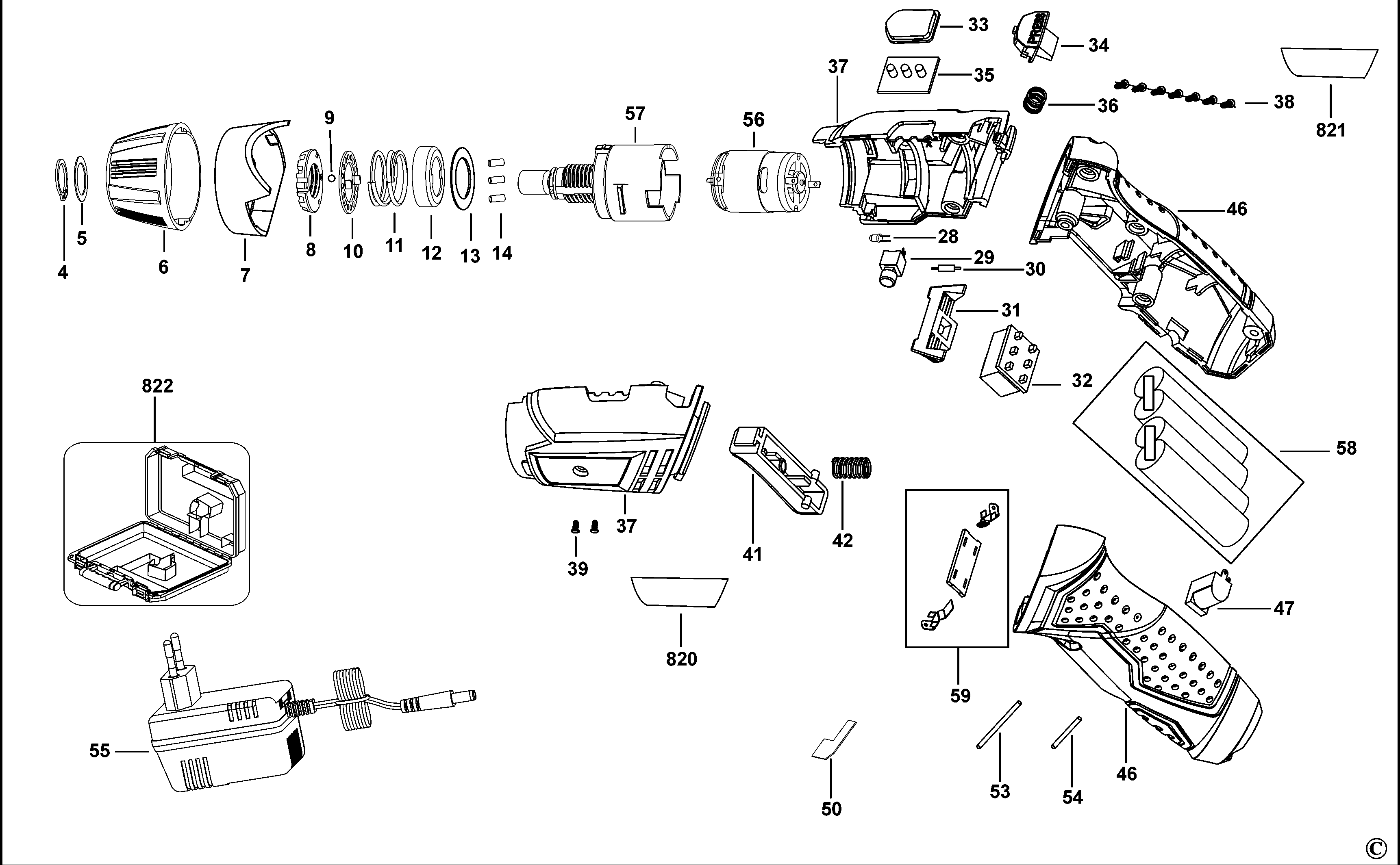

KC4815 CORDLESS SCREWDRIVER Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 4 | 5170005-29 | 1 | SPRING | XD |  |
||
| 5 | 5170005-30 | 1 | GASKET | XD | |
||
| 6 | 5170005-31 | 1 | SLEEVE | XD | |
||
| 7 | 5170005-32 | 1 | COVER | XD | |
||
| 8 | 5170005-33 | 1 | SLEEVE | XD | |
||
| 9 | 5170005-34 | 1 | BALL | XD | |
||
| 10 | 5170005-35 | 1 | PIECE | XD | |
||
| 11 | 5170005-36 | 1 | SPRING | XD | |
||
| 12 | 5170005-37 | 1 | PLATE | XD | |
||
| 13 | 5170005-38 | 1 | GASKET | XD | |
||
| 14 | 5170005-39 | 3 | PIN | XD | |
||
| 28 | 5170005-53 | 1 | LED LIGHT | XD | |
||
| 29 | 5170005-54 | 1 | SWITCH | XD | |
||
| 30 | 5170005-55 | 1 | RESISTOR | XD | |
||
| 31 | 5170005-56 | 1 | PUSHROD | XD | |
||
| 32 | 5170005-57 | 1 | BOARD | XD | |
||
| 33 | 5170005-58 | 1 | COVER | XD | |
||
| 34 | 5170005-59 | 1 | BUTTON | XD | |
||
| 35 | 5170005-60 | 1 | BOARD | XD | |
||
| 36 | 5170005-61 | 1 | SPRING | XD | |
||
| 37 | 5170014-65 | 1 | CASING SA | XD | |
||
| 38 | 5170005-63 | 7 | SCREW | XD | |
||
| 39 | 5170005-64 | 2 | SCREW | XD | |
||
| 41 | 5170005-66 | 1 | TRIGGER | XD | |
||
| 42 | 5170005-67 | 1 | SPRING | XD | |
||
| 46 | 5170014-66 | 1 | CASING SA | XD | |
||
| 47 | 5170005-72 | 1 | PLUG | XD | |
||
| 50 | 5170005-75 | 1 | SPACER INSULATING | XD | |
||
| 53 | 5170005-78 | 1 | TUBE | XD | |
||
| 54 | 5170005-79 | 1 | TUBE | XD | |
||
| 55 | 6010389-24 | 1 | CHARGER | XD | |
||
| 56 | 6010389-67 | 1 | MOTOR SA | XD | |
||
| 57 | 6010389-66 | 1 | OUTPUT SHAFT SA | XD | |
||
| 58 | 6010389-68 | 1 | BATTERY 4.8V - 2.4AH - 11.52WH | Ni-Cad - On board | XD | ||
| 59 | 1004699-69 | 1 | CONTACT SA | XD | |
||
| 820 | 5170014-63 | 1 | LABEL | XD | |
||
| 821 | 5170022-44 | 1 | RATING LABEL | XD | |
||
| 822 | 5170023-53 | 1 | KITBOX | KC4815KA15 | XD | |
