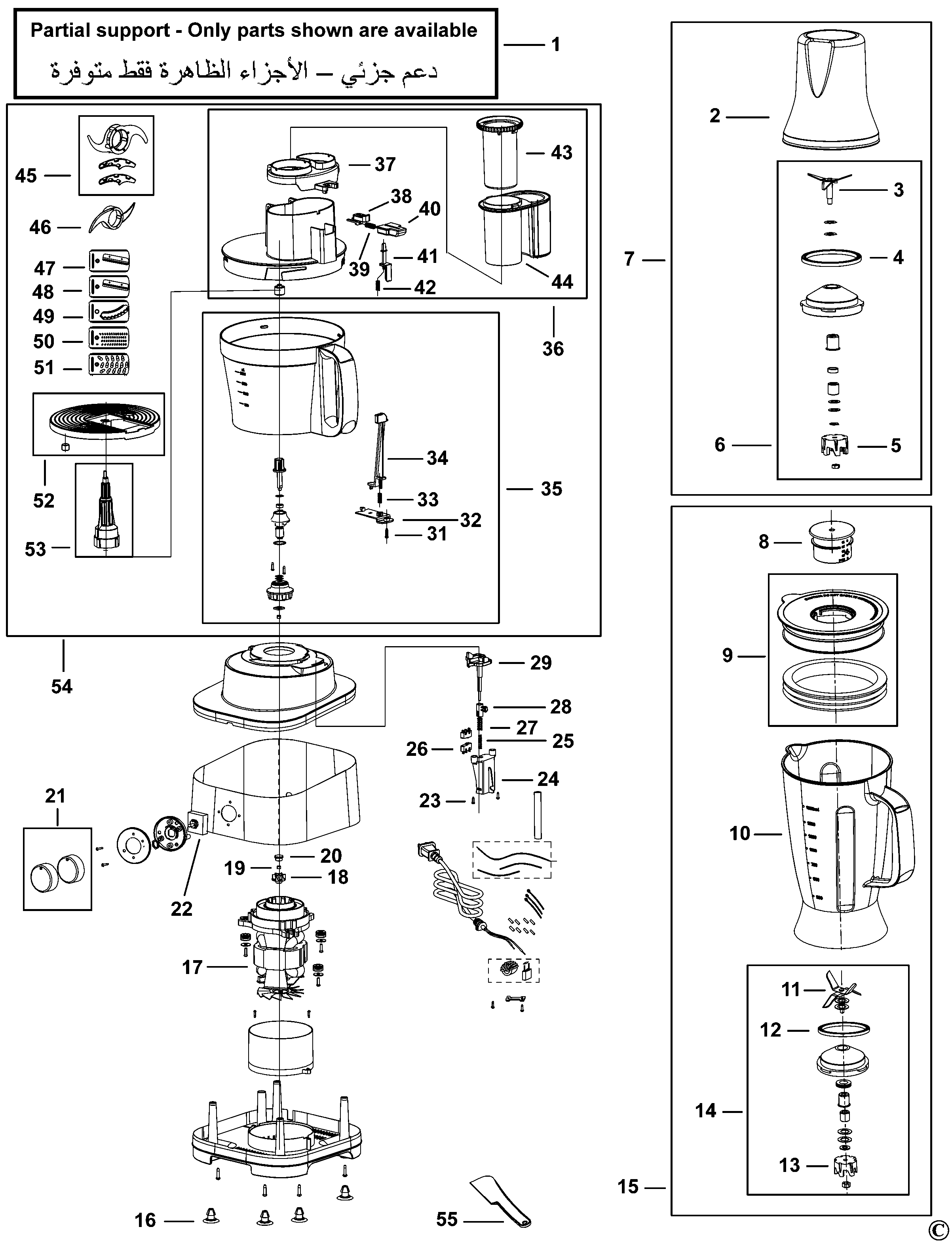

FX1050 FOOD PROCESSER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 000000-05 | 1 | PARTIAL SUPPORT - ONLY PARTS LISTED AVAI | B5 | |||
| 2 | 6010400-82 | 1 | CUP | GRINDING | B5 |  |
|
| 3 | 6010400-84 | 1 | BLADE | B5 |  |
||
| 4 | 6010400-85 | 1 | O RING | B5 | |
||
| 5 | 6010402-83 | 1 | GEAR | B5 | |
||
| 6 | 6010402-84 | 1 | BLADE SA | B5 | |
||
| 7 | 6010400-87 | 1 | CUP SA | GRINDING | B5 | |
|
| 8 | 6010402-86 | 1 | CUP | B5 | |
||
| 9 | 6010402-87 | 1 | COVER SA | B5 | |
||
| 10 | 6010400-76 | 1 | JAR | B5 | |
||
| 11 | 6010402-88 | 1 | BLADE | B5 | |
||
| 12 | 6010402-89 | 1 | SEAL | B5 | |
||
| 13 | 6010402-90 | 1 | GEAR | B5 | |
||
| 14 | 6010402-91 | 1 | BLADE SA | B5 | |
||
| 15 | 6010402-85 | 1 | JAR | SA | B5 | |
|
| 16 | 6010402-92 | 4 | FEET | B5 | |
||
| 17 | 6010402-93 | 1 | MOTOR | B5 | |
||
| 18 | 6010402-94 | 1 | COUPLING | B5 | |
||
| 19 | 6010402-95 | 1 | NUT | 7x7M4 | B5 | |
|
| 20 | 6010402-96 | 1 | CAP | B5 | |
||
| 21 | 6010402-97 | 1 | BUTTON SA | B5 | |
||
| 22 | 6010402-98 | 1 | SWITCH | B5 | |
||
| 23 | 6010400-51 | 2 | SCREW | B5 | |
||
| 24 | 6010403-01 | 1 | HOLDER | B5 | |
||
| 25 | 6010403-02 | 1 | SPRING | B5 | |
||
| 26 | 6010400-49 | 2 | MICRO SWITCH | B5 | |
||
| 27 | 6010400-48 | 1 | SPRING | B5 | |
||
| 28 | 6010400-47 | 1 | FRAME | B5 | |
||
| 29 | 6010403-06 | 1 | LEVER | B5 | |
||
| 31 | 6010403-07 | 1 | PIN | B5 | |
||
| 32 | 6010403-08 | 1 | SPRING | B5 | |
||
| 33 | 6010403-09 | 1 | SPRING | B5 | |
||
| 34 | 6010403-10 | 1 | BIT | B5 | |
||
| 35 | 6010403-11 | 1 | BOWL | B5 | |
||
| 36 | 6010403-12 | 1 | LID SA | B5 | |
||
| 37 | 6010403-13 | 1 | COVER-TOP | B5 | |
||
| 38 | 6010403-14 | 1 | BUTTON | B5 | |
||
| 39 | 6010403-15 | 1 | SPRING | B5 | |
||
| 40 | 6010403-16 | 1 | CAP | B5 | |
||
| 41 | 6010403-17 | 1 | BIT | B5 | |
||
| 42 | 6010403-18 | 1 | SPRING | B5 | |
||
| 43 | 6010403-19 | 1 | PUSHER | SMALL | B5 | |
|
| 44 | 6010403-20 | 1 | PUSHER | LARGE | B5 | |
|
| 45 | 6010403-21 | 1 | BLADE SA | B5 | |
||
| 46 | 6010403-22 | 1 | BLADE | DOUGH | B5 | |
|
| 47 | 6010403-23 | 1 | CUTTER DISCS | THICK | B5 | |
|
| 48 | 6010403-24 | 1 | CUTTER DISCS | THIN | B5 | |
|
| 49 | 6010403-25 | 1 | BLADE.SHREDDING | B5 | |
||
| 50 | 6010403-26 | 1 | BLADE.SHREDDING | THIN | B5 | |
|
| 51 | 6010403-27 | 1 | BLADE.SHREDDING | COARSE | B5 | |
|
| 52 | 6010403-28 | 1 | BLADE HOLDER | B5 | |
||
| 53 | 6010403-29 | 1 | SHAFT | BLADE | B5 | |
|
| 54 | 6010403-30 | 1 | BOWL | SA | B5 | |
|
| 55 | 6010403-31 | 1 | SPATULA | B5 | |
