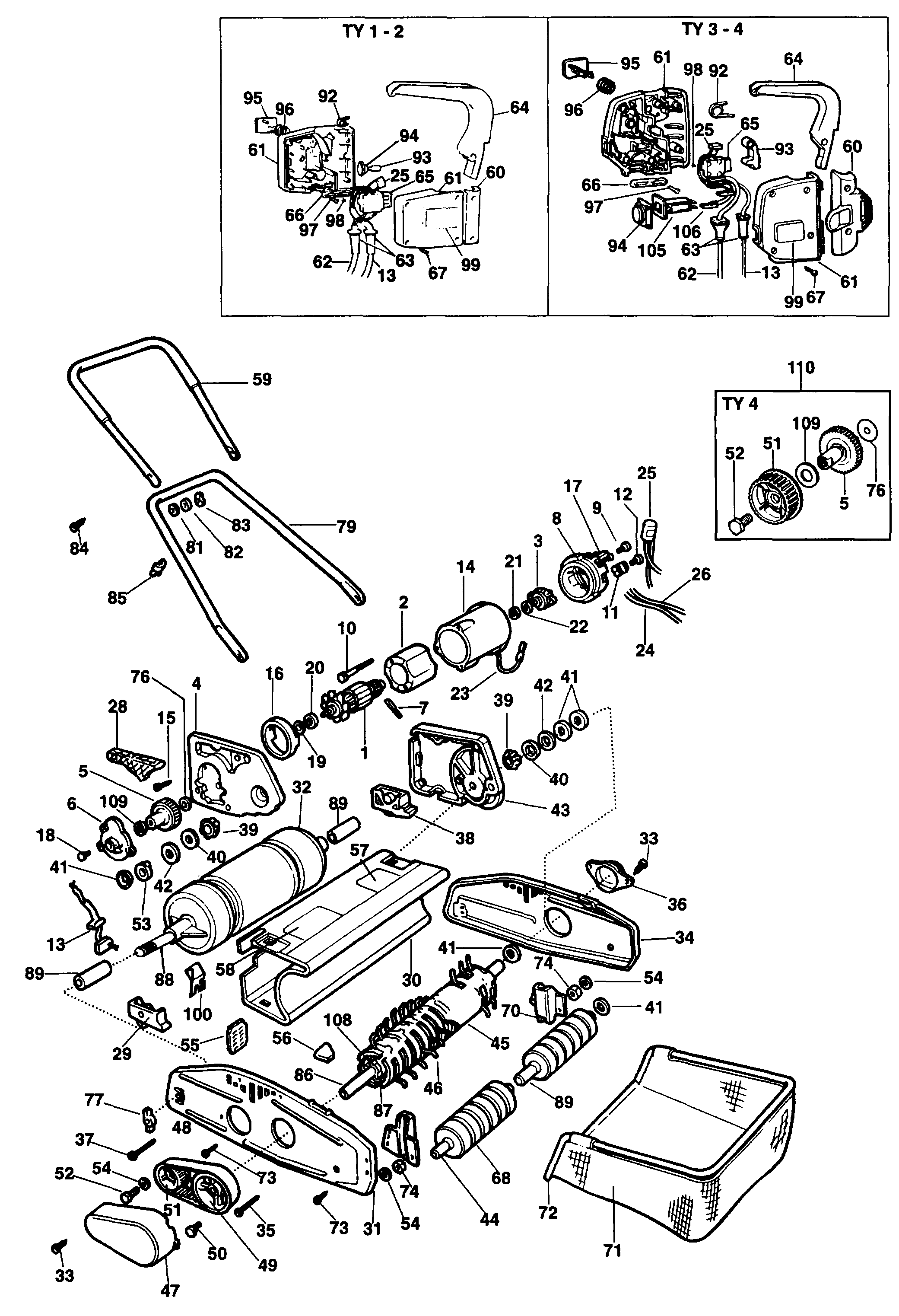

GD310 LAWNRAKER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 2 | 811651-49 | 1 | FIELD | H1-H4 | AE |  |
|
| 3 | 892052 | 1 | HOUSING BEARING | AE | |
||
| 4 | 846486 | 1 | CASTING RH | AE | |
||
| 5 | 894722 | 1 | GEAR | H1-H3 | AE | |
|
| 6 | 894721 | 1 | COVER GEARCASE | H1-H3 | AE | |
|
| 6 | 808316 | 1 | COVER GEARCASE | H4 | AE | |
|
| 7 | 883772 | 2 | BRUSH 230V | AE | |
||
| 8 | 884044 | 1 | COVER | AE | |
||
| 9 | 890088 | 2 | SCREW | AE | |
||
| 10 | 995183 | 2 | SCREW | AE | |
||
| 11 | 859580 | 1 | BLOCK | AE | |
||
| 12 | 892072 | 1 | CABLE | AE | |
||
| 13 | 746021 | 1 | CABLE | AE-BE-NL-ES H1-H1A | AE | |
|
| 13 | 746021 | 1 | CABLE | GB-PT-FR H1-H1A | AE | |
|
| 13 | 805670-01 | 1 | CABLE SA | GB-DK-FI-NO-SE H3-H4 | AE | |
|
| 13 | 795540 | 1 | CABLE | DK-FI-NO-SE H1-H1A | AE | ||
| 13 | 746833 | 1 | CABLE | AT-DE-CH-IT H1-H1A | AE | |
|
| 13 | 805671-01 | 1 | CABLE SA | AE-BE-NL-ES-FR H3-H4 | AE | ||
| 13 | 805671-01 | 1 | CABLE SA | B1 | AE | ||
| 13 | 805669-01 | 1 | CABLE SA | AT-DE-CH-IT H3-H4 | AE | ||
| 14 | 881004 | 1 | HOUSING | AE | |
||
| 15 | 999271 | 3 | SCREW | AE | |
||
| 16 | 895238 | 1 | BAFFLE | AE | |
||
| 17 | 579093-01 | 3 | CABLE TIE | AE | |
||
| 17 | 579093-01 | 3 | CABLE TIE | AE | |
||
| 18 | 899021 | 3 | SCREW | AE | |
||
| 19 | 996605 | 1 | WASHER | AE | |
||
| 20 | 996589 | 1 | WASHER | AE | |
||
| 21 | 995036 | 1 | WASHER SPRING | AE | |
||
| 22 | 996930 | 1 | WASHER | AE | |
||
| 23 | 820626 | 1 | CHOKE LEAD | AE | |
||
| 24 | 811501 | 1 | LEAD | AE | |
||
| 25 | 807285-07 | 1 | CAPACITOR | AE | |
||
| 26 | 811503 | 1 | LEAD | AE | |
||
| 28 | 894728 | 1 | FILTER | AE | |
||
| 29 | 822218 | 1 | BLOCK RH | AE | |
||
| 30 | 820421-30 | 1 | CHASSIS | AE | |
||
| 31 | 820426-30 | 1 | FRAME RH | AE | |
||
| 32 | 748393 | 1 | ROLLER | AE | |
||
| 33 | 894748 | 7 | O RING | AE | |
||
| 35 | 826041 | 2 | SCREW | AE | |
||
| 36 | 846037 | 1 | COVER | AE | |
||
| 37 | 826040 | 2 | SCREW | AE | |
||
| 38 | 822435 | 1 | BLOCK LH | AE | |
||
| 39 | 847655 | 2 | BEARING | AE | |
||
| 40 | 849215 | 2 | WASHER FIBRE | AE | |
||
| 41 | 896057 | 8 | RETAINER | AE | |
||
| 42 | 892528 | 2 | WASHER | AE | |
||
| 43 | 814629 | 1 | CASTING LH | AE | |
||
| 44 | 820432 | 1 | AXLE FRONT | AE | |
||
| 45 | 749013 | 1 | COMB METAL | AE | |
||
| 46 | 848638 | 87 | TYNE | AE | |
||
| 47 | 848467 | 1 | COVER BELT | AE | |
||
| 48 | 848485 | 1 | BELT | AE | |
||
| 49 | 846939 | 1 | PULLEY | AE | |
||
| 50 | 824606 | 1 | SCREW | AE | |
||
| 51 | 898897 | 1 | PULLEY | AE | |
||
| 52 | 897941 | 1 | SCREW | AE | |
||
| 53 | 896381 | 1 | WASHER THACKERY | AE | |
||
| 54 | 845314 | 2 | WASHER LOCK | AE | |
||
| 55 | 899831 | 1 | GRILL | AE | |
||
| 56 | 896315 | 2 | RETAINER | AE | |
||
| 59 | 795623 | 1 | HANDLE UPPER | AE | |
||
| 60 | 827131 | 1 | PLATE | H1-H1A | AE | |
|
| 60 | 799364 | 1 | PLATE | H3-H4 | AE | |
|
| 61 | 793716 | 1 | SWITCHBOX | AT-DE-CH-IT H1-H1A | AE | |
|
| 61 | 793716 | 1 | SWITCHBOX | DK-FI-NO-SE H1-H1A | AE | |
|
| 61 | 799361-03 | 1 | CLAMSHELL | AE-BE-NL-ES H3-H4 | AE | |
|
| 61 | 799361-03 | 1 | CLAMSHELL | FR-PT H3-H4 | AE | |
|
| 61 | 799361-03 | 1 | CLAMSHELL | AT-DE H3-H4 | AE | |
|
| 61 | 799361-01 | 1 | SWITCHBOX | GB-CH-IT-B1 H3-H4 | AE | |
|
| 61 | 799361-01 | 1 | SWITCHBOX | DK-FI-NO-SE H3-H4 | AE | |
|
| 63 | 770235 | 2 | PROTECTOR | AE |  |
||
| 64 | 373094 | 1 | LEVER | H3-H4 | AE | |
|
| 64 | 746030 | 1 | LEVER | H1-H1A | AE | |
|
| 65 | 794164 | 1 | SWITCH | AE | |
||
| 66 | 827140 | 1 | CABLE CLAMP | AE | |
||
| 67 | 849256 | 6 | SCREW | AE | |
||
| 68 | 843960 | 2 | ROLLER | AE | |
||
| 69 | 794059 | 1 | BRACKET RH | AE | |
||
| 70 | 843918-32 | 1 | BRACKET LH | AE | |
||
| 71 | 373861 | 1 | GRASSBAG | AE | |
||
| 72 | 820441 | 1 | FRAME | AE | |
||
| 73 | 894748 | 8 | O RING | AE | |
||
| 74 | 723588 | 2 | NUT | AE | |
||
| 76 | 892529 | 1 | WASHER THRUST | AE | |
||
| 77 | 796490 | 2 | NUT WING | AE | |
||
| 79 | 746048 | 1 | LOWER HANDLE | AE | |
||
| 81 | 893809 | 2 | WASHER | AE | |
||
| 82 | 895141 | 2 | WASHER | AE | |
||
| 83 | 896288 | 2 | NUT WING | AE | |
||
| 84 | 899161 | 2 | SCREW | AE | |
||
| 85 | 915859 | 2 | CLIP CABLE | AE | |||
| 86 | 749012 | 1 | AXLE SA | AE | |
||
| 87 | 749053 | 29 | CARRIER | AE | |
||
| 88 | 820433 | 1 | AXLE REAR | AE | |
||
| 89 | 822540 | 3 | SPACER | AE | |
||
| 92 | 827135 | 1 | SPRING | AE | |
||
| 93 | 797929 | 1 | ACTUATOR | H3-H4 | AE | |
|
| 93 | 827132 | 1 | ACTUATOR | H1-H1A | AE | |
|
| 94 | 851901 | 1 | SEAL | H1-H1A | AE | |
|
| 94 | 799174 | 1 | SEAL | H3-H4 | AE | |
|
| 95 | 746031 | 1 | BUTTON LOCK-OFF | H1-H1A | AE | |
|
| 95 | 373092 | 1 | BUTTON LOCK-OFF | H3-H4 | AE | |
|
| 96 | 827137 | 1 | SPRING | AE | |
||
| 97 | 810269 | 3 | SCREW | AE | |
||
| 98 | 990735 | 2 | SCREW | AE | |
||
| 105 | 812352 | 1 | CUT OUT SA | H1-H1A | AE | |
|
| 105 | 805262-01 | 1 | CUT OUT SA | H3-H4 | AE | |
|
| 106 | 894789 | 1 | CONNECTING WIRE | H1-H1A | AE | |
|
| 106 | 799289 | 1 | LEAD | H3-H4 | AE | |
|
| 107 | 749054 | 1 | PLATE | AE | |
||
| 108 | 748470 | 1 | PIN | AE | |
||
| 109 | 808313 | 1 | WASHER | H4 | AE | |
