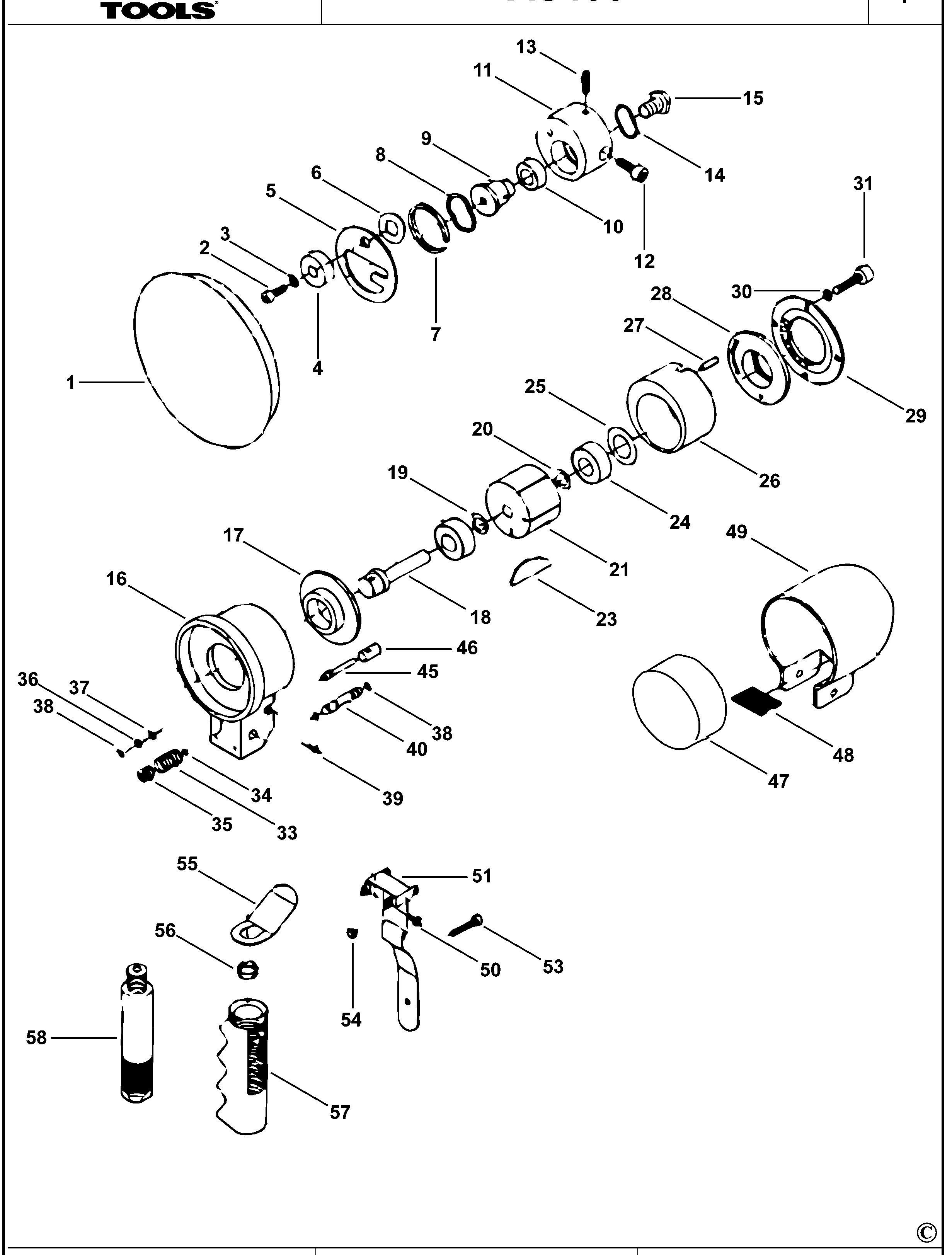

AS406 AIR SANDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | AS40601 | 1 | SANDING PAD | GB |  |
||
| 2 | AS40602 | 1 | SCREW | GB | |
||
| 3 | AS40603 | 1 | WASHER | GB | |
||
| 4 | AS40604 | 1 | NUT | GB | |
||
| 5 | AS40605 | 1 | WASHER | GB | |
||
| 6 | AS40606 | 1 | WASHER | GB | |
||
| 7 | AS40607 | 1 | RING | GB | |
||
| 8 | AS40608 | 1 | WASHER | GB | |
||
| 9 | AS40609 | 1 | SHAFT | GB | |
||
| 10 | AS40610 | 1 | BEARING | GB | |
||
| 11 | AS40611 | 1 | BODY | GB | |
||
| 12 | AS40612 | 1 | SCREW | GB | |
||
| 13 | AS40613 | 1 | SCREW | GB | |
||
| 14 | AS40614 | 1 | SCREW | GB | |
||
| 15 | AS40615 | 1 | SCREW | GB | |
||
| 16 | AS40616 | 1 | BODY | GB | |
||
| 17 | AS40617 | 1 | PLATE | GB | |
||
| 18 | AS40618 | 1 | SHAFT | GB | |
||
| 19 | AS40619 | 1 | BEARING,BALL | GB | |
||
| 20 | AS40620 | 4 | SHIM | GB | |
||
| 21 | AS40621 | 1 | ROTOR | GB | |
||
| 23 | AS40623 | 5 | ROTOR BLADE | GB | |
||
| 24 | AS40624 | 1 | BEARING,BALL | GB | |
||
| 25 | AS40625 | 1 | SHIELD | GB | |
||
| 26 | AS40626 | 1 | CYLINDER | GB | |
||
| 27 | AS40627 | 1 | PIN | GB | |
||
| 28 | AS40628 | 1 | PLATE | GB | |
||
| 29 | AS40629 | 1 | COVER MOTOR SA | GB | |
||
| 31 | AS40631 | 1 | SCREW | GB | |
||
| 32 | AS40632 | 1 | SCREW | GB | |
||
| 34 | AS40634 | 1 | O RING | GB | |
||
| 35 | AS40635 | 1 | SPRING | GB | |
||
| 36 | AS40636 | 1 | WASHER | GB | |
||
| 37 | AS40637 | 1 | WASHER | GB | |
||
| 38 | AS40638 | 2 | SCREW | GB | |
||
| 39 | 000000-00 | 3 | NO LONGER AVAILABLE | GB | |||
| 40 | AS40640 | 1 | REGULATOR | GB | |
||
| 45 | AS40645 | 1 | PUSHROD | GB | |
||
| 46 | AS40646 | 1 | BUSHING | GB | |
||
| 47 | AS40647 | 1 | Muffler | GB | |
||
| 48 | AS40648 | 1 | ELEMENT | GB | |
||
| 49 | AS40649 | 1 | MOTOR COVER | GB | |
||
| 50 | AS40650 | 2 | SCREW | GB | |
||
| 51 | AS40651 | 1 | BRACKET | GB | |
||
| 53 | AS40653 | 1 | BOLT | GB | |
||
| 54 | AS40654 | 1 | NUT | GB | |
||
| 55 | AS40655 | 1 | LEVER | GB | |
||
| 56 | AS40656 | 1 | NUT | GB | |
||
| 57 | AS40657 | 1 | ADAPTOR | GB | |
||
| 58 | AS40658 | 1 | HANDLE | GB | |
