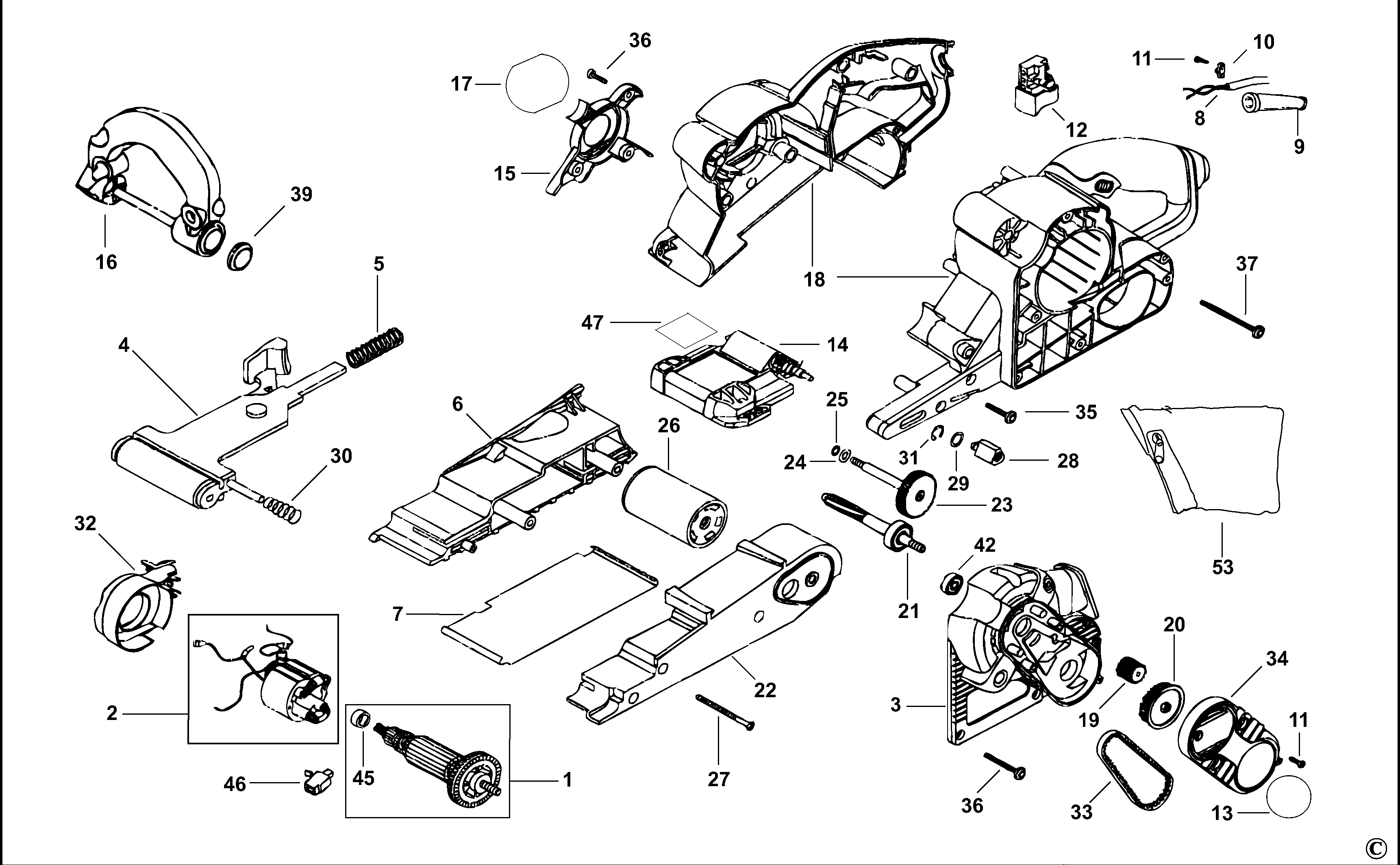

STBS720 BELT SANDER Type 3 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 90578779 | 1 | ARMATURE SA | Inc 45 | B5 |  |
|
| 2 | 90595604 | 1 | FIELD SA | with choke leads | B5 | |
|
| 3 | 587202-01 | 1 | COVER | B5 | |
||
| 4 | 589384-02 | 1 | CARRIER SA | B5 | |
||
| 5 | 587248-00 | 1 | SPRING | B5 | |
||
| 6 | 587207-01 | 1 | COVER | B5 | |
||
| 7 | 587249-00 | 1 | SANDING PLATE | B5 |  |
||
| 8 | 90578997-03 | 1 | CORDSET | B5 | |
||
| 9 | 148481-00 | 1 | CORD PROTECTOR | B5 | |
||
| 10 | 329301-00 | 1 | CORD CLAMP | B5 | |
||
| 11 | 330019-64 | 2 | SCREW | B5 | |
||
| 12 | 90564460 | 1 | SWITCH SA | B5 | |
||
| 13 | 90627282 | 1 | RATING LABEL | B5 | |
||
| 14 | 90568246 | 1 | COVER SA | B5 | |
||
| 15 | 587209-01 | 1 | COVER | B5 | |
||
| 16 | 90617061 | 1 | HANDLE SA | B5 | |
||
| 17 | 90610931 | 1 | IDENTITY LABEL | B5 | |
||
| 18 | 90568240-01 | 1 | CLAMSHELL PAIR | B5 | |
||
| 19 | 587261-00 | 1 | DRIVE PULLEY | B5 | |
||
| 20 | 587262-00 | 1 | DRIVE PULLEY | B5 | |
||
| 21 | 588489-00 | 1 | SHAFT SA | B5 | |
||
| 22 | 90566479 | 1 | MOUNTING BRACKET | B5 | |
||
| 23 | 588477-00 | 1 | DRIVE SHAFT | B5 | |
||
| 24 | 587230-00 | 1 | WASHER THRUST | B5 | |
||
| 25 | 587229-00 | 1 | WASHER THRUST | B5 | |
||
| 26 | 90514806 | 1 | DRIVE ROLLER | B5 | |
||
| 27 | 330065-16 | 1 | SCREW | B5 | |
||
| 28 | 587224-00 | 1 | KNOB SA | B5 | |
||
| 29 | 148902-00 | 1 | WASHER | B5 | |
||
| 30 | 477505-00 | 1 | SPRING | B5 | |
||
| 31 | 122198-00 | 1 | RETAINER | B5 | |
||
| 32 | 587203-01 | 1 | COVER | B5 | |
||
| 33 | 587263-00 | 1 | BELT | B5 | |
||
| 34 | 587204-01 | 1 | COVER BELT | B5 | |
||
| 35 | 330065-06 | 5 | SCREW | B5 | |
||
| 36 | 330065-08 | 12 | SCREW | M4x18 T20 | B5 | |
|
| 37 | 330065-12 | 2 | SCREW | B5 | |
||
| 39 | 590465-00 | 1 | INSERT | B5 | |
||
| 42 | 90566481 | 1 | BEARING | B5 | |
||
| 45 | 90532404 | 1 | BEARING | B5 | |
||
| 46 | 588563-01 | 2 | BRUSH & HOLDER SA | 230V | B5 | |
|
| 47 | 90610932 | 1 | LABEL | B5 | |
||
| 53 | 588562-00 | 1 | DUSTBAG | B5 | |
