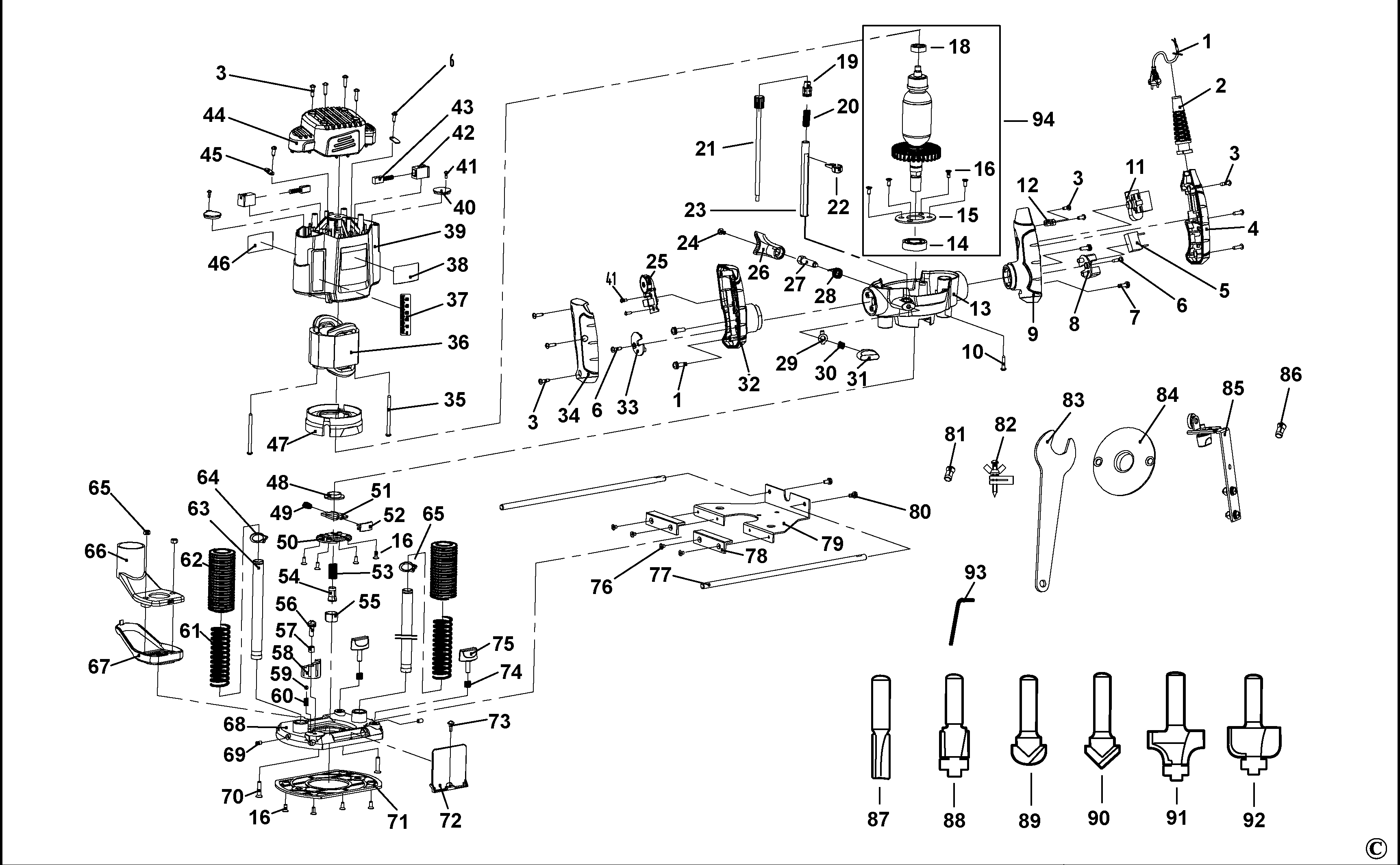

SRR1200 PLUNGE ROUTER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 5170025-18 | 1 | CORD PROTECTOR | B5 |  |
||
| 2 | 5170025-18 | 1 | CORD PROTECTOR | B5 | |
||
| 3 | 5170025-19 | 12 | SCREW | ST4.2×16 | B5 | |
|
| 4 | 5170025-20 | 1 | HANDLE COVER | Right | B5 | |
|
| 5 | 5170025-21 | 1 | CAPACITOR | B5 | |
||
| 6 | 5170025-22 | 4 | SCREW | ST4.2×13 | B5 | |
|
| 7 | 5170025-23 | 4 | SCREW | M5X18 | B5 | |
|
| 8 | 5170025-24 | 1 | BOARD | B5 | |
||
| 9 | 5170025-25 | 1 | HANDLE RH | B5 |  |
||
| 10 | 5170025-26 | 4 | SCREW | B5 | |
||
| 11 | 5170025-27 | 1 | SWITCH | B5 | |
||
| 12 | 5170025-28 | 1 | CORD CLAMP | B5 | |
||
| 13 | 5170025-29 | 1 | GEARBOX | B5 | |
||
| 14 | 5170025-30 | 1 | BEARING | B5 | |
||
| 15 | 5170025-31 | 1 | PLATEN | B5 | |
||
| 16 | 5170025-32 | 12 | SCREW | B5 | |
||
| 18 | 5170025-34 | 1 | BEARING | B5 | |
||
| 19 | 5170025-35 | 1 | ADJUSTER | B5 | |
||
| 20 | 5170025-36 | 1 | SPRING | B5 | |
||
| 21 | 5170025-37 | 1 | ADJUSTER | Moving adjust | B5 | |
|
| 22 | 5170025-38 | 1 | PIECE | B5 | |
||
| 23 | 5170025-39 | 1 | DEPTH ROD | B5 | |
||
| 24 | 5170025-40 | 1 | SCREW | B5 | |
||
| 25 | 5170025-41 | 1 | BOARD | B5 | |
||
| 26 | 5170025-42 | 1 | SPANNER | B5 | |
||
| 27 | 5170025-43 | 1 | SCREW | B5 | |
||
| 28 | 5170025-44 | 1 | SPRING | B5 | |
||
| 29 | 5170025-45 | 1 | WASHER | B5 | |
||
| 30 | 5170025-46 | 1 | SPRING | B5 | |
||
| 31 | 5170025-47 | 1 | KNOB | B5 | |
||
| 32 | 5170025-48 | 1 | HANDLE SA LH | B5 | |||
| 33 | 5170025-49 | 1 | BOARD | B5 | |
||
| 34 | 5170025-50 | 1 | HANDLE COVER | B5 | |||
| 35 | 5170025-51 | 2 | SCREW | B5 | |
||
| 36 | 5170025-52 | 1 | FIELD | B5 | |
||
| 37 | 5170025-53 | 1 | LABEL | B5 | |
||
| 38 | 1004731-07 | 1 | BRAND LABEL | B5 | |
||
| 39 | 5170025-55 | 1 | HOUSING | B5 | |
||
| 40 | 5170025-56 | 2 | PLATE | B5 | |
||
| 41 | 5170025-57 | 4 | SCREW | B5 | |
||
| 42 | 5170025-58 | 2 | BRUSH HOLDER | B5 | |
||
| 43 | 5170025-59 | 1 | BRUSH PAIR | B5 | |
||
| 44 | 5170025-60 | 1 | COVER | B5 | |
||
| 45 | 5170025-61 | 2 | CORD CLAMP | B5 | |
||
| 46 | 1004731-08 | 1 | RATING PLATE | B5 | |
||
| 47 | 5170025-63 | 1 | BAFFLE | B5 | |
||
| 48 | 5170025-64 | 1 | NUT | B5 | |
||
| 49 | 5170025-65 | 1 | SPRING | B5 | |
||
| 50 | 5170025-66 | 1 | COVER | B5 | |
||
| 51 | 5170025-67 | 1 | PIECE | B5 | |
||
| 52 | 5170025-68 | 1 | KNOB | B5 | |
||
| 53 | 5170025-69 | 1 | SPRING | B5 | |
||
| 54 | 5170025-70 | 1 | COLLET 8MM | B5 | |
||
| 55 | 5170025-71 | 1 | NUT | B5 | |
||
| 56 | 5170025-72 | 1 | SCREW | B5 | |
||
| 57 | 5170025-73 | 1 | SLEEVE | B5 | |
||
| 58 | 5170025-74 | 1 | PIECE | B5 | |
||
| 59 | 5170025-75 | 1 | BALL STEEL | B5 | |
||
| 60 | 5170025-76 | 1 | SPRING | B5 | |
||
| 61 | 5170025-77 | 2 | SPRING | B5 | |
||
| 62 | 5170025-78 | 2 | SLEEVE | B5 | |
||
| 63 | 5170025-79 | 2 | POLE PIECE SA | B5 | |
||
| 64 | 5170025-80 | 2 | CIRCLIP | B5 | |
||
| 65 | 5170025-81 | 2 | NUT | B5 | |
||
| 66 | 5170025-82 | 1 | COVER | B5 | |
||
| 67 | 5170025-83 | 1 | COVER | B5 | |
||
| 68 | 5170025-84 | 1 | BASE | B5 | |
||
| 69 | 5170025-85 | 2 | SCREW | B5 | |
||
| 70 | 5170025-86 | 2 | SCREW | B5 | |
||
| 71 | 5170025-87 | 1 | PLATE | B5 | |
||
| 72 | 5170025-88 | 1 | BAFFLE | B5 | |
||
| 73 | 5170025-89 | 1 | SCREW | B5 | |
||
| 74 | 5170025-90 | 2 | SPRING | B5 | |
||
| 75 | 5170025-91 | 2 | KNOB | B5 | |
||
| 76 | 5170025-92 | 4 | SCREW | B5 | |
||
| 77 | 5170025-93 | 2 | BAR | B5 | |
||
| 78 | 5170025-94 | 2 | BOARD | B5 | |
||
| 79 | 5170025-95 | 1 | GUIDE | B5 | |
||
| 80 | 5170025-96 | 2 | SCREW | B5 | |
||
| 81 | 5170025-97 | 1 | COLLET 6MM | B5 | |
||
| 82 | 5170025-98 | 1 | PIN | B5 | |
||
| 83 | 5170025-99 | 1 | SPANNER | B5 | |
||
| 84 | 5170026-00 | 1 | GUIDE | B5 | |
||
| 85 | 5170026-01 | 1 | FOLLOWER | B5 | |
||
| 86 | 5170026-02 | 1 | COLLET | B5 | |
||
| 87 | 5170026-03 | 1 | BIT | 1/4 STRAIGHT BIT; 1/4" straight bit | B5 | |
|
| 88 | 5170026-04 | 1 | BIT | 1/2" FLUSH TRIM BIT | B5 | |
|
| 89 | 5170026-05 | 1 | BIT | 1/2" COVE BOX BIT; 1/2"cove box bit | B5 | |
|
| 90 | 5170026-06 | 1 | BIT | 1/2" GROOVE BIT | B5 | |
|
| 91 | 5170026-07 | 1 | BIT | R4 ROMAN OGEE | B5 | |
|
| 92 | 5170026-08 | 1 | BIT | COVE BIT R6.35X22.3; R6.35 Cove bit | B5 | |
|
| 93 | 5170026-09 | 1 | WRENCH SPECIAL | 2.5X20X50 | B5 | |
|
| 94 | N544913 | 1 | ARMATURE SA | B5 | |
