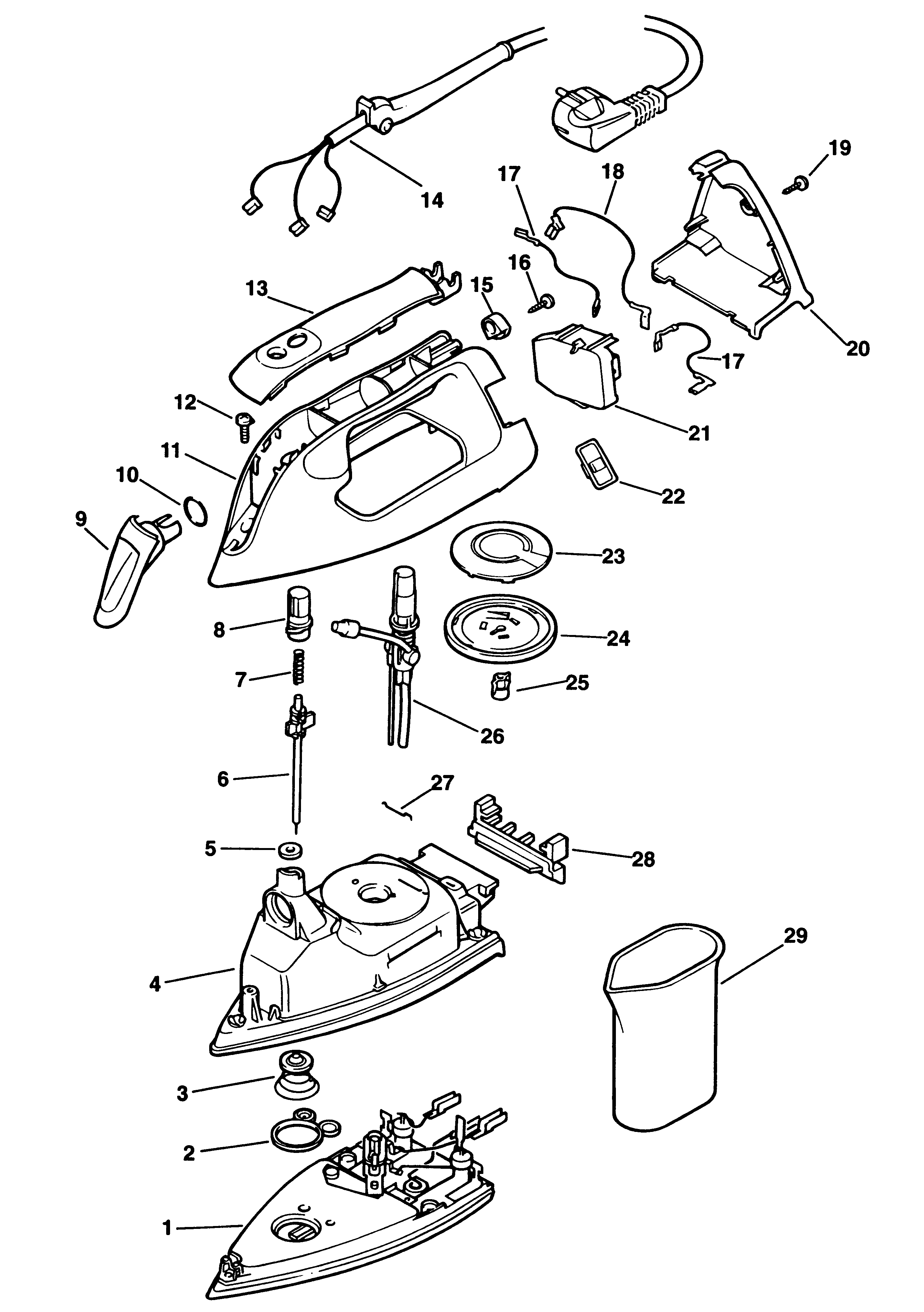

SE895S IRON Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 168424-04 | 1 | SOLE PLATE SA | SE895S 230v | GB |  |
|
| 1 | 168424-01 | 1 | SOLE PLATE SA | SE895 230v | GB | |
|
| 1 | 168424-02 | 1 | SOLE PLATE SA | SE895 240v (GB) | GB | ||
| 1 | N075277 | 1 | RATING PLATE | BR | GB | ||
| 2 | 168743-00 | 1 | SEAL | GB | |
||
| 2 | 498885-06 | 1 | BOWL | GB | |||
| 3 | 180595-00 | 1 | VALVE | GB | |
||
| 3 | 571860-02 | 1 | TRIGGER | GB | |
||
| 4 | 168376-00 | 1 | RESERVOIR SA | GB | |
||
| 4 | 90508315 | 1 | RUBBER PAD | GB | |
||
| 5 | 5146738-00 | 1 | TRANSMISSION SA | GB | |
||
| 6 | 590299-00 | 1 | O RING | 18.5 X 2.5 | GB |  |
|
| 7 | 168235-00 | 1 | SPRING | GB | |
||
| 7 | 90508201 | 1 | FOAM | GB | |
||
| 8 | 168777-03 | 1 | BUTTON | GB | |
||
| 8 | 5101182-05 | 1 | CHARGER SA | GB | |
||
| 9 | 168948-00 | 1 | SPOUT | GB | |
||
| 9 | 490754-00 | 1 | SIDE RH | GB | |
||
| 10 | 168402-00 | 1 | O RING | GB | |
||
| 10 | 479734-00 | 2 | SWITCH | GB | |
||
| 11 | 168416-11 | 1 | HOUSING SA | GB | |||
| 12 | 171692-00 | 1 | SCREW | GB | |
||
| 12 | 398646-00 | 1 | ADAPTOR | GB | |
||
| 13 | 168351-12 | 1 | HANDLE COVER | GB | |
||
| 13 | N021981 | 1 | FLANGE | GB | |||
| 14 | 171820-02 | 1 | CORDSET | GB | |||
| 14 | 492505-00 | 1 | HOUSING SA | GB | |
||
| 15 | 171804-00 | 1 | CLAMP | GB | |
||
| 16 | 171693-00 | 1 | SCREW | GB | |
||
| 16 | 90528126 | 4 | FILTER | FVF90 | GB | |
|
| 17 | 5101825-00 | 1 | GEARBOX SA | 3/8" - 3G | GB | |
|
| 18 | 171818-00 | 1 | LEAD SA BLACK | GB | |
||
| 18 | 31D200052 | 2 | YOKE | GB | |
||
| 19 | 89997-00 | 1 | SCREW | GB | |
||
| 19 | 492699-00 | 1 | BEARING | GB | |||
| 20 | 168963-11 | 1 | COVER REAR | GB | |||
| 20 | 498884-13 | 1 | CHARGER & BASE | 3.6 V | GB | ||
| 21 | 171762-03 | 1 | PCB | GB | |
||
| 21 | 90625823-01 | 1 | CHARGER 24V | 2.1A | GB | |
|
| 23 | 168310-10 | 1 | DIAL PLATE | GB | |
||
| 24 | 168816-04 | 1 | TEMPERATURE DIAL | GB | |
||
| 26 | 168439-01 | 1 | PUMP SA | GB | |
||
| 27 | 168247-00 | 1 | SPRING | GB | |
||
| 28 | 168819-00 | 1 | BAFFLE | GB | |
||
| 29 | 827569-01 | 1 | BEAKER | GB | |
