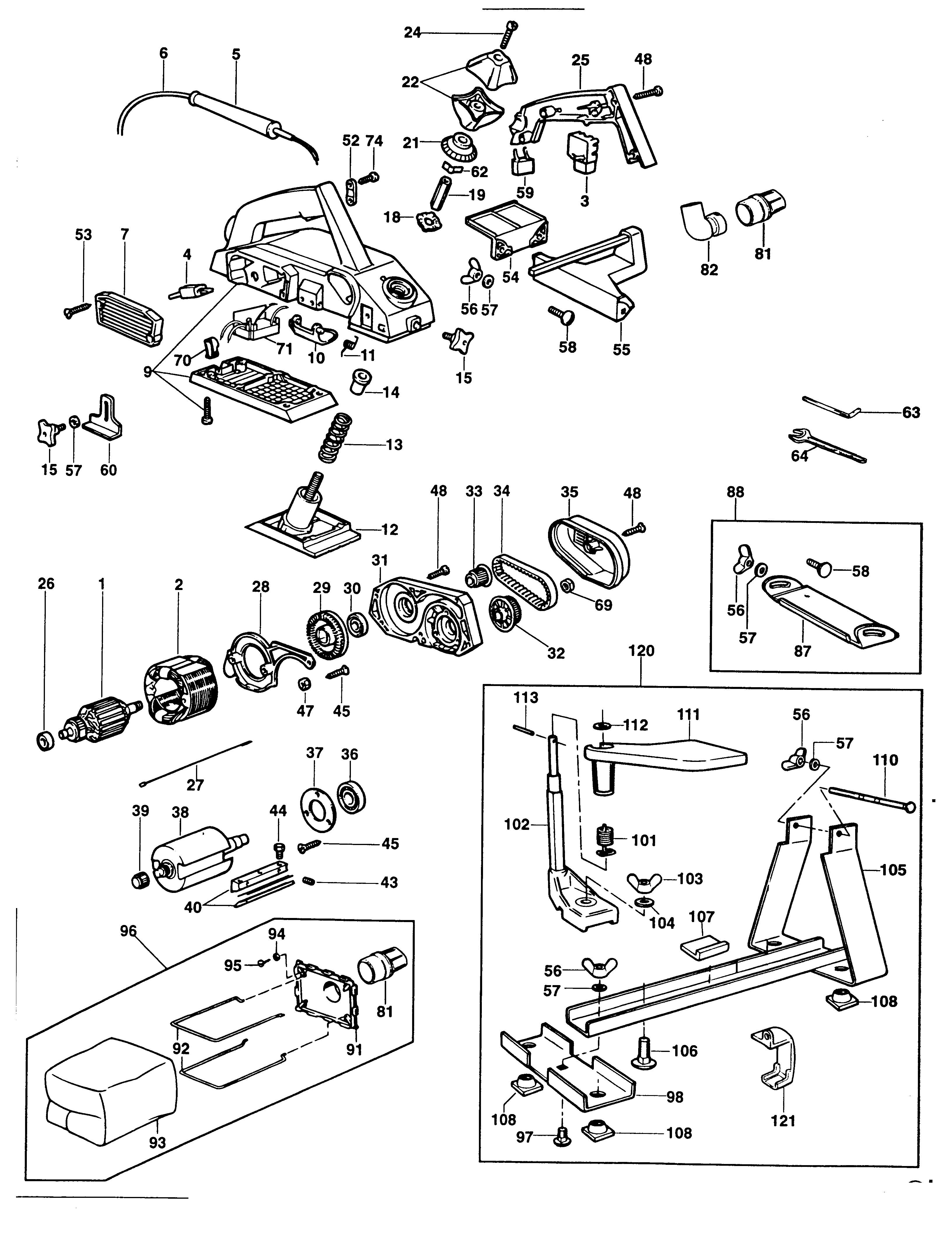

MFF81E PLANER Type 3 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 326493-00 | 1 | ARMATURE | GB |  |
||
| 2 | 326097-00 | 1 | FIELD | GB | |
||
| 3 | 249030-00 | 1 | SWITCH | GB | |
||
| 4 | 326525-00 | 2 | BRUSH & HOLDER | GB | |
||
| 5 | 320785 | 1 | CORD PROTECTOR | GB | |
||
| 6 | 379092 | 1 | CORDSET | GB | |
||
| 7 | 248397-05 | 1 | COVER BRUSH | GB | |
||
| 9 | 248327-05 | 1 | HOUSING SA | GB | |
||
| 10 | 326114-01 | 1 | GUARD | GB | |
||
| 11 | 080930914 | 1 | SPRING | GB | |
||
| 12 | 248331-00 | 1 | SHOE SA | GB | |
||
| 13 | 572255-00 | 1 | SPRING | GB | |
||
| 14 | 080120901 | 1 | BUSH | GB | |
||
| 15 | 025922908 | 2 | KNOB | GB |  |
||
| 18 | 247557-00 | 1 | WASHER | GB | |
||
| 19 | 247343-00 | 1 | NUT | GB | |
||
| 21 | 248325-05 | 1 | SCALE | GB | |
||
| 22 | 248998-05 | 1 | HANDLE SA | GB | |
||
| 24 | 249424-32 | 1 | SCREW | GB | |
||
| 25 | 324589-05 | 1 | COVER | GB | |
||
| 26 | N110358 | 1 | BEARING | GB | |
||
| 27 | 080164503 | 2 | LEAD YELLOW | GB | |
||
| 28 | 080120600 | 1 | BAFFLE | GB | |
||
| 29 | 580130500 | 1 | FAN | GB | |
||
| 30 | 013830000 | 1 | BEARING | GB | |||
| 31 | 325108-00 | 1 | COVER | GB | |
||
| 32 | 325104-00 | 1 | PULLEY | GB | |
||
| 33 | 324105-00 | 1 | PULLEY | GB | |
||
| 34 | 325106-00 | 1 | BELT TOOTHED | GB | |
||
| 35 | 329269-00 | 1 | COVER | GB | |
||
| 36 | 861721-01 | 1 | BEARING | GB | |
||
| 37 | 868047-00 | 1 | PLATE | GB | |
||
| 38 | 248316-00 | 1 | CUTTER BLOCK SA | GB | |
||
| 39 | 330004-06 | 1 | BEARING NEEDLE | GB | |
||
| 40 | 247941-00 | 1 | SUPPORT KIT | GB | |
||
| 43 | 072815900 | 4 | SCREW.TEMP | GB | |
||
| 44 | 578432-00 | 6 | SCREW | GB | |
||
| 45 | 949896-12 | 4 | SCREW | GB | |
||
| 47 | 249232-00 | 2 | NUT M4 | GB | |
||
| 48 | 249416-04 | 11 | SCREW | GB | |
||
| 52 | 910556 | 1 | CABLE CLAMP | GB | |
||
| 53 | 949896-12 | 4 | SCREW | GB | |
||
| 54 | 248476-00 | 1 | BRACKET | GB | |
||
| 55 | 247447-00 | 1 | BRACKET | GB | |
||
| 56 | 249225-00 | 5 | NUT WING | GB | |
||
| 57 | 249221-00 | 6 | WASHER | GB | |
||
| 58 | 249406-01 | 2 | SCREW | GB | |
||
| 59 | 320842-03 | 1 | CAPACITOR | GB | |
||
| 60 | 248477-00 | 1 | GUIDE | GB | |
||
| 62 | 247556-00 | 4 | SPRING | GB | |
||
| 64 | 080351300 | 1 | SPANNER 10MM | GB | |
||
| 69 | 761225-02 | 1 | NUT | GB | |
||
| 70 | 324649-00 | 1 | STAND | GB | |
||
| 71 | 326492-00 | 1 | ELECTRONIC | GB | |
||
| 73 | 248997-05 | 1 | HOUSING REPAIR KIT | GB | |
||
| 74 | 249416-06 | 2 | SCREW | GB | |
||
| 81 | 248629-00 | 1 | ADAPTOR | GB | |
||
| 82 | 247751-00 | 1 | ADAPTOR | GB | |
||
| 87 | 249126-00 | 1 | GUIDE | GB | |
||
| 91 | 248630-00 | 1 | HOLDER | GB | |
||
| 92 | 80271901 | 1 | FRAME | GB | |
||
| 93 | 329452-00 | 1 | DUSTBAG | GB | |
||
| 94 | 249233-00 | 4 | WASHER | GB | |
||
| 95 | 249416-06 | 4 | SCREW | GB | |
||
| 97 | 249406-00 | 1 | SCREW | GB | |
||
| 98 | 325884-01 | 1 | BRACKET SA | GB | |
||
| 101 | 080932204 | 1 | SPRING | GB | |
||
| 102 | 080230100 | 1 | HOLDER GUARD | GB | |
||
| 103 | 249225-01 | 1 | NUT WING | GB | |
||
| 104 | 249223-00 | 1 | WASHER M8 | GB | |
||
| 105 | 326110-01 | 1 | BRACKET | GB | |
||
| 106 | 249406-10 | 1 | SCREW | GB | |
||
| 107 | 325885-00 | 1 | PAD | GB | |
||
| 108 | 080233300 | 4 | FOOT | GB | |
||
| 110 | 249439-00 | 1 | BOLT | GB | |
||
| 111 | 326111-01 | 1 | GUARD | GB | |
||
| 112 | 249128-00 | 1 | WASHER | GB | |
||
| 113 | 080810200 | 1 | SLEEVE | GB | |
||
| 121 | 249066-00 | 1 | CLIP | GB | |
