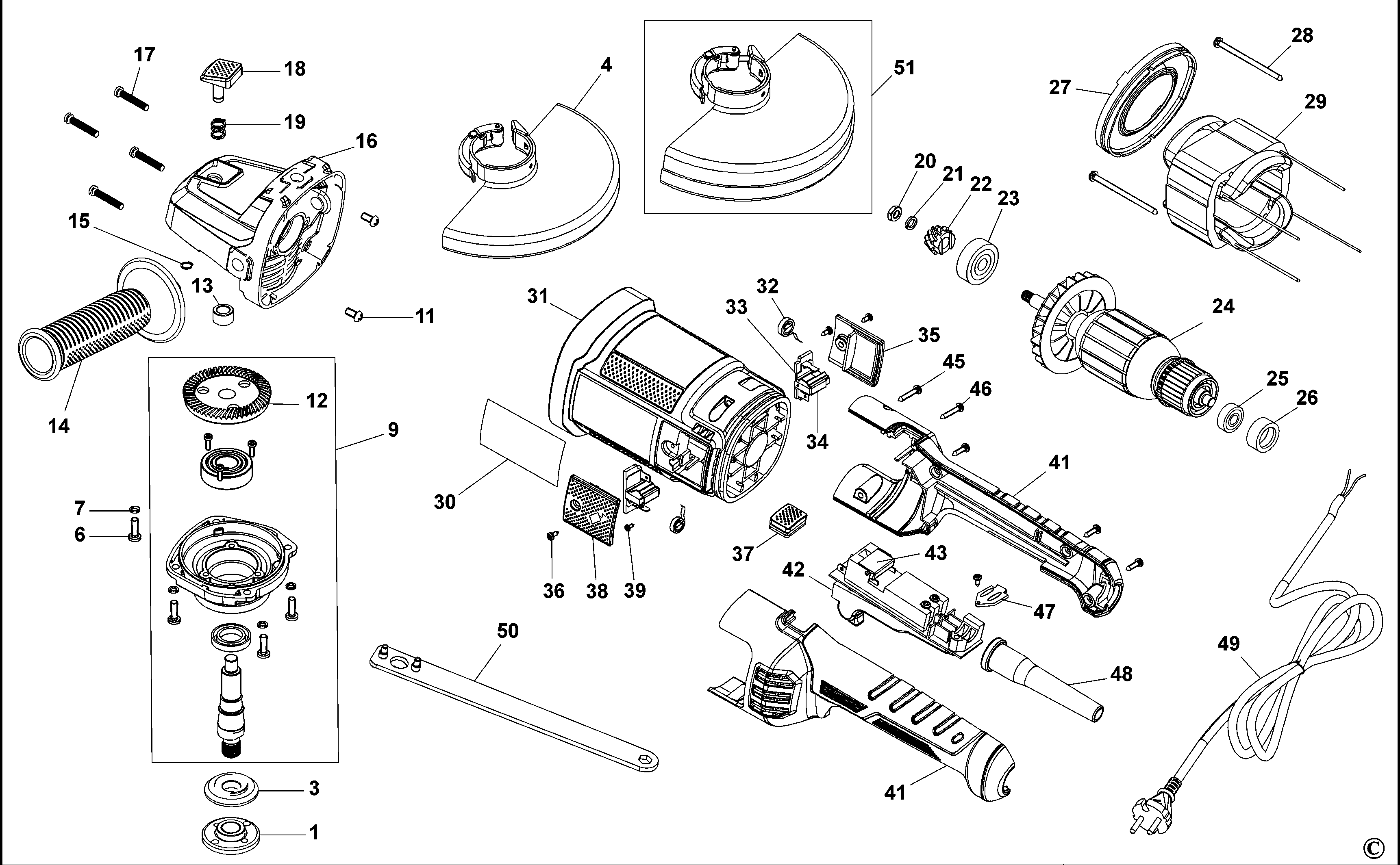

STEL845 ANGLE GRINDER Type 2 | Drawings

Documents

Item No.	Product Number	Qty Per	Product Description	General Description	Other Info	Markets
1	1004684-04	1	FLANGE			B1
3	1004684-05	1	NUT			B1
4	1004684-06	1	GUARD 9"			B1
6	1004684-07	4	SCREW	M5 x 18mm		B1
7	1004684-08	4	WASHER			B1
9	1004684-09	1	GEARCASE SA			B1
11	1004684-10	2	SCREW			B1
12	1004684-15	1	GEAR			B1
13	1004684-16	1	BEARING			B1
14	1004684-58	1	HANDLE			B1
15	1004684-18	1	RING			B1
16	1004684-19	1	GEARBOX			B1
17	1004684-20	4	SCREW			B1
18	5170006-88	1	LOCK BUTTON			B1
19	1004684-22	1	SPRING			B1
20	1004684-23	1	NUT			B1
22	1004684-25	1	PINION			B1
23	1004684-26	1	BEARING			B1
24	1004684-27	1	ARMATURE			B1
25	1004684-28	1	BEARING			B1
26	1004684-29	1	BEARING SET			B1
27	1004684-30	1	BAFFLE FAN			B1
28	1004684-31	2	SCREW			B1
29	1004684-32	1	STATOR			B1
30	5170006-95	1	RATING LABEL			B1
31	5140154-01	1	HOUSING			B1
32	1004684-35	2	SPRING BRUSH			B1
33	1004684-36	2	BRUSH HOLDER			B1
34	90601166	1	BRUSH PAIR		1 Pair	B1
35	1004684-38	1	BRUSH CAP			B1
36	1004684-39	2	SCREW			B1
37	1004684-40	1	RUBBER			B1
38	1004684-41	1	BRUSH CAP			B1
39	1004684-42	2	SCREW	ST2.9 x 6mm		B1
41	5140154-02	1	HANDLE SA			B1
42	5170006-93	1	SWITCH LOCK OFF			B1
43	1004684-46	1	CAPACITOR			B1
45	1004684-47	2	SCREW	ST4.0 x 38mm		B1
46	1004684-48	3	SCREW	ST4.0 x 16mm		B1
47	1004684-49	1	CORD CLAMP			B1
48	1004684-50	1	CORD PROTECTOR			B1
49	1004684-51	1	CORDSET			B1
50	1004684-53	1	WRENCH SPECIAL			B1
51	1004684-54	1	GUARD 9"			B1
