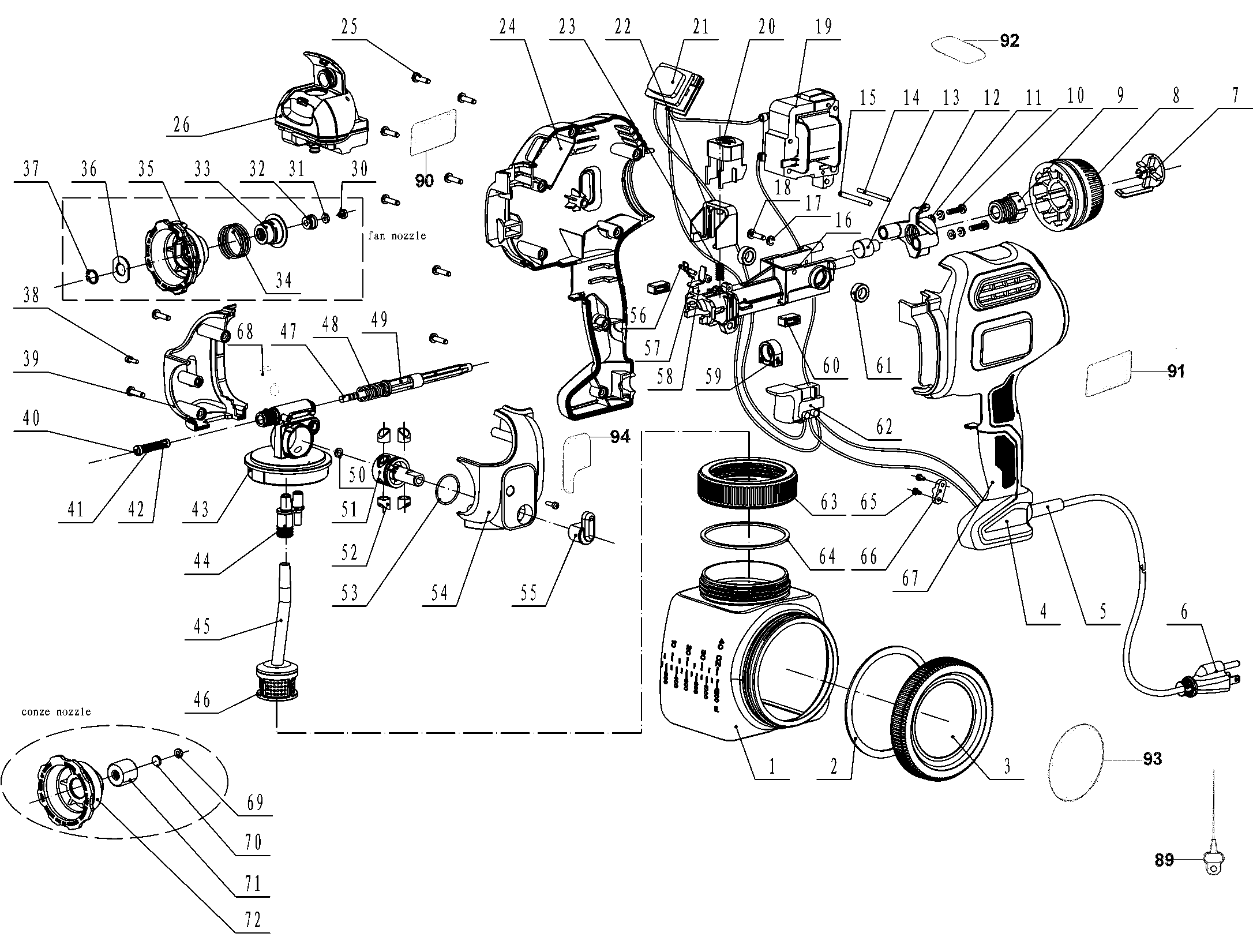

BDPS600K PAINT SPRAYER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 90573633 | 1 | CANISTER | AR | |||
| 2 | 1004570-01 | 1 | SEAL | AR | |||
| 3 | 1004570-02 | 1 | COVER | AR | |||
| 4 | 5140129-12 | 1 | CLAMSHELL | AR | |||
| 5 | 1004570-03 | 1 | SLEEVE | AR | |||
| 6 | 5140128-84 | 1 | CORD SET | AR | |||
| 7 | 1004570-05 | 1 | COVER | AR | |||
| 8 | 1004570-06 | 1 | KNOB | AR | |||
| 9 | 1004570-07 | 1 | SHAFT | AR | |||
| 10 | 1004570-08 | 2 | SCREW | M4x12 | AR | ||
| 11 | 1004570-09 | 2 | WASHER SPRING | ø4 | AR | ||
| 12 | 1004570-10 | 1 | SUPPORT. REAR | AR | |||
| 13 | 1004570-28 | 1 | HEAD | AR | |||
| 14 | 1004570-11 | 1 | PIN | ø3x36.5 | AR | ||
| 15 | 1004570-12 | 1 | PIN | ø4x36.5 | AR | ||
| 16 | 1004570-27 | 1 | BASE | AR | |||
| 17 | 1004570-09 | 1 | WASHER SPRING | ø4 | AR | ||
| 18 | 5140128-98 | 1 | SCREW | AR | |||
| 19 | 5140117-61 | 1 | ELECTRO MAGNET | AR | |||
| 20 | 1004570-40 | 1 | BUTTON RELEASE | AR | |||
| 21 | 5140129-16 | 1 | PCB ASSEMBLY | AR | |||
| 22 | 1004570-15 | 1 | SLIDER | AR | |||
| 23 | 1004570-16 | 1 | SPRING | AR | |||
| 24 | 5140129-13 | 1 | CLAMSHELL | AR | |||
| 25 | 1004570-17 | 9 | SCREW | 4x16 | AR | ||
| 26 | 5140122-08 | 1 | RESERVOIR ASSY | AR | |||
| 30 | 5140129-00 | 1 | CERAMIC | AR | |||
| 31 | 5140129-01 | 1 | POM | AR | |||
| 32 | 5140129-02 | 1 | FAN NOZZLE | AR | |||
| 33 | 5140129-03 | 1 | FAN NOZZLE | AR | |||
| 34 | 5140129-04 | 1 | FAN NOZZLE | AR | |||
| 35 | 5140129-05 | 1 | FAN NOZZLE | AR | |||
| 36 | 5140129-06 | 1 | FAN NOZZLE | AR | |||
| 37 | 5140129-07 | 1 | FAN NOZZLE | AR | |||
| 38 | 1004570-18 | 2 | SCREW | M3x10 | AR | ||
| 39 | 1004570-56 | 1 | HOUSING | AR | |||
| 40 | 1004570-36 | 1 | NOZZLE | AR | |||
| 41 | 1004570-41 | 1 | COVER | AR | |||
| 42 | 5140128-90 | 1 | SEAL TIP | AR | |||
| 43 | 5140131-52 | 1 | PUMP ASSEMBLY | AR | |||
| 44 | 5140128-91 | 1 | HOSE CONNECTOR | AR | |||
| 45 | 5140128-92 | 1 | PICK UP TUBE | AR | |||
| 46 | 1004570-23 | 1 | FILTER | AR | |||
| 47 | 5140128-93 | 1 | ROD | AR | |||
| 48 | 5140129-11 | 1 | PISTON SPRING | AR | |||
| 49 | 1004570-39 | 1 | PISTON | AR | |||
| 50 | 1004570-49 | 1 | SEAL | AR | |||
| 51 | 1004570-50 | 1 | ROD | AR | |||
| 52 | 1004570-51 | 4 | INLET CAP | AR | |||
| 53 | 1004570-52 | 2 | SEAL | ø21x1.5 | AR | ||
| 54 | 5140129-14 | 1 | RESERVOIR HOUSING | AR | |||
| 55 | 1004570-53 | 1 | KNOB | AR | |||
| 56 | 5140128-96 | 1 | PIN | AR | |||
| 57 | 5140128-97 | 1 | TORSION SPRING | AR | |||
| 58 | 5140128-95 | 1 | LOCK | AR | |||
| 59 | 1004570-31 | 1 | RING | AR | |||
| 60 | 1004570-30 | 2 | RUBBER PAD | AR | |||
| 61 | 1004570-29 | 2 | RING | AR | |||
| 62 | 1004570-32 | 1 | SWITCH | AR | |||
| 63 | 1004570-24 | 1 | LID | AR | |||
| 64 | 90573630 | 1 | O-RING | 67x3MM | AR | ||
| 65 | 5140112-29 | 2 | SCREW | AR | |||
| 66 | 5140128-26 | 1 | CORD CLAMP | AR | |||
| 67 | 5140118-57 | 1 | HANDLE SET | AR | |||
| 68 | 1004570-47 | 1 | CONNECTOR | AR | |||
| 69 | 5140128-86 | 1 | POM | AR | |||
