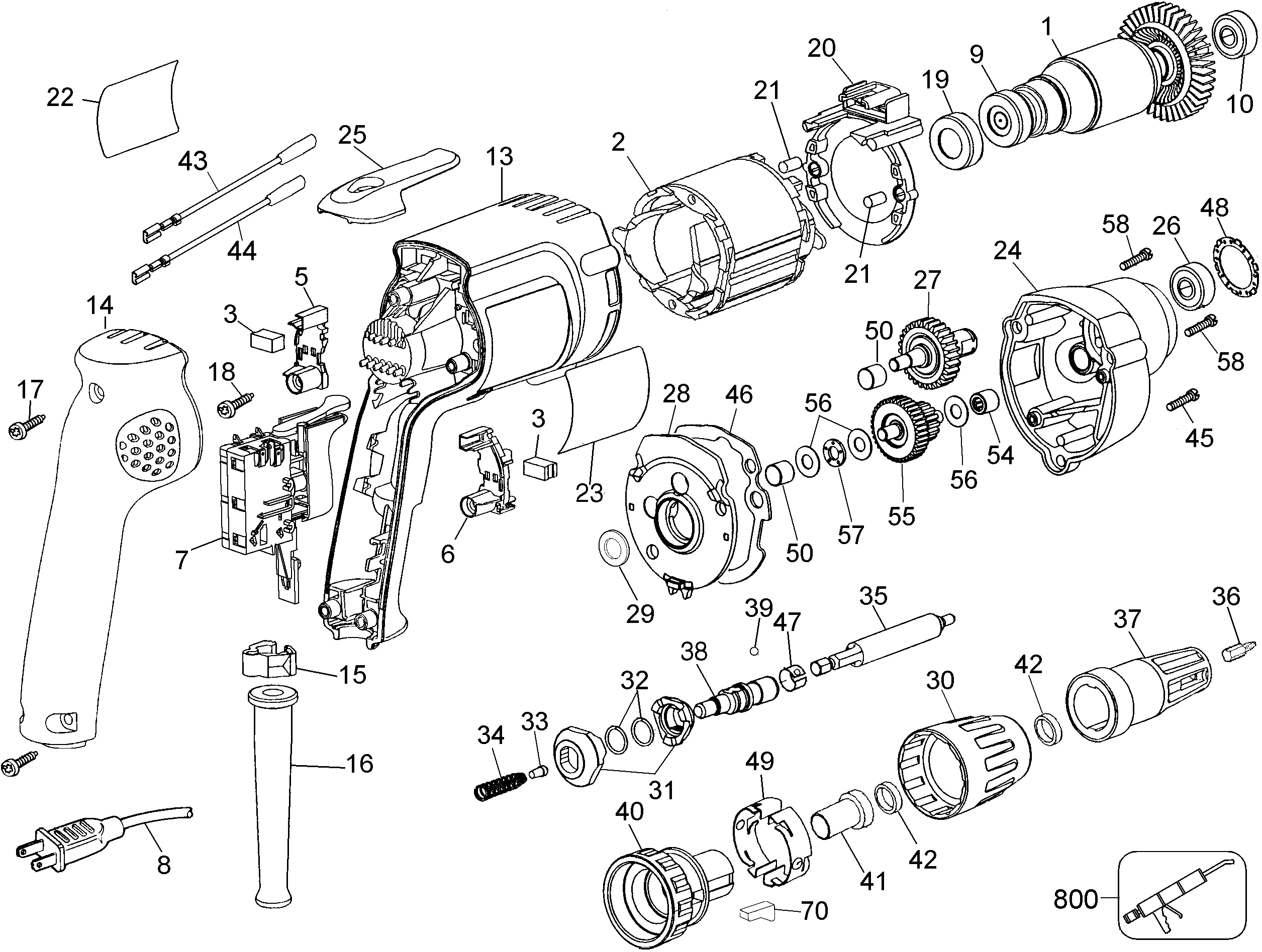

DW257 SCREWDRIVER Type 5 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 176853-00SV | 1 | ARMATURE & FAN | BR | |||
| 2 | 620360-03SV | 1 | FIELD & LEADS | BR | |||
| 3 | 176846-04 | 2 | BRUSH 120V | BR | |||
| 5 | N440279 | 1 | BRUSH HOLDER,L | BR | |||
| 6 | N440278 | 1 | BRUSH HOLDER,R | BR | |||
| 7 | N421307 | 1 | VSR SWITCH | BR | |||
| 8 | 330122-74 | 1 | CORDSET | BR | |||
| 9 | 330003-04 | 1 | BEARING | BR | |||
| 10 | 330003-04 | 1 | BEARING | BR | |||
| 13 | 396969-14 | 1 | FIELDCASE | BR | |||
| 14 | 610140-05 | 1 | HANDLE COVER | BR | |||
| 15 | 176833-00 | 1 | CORD CLAMP | BR | |||
| 16 | 148809-00 | 1 | CORD PROTECTOR | NPP | BR | ||
| 17 | 330019-13 | 3 | SCREW | M4X19 T20 | BR | ||
| 18 | 176951-00 | 2 | SCREW | BR | |||
| 19 | 389824-00 | 1 | BOOT | BR | |||
| 20 | 176811-00 | 1 | BAFFLE | BR | |||
| 21 | 949638-02 | 2 | DAMPER | BR | |||
| 22 | 395047-00 | 1 | BRAND LABEL | BR | |||
| 23 | N026862 | 1 | NAMEPLATE | DW257-BR TY5 | BR | ||
| 24 | 176706-00SV | 1 | GEARCASE | BR | |||
| 25 | N045425 | 1 | CLIP | BR | |||
| 26 | 605040-20 | 1 | BEARING | 12 x 28 x 8mm | BR | ||
| 27 | 176708-00SV | 1 | SPINDLE & GEAR | BR | |||
| 28 | 388761-00 | 1 | GEARCASE COVER | BR | |||
| 29 | 023813-00 | 1 | WASHER FIBRE | BR | |||
| 30 | 152492-01 | 1 | COLLAR | BR | |||
| 31 | 603478-00 | 2 | CLUTCH | BR | |||
| 31 | N737329 | 2 | CLUTCH | BR | |||
| 32 | 089210-00 | 2 | RETAINER | BR | |||
| 33 | 021287-00 | 1 | GUIDE | BR | |||
| 34 | 86211-00 | 1 | SPRING | BR | |||
| 35 | N449701 | 1 | HOLDER BIT | BR | |||
| 36 | 607904-22 | 1 | BIT SCREWDRIVER | BR | |||
| 37 | 612001-01 | 1 | LOCATOR | BR | |||
| 38 | 176697-00 | 1 | SPINDLE | BR | |||
| 39 | 696631-00 | 1 | BALL | BR | |||
| 40 | N740053 | 1 | CLUTCH SA | PKGD 176632-00 | BR | ||
| 41 | 450907-00 | 1 | SLEEVE | BR | |||
| 42 | 696534-00 | 2 | SEAL | BR | |||
| 43 | 616118-02 | 1 | LEADWIRE ASSY. | RED 18GA. | BR | ||
| 44 | 616118-03 | 1 | LEADWIRE ASSY. | WHITE 18GA. | BR | ||
| 45 | 330019-14 | 1 | SCREW | BR | |||
| 46 | 176655-00 | 1 | GASKET | BR | |||
| 47 | 094518-00 | 1 | RETAINER | BR | |||
| 48 | 176689-00 | 1 | RETAINER | BR | |||
| 49 | 391436-00 | 2 | SPRING | BR | |||
| 50 | 093128-00 | 2 | BEARING NEEDLE | BR | |||
| 54 | 330004-00 | 1 | BEARING | BR | |||
| 55 | 176731-00SV | 1 | SPINDLE & GEAR | BR | |||
| 56 | 176732-00 | 3 | WASHER | BR | |||
| 57 | 143079-00 | 1 | BEARING THRUST | BR | |||
| 58 | 330019-16 | 2 | SCREW | BR | |||
| 70 | 390437-01 | 2 | PLUG | BR | |||
| 800 | 761995-01 | 1 | GREASE | 180 Grams | BR | ||
| 800 | 283484-01 | 1 | GREASE | 32oz, EXXON CVJ | BR | ||
| 800 | 284778-00 | 1 | GREASE | MOLYKOTE G68 | BR |
