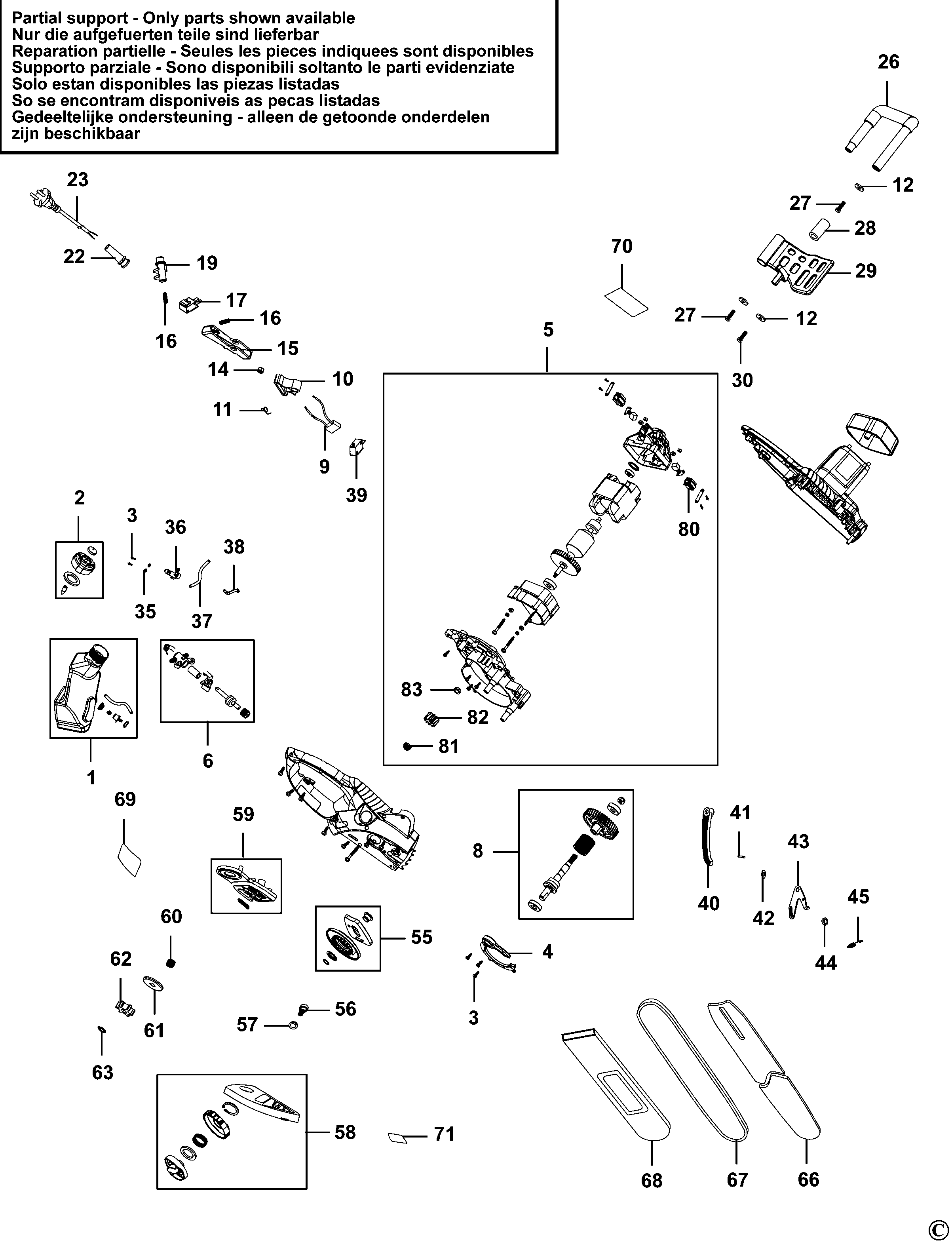

CS2040 CHAINSAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 1004698-61 | 1 | RESERVOIR SA | GB |  |
||
| 2 | 1004698-62 | 1 | CAP SA | GB | |
||
| 3 | 1004697-53 | 5 | SCREW | GB | |
||
| 4 | 1004698-63 | 1 | DUST GUARD | GB | |
||
| 5 | 1004698-64 | 1 | MOTOR SA | GB |  |
||
| 6 | 1004698-66 | 1 | PUMP SA | GB | |
||
| 8 | 1004698-67 | 1 | OUTPUT SHAFT SA | GB | |
||
| 9 | 1004698-68 | 1 | CAPACITOR | GB | |
||
| 10 | 1004698-15 | 1 | CONNECTING ROD | GB | |
||
| 11 | 1004698-16 | 1 | SPRING | GB | |
||
| 12 | 1004695-08 | 4 | WASHER | GB | |
||
| 14 | 1004698-69 | 1 | PULLEY | GB | |
||
| 15 | 1004698-70 | 1 | TRIGGER | GB | |
||
| 16 | 1004698-11 | 2 | SPRING | GB | |
||
| 17 | 1004698-71 | 1 | MICRO SWITCH | GB | |
||
| 19 | 1004698-72 | 1 | BUTTON | GB | |
||
| 22 | 1004698-73 | 1 | CORD PROTECTOR | GB | |
||
| 23 | 1004698-75 | 1 | CORDSET | GB | |
||
| 26 | 1004698-76 | 1 | HANDLE | GB | |
||
| 27 | 1004698-77 | 2 | SCREW | GB | |
||
| 28 | 1004698-78 | 1 | COVER | GB | |
||
| 29 | 1004698-79 | 1 | PLATE | GB | |
||
| 30 | 1004697-54 | 1 | SCREW | GB | |
||
| 35 | 1004698-38 | 2 | O RING | GB | |
||
| 36 | 1004698-80 | 1 | JOINT | GB | |
||
| 37 | 1004698-40 | 1 | TUBE OIL | 0.1m | GB | |
|
| 38 | 1004698-81 | 1 | SPRING | GB | |
||
| 39 | 1004698-82 | 1 | MICRO SWITCH | GB | |
||
| 40 | 1004698-48 | 1 | CONNECTING ROD | GB | |
||
| 41 | 1004698-47 | 1 | PIN | GB | |
||
| 42 | 1004698-44 | 1 | SPACER | GB | |
||
| 43 | 1004699-23 | 1 | BRAKE | GB | |
||
| 44 | 1004698-46 | 1 | SLEEVE | GB | |
||
| 45 | 1004698-43 | 1 | SPRING | GB | |
||
| 55 | 1004698-83 | 1 | TENSION BLOCK | GB | |
||
| 56 | 1004698-84 | 1 | SCREW | GB | |
||
| 57 | 1004698-85 | 1 | SEAL | GB | |
||
| 58 | 1004698-86 | 1 | END CAP SA | GB | |
||
| 59 | 1004698-87 | 1 | INSERT | GB | |
||
| 60 | 1004698-50 | 1 | SPRING | GB | |
||
| 61 | 1004698-88 | 1 | CAP | GB | |
||
| 62 | 1004700-58 | 1 | SPROCKET | GB | |
||
| 63 | 1004697-79 | 1 | RETAINER | GB | |
||
| 66 | 1004698-89 | 1 | BAR CHAIN 40CM | GB | |
||
| 67 | 1004698-90 | 1 | CHAIN | 40CM | GB | |
|
| 68 | 1004698-91 | 1 | SHEATH | GB | |
||
| 69 | 1004698-92 | 1 | WARNING LABEL | GB | |
||
| 70 | 1004698-93 | 1 | RATING LABEL | GB | |
||
| 71 | 1004698-94 | 1 | BRAND LABEL | GB | |
||
| 80 | 1004698-65 | 1 | BRUSH PAIR | GB | |
||
| 81 | 1004698-20 | 1 | NUT | GB | |
||
| 82 | 1004698-21 | 1 | PINION | GB | |
||
| 83 | 1004698-22 | 1 | BUSHING | GB | |
