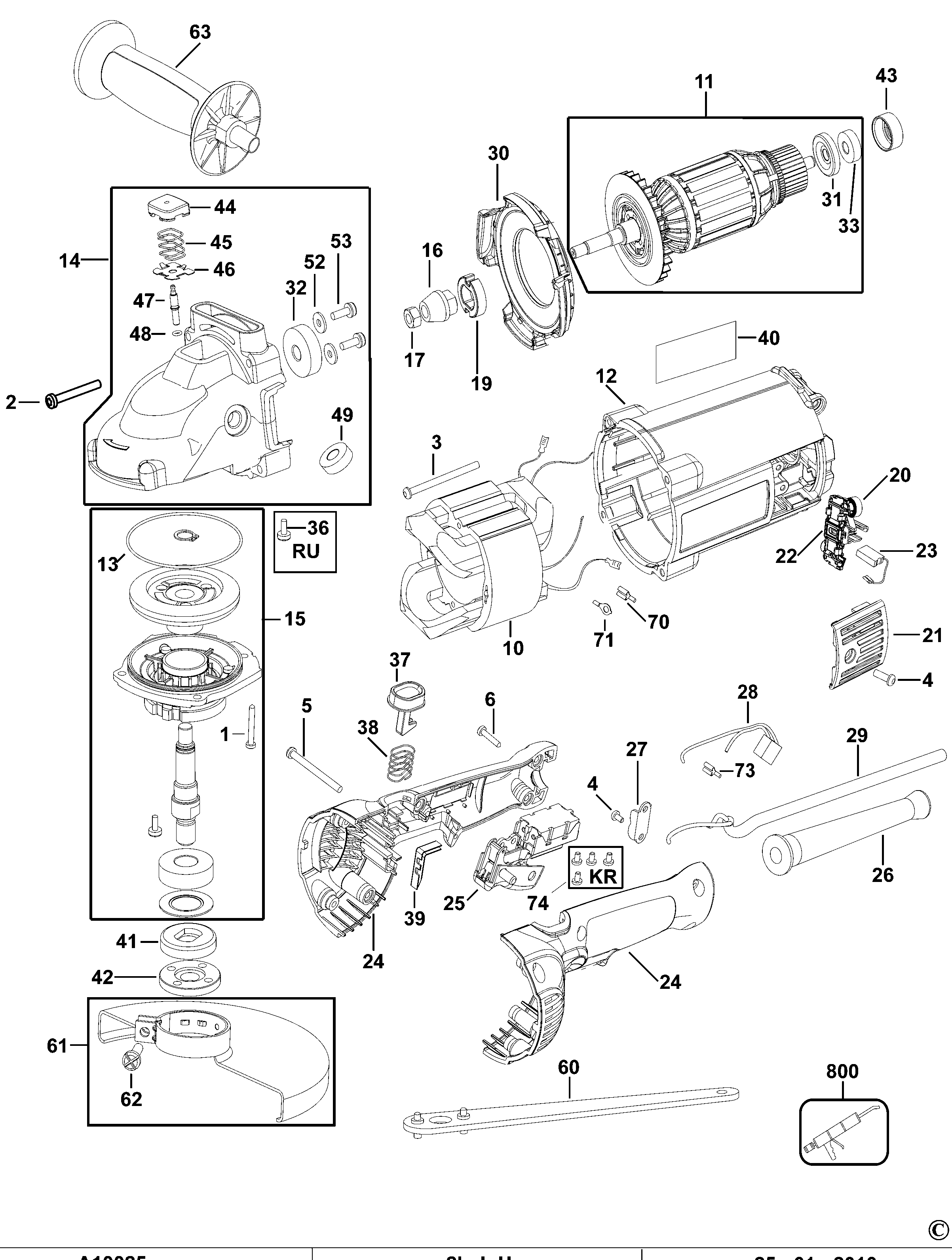

D28491 ANGLE GRINDER Type 5 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 330045-14 | 4 | SCREW | XD |  |
||
| 2 | 330019-26 | 4 | SCREW | XD | |
||
| 3 | 330019-19 | 2 | SCREW | XD | |
||
| 4 | 330019-11 | 2 | SCREW | M4.55x13 T20 | XD | |
|
| 5 | 330019-18 | 3 | SCREW | M4.55 x 50 PLASTIC THD FMG | XD | ||
| 6 | 330019-32 | 4 | SCREW | XD | |
||
| 10 | N310019 | 1 | FIELD SA | XD | |
||
| 11 | N467980 | 1 | ARMATURE SA | XD |  |
||
| 11 | N332479 | 1 | ARMATURE SA | 230V | >=2014WK11 | XD | |
| 12 | 393239-00 | 1 | FIELD CASE | XD | |
||
| 13 | 397031-00 | 1 | O RING | XD | |
||
| 14 | N074214 | 1 | GEARCASE SA | XD | |
||
| 15 | N261160 | 1 | GEARCASE COVER SA | XD | |
||
| 16 | N286560 | 1 | PINION | 8K | XD | ||
| 17 | 330015-03 | 1 | NUT | M8x1.25 | XD | |
|
| 19 | N014393 | 1 | COLLAR | XD | |
||
| 20 | 645650-00 | 2 | BRUSH SPRING | XD | |
||
| 21 | 394387-00 | 1 | BRUSH COVER | XD | |
||
| 22 | N303319 | 2 | BRUSH HOLDER SA | XD | |||
| 23 | N495294 | 1 | BRUSH KIT 230V | XD | |||
| 24 | 395184-00 | 1 | HANDLE SA | XD | |
||
| 25 | N015071 | 1 | SWITCH SA | XD | |
||
| 26 | N219433 | 1 | CORD PROTECTOR | XD | |
||
| 27 | N219432 | 1 | CORD CLAMP | XD | |||
| 28 | 632218-00 | 1 | CAPACITOR | XD | |
||
| 29 | 562226-67 | 1 | CORDSET | XD | |
||
| 30 | 631350-00 | 1 | BAFFLE | XD | |
||
| 31 | 393238-00 | 1 | SHIELD | XD | |
||
| 32 | N389509 | 1 | BEARING | XD | |
||
| 33 | N110359 | 1 | BEARING | XD | |
||
| 37 | 636503-00 | 1 | BUTTON LOCK-OFF | XD | |
||
| 38 | 636502-00 | 1 | SPRING | XD | |
||
| 39 | N391190 | 1 | COVER | XD | |
||
| 40 | N296859 | 1 | RATING LABEL | XD | |||
| 41 | 403150-01 | 1 | INNER FLANGE | XD | |
||
| 42 | 401678-05 | 1 | OUTER FLANGE | XD | |
||
| 43 | 609970-00 | 1 | SLEEVE INSULATING | XD | |
||
| 44 | 630553-00 | 1 | CAP | XD | |
||
| 45 | 638328-00 | 1 | SPRING | XD | |
||
| 46 | 635908-00 | 1 | RETAINER | XD | |
||
| 47 | 634589-00 | 1 | PIN | XD | |
||
| 48 | 750831 | 1 | O RING | XD | |
||
| 49 | 449852-00 | 1 | SLEEVE BEARING | XD | |
||
| 52 | 640591-00 | 2 | WASHER | XD | |
||
| 53 | 330045-67 | 2 | SCREW | XD | |
||
| 60 | 635261-00 | 1 | WRENCH PIN | XD | |
||
| 61 | N036843 | 1 | GUARD SA | XD | |
||
| 62 | 330024-23 | 1 | SCREW | M8x1.25x30 | XD | |
|
| 63 | 651858-01 | 1 | SIDE HANDLE | XD | |
||
| 70 | 612273-00 | 2 | TERMINAL | XD | |
||
| 71 | 610057-00 | 2 | TERMINAL | RING | XD | |
|
| 73 | 53650-00 | 1 | TERMINAL | XD | |||
| 800 | 583534-00 | 1 | GREASE | 50 GRAMS - NYE RHEOLUB 380G1 | XD | |
