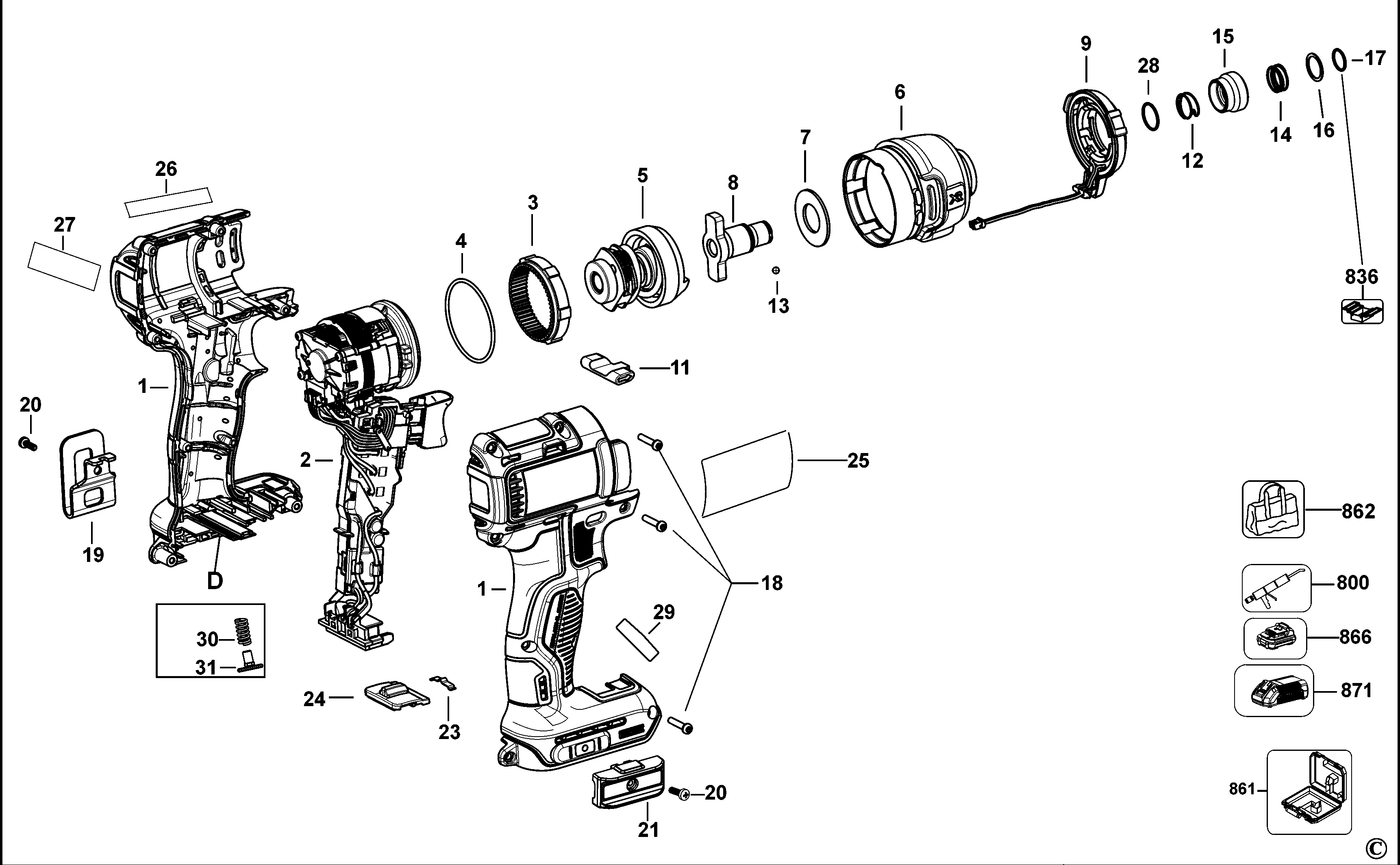

DCF887 IMPACT DRIVER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N425910 | 1 | CLAMSHELL SET | B1 |  |
||
| 2 | N880474 | 1 | MOTOR & SWITCH SA | B1 | |||
| 2 | N880481 | 1 | MOTOR & SWITCH SA | B1 |  |
||
| 3 | N112877 | 1 | GEAR | B1 | |
||
| 4 | N075339 | 1 | O RING | B1 | |
||
| 5 | N468772 | 1 | IMPACTOR | B1 | |||
| 6 | N236639 | 1 | NOSE SA | B1 | |
||
| 7 | 642883-00 | 1 | WASHER | B1 | |
||
| 9 | N296239 | 1 | LED LIGHT | B1 | |
||
| 11 | N399342 | 1 | ACTUATOR FWD/REV | B1 | |
||
| 12 | N437890 | 1 | SPRING | B1 | |
||
| 13 | N089668 | 1 | BALL STEEL | B1 | |
||
| 14 | N019351 | 1 | SPRING | B1 | |
||
| 15 | N464409 | 1 | SLEEVE | B1 | |||
| 16 | N453417 | 1 | WASHER | B1 | |
||
| 17 | N849839 | 1 | RING | >= WK32 2020 | B1 | |
|
| 18 | 682211-00 | 8 | SCREW | B1 | |
||
| 19 | N086039 | 1 | HOOK | B1 | |
||
| 20 | N042665 | 2 | SCREW | B1 | |
||
| 21 | N095778 | 1 | HOLDER BIT | B1 | |
||
| 23 | N087259 | 1 | DETENT | B1 | |
||
| 24 | N046201 | 1 | SELECTOR | B1 | |
||
| 25 | N480632 | 1 | RATING LABEL | B1 | |||
| 26 | N237999 | 1 | LABEL | 18V | B1 | |
|
| 26 | N238000 | 1 | LABEL | 20V MAX - US | DCF887NT | B1 | |
| 27 | N298039 | 1 | LABEL | B1 | |
||
| 28 | N424032 | 1 | RING | B1 | |
||
| 29 | N439112 | 1 | LABEL | Speed Selector | B1 | ||
| 30 | N461735 | 1 | SPRING | B1 | |
||
| 31 | N091479 | 1 | MOUNT | B1 | |
||
| 800 | 808386-00 | 1 | GREASE | MOLYKOTE G68 100GMS | B1 | |
|
| 800 | 286436-00 | 1 | GREASE | NYE RHEOLUBE 380, 500 GRAM JAR | B1 | |
|
| 836 | 1003940-99 | 1 | S.T.CIRCLIP INSERTER | B1 | |
||
| 861 | N442424 | 1 | KITBOX | D2 | B1 | |
|
| 866 | DCB183-B1 | 2 | BATTERY 18V - 2.0AH - 36WH | DCF887D2 | B1 | ||
| 871 | DCB115-QW | 1 | CHARGER 18V | B1 |
