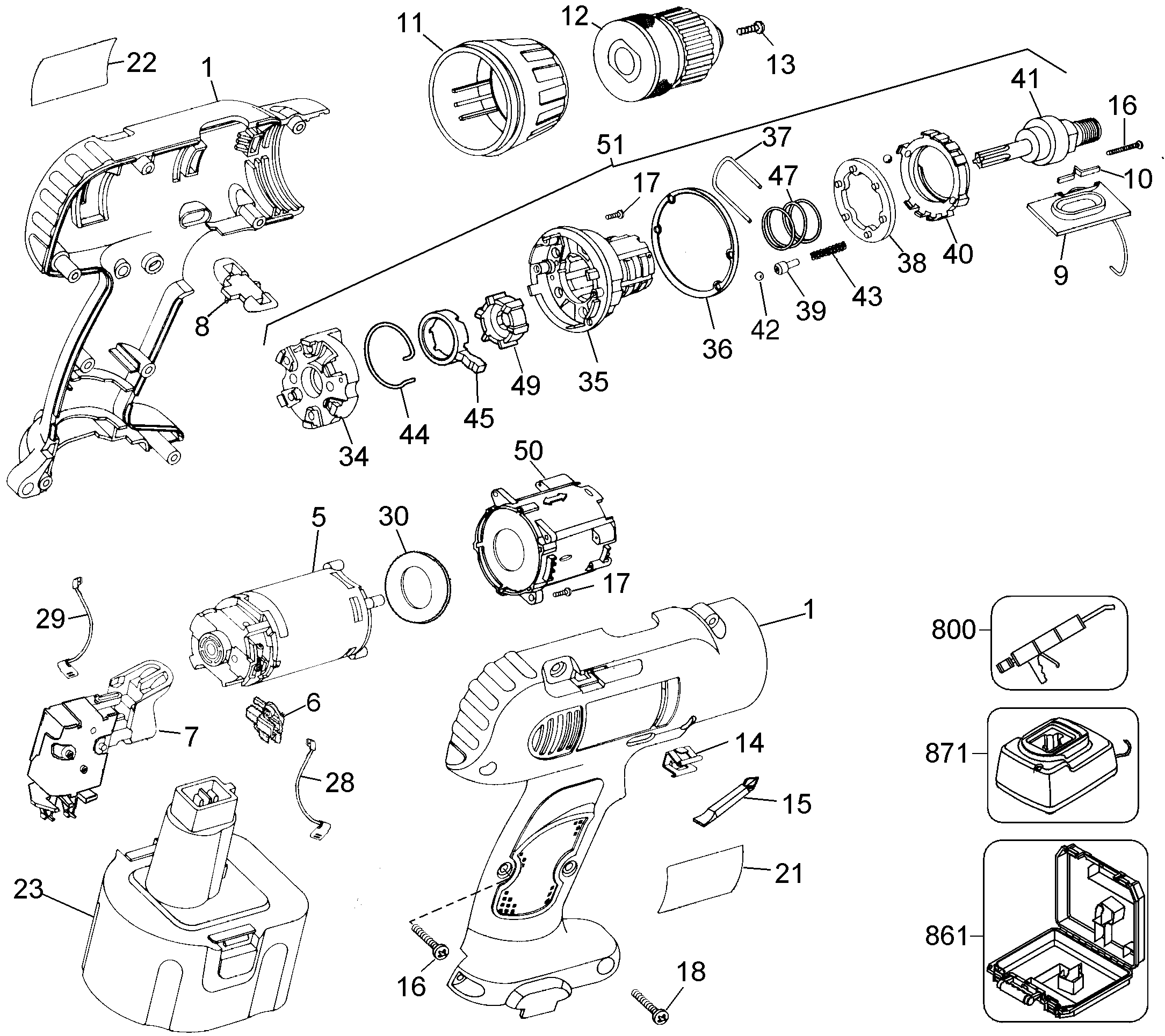

DW997K CORDLESS DRILL Type 4 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 392654-06 | 1 | CLAMSHELL PAIR | B4 |  |
||
| 5 | 393111-01 | 1 | MOTOR & PINION | B4 | |
||
| 6 | 389025-00SV | 1 | BRUSH PAIR KIT | B4 | |||
| 7 | 152274-19SV | 1 | SWITCH | B4 | |
||
| 8 | 151296-00 | 1 | SLIDER | B4 | |
||
| 8 | 391114-00 | 1 | BUTTON | TEARDROP (INCL. IN #1) | B4 | |
|
| 9 | 153281-03 | 1 | SLIDER SA | B4 | |
||
| 10 | 144658-00 | 1 | SPRING | B4 | |||
| 11 | 799013-01 | 1 | RING | B4 | |
||
| 12 | 330075-59 | 1 | KEYLESS CHUCK | 1/2CAP-1/2-20 HD-NPP | B4 | ||
| 13 | 605256-01 | 1 | SCREW | B4 | |
||
| 14 | 148354-03 | 2 | HOLDER | B4 |  |
||
| 15 | 607918-41 | 1 | BIT SCREWDRIVER | B4 | |
||
| 16 | 330019-00 | 5 | SCREW | M3x16 T10 PLASTITE | B4 | |
|
| 17 | 98091-11 | 6 | SCREW | B4 | |
||
| 18 | 330019-04 | 7 | SCREW | B4 | |
||
| 21 | 393113-00 | 1 | NP:DW997 T4 | B4 | |||
| 22 | 395657-00 | 1 | BRAND LABEL | B4 | |
||
| 23 | DE9095 | 1 | BATTERY 18V - 2.0AH - 36WH | Ni-Cad | B4 | ||
| 28 | 389025-00SV | 1 | BRUSH PAIR KIT | B4 | |||
| 29 | 389025-00SV | 1 | BRUSH PAIR KIT | B4 | |||
| 30 | 152482-00 | 1 | SEAL | B4 | |
||
| 34 | 370506-03 | 1 | END CAP | B4 | |
||
| 35 | 798966-01 | 1 | HOUSING SA | B4 | |
||
| 36 | 805004-00 | 1 | WASHER | B4 | |
||
| 37 | 798959-00 | 1 | CLIP | B4 | |
||
| 38 | 380792-00 | 1 | PLATE | B4 | |
||
| 39 | 387058-00 | 6 | PIN | B4 | |
||
| 40 | 798709-00 | 1 | NUT | B4 | |
||
| 41 | 391486-00 | 1 | SPINDLE SA | B4 | |
||
| 42 | 386690-00 | 6 | BALL | STEEL, 5MM | B4 | |
|
| 43 | 152347-00 | 6 | SPRING | B4 | |
||
| 44 | 395300-00 | 1 | SPRING | B4 | |
||
| 45 | 384917-00 | 1 | CAM | B4 | |
||
| 47 | 799981-00 | 1 | SPRING | B4 | |
||
| 49 | 384919-00 | 1 | RATCHET FIXED | B4 | |
||
| 50 | 391108-03SV | 1 | TRANSMISSION | B4 | |||
| 51 | 391106-12 | 1 | COMBI MODULE | B4 | |
||
| 800 | N017298 | 1 | GREASE | G-2008 Molykote | B4 | |
|
| 861 | 660141-00 | 1 | KITBOX | B4 | |||
| 871 | DE9108-B4 | 1 | XR2T CHARGER | B4 |
