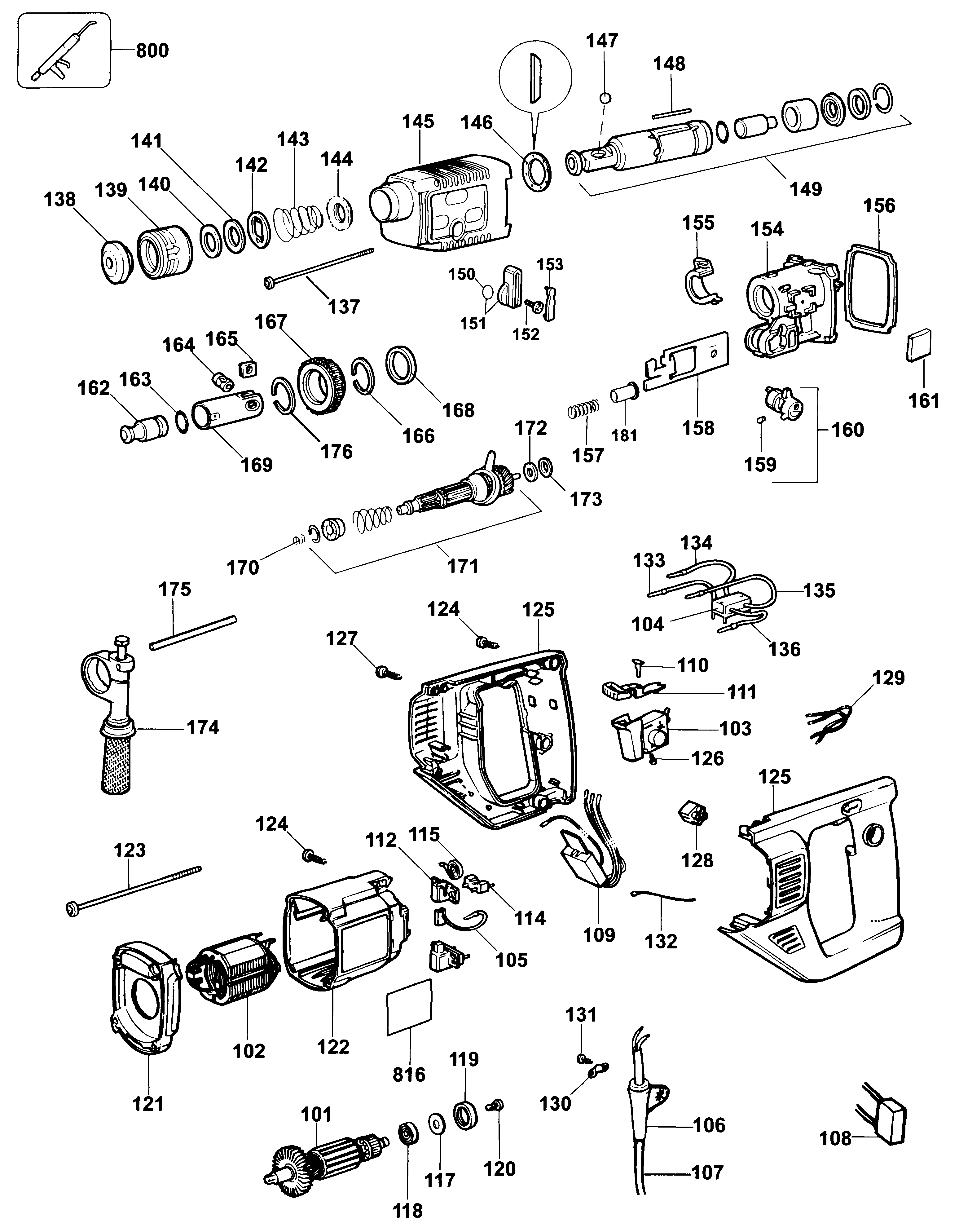

DW557 ROTARY HAMMER Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 377762-04 | 1 | ARMATURE 115V | B4 |  |
||
| 102 | 373874-09 | 1 | FIELD 115V | B4 | |||
| 103 | 324556-49 | 1 | SWITCH | B4 | |
||
| 104 | 324400-00 | 1 | SWITCH REVERSE | B4 | |
||
| 105 | 323660-02 | 2 | BRUSH | B4 | |
||
| 106 | 320785 | 1 | CORD PROTECTOR | B4 | |
||
| 107 | 330064-09 | 1 | CORDSET | B4 | |
||
| 109 | 324552-04 | 1 | ELECTRONIC 115V | B4 | |
||
| 110 | 324165-03 | 1 | INSERT | B4 | |
||
| 111 | 323490-08 | 1 | LEVER | B4 | |
||
| 112 | 323496-01 | 2 | BRUSH HOLDER | B4 | |
||
| 114 | 491366-00 | 2 | BRUSH KIT | B4 | |
||
| 115 | 872843 | 2 | SPRING | B4 | |
||
| 117 | 949876-25 | 1 | WASHER | B4 |  |
||
| 118 | 330003-19 | 1 | BEARING | B4 | |
||
| 119 | 870052 | 1 | SLEEVE | B4 | |
||
| 120 | 329794-00 | 1 | SCREW | B4 | |
||
| 121 | 329826-03 | 1 | BAFFLE | B4 | |
||
| 122 | 324188-05 | 1 | FIELDCASE | B4 | |
||
| 123 | 911250 | 2 | SCREW.TEMP | B4 | |
||
| 124 | 323924-02 | 4 | SCREW | B4 | |
||
| 125 | 324189-05 | 1 | HANDLE SA | B4 | |
||
| 126 | 911026 | 3 | SCREW | B4 | |
||
| 127 | 330065-13 | 2 | SCREW | B4 | |
||
| 128 | 323534-00 | 1 | CONNECTOR | B4 | |||
| 129 | 323635-10 | 2 | LEAD 70MM | B4 | |
||
| 130 | 821070 | 1 | CORD CLAMP | B4 | |
||
| 131 | 323924-08 | 2 | SCREW | B4 | |||
| 132 | 878846 | 1 | LEAD 360MM | B4 | |
||
| 133 | 877358 | 1 | LEAD 220MM | B4 | |
||
| 134 | 877357 | 1 | LEAD 160MM BLACK | B4 | |
||
| 135 | 877357 | 1 | LEAD 160MM BLACK | B4 | |
||
| 136 | 323768-02 | 1 | LEAD 120MM BLACK | B4 | |
||
| 137 | 324044-01 | 4 | SCREW.TEMP | B4 | |
||
| 138 | 323489-00 | 1 | CAP | B4 | |
||
| 139 | 576756-00 | 1 | COLLAR | B4 | |
||
| 140 | 323480-00 | 1 | SPACER | B4 | |
||
| 141 | 323492-00 | 1 | WASHER | B4 | |
||
| 142 | 578387-00 | 1 | WASHER | B4 | |
||
| 143 | 871690 | 1 | SPRING | B4 | |
||
| 144 | 324432-00 | 1 | SEAL SA | B4 | |
||
| 145 | 329968-03 | 1 | GEARCASE SA | B4 | |
||
| 146 | 329907-00 | 1 | WASHER | B4 | |
||
| 147 | 583890-00 | 1 | BALL | B4 | |
||
| 148 | 325880-03 | 1 | PIN | B4 | |
||
| 149 | 577080-01 | 1 | SPINDLE SA | B4 | |
||
| 150 | 916323 | 1 | O RING | B4 | |
||
| 151 | 327104-00 | 1 | LEVER | B4 | |
||
| 152 | 323924-08 | 1 | SCREW | B4 | |||
| 153 | 327092-00 | 1 | COVER | B4 | |
||
| 154 | 327100-00 | 1 | CASTING SA | B4 | |
||
| 155 | 328507-00 | 1 | SHIELD | B4 | |
||
| 156 | 323572-00 | 1 | SEAL | B4 | |
||
| 157 | 323395-17 | 1 | SPRING | B4 | |
||
| 158 | 487047-49 | 1 | REPAIR KIT | B4 | |
||
| 159 | 326467-00 | 1 | DETENT | B4 | |
||
| 160 | 487047-49 | 1 | REPAIR KIT | B4 | |
||
| 161 | 327093-00 | 1 | FILTER | B4 | |
||
| 162 | 327070-00 | 1 | RAM | B4 | |
||
| 163 | 323711-25 | 1 | O RING | B4 | |
||
| 164 | 487143-00 | 1 | AXLE | B4 | |||
| 165 | 327072-00 | 1 | SHIM | B4 | |
||
| 166 | 323762-02 | 2 | CIRCLIP | B4 | |
||
| 167 | 487401-01 | 1 | CLUTCH SA | B4 | |
||
| 168 | 327074-00 | 1 | RING | B4 | |
||
| 169 | 327071-00 | 1 | PISTON | B4 | |
||
| 170 | 323395-33 | 1 | SPRING | B4 | |
||
| 171 | 327101-01 | 1 | INTERSHAFT SA | B4 | |
||
| 172 | 324430-03 | 1 | BEARING AXIAL | B4 | |
||
| 173 | 324431-03 | 1 | WASHER 7 | B4 | |
||
| 174 | 939794-02 | 1 | HANDLE SIDE SA | B4 | |
||
| 175 | 580787-00 | 1 | DEPTH STOP | B4 | |
||
| 176 | 323762-08 | 1 | CIRCLIP | B4 | |
||
| 181 | 329211-00 | 1 | SLEEVE | B4 | |
||
| 800 | 870889-02 | 1 | GREASE | B4 | |
||
| 816 | 578775-00 | 1 | BRAND LABEL | B4 | |
